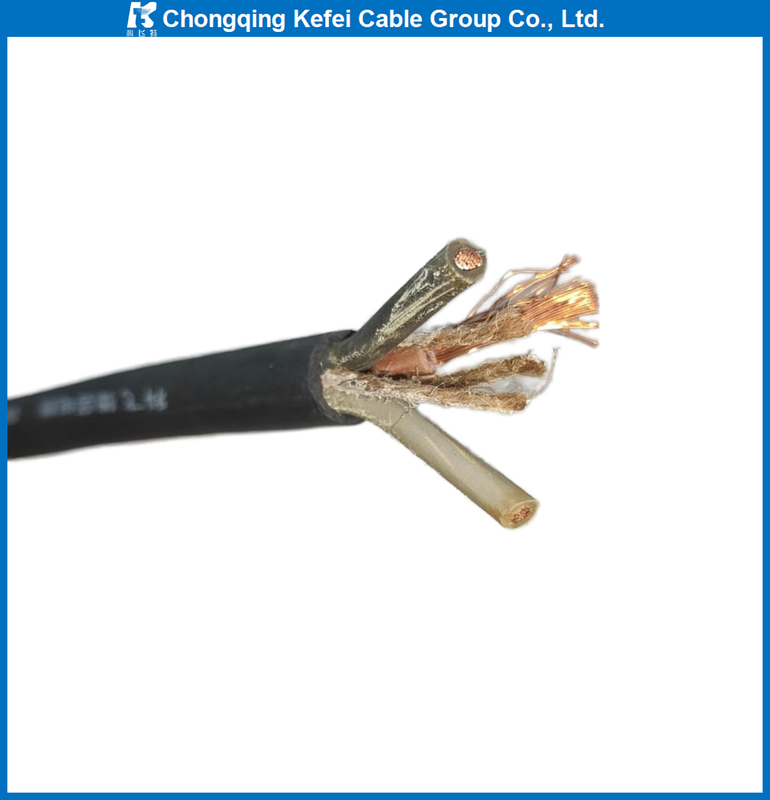

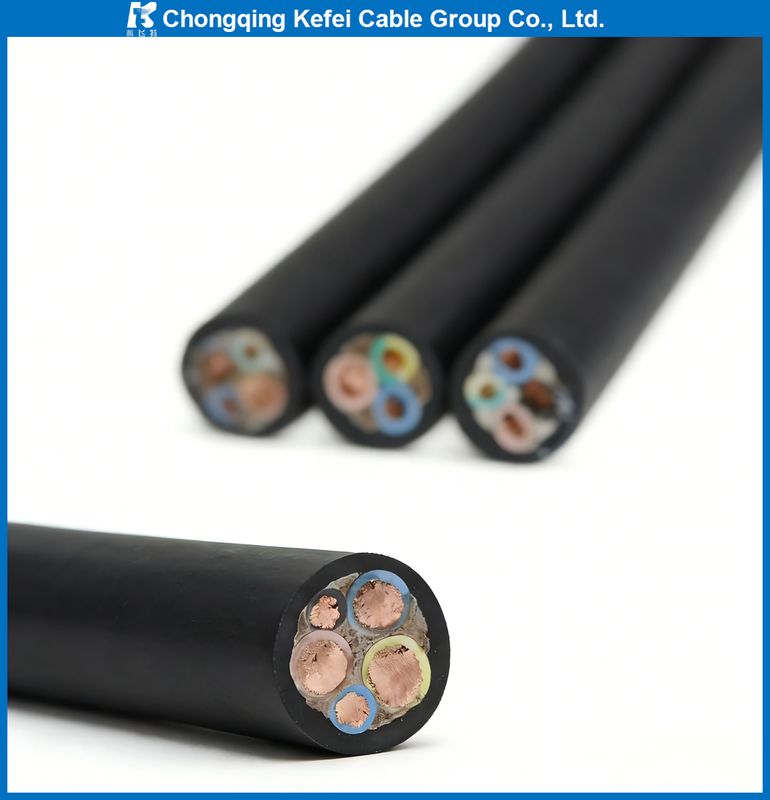

Low Voltage Copper Conductor Rubber Sheathed Flexible Cable For Mobile Equipment
450/750V H07RN-F EPR Insulated Flexible Rubber Movable CPE Sheath Power Cable for Mobile Equipment
This heavy-duty general-purpose rubber-sheathed cable features excellent wear and oil resistance, corrosion resistance, flexibility and mobility. Designed to withstand significant mechanical external forces, it offers superior electrical insulation and chemical stability. The conductor's long-term allowable working temperature does not exceed 65°C, with some types featuring flame-retardant properties.
Product Quick Details
- Conductor: Stranded Copper Core
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: Rubber
- Configuration: Single Core, 2 cores, 3 cores, 4 cores, 5 cores and more
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Movable, Flexible, oil resistance, small bending radius
Application
These cables provide high flexibility and withstand weather, oil/grease, mechanical and thermal stresses. Ideal for:
- Handling equipment
- Mobile power supplies
- Worksites and construction areas
- Stage and audio visual equipment
- Port areas and dams
- Drainage and water treatment systems
- Cold environments
- Severe industrial environments
Characteristics
- Voltage Rating U/Uo: 450/750V
- Temperature Rating:
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
- Minimum Bending Radius:
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
Specification
| Product Name |
H07RN-F Rubber cable |
| Conductor Material |
Annealed copper conductor |
| Insulation Material |
EPR |
| Jacket |
General Rubber Sheath |
| Color |
Black |
| Feature |
Inflaming retarding, soft and tensile resistance |
Company Profile
Chongqing Kefei Cable Group Co., Ltd. specializes in R&D and production of rubber cable for 40 years. As a large enterprise focused on cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements.
Our products are globally distributed, widely used in coal mines, power stations, transportation and other fields. We are recognized for excellent quality and superior after-sales service by domestic and international customers.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
We provide professional, environmentally friendly, convenient and efficient packaging services to ensure the safety of your goods during transportation.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
