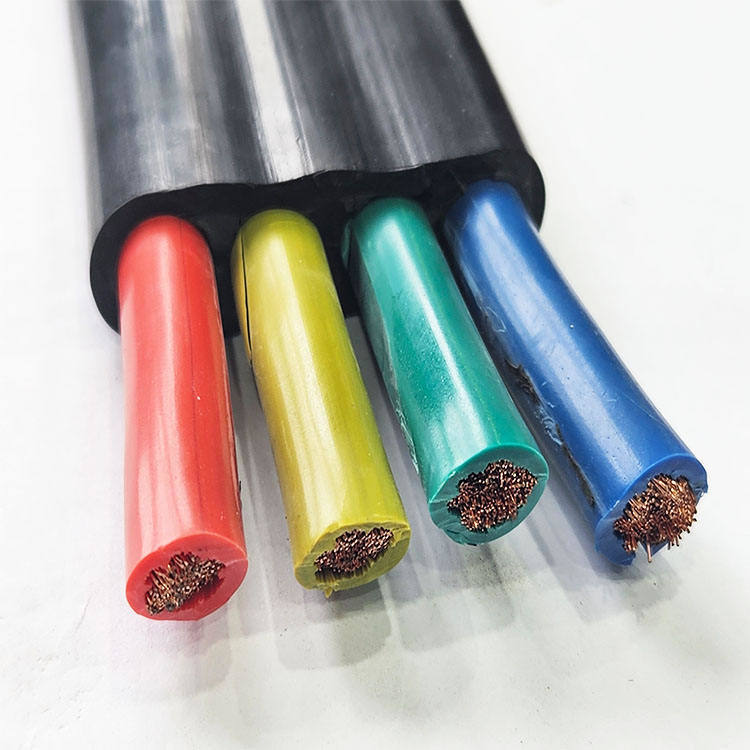

H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable

  • H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable
Place of Origin Chongqing, China
Brand Name Ke Fei Te
Model Number JHSB
Minimum Order Quantity 500 meters
Price $0.86-8/meters

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Temperature 70°C Rated Voltage 450 V
Rated Current 16A Insulation Material Rubber
Type LOW VOLTAGE Application Lifts, Large Cranes, Submersible Pump, Mobile Device
Conductor Material Copper Jacket Rubber
Size Customized Product Name Flat Rubber Cable
Shape Flat Feature Waterproof, Tensile Resistance , Soft,flexible
Conductor Bare Copper Insulation Rubber Insulation
Sheath Rubber Sheath Usage Industrial,elevator
Rated Voltage 450/750V Standard IEC,CCC,ISO
Highlight

H07rn-F Flat Rubber Cable

,

4*50 Flat Submersible Pump Cable

,

H05rn-F Flat Rubber Cable
Leave a Message
Product Description
Product Description
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 0
Flat Waterproof Submersible Pump Rubber Sheathed Cable
Flat Submersible pump Waterproof Rubber Sheathed cable is suitable for various types of submersible motor leads (from underwater leads to surface leads).
This product can be equipped with a waterproof connector (which can be fully provided as required). The feature of the lead wire is that it is convenient to use and has good waterproof performance. Even if there is external damage, it can ensure that the motor is not damaged by water.
This is a new type of waterproof cable.

H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 1

Material of Flat Rubber Sheathed Submersible Water Pump Cable

1. Conductor : Class 5 flexible copper conductor ;
2. Insulation : Nitrile rubber(NBR Rubber) ;
3. Sheath : Nitrile rubber(NBR Rubber) ;
4. Voltage:450/750V
5. Cores : 1 2 3 4 5 Cores or Others .
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 2

Feature of Flat Rubber Sheathed Submersible Water Pump Cable

1. Temperature Rating : conductor operation temperature -40°C to +60°C(90°C max) ;
2. Waterproof and Flexible；
3. The cable adopts a flat shape. When used in water, it can reduce water pressure, has better load-bearing capacity, is more tensile and less prone to damage.
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 3
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 4
Product Name
Flat Rubber Cable
Brand
Ke Fei Te
Model
YFFB
Conductor Material
Copper
Insulation Material
Rubber
Jacket
Rubber
Color
Black/Red
Shape
Flat
Feature
Soft,waterproof, tensile resistance
Company Profile
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 5
Chongqing Kefei Cable Group Co., Ltd.
Chongqing Kefei Cable Group Co., Ltd.,focus on R & D and production of rubber cable for 40 years,it is a large enterprise specializing in the production of cables.Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.
Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.
Our Advantages
1:Advanced Technology 2:High Quality Design 3:Perfect Testing Equipment 4:Strict Quality Control 5:Mature Process Flow
Production Equipment
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 6
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 7
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 8
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 9
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 10
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 11
Exhibition
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 12
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 13
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 14
Certifications
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 15
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 16
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 17
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 18
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 19
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 20
Packing & Delivery
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 21
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 22
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 23
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 24
H05rn-F H07rn-F Flat Rubber Cable 3*25 3*50 4*16 4*25 4*50 Flat Submersible Pump Cable 25
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
CLICK HERE TO RETURN TO THE HOMEPAGE
FAQ
Q:Are you a manufacturer or a trading company?
A:We are a production manufacturer,We only produce the best quality, and you can rest assured of the quality.

Q:Can you produce and manufacture products according to customer requirements?
A:Yes, we can customize the product according to your requirements.

Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
