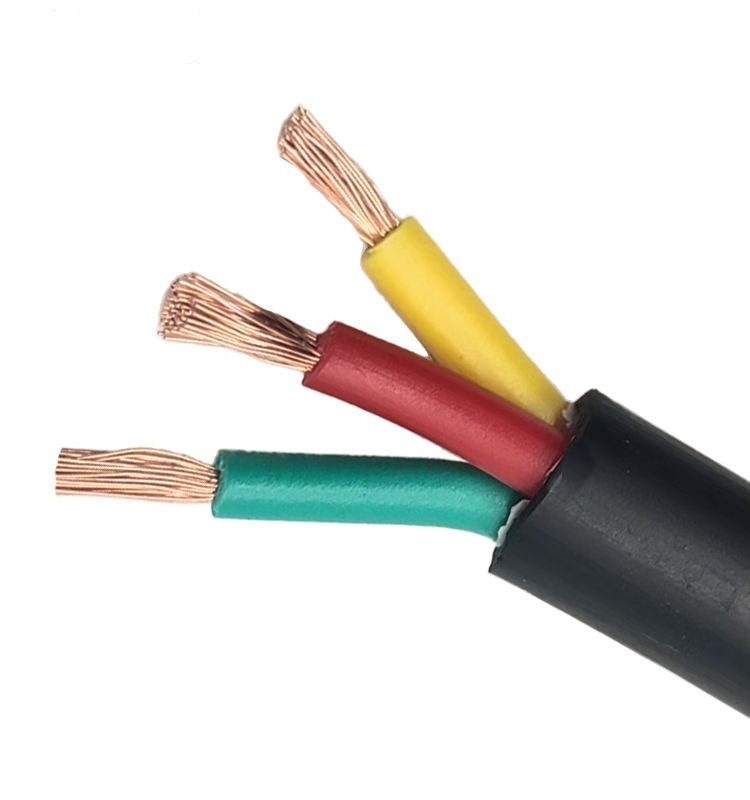

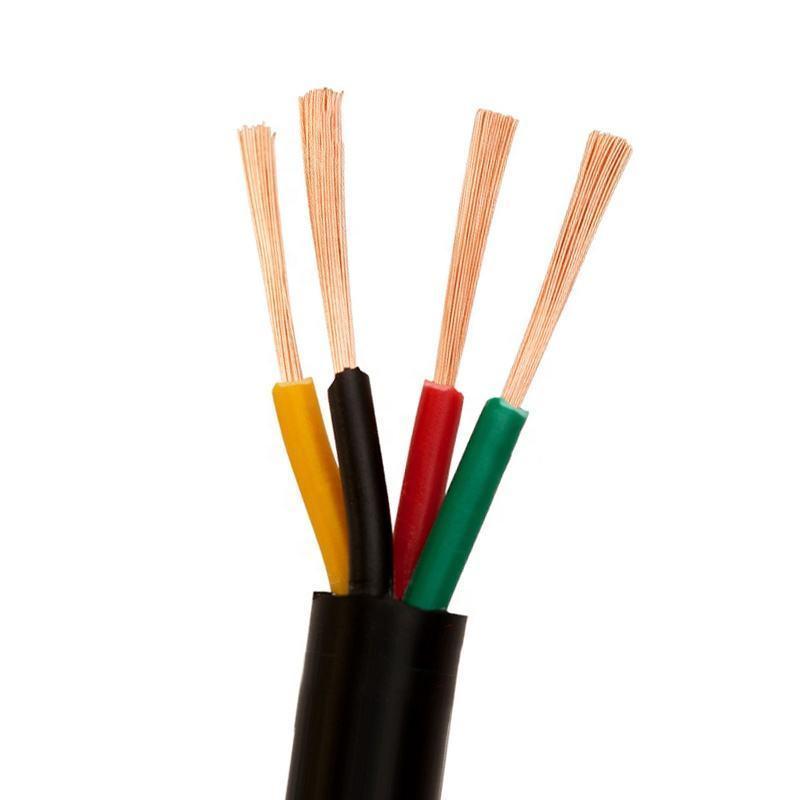

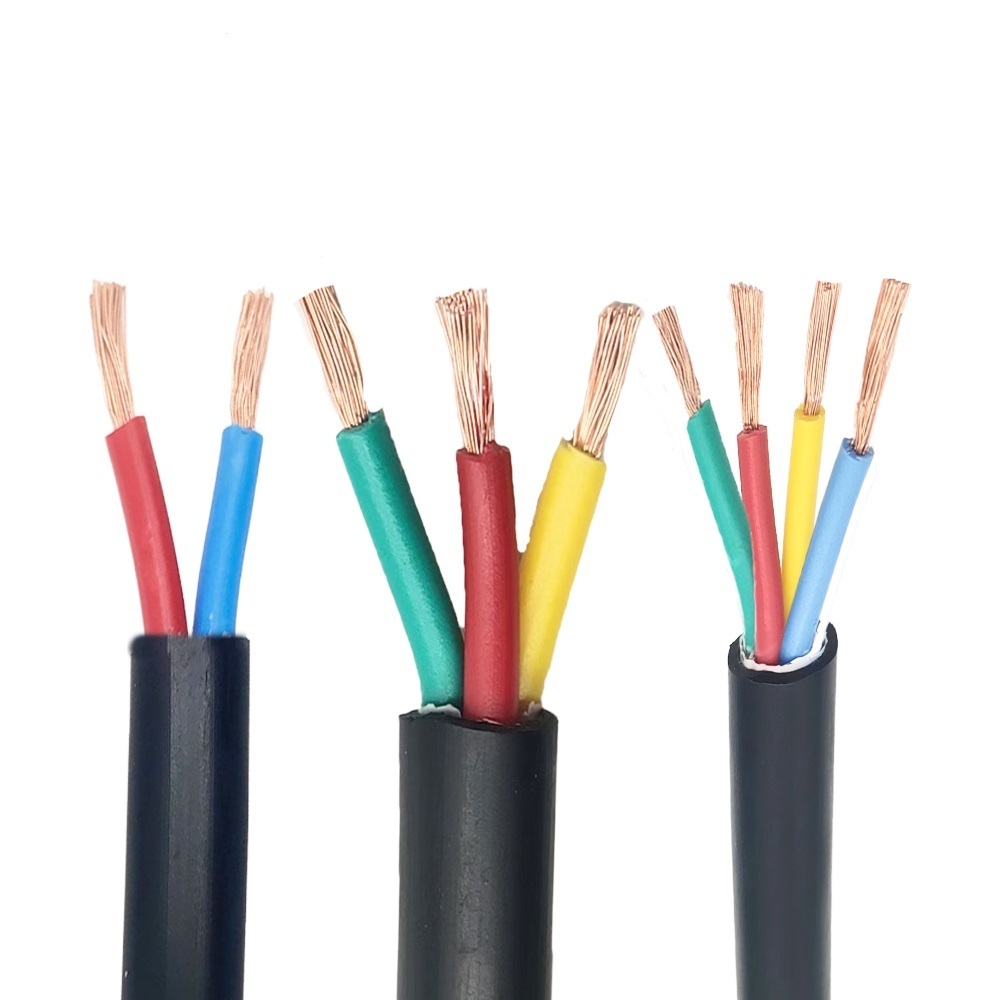

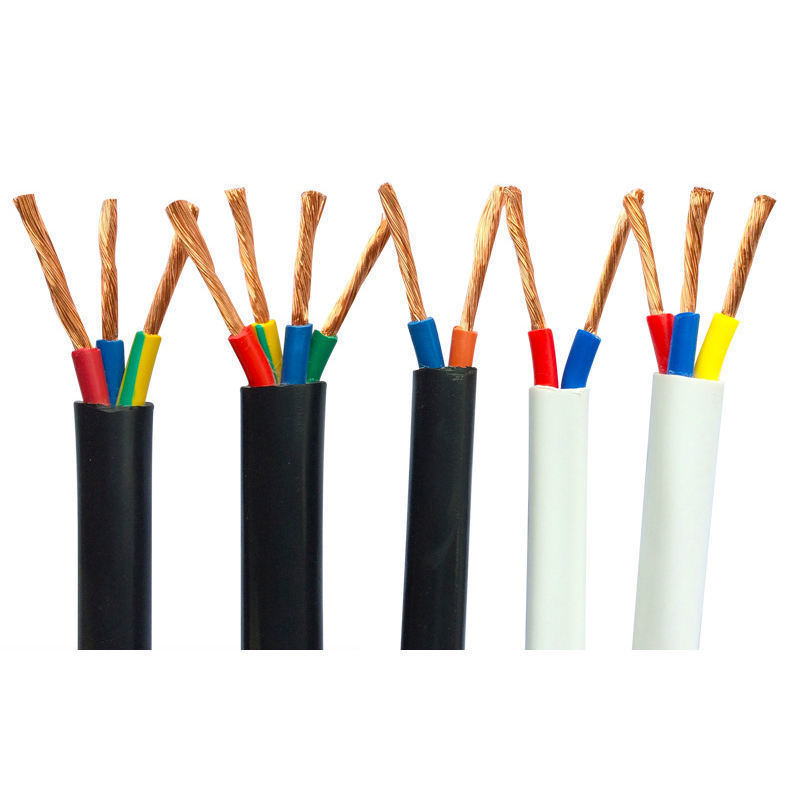

300/500V PVC Sheathed Power Cable 0.3-10mm2 Flexible RVV Wire
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 300 V |
|---|---|---|---|
| Rated Current | Conductor Area Dependent | Insulation Material | PVC |
| Type | LOW VOLTAGE | Application | Home Appliance, Instruments And Apparatus |
| Conductor Material | Copper | Jacket | PVC |
| Size | 0.3~10mm² | Product Name | Electrical Power Cable |
| Conductor | Bare Copper | Insulation | PVC Insulation Cable |
| Rated Voltage | 300/500V | Sheath | PVC Shealth |
| Standard | CCC,IEC | Core | 2/3/4/5/6/7/8/9/10 Cores And So On |
| Cross Section | 0.3mm,0.5mm,0.75mm,1mm,1.5mm,2.5mm,4mm,6mm,10mm | ||
| Highlight | 500V PVC Sheathed Power Cable,10mm2 Flexible RVV Wire,10mm2 PVC Sheathed Power Cable |
||
Product Description
Home Appliances & Instruments Low Voltage PVC Sheathed Flexible Power Copper Cable
300V/500V Flame Retardant Multi Core Stranded Copper Conductor Flexible Power Cable. Multi Core PVC Sheathed Stranded Copper Power Cable 0.3mm-10mm 300/500V Flexible Household Widely Use Electric Wire H05VV-F RVV Power Cable.
Product Quick Details
- Copper Conductor: Purity of over 99.95% oxygen free pure copper
- Insulation: High quality PVC insulation layer
- Filler: Fill with tensile ropes
- Sheath: High-quality and environmentally friendly PVC sheath, with excellent wear and oil resistance, small bending radius and easy operation and use
Product Features
- Excellent flexibility: Multiple strands of fine copper wires provide superior bendability for frequent movement applications
- Durable protection: PVC insulation and sheath offer wear resistance, weather resistance, and environmental protection
- Superior conductivity: High-purity copper conductor ensures efficient power transmission
- Versatile application: This type of wire is used flexibly in harsh conditions, such as automobiles and ships, conveyors, robots, etc,and has high strength and good flexibility, suitable for dry and wet environment and outdoor installation.
Product Specifications
| Conductor | Pure Stranded Copper |
|---|---|
| Sheath | PVC |
| Insulation | PVC |
| Voltage Rating | 300/500V |
| Available Cores | 2/3/4/5/6/7/8/9/10 Core and more |
| Cross Section | 0.3mm to 10mm |
| Features | Flexible, Wear-resistant, Compression-resistant, Flame Retardant, Movable |
|
|
|
Technical Specifications
| Product Name | PVC Sheathed Electric Cable Wire |
|---|---|
| Brand | Ke Fei Te |
| Model | RVVP |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket | PVC |
| Available Colors | Black, Grey (custom colors available) |
| Shape | Round wire |
| Features | Wear resistance, tensile resistance, aging resistance |
Applications
Ideal for power lines, control lines, and signal transmission in electrical, instrumentation, and electronic equipment. Commonly used in:
- Connection of electrical equipment: Power connection or internal wiring of household appliances (air conditioners, refrigerators, washing machines), small electric tools, instruments and meters
- Lighting system: Connection between lamps and switches, power supplies, especially for flexible wiring requirements
- Weak current system: Signal transmission line for security monitoring, building intercom, and network wiring
- Temporary wiring: Temporary power supply lines or equipment connection lines due to excellent flexibility
About CHONGQING KEFEI CABLE GROUP CO., LTD.
With 40 years of expertise in cable R&D and production, we are a leading manufacturer specializing in various electrical cables. Our product range includes mining cables, rubber sheath cable series, shield machine special high voltage cables, and custom flexible cables. Our products are globally recognized for quality and reliability in industries including coal mining, power generation, and transportation.
Our Advantages
- Advanced manufacturing technology
- High-quality materials and design
- Comprehensive testing equipment
- Strict quality control processes
- Custom cable solutions available
Production Facilities
Certifications
Packaging & Delivery
We provide professional, environmentally friendly packaging solutions to ensure product safety during transportation. Custom packaging options available upon request.
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a direct manufacturer with complete production capabilities, ensuring consistent quality control.
Q: Can you produce custom cables according to our requirements?
A: Yes, we specialize in custom cable solutions tailored to your specific technical requirements.
Q: How do you guarantee product quality?
A: Our quality assurance process includes pre-production samples, in-process inspections, and final quality checks before shipment.
