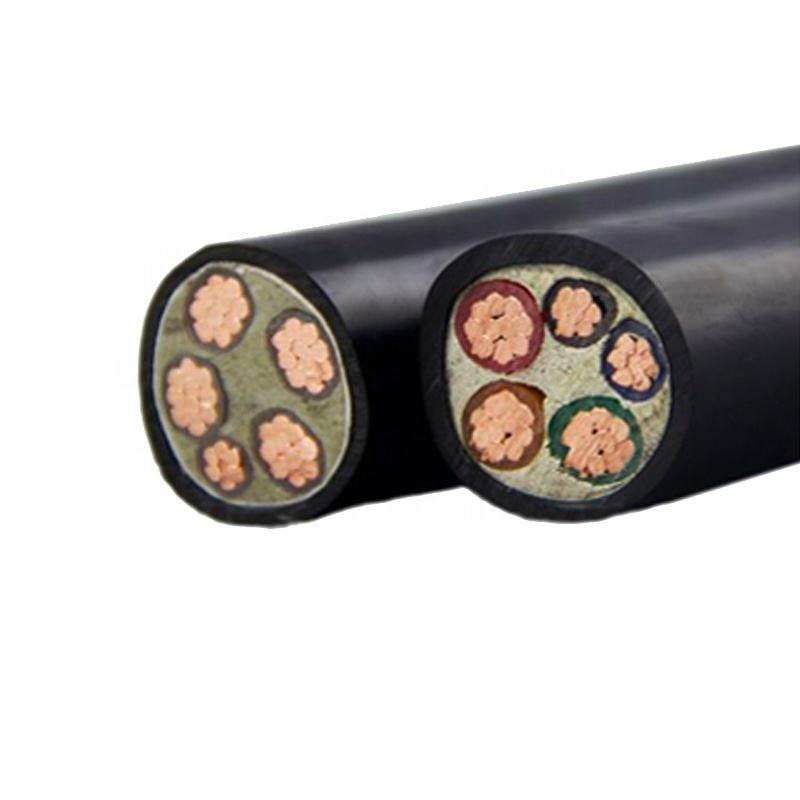

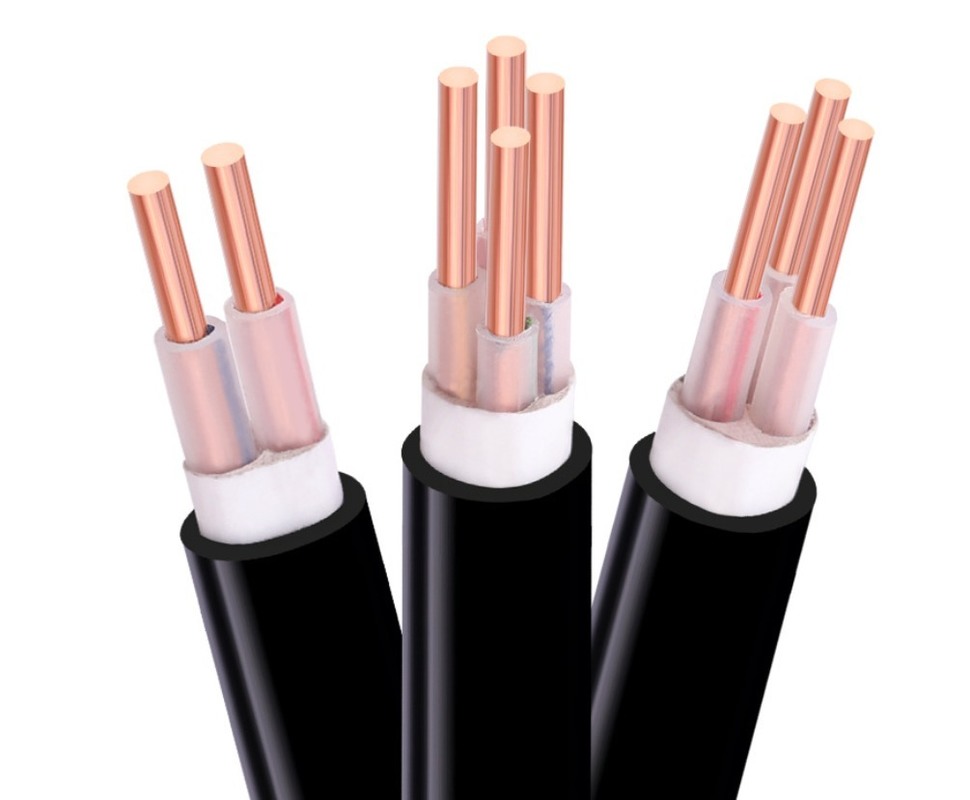

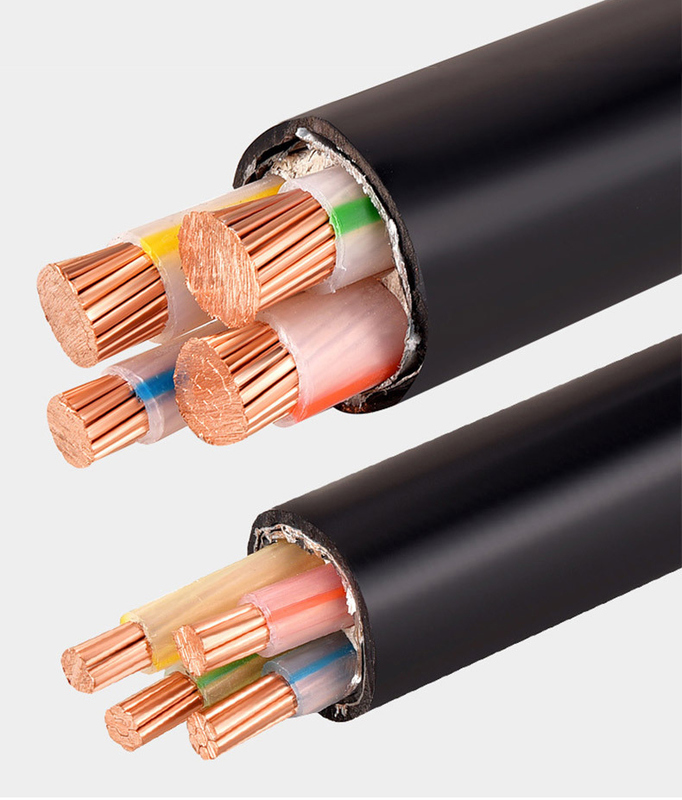

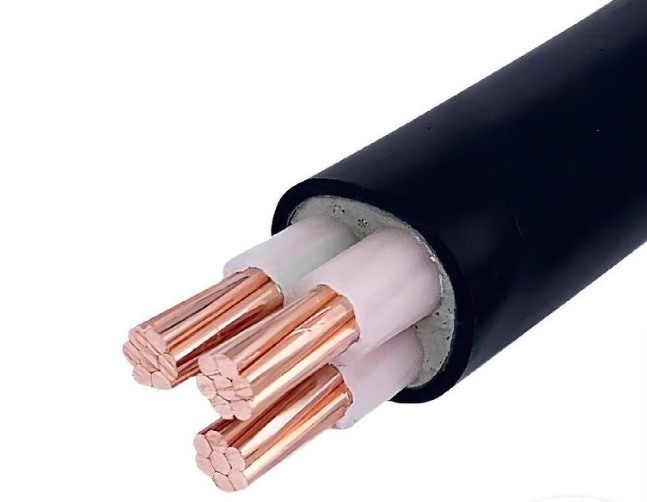

XLPE Insulated Low Voltage Electrical Cable 0.6kV Underground Low Voltage Wire
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 0.6 KV |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Xlpe |
| Type | LOW VOLTAGE | Application | Power Distribution, Construction, Industrial, Underground |
| Conductor Material | Copper | Jacket | PVC |
| Size | Customized, 2.5/4/6/10/16/25/35mm | Product Name | Xlpe Insulated Low Voltage Power Cable |
| Shape | Round Wire | Feature | Explosion-proof, Flame Retardant, Good Heat Resistance |
| Conductor | 99.9% Pure Copper | Rated Voltage | 0.6/1 KV |
| Insulation | XLPE Insulation | Sheath | PVC Shealth |
| Core | 1/2/3/4/3+1/5/3+2/4+1 | ||
| Highlight | XLPE Insulated Low Voltage Electrical Cable,0.6kV Underground Low Voltage Wire,XLPE Underground Low Voltage Wire |
||
Product Description
0.6/1KV PVC Sheath Low Voltage Durable Low Smoke XLPE Insulated 3Cores 4Cores Solid Copper Power Cable
Product Overview
XLPE Insulation PVC Sheath Copper Conductor Power Cable designed for construction applications with excellent durability and performance characteristics.
Key Features
- XLPE insulation with PVC sheath for superior protection
- Solid bare copper conductor for excellent conductivity
- Small bending radius and high durability
- Suitable for both indoor and outdoor installations
- Can be installed in cable ducts, trenches, or directly buried
Technical Specifications
- Conductor: Pure Solid Copper Core
- Insulation: XLPE
- Sheath: PVC
- Cores: Single core, 2/3/4/5/6 Cores
- Voltage: 0.6/1KV
- Temperature Rating: -30°C to +70°C (90℃ max)
Applications
These cables are ideal for direct burial or installation on trays/ducts, resistant to various construction environments including wear, acid/alkali, cold, sunlight, and aging. The solid copper core provides strong oxidation resistance, energy efficiency, voltage stability, and long service life.
Product Specifications
| Product Name | Flexible XLPE Insulation Low Voltage Power Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YJV/YJV22 |
| Conductor Material | Copper conductor |
| Insulation Material | XLPE |
| Jacket | PVC |
| Color | Black |
| Shape | Round |
| Feature | Wear-resistant, acid/alkali-resistant, cold sunscreen, anti-aging |
About Chongqing Kefei Cable Group Co., Ltd.
Chongqing Kefei Cable Group Co., Ltd. has focused on R&D and production of rubber cable for 40 years, specializing in various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cable series.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Certifications
Packing & Delivery
Professional, environmentally friendly, convenient and efficient packaging services to ensure the safety of your goods.
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer, producing only the best quality products.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
