Solid Copper / AL Core Low Smoke XLPE Power Cable Underground Power Cable
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 0.6 KV |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Xlpe |
| Type | LOW VOLTAGE | Application | Power Distribution, Construction, Industrial, Underground |
| Conductor Material | Copper | Jacket | PVC |
| Size | Customized, 2.5/4/6/10/16/25/35mm | Product Name | Xlpe Insulated Low Voltage Power Cable |
| Shape | Round Wire | Feature | Explosion-proof, Flame Retardant, Good Heat Resistance |
| Conductor | 99.9% Pure Copper | Rated Voltage | 0.6/1 KV |
| Insulation | XLPE Insulation | Sheath | PVC Shealth |
| Core | 1/2/3/4/3+1/5/3+2/4+1 | ||
| Highlight | Low Smoke XLPE Power Cable,AL Core XLPE Power Cable,Solid Copper Underground Power Cable |
||
Product Description

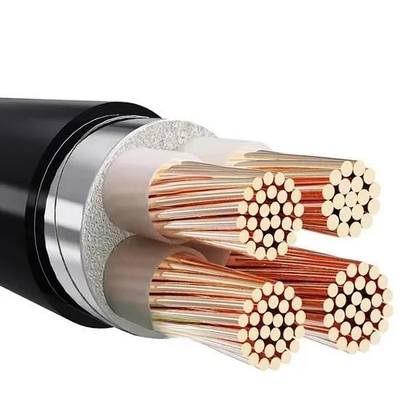

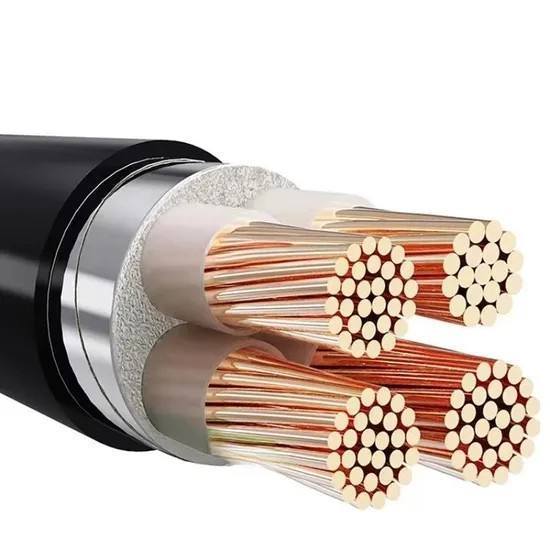

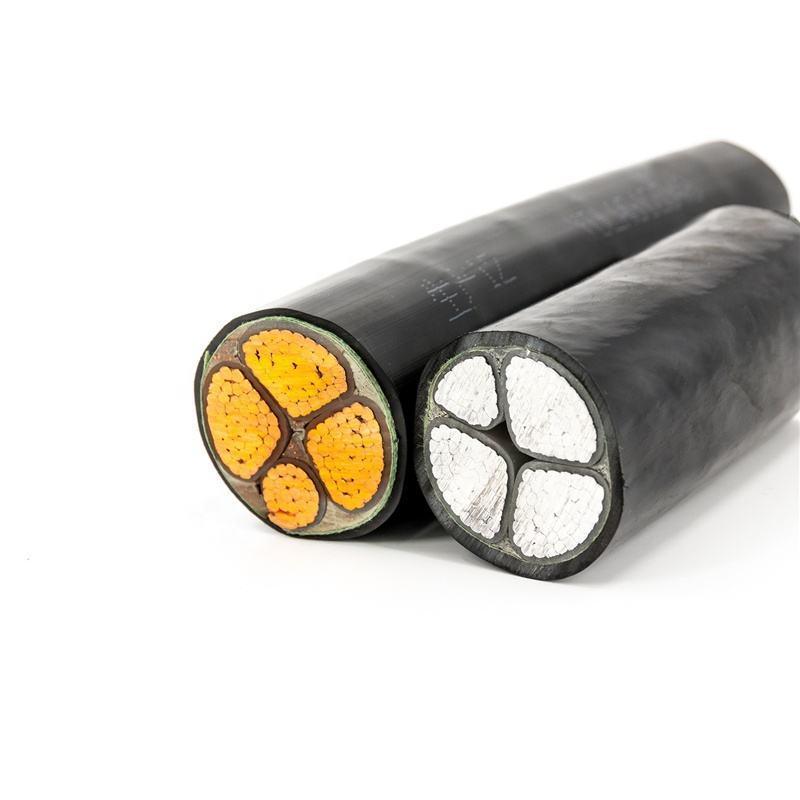

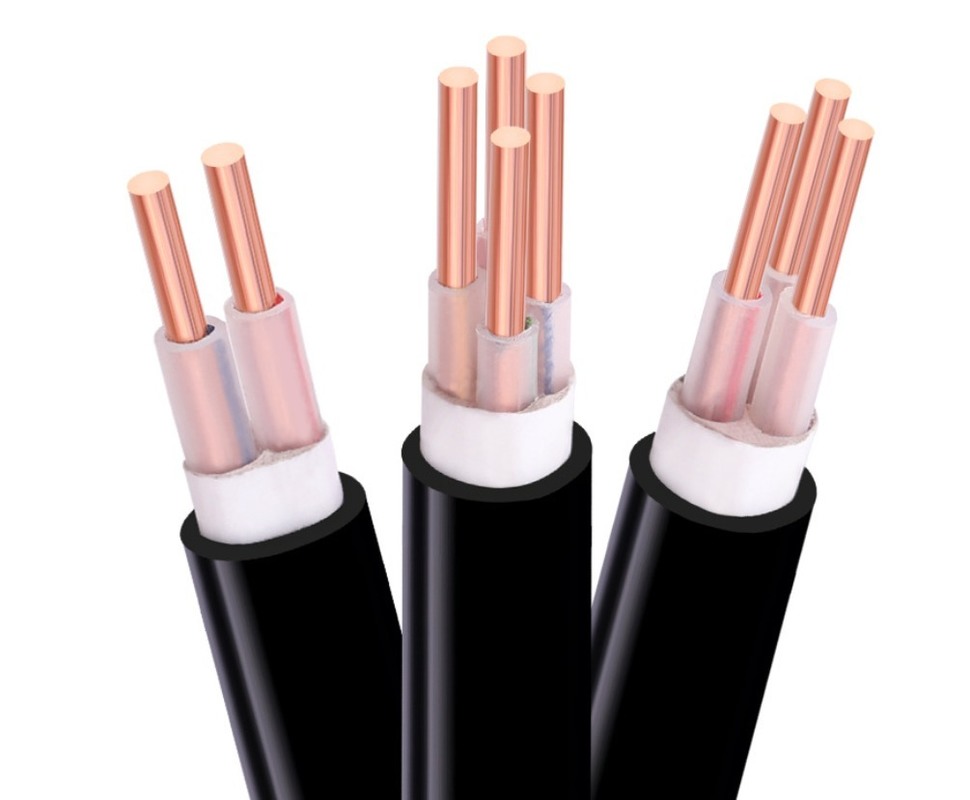

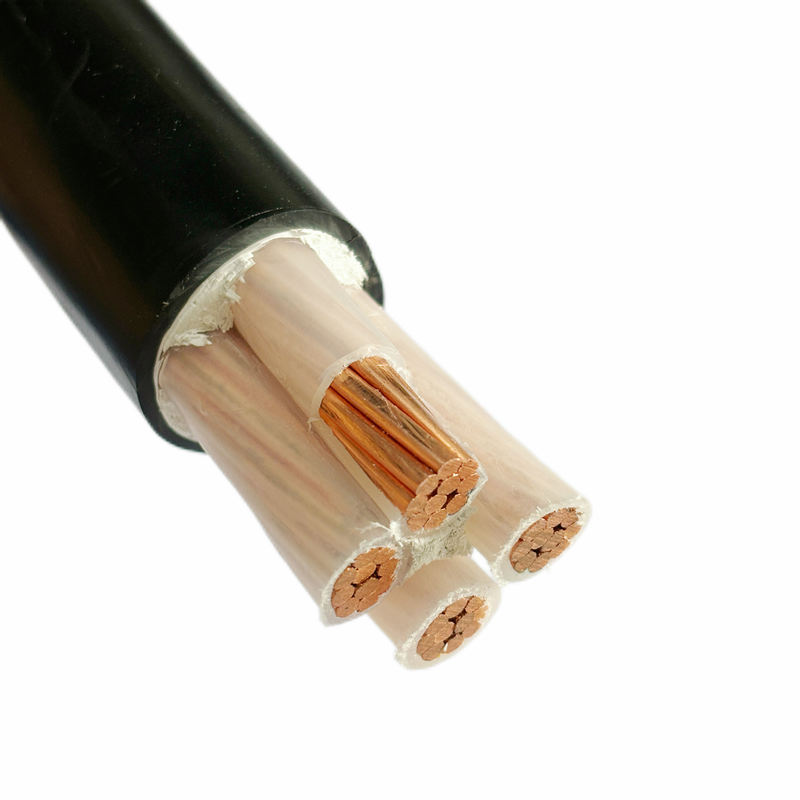

Long Service Life Solid Copper Core XLPE Insulation PVC Sheath 0.6KV Low Smoke 70℃ Underground Use Power Cable Wire
0.6/1KV XLPE Insulated Durable Underground Low Voltage Solid Copper Power Cable Wire designed for construction applications with excellent durability and performance characteristics.
Product Quick Details
- Conductor: Using a hard copper core conductor, the resistivity is lower, the mechanical strength is higher, and the ability to resist external force damage is stronger.
- Insulation: XLPE (Cross Linked Polyethylene)
- Sheath: PVC (polyvinyl chloride)
- Rated Voltage: 0.6/1kV
- Cable Features: Durable, Low smoke, Explosion-proof, Long service life,Good Conductivity,Tesile Resistance
- Usage Scenario: Suitable for short-distance, low-power power transmission, mainly used for power supply of terminal electrical equipment
Key Features
- XLPE insulation with PVC sheath for superior protection
- High insulation resistance reduces power loss and enhances transmission stability
- Solid bare copper conductor for excellent conductivity
- Small bending radius and high durability with long service life
- Suitable for both indoor and outdoor installations
- Can be installed in cable ducts, trenches, or directly buried
- Simple structure with no special laying requirements, suitable for various environments
|
|
|
Technical Specifications
- Conductor: Pure Solid Copper Core
- Insulation: XLPE
- Sheath: PVC
- Cores: Single core, 2/3/4/5/6 Cores
- Voltage: 0.6/1KV
- Temperature Rating: -30°C to +70°C (90℃ max)
Applications
These cables are ideal for direct burial or installation on trays/ducts, resistant to various construction environments including wear, acid/alkali, cold, sunlight, and aging. The solid copper core provides strong oxidation resistance, energy efficiency, voltage stability, and long service life.
Product Specifications
| Product Name | Flexible XLPE Insulation Low Voltage Power Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YJV/YJV22 |
| Conductor Material | Copper conductor |
| Insulation Material | XLPE |
| Jacket | PVC |
| Color | Black |
| Shape | Round |
| Feature | Wear-resistant, acid/alkali-resistant, cold sunscreen, anti-aging |
About Chongqing Kefei Cable Group Co., Ltd.
Chongqing Kefei Cable Group Co., Ltd. has focused on R&D and production of rubber cable for 40 years, specializing in various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cable series.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Certifications
Packing & Delivery
Professional, environmentally friendly, convenient and efficient packaging services to ensure the safety of your goods.
Frequently Asked Questions
How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Are you a manufacturer or a trading company?
We are a production manufacturer, producing only the best quality products.
Can you produce and manufacture products according to customer requirements?
Yes, we can customize the product according to your requirements.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
