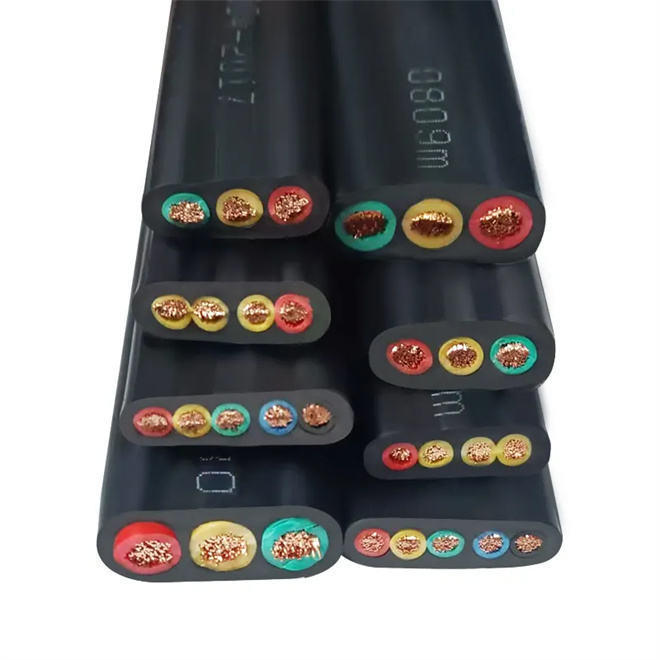

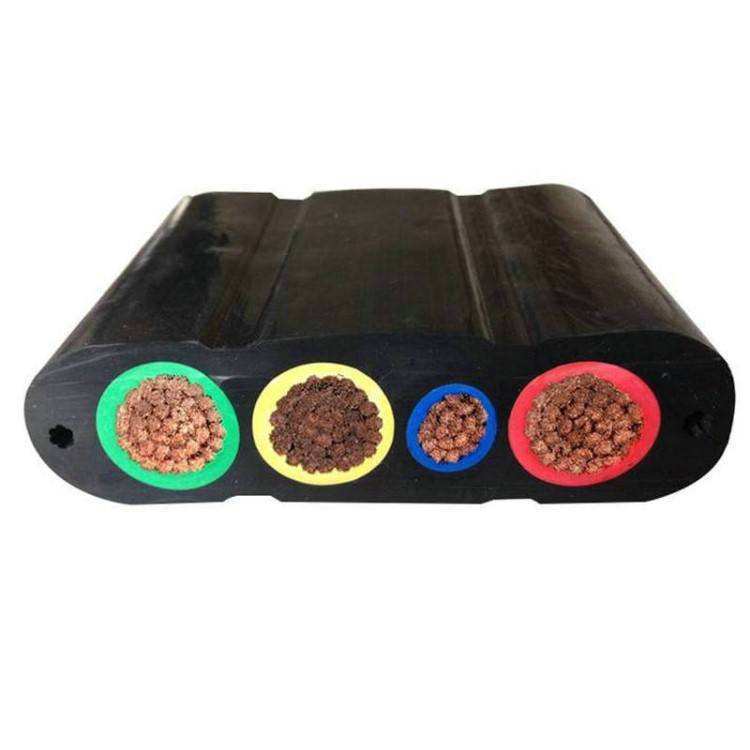

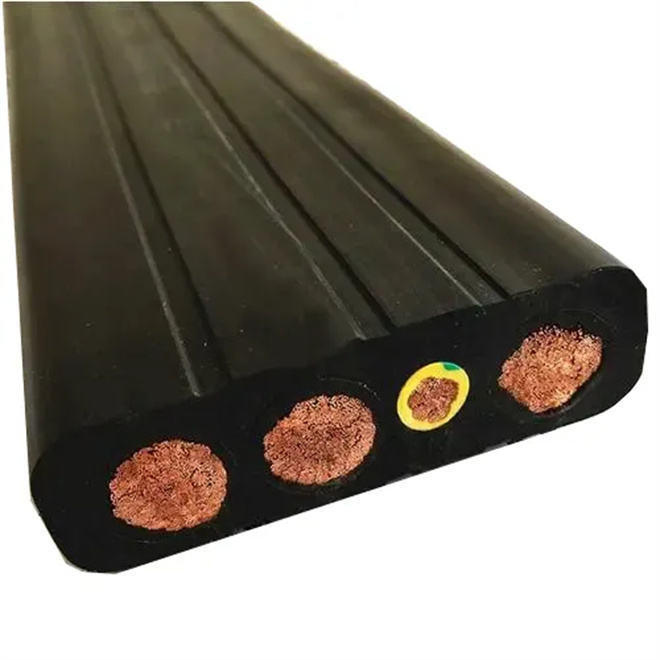

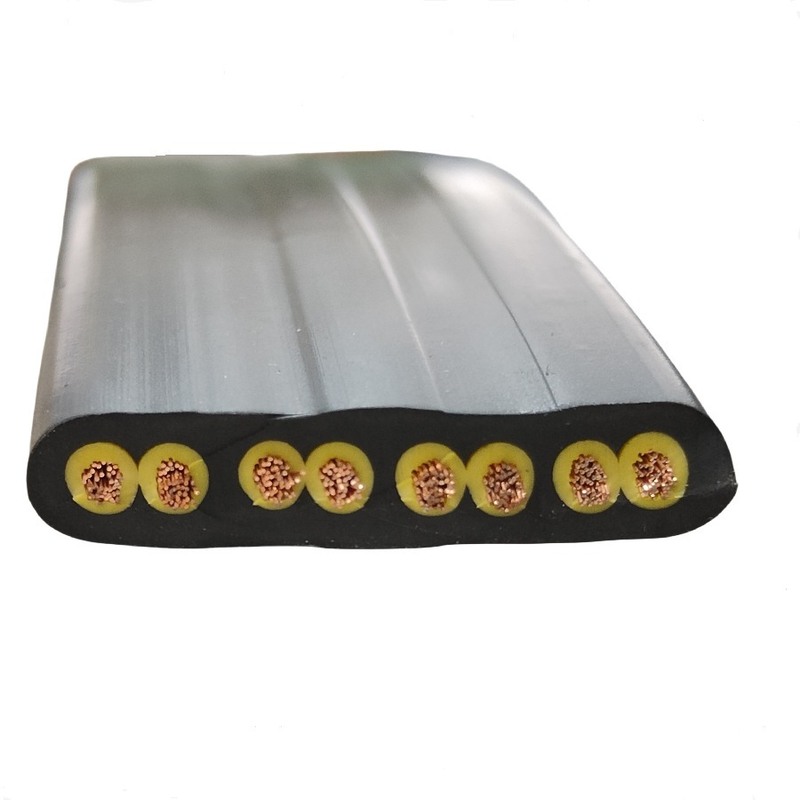

450V EPR Rubber Cable Flat Rubber Electrical Cable For Automated Production Lines

Place of Origin	Chongqing, China
Brand Name	Ke Fei Te
Certification	ISO
Model Number	JHSB/YFFB
Minimum Order Quantity	500 meters
Price	$0.86-8/meters
Packaging Details	Wooden drum，wooden pallet，woven bag
Delivery Time	5-12DAYS
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Working Temperature	70°C	Rated Voltage	450 V
Rated Current	16A	Insulation Material	Rubber
Type	LOW VOLTAGE	Application	Lifts, Large Cranes, Submersible Pump, Mobile Device
Conductor Material	Copper	Jacket	Rubber
Size	Customized	Product Name	Flat Rubber Cable
Shape	Flat	Feature	Waterproof, Tensile Resistance , Soft,flexible
Conductor	Bare Copper	Insulation	Rubber Insulation
Sheath	Rubber Sheath	Usage	Industrial,elevator
Rated Voltage	450/750V	Standard	IEC,CCC,ISO
Highlight	450V EPR Rubber Cable , 450V Rubber Electrical Cable , Automated Production Lines Rubber Cable

Leave a Message

Product Description

Flat Rubber Cable for Versatile and Resilient Electrical Solutions

450/750V Rubber Sheath EPR Insulation High Flexible 1mm-150mm 3/4/5/6/7/8 Cores Flat Cable for Industrial and Lifting Machinery applications.

Product Quick Details

Conductor: Stranded Pure Copper Conductor, flexible and easy to bend
Sheath: Rubber with wear resistance, aging resistance, cold resistance, weather resistance and tear resistance
Insulation: EPR with excellent electrical insulation properties, oil resistance and low-temperature resistance
Voltage: 450/750V(Low Voltage)
Shape: Flat shape,higher space utilization, suitable for narrow / regular wiring scenarios,has better bending performance, suitable for frequent movement / dynamic scenarios
No. of Cores: 3Cores, 4Cores, 5Cores, 6Cores and more
Cross Section: 1mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm and more
Usage Scenario: Ideal for industries, lifting/transportation, mobile equipment, and special environments like ships and mines

Applications

The flat rubber cable features pure copper stranded conductors, EPR insulation and rubber sheath with oil resistance, wear resistance and flexibility. Perfect for applications requiring frequent movement, bending and high environmental adaptability.

Industrial field: Power and signal connections for automated production lines and CNC machines
Lifting and transportation: Gantry cranes, hoists, belt conveyors
Mobile equipment: Electric tools, stage lighting and sound systems
Outdoor projects: Construction sites and municipal projects
Special environments: Ships, mines with vibration, humidity and fire prevention requirements

Product Specifications

Product Name	Flat Rubber Cable
Brand	Ke Fei Te
Model	YFFB
Conductor Material	Copper
Insulation Material	Rubber
Jacket	Rubber
Color	Black/Red
Shape	Flat
Feature	Soft, waterproof, tensile resistance, flexible, movable, wear-resistance, small bending radius

Company Profile

Chongqing Kefei Cable Group Co., Ltd.

Our Company has focused on R&D and production of rubber cable for 40 years. We specialize in mining cables, rubber sheath cable series, shield machine special high voltage cable and other series, with particular expertise in flexible cables.

Our products are sold worldwide and used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
