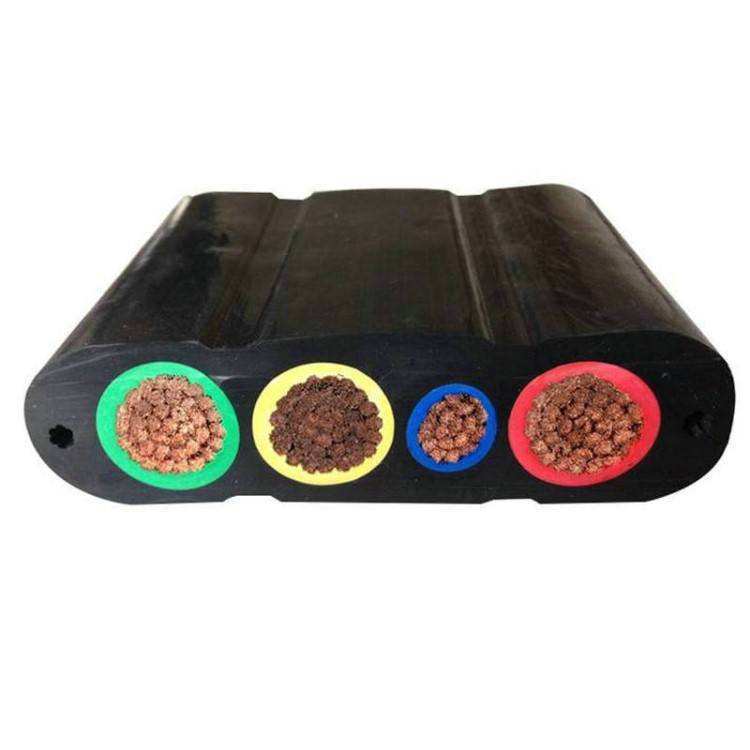

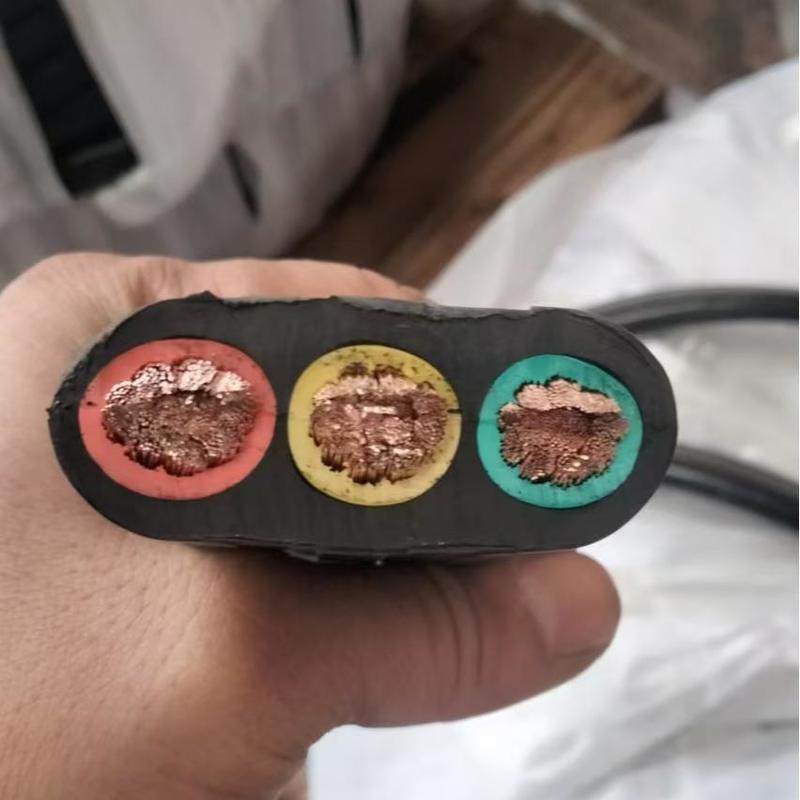

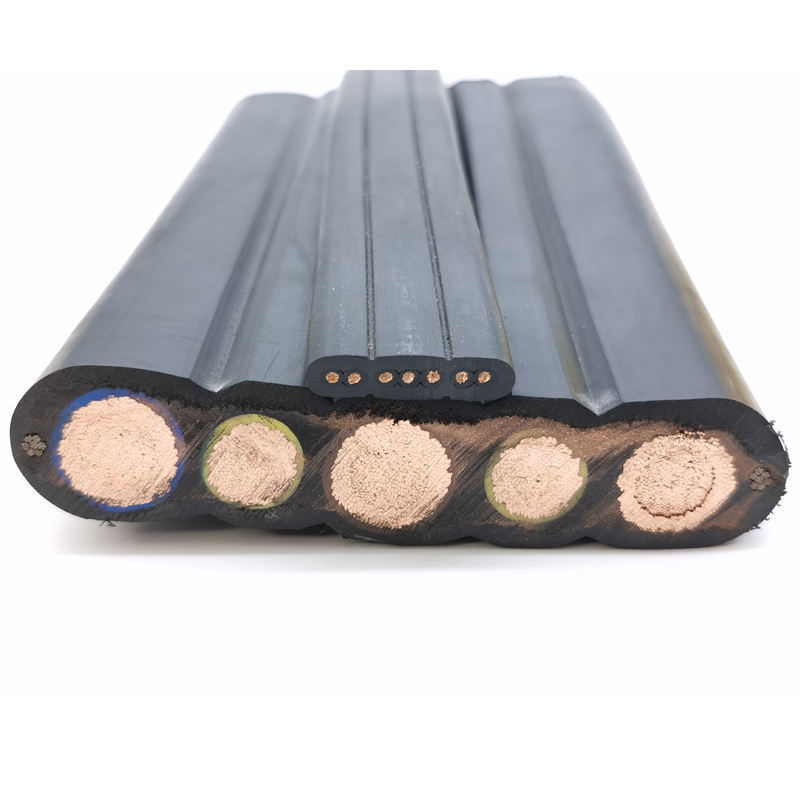

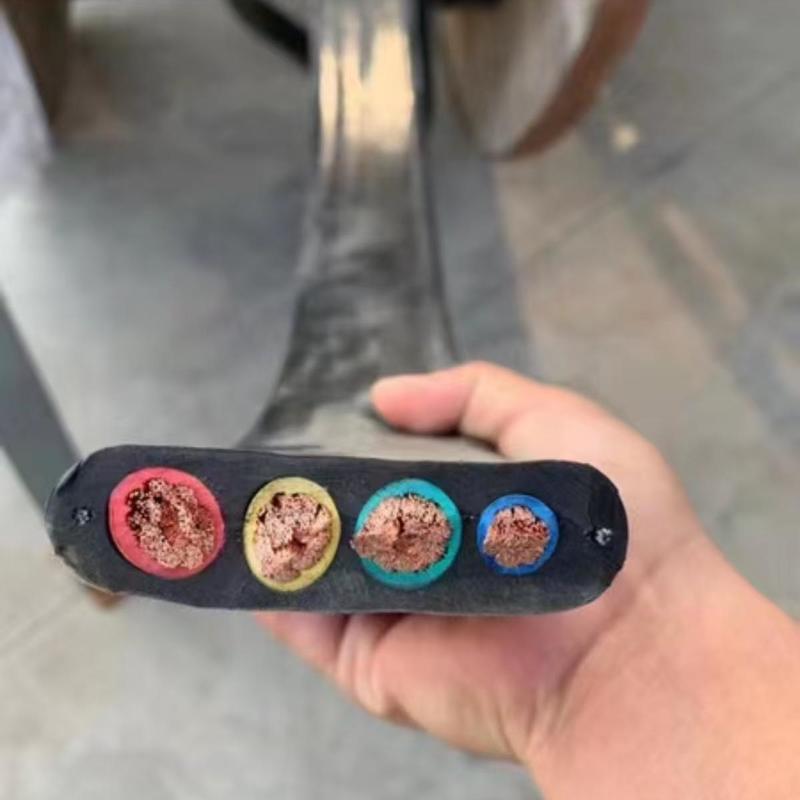

Customized Flexible 4Cores Flat Rubber Cable For Frequent Move Devices
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 450 V |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Rubber |
| Type | LOW VOLTAGE | Application | Lifts, Large Cranes, Submersible Pump, Mobile Device |
| Conductor Material | Copper | Jacket | Rubber |
| Size | Customized | Product Name | Flat Rubber Cable |
| Shape | Flat | Feature | Waterproof, Tensile Resistance , Soft,flexible |
| Conductor | Bare Copper | Insulation | Rubber Insulation |
| Sheath | Rubber Sheath | Usage | Industrial,elevator |
| Rated Voltage | 450/750V | Standard | IEC,CCC,ISO |
| Highlight | Customized Flat Rubber Cable,4Cores Flat Rubber Cable,Customized 4 Core Rubber Cable |
||
Product Description
Low Voltage Multi Core EPR Rubber Insulated Flexible Flat Elevator Travel Power Cord Small Bending Radius Cable for Industrial and Lifting Machinery
450/750V Low Voltage Rubber Sheath EPR Insulation Stranded Copper Conductor High Flexible 1mm-150mm 3/4/5/6/7/8 Cores Flat Cable for Industrial and Lifting Machinery applications. Its advantages are highly suitable for scenarios with frequent movement, limited space and complex environments.
Product Quick Details
- Conductor: It is made by twisting multiple thin copper wires together to enhance the flexibility and bending performance of the cable, making it easier to lay and use in confined spaces.
- Sheath: Chloroprene rubber is commonly used, which has excellent wear resistance, chemical corrosion resistance, and protects the cable conductor and insulation layer, preventing external mechanical damage.
- Insulation: EPR Rubber,which has excellent electrical insulation properties, oil resistance and low-temperature resistance.
- Voltage: 450/750V (Low Voltage),satisfy the usage in most electrical connection scenarios.
- Shape: Flat shape, higher space utilization, suitable for narrow/regular wiring scenarios, has better bending performance, suitable for frequent movement/dynamic scenarios
- No. of Cores: 3Cores, 4Cores, 5Cores, 6Cores, 8Cores and more.
- Cross Section: 1mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm ,70mm ,95mm,120mm and more
- Usage Scenario: Ideal for industries, lifting/transportation, mobile equipment, and special environments like ships and mines
Applications
The flat rubber cable is made of pure copper stranded conductors, EPR insulation and rubber sheath with oil resistance, wear resistance and flexibility. Perfect for applications requiring frequent movement, bending and high environmental adaptability.The specific usage scenarios are as follows:
- Industrial field: Power and signal connections for automated production lines and CNC machines
- Lifting and transportation: Gantry cranes, hoists, belt conveyors
- Mobile equipment: Electric tools, stage lighting and sound systems
- Outdoor projects: Construction sites and municipal projects
- Special environments: Ships, mines with vibration, humidity and fire prevention requirements
Quality Assurance
- Every production process has a special person to test to ensure quality;
- Have professional engineers to check the quality;
- All products have passed CCC,ISO and other certifications,Compliant with IEC standards.
Product Specifications
| Product Name | Flat Rubber Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YFFB |
| Conductor Material | Copper |
| Insulation Material | Rubber |
| Jacket | Rubber |
| Color | Black/Red |
| Shape | Flat |
| Feature | Soft, waterproof, tensile resistance, flexible, movable, wear-resistance, small bending radius |
Company Profile
Chongqing Kefei Cable Group Co., Ltd.
Our Company has focused on R&D and production of rubber cable for 40 years. We specialize in mining cables, rubber sheath cable series, shield machine special high voltage cable and other series, with particular expertise in flexible cables. Our products are sold worldwide and used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer, producing only the best quality products.
Q: How can I place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email/phone, in case of any delays.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
