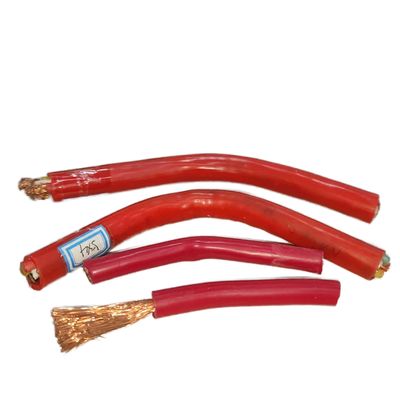

Aging Resistant Silicone Rubber Cable Small Bending Radius For Industrial
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | -60~180℃ | Rated Voltage | 0.6 KV |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Silicone Rubber |
| Type | LOW VOLTAGE | Application | Industrial, Automotive |
| Conductor Material | Copper | Jacket | Silicone Rubber |
| Size | Customized | Product Name | Flat Rubber Cable |
| Shape | Round/Flat | Feature | Cold Resistance, Acid And Alkali Resistance, Corrosion Resistance,high Temperature Resistance |
| Insulation | Silicone Rubber Insulation | Conductor | Bare Copper |
| Sheath | Silicone Rubber Sheath | Voltage | 0.6/1KV |
| Color | Red,Black | Usage | Automotive Manufacturing, Metallurgy, Petrochemicals, Electronics |
| Cross Section | 1.5mm2-240mm2 | ||
| Highlight | Aging Resistant Silicone Rubber Cable,Small Bending Radius Silicone Rubber Cable,Aging Resistant flexible silicone wire |
||
Product Description
Electric Wire Silicone Rubber Cable with High Temperature Resistance and Low Temperature Resistance
High Temperature and Low Temperature Resistant Silicone Rubber Sheath Stranded Copper Conductor Power Cable Multicore Round/Flat 0.6/1KV Ultra Soft Electric Wire. Silicone rubber coated cable has soft, high temperature resistance, low temperature resistance, aging resistance, oil resistance, small bending radius and other characteristics. Suitable for rated AC voltage 0.6/1kv and below the new energy system, mobile equipment and electrical power transmission lines and control, lighting, communication lines.
Product Quick Details
- Conductor: Stranded multiple thin copper wires
- Sheath: Silicone Rubber
- Insulation: Silicone Rubber
- Voltage: 0.6/1KV
- Shape: Round
- No. of Cores: Available in Single Core, 2 Cores, 3Cores, 4Cores, 5Cores, 6Cores, 8Cores and more
- Cross Section: Ranging from 0.75mm to 120mm
- Usage Scenario: Widely used in metallurgy, power, petrochemical, electronics, automobile manufacturing and other industries
Type of Production
Tinned Copper Conductor
The pure copper conductor is electroplated with tin on the surface, which forms a dense "physical barrier", completely preventing the contact between the copper substrate and the external corrosive media, thus avoiding the oxidation and sulfidation reactions of the copper.
Stranded Copper Conductor
Pure copper conductors have strong conductivity, low energy consumption loss, good stability, and strong corrosion resistance at room temperature.
Application
The application scenarios of silicone rubber cables are mainly in the fields that have "high requirements for temperature, reliability and environmental adaptability", specifically including:
- Industrial manufacturing: such as high-temperature equipment like plastic extruders, die-casting machines, furnaces; internal wiring of CNC machines and robots (requiring flexibility + oil resistance), cables for high-temperature environments in textile machinery.
- New energy field: photovoltaic systems and energy storage equipment.
- Outdoor and public facilities field: connection cables for street lamps and traffic signals (resistant to ultraviolet rays + resistant to rain), power distribution lines in northern cold regions (resistant to low temperatures).
- Rail transportation: internal wiring of subway and light rail cars (halogen-free, low-smoke, flame-retardant + resistant to vibration).
Specification
| Product Name | Silicone rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YGC |
| Conductor Material | Copper |
| Insulation Material | Silicone rubber |
| Jacket | Silicone rubber |
| Color | Red |
| Shape | Round wire |
| Feature | Cold resistance, acid and alkali resistance, corrosion resistance, high temperature resistance |
Company Profile
CHONGQING KEFEI CABLE GROUP CO., LTD.
Chongqing Kefei Cable Group Co., Ltd., focus on R & D and production of rubber cable for 40 years, it is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.
Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer, We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
