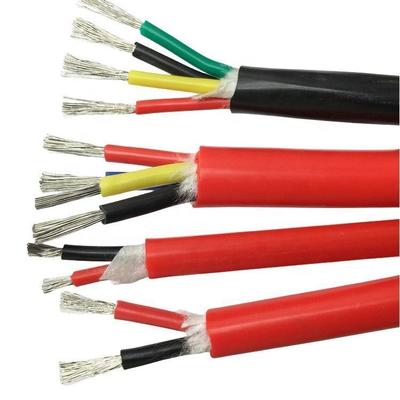

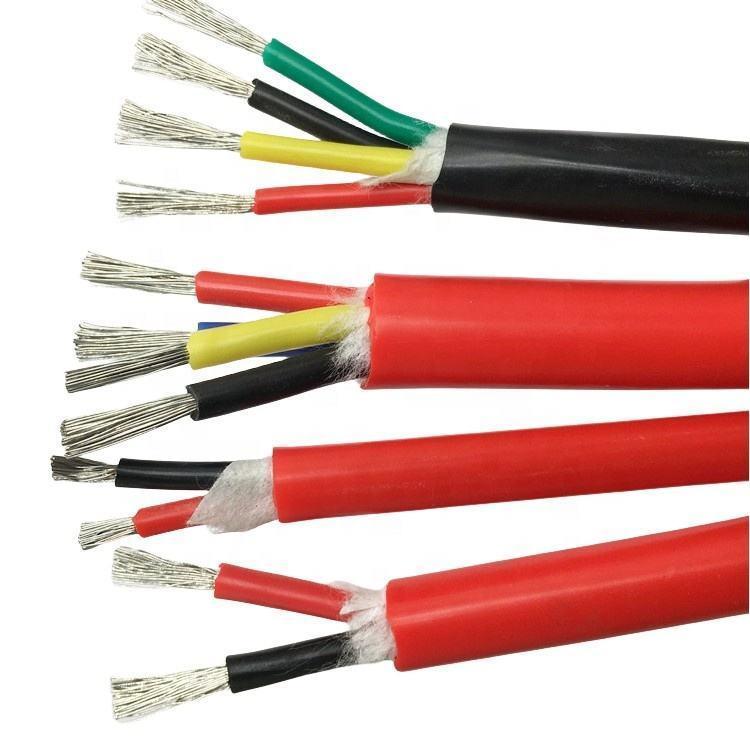

Acid Resistance Silicone Rubber Wire Cable For New Energy System
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | -60~180℃ | Rated Voltage | 0.6 KV |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Silicone Rubber |
| Type | LOW VOLTAGE | Application | Industrial, Automotive |
| Conductor Material | Copper | Jacket | Silicone Rubber |
| Size | Customized | Product Name | Flat Rubber Cable |
| Shape | Round/Flat | Feature | Cold Resistance, Acid And Alkali Resistance, Corrosion Resistance,high Temperature Resistance |
| Insulation | Silicone Rubber Insulation | Conductor | Bare Copper |
| Sheath | Silicone Rubber Sheath | Voltage | 0.6/1KV |
| Color | Red,Black | Usage | Automotive Manufacturing, Metallurgy, Petrochemicals, Electronics |
| Cross Section | 1.5mm2-240mm2 | ||
| Highlight | acid resistance Silicone Rubber Wire,acid resistance Rubber Wire cable,New Energy System Rubber Cable |
||
Product Description

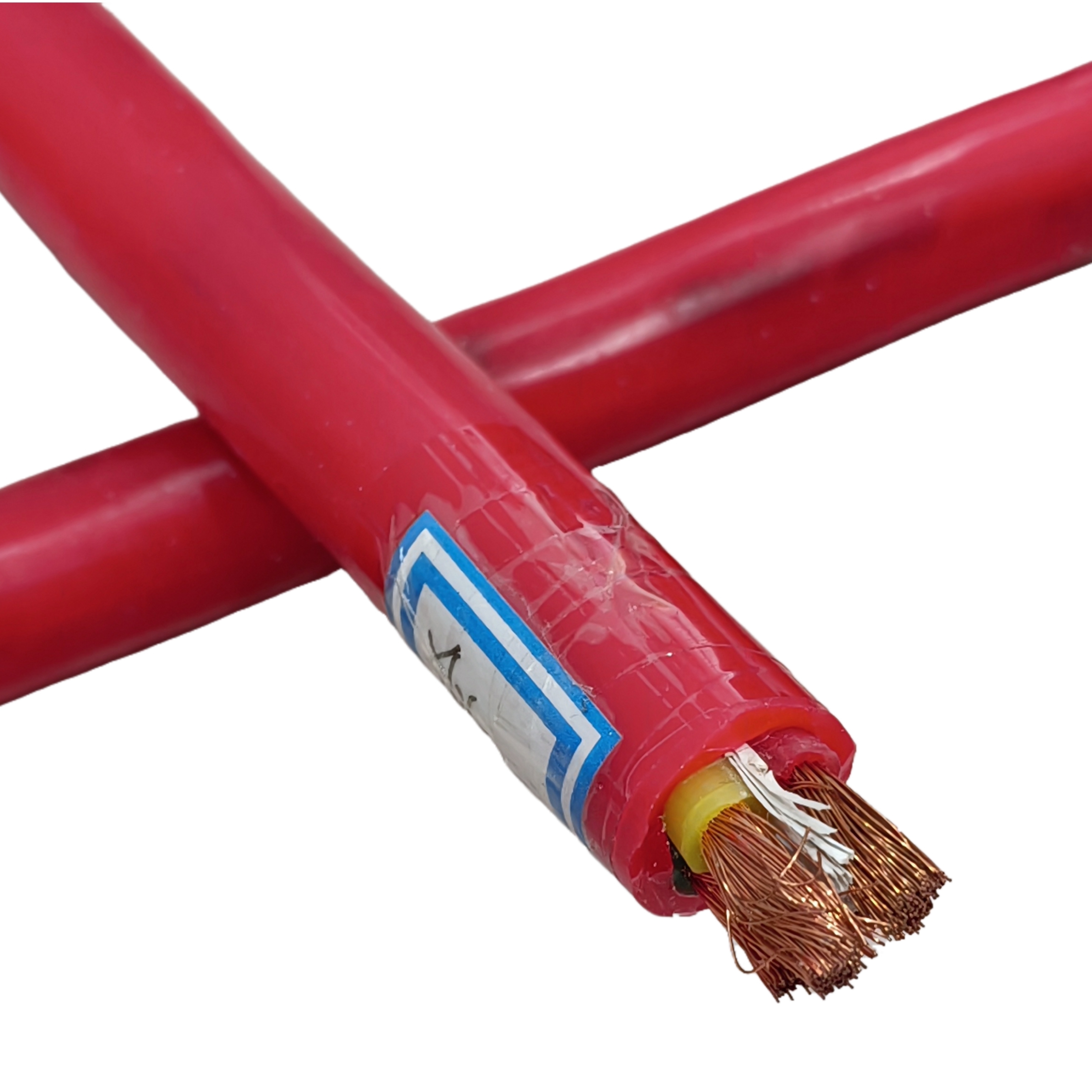

0.6/1KV Aging Resistant Oil Resistant Silicone Rubber Sheath Stranded Copper Conductor Extra Flexible Power Cable
0.6/1KV Electric Wire High Flexible Silicone Rubber Cable with High Temperature Resistance and Low Temperature Resistance. This silicone rubber coated cable features softness, high temperature resistance, low temperature resistance, aging resistance, oil resistance, and small bending radius characteristics. Suitable for rated AC voltage 0.6/1KV and below in new energy systems, mobile equipment, and electrical power transmission lines for control and lighting applications.
Product Quick Details
- Conductor: Stranded multiple thin copper wires
- Sheath: Silicone Rubber
- Insulation: Silicone Rubber
- Voltage: 0.6/1KV

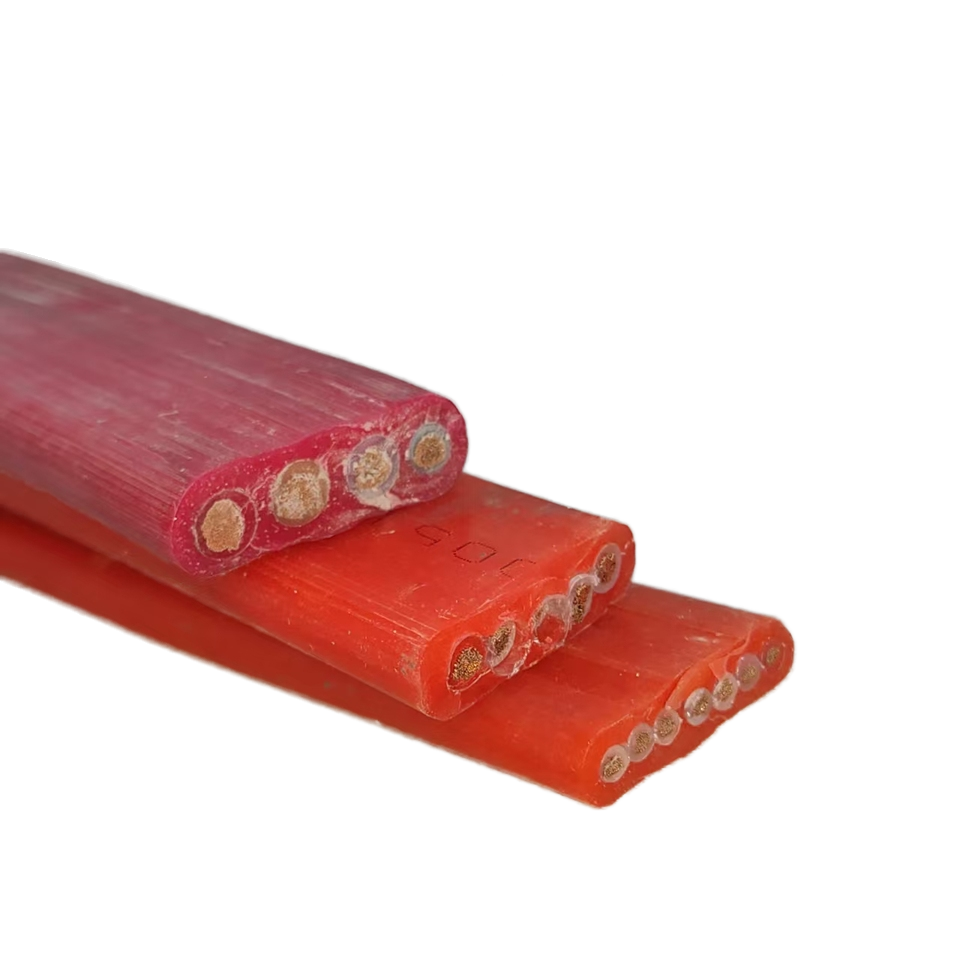

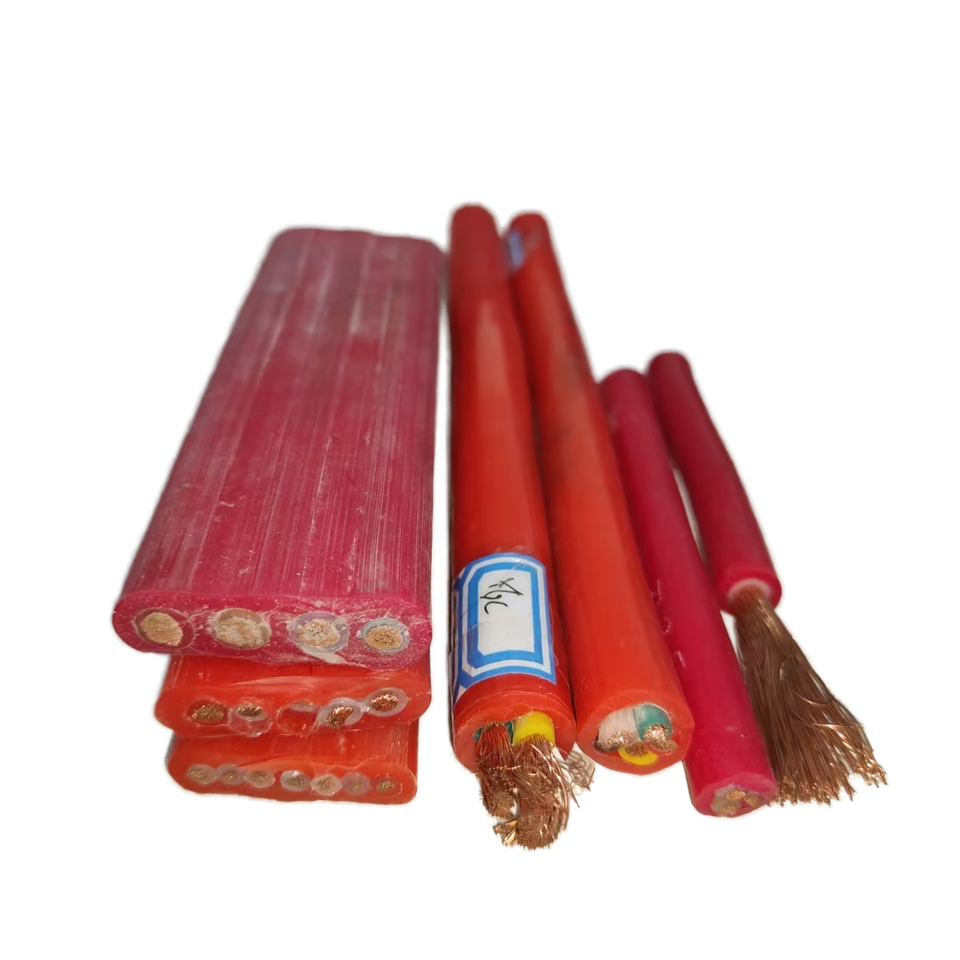

- Shape: Round/Flat
- No. of Cores: Available in Single Core, 2 Cores, 3Cores, 4Cores, 5Cores, 6Cores, 8Cores and more
- Cross Section: Ranging from 0.75mm to 120mm
- Usage Scenario: Widely used in metallurgy, power, petrochemical, electronics, automobile manufacturing and other industries
Conductor Types
The pure copper conductor is electroplated with tin on the surface, which forms a dense "physical barrier", completely preventing the contact between the copper substrate and external corrosive media, thus avoiding oxidation and sulfidation reactions.
Pure copper conductors have strong conductivity, low energy consumption loss, good stability, and strong corrosion resistance at room temperature.
Application Scenarios
Silicone rubber cables are primarily used in fields with high requirements for temperature, reliability and environmental adaptability:
- Industrial manufacturing: High-temperature equipment like plastic extruders, die-casting machines, furnaces; internal wiring of CNC machines and robots (requiring flexibility + oil resistance), cables for high-temperature environments in textile machinery.
- New energy field: Photovoltaic systems and energy storage equipment.
- Outdoor and public facilities: Connection cables for street lamps and traffic signals (resistant to ultraviolet rays + resistant to rain), power distribution lines in northern cold regions (resistant to low temperatures).
- Rail transportation: Internal wiring of subway and light rail cars (halogen-free, low-smoke, flame-retardant + resistant to vibration).
Specification
| Product Name | Silicone rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YGC |
| Conductor Material | Copper |
| Insulation Material | Silicone rubber |
| Jacket | Silicone rubber |
| Color | Red |
| Shape | Round wire |
| Feature | Cold resistance, acid and alkali resistance, corrosion resistance, high temperature resistance |
Quality Assurance
- Every production process has a special person to test to ensure quality
- Professional engineers check the quality
- All products have passed CCC certification and comply with IEC standards
Company Profile
CHONGQING KEFEI CABLE GROUP CO., LTD. has focused on R&D and production of rubber cable for 40 years. We are a large enterprise specializing in cable production, committed to manufacturing various specifications of electrical cables. Our products cover mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Our flexible cable series benefits from more than 20 years of expertise and can be customized according to customer requirements.
Our products are sold worldwide, widely used in various fields such as coal mine, power station, and transportation, with excellent quality and after-sales service favored by domestic and foreign customers.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
