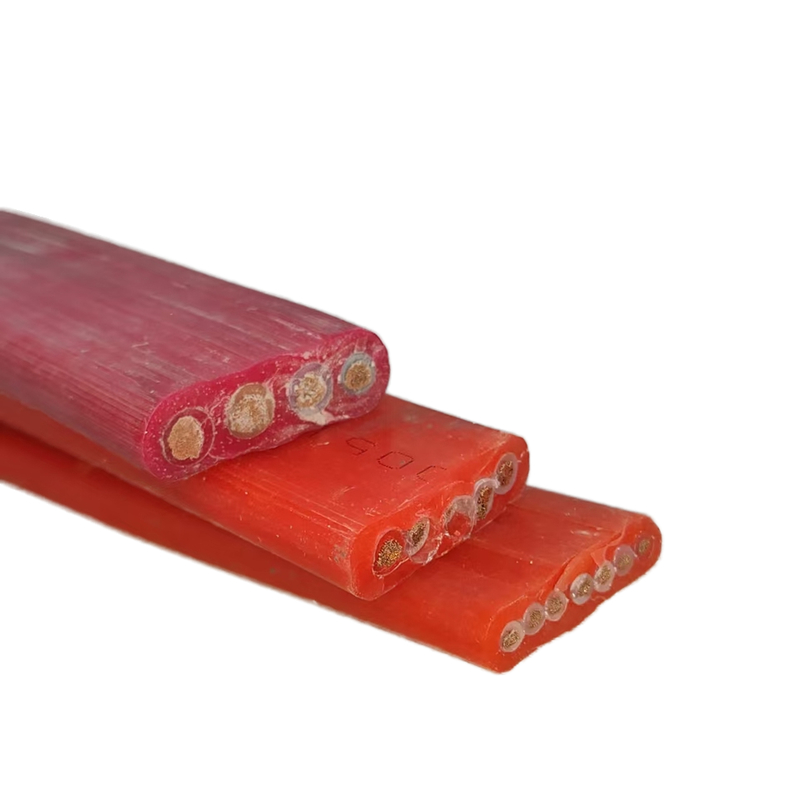

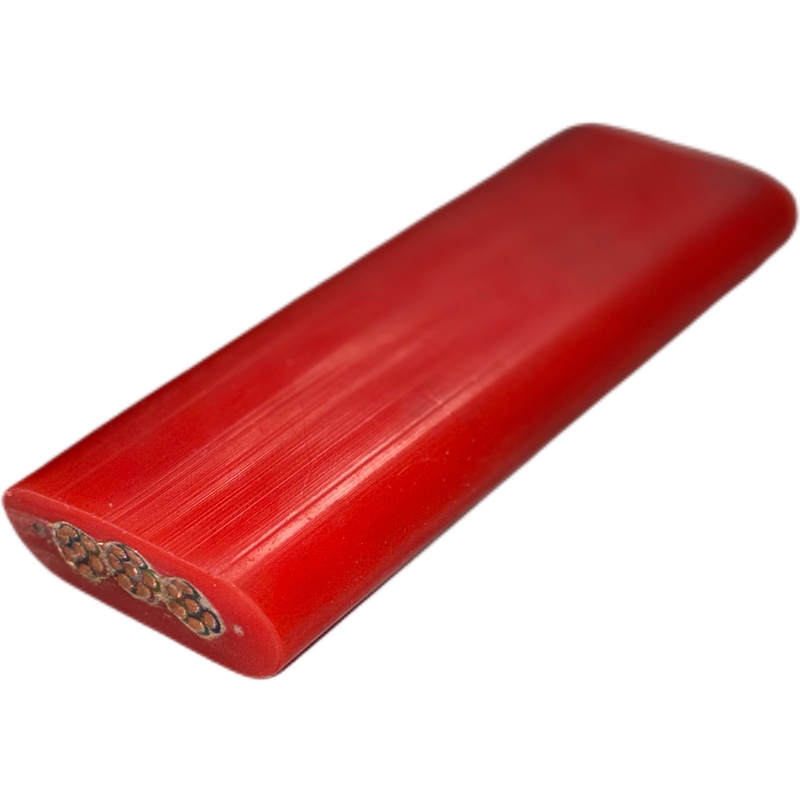

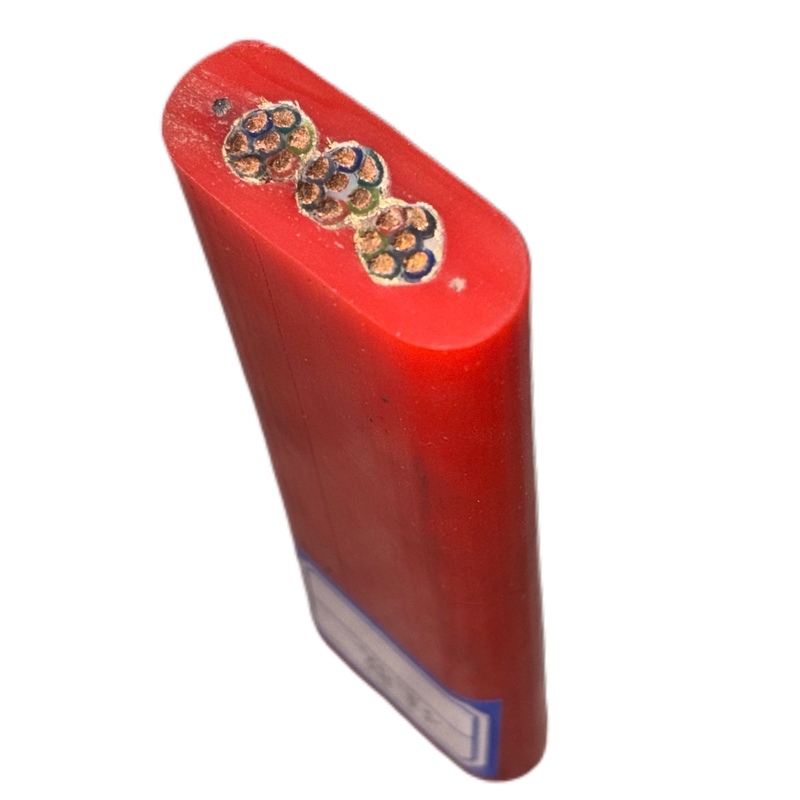

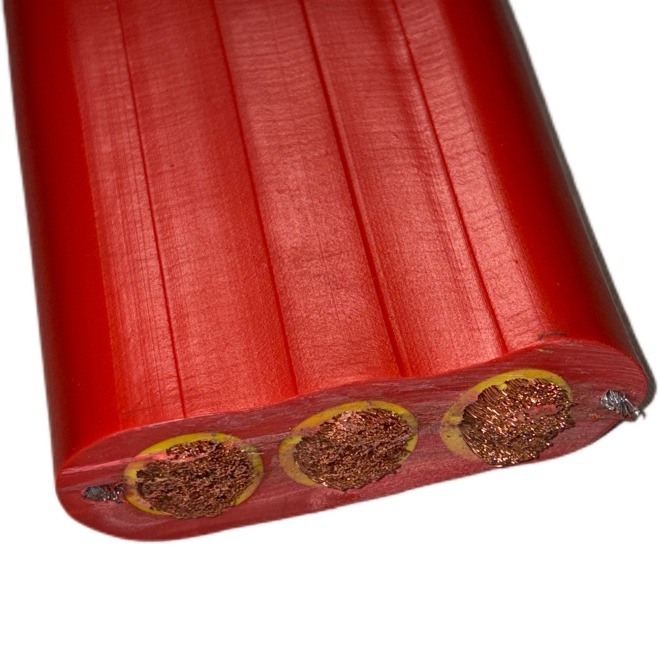

Multi Cores Ultra Flexible Silicone Wire For Outdoor Use Red Color
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | -60~180℃ | Rated Voltage | 0.6 KV |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Silicone Rubber |
| Type | LOW VOLTAGE | Application | Industrial, Automotive |
| Conductor Material | Copper | Jacket | Silicone Rubber |
| Size | Customized | Product Name | Flat Rubber Cable |
| Shape | Round/Flat | Feature | Cold Resistance, Acid And Alkali Resistance, Corrosion Resistance,high Temperature Resistance |
| Insulation | Silicone Rubber Insulation | Conductor | Bare Copper |
| Sheath | Silicone Rubber Sheath | Voltage | 0.6/1KV |
| Color | Red,Black | Usage | Automotive Manufacturing, Metallurgy, Petrochemicals, Electronics |
| Cross Section | 1.5mm2-240mm2 | ||
| Highlight | Outdoor ultra flexible silicone wire,multi Cores Flexible Silicone Wire,Outdoor Use Silicone Rubber Cable |
||
Product Description
0.6KV Flat Parallel Extra Flexible Silicone Rubber Copper/Tinned Copper Outdoor Power Cable
0.6/1KV Electric Wire High Flexible Corrosion Resistance Long Service Life Silicone Rubber Copper Conductor Cable for industrial and automotive applications.
The flat silicone rubber cable is composed of a twisted fine copper wire conductor, a silicone rubber sheath and a silicone rubber insulation. It possesses excellent flexibility, resistance to high and low temperatures, weather resistance, and small installation space, among other core advantages. It is widely used in multiple fields where the performance of cables is highly demanding, especially in scenarios that require "space saving", "adaptation to complex wiring" or "tolerance to extreme environments".
Product Quick Details
- Conductor: Twisted fine copper wire conductor
- Sheath: High-performance Silicone Rubber
- Insulation: Silicone Rubber
- Voltage: 0.6/1KV
- Shape: Round/Flat
- No. of Cores: Available in Single Core, 2 Cores, 3Cores, 4Cores, 5Cores, 6Cores, 8Cores and more
- Cross Section: Ranging from 0.75mm to 120mm
- Usage Scenario: Widely used in metallurgy, power, petrochemical, electronics, automobile manufacturing and other industries
Type of Production
Tinned Copper Conductor
The pure copper conductor is electroplated with tin on the surface, which forms a dense "physical barrier", completely preventing the contact between the copper substrate and the external corrosive media, thus avoiding the oxidation and sulfidation reactions of the copper.
Stranded Copper Conductor
Pure copper conductors have strong conductivity, low energy consumption loss, good stability, and strong corrosion resistance at room temperature.
Application
The application scenarios of silicone rubber cables are mainly in the fields that have "high requirements for temperature, reliability and environmental adaptability", specifically including:
- Industrial manufacturing: such as high-temperature equipment like plastic extruders, die-casting machines, furnaces; internal wiring of CNC machines and robots (requiring flexibility + oil resistance), cables for high-temperature environments in textile machinery.
- New energy field: photovoltaic systems and energy storage equipment.
- Outdoor and public facilities field: connection cables for street lamps and traffic signals (resistant to ultraviolet rays + resistant to rain), power distribution lines in northern cold regions (resistant to low temperatures).
- Internal wiring of intelligent devices: such as industrial control cabinets, PLCS (programmable logic controllers), connections of sensors and actuators. The flat form can be flexibly laid in the narrow interior of the equipment (such as cabinet interlayers, component gaps), reducing space occupation.
Specification
| Product Name | Silicone rubber Copper Power cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YGC/YGCB |
| Conductor Material | Copper/Tinned Copper |
| Insulation Material | Silicone rubber |
| Jacket | Silicone rubber/Nitrile rubber |
| Color | Red |
| Shape | Round wire |
| Feature | Cold resistance, acid and alkali resistance, corrosion resistance, UV-resistance, temperature resistance -60℃~+180℃ |
