Low Voltage Extra Flexible Silicone Cable Alkali Resistance Silicone Rubber Wire

0.6/1KV Electric Wire High Flexible Corrosion Resistance Long Service Life Silicone Rubber Copper Conductor Cable for industrial and automotive applications.

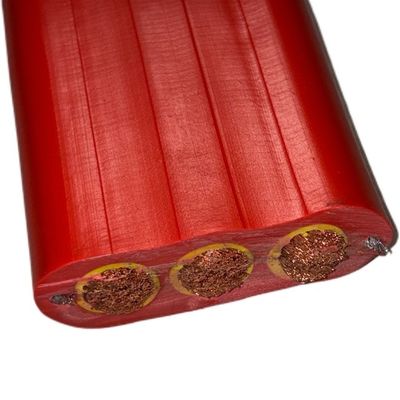

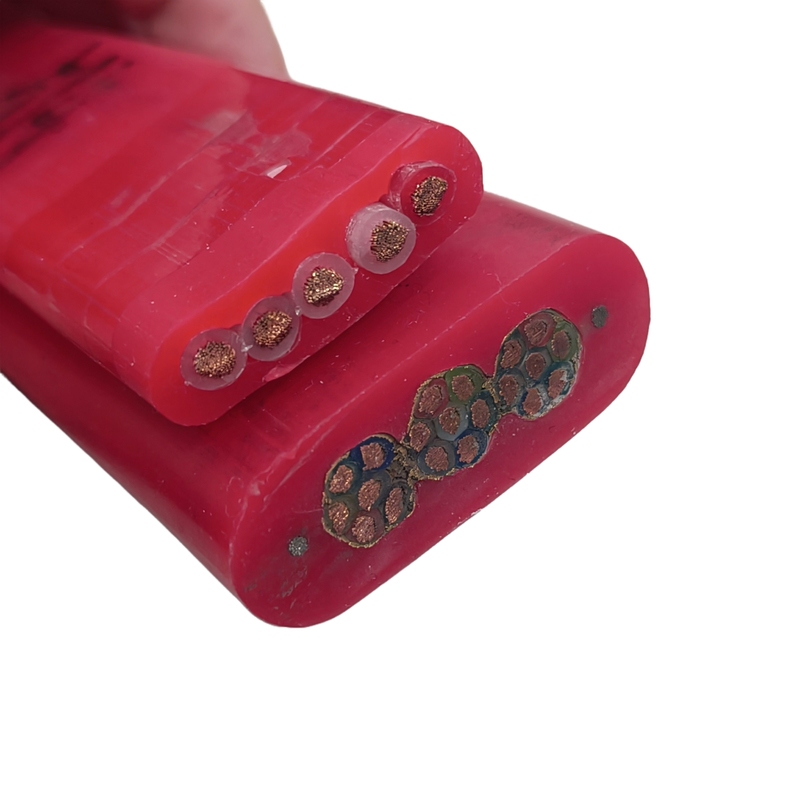

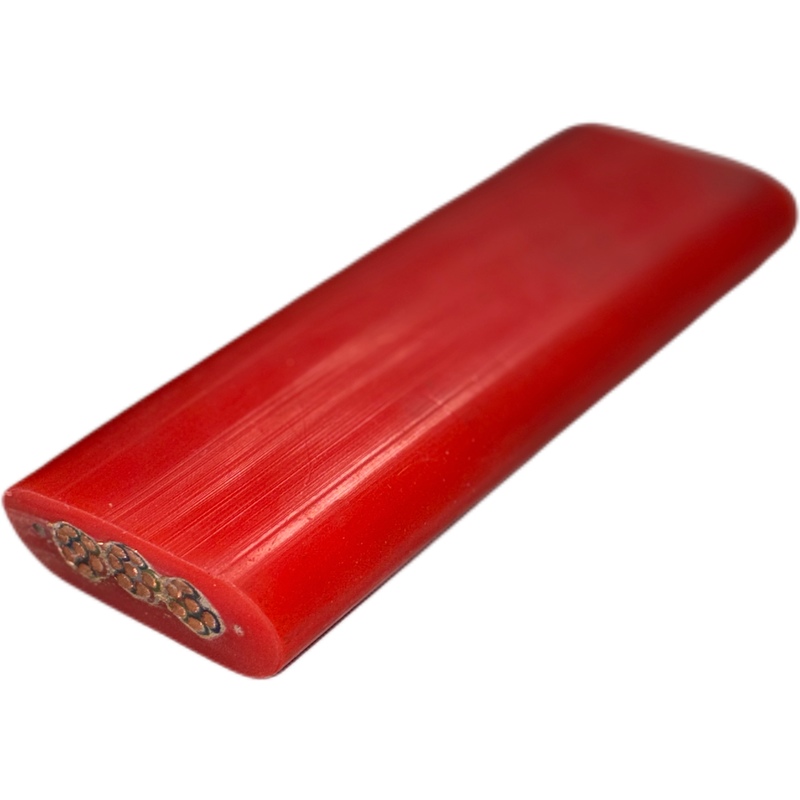

The flat silicone rubber cable is composed of a twisted fine copper wire conductor, a silicone rubber sheath and a silicone rubber insulation. It possesses excellent flexibility, resistance to high and low temperatures, weather resistance, and small installation space, among other core advantages. It is widely used in multiple fields where the performance of cables is highly demanding, especially in scenarios that require "space saving", "adaptation to complex wiring" or "tolerance to extreme environments".

• Conductor: Twisted fine copper wire conductor
• Sheath: High-performance Silicone Rubber
• Insulation: Silicone Rubber
• Voltage: 0.6/1KV
• Shape: Round/Flat
• No. of Cores: Available in Single Core, 2 Cores, 3Cores, 4Cores, 5Cores, 6Cores, 8Cores and more
• Cross Section: Ranging from 0.75mm to 120mm
• Usage Scenario: Widely used in metallurgy, power, petrochemical, electronics, automobile manufacturing and other industries

Tinned Copper Conductor

The pure copper conductor is electroplated with tin on the surface, which forms a dense "physical barrier", completely preventing the contact between the copper substrate and the external corrosive media, thus avoiding the oxidation and sulfidation reactions of the copper.

Stranded Copper Conductor

Pure copper conductors have strong conductivity, low energy consumption loss, good stability, and strong corrosion resistance at room temperature.

The application scenarios of silicone rubber cables are mainly in the fields that have "high requirements for temperature, reliability and environmental adaptability", specifically including:

• Industrial manufacturing: such as high-temperature equipment like plastic extruders, die-casting machines, furnaces; internal wiring of CNC machines and robots (requiring flexibility + oil resistance), cables for high-temperature environments in textile machinery.
• New energy field: photovoltaic systems and energy storage equipment.
• Outdoor and public facilities field: connection cables for street lamps and traffic signals (resistant to ultraviolet rays + resistant to rain), power distribution lines in northern cold regions (resistant to low temperatures).
• Internal wiring of intelligent devices: such as industrial control cabinets, PLCS (programmable logic controllers), connections of sensors and actuators. The flat form can be flexibly laid in the narrow interior of the equipment (such as cabinet interlayers, component gaps), reducing space occupation.

Chongqing Kefei Cable Group Co., Ltd., focus on R & D and production of rubber cable for 40 years, it is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.

Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.

• Advanced Technology
• High Quality Design
• Perfect Testing Equipment
• Strict Quality Control
• Mature Process Flow

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
