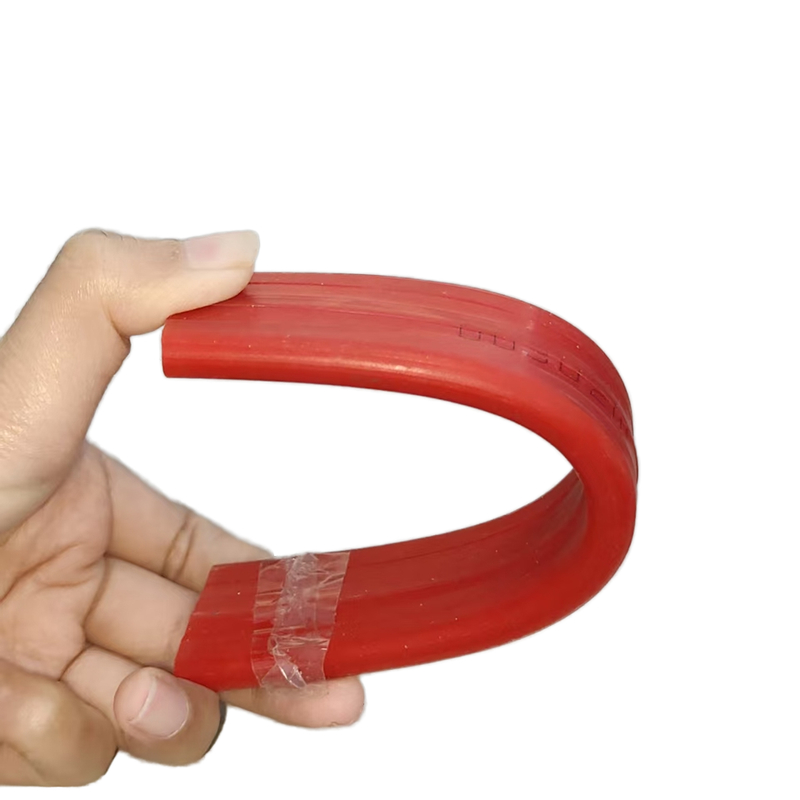

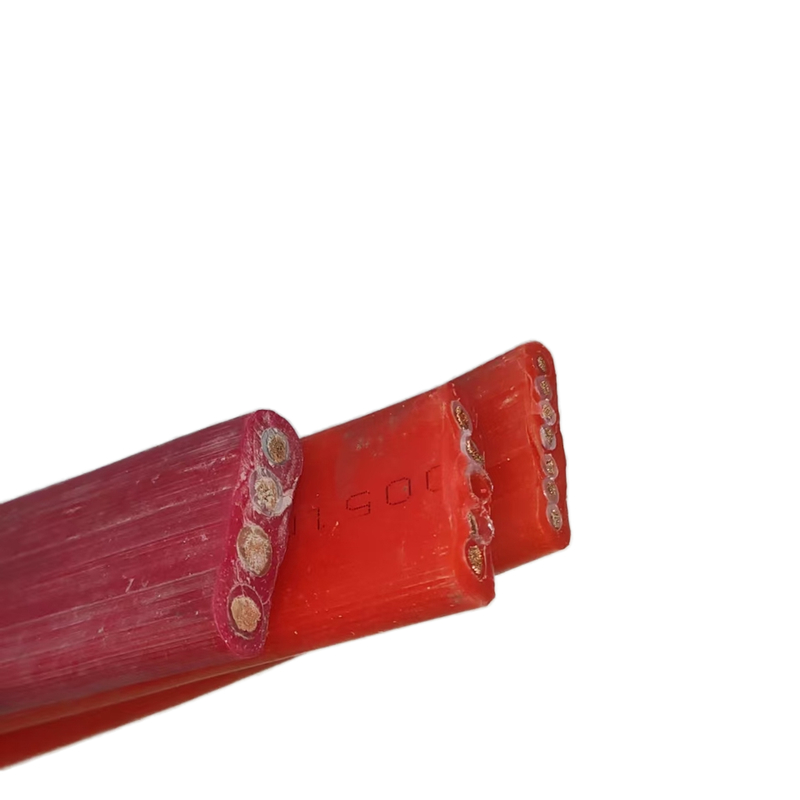

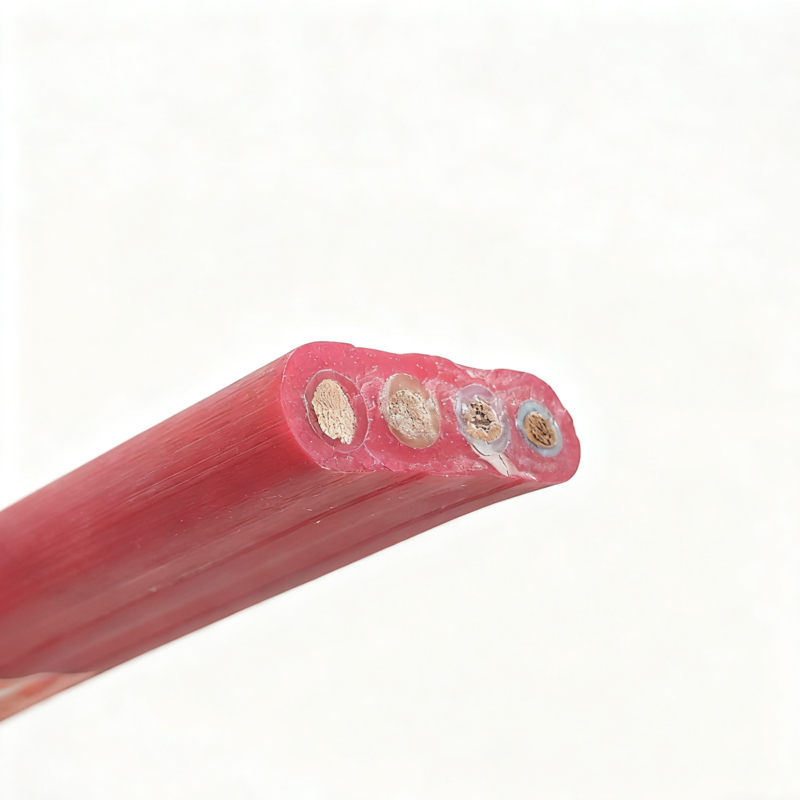

600V Low Voltage Silicone Rubber Insulated Cable 3 Core 4 Core Rubber Cable
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | -60~180℃ | Rated Voltage | 0.6 /1kV |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Silicone Rubber |
| Type | LOW VOLTAGE | Application | Industrial, Automotive，New Energy System |
| Conductor Material | Copper | Jacket | Silicone Rubber |
| Size | 0.75mm²-240mm² | Product Name | Flat Rubber Cable |
| Shape | Round/Flat | Feature | Cold Resistance, Acid And Alkali Resistance, Corrosion Resistance,high Temperature Resistance 180℃ |
| Insulation | Silicone Rubber Insulation | Conductor | Bare Stranded Copper Conductor |
| Sheath | Silicone Rubber Sheath | Voltage | 0.6/1KV |
| Color | Red,Black | Usage | Automotive Manufacturing, Metallurgy, Petrochemicals, Electronics |
| Cross Section | 1.5mm2-240mm2 | ||
| Highlight | 600V Silicone Rubber Insulated Cable,600V 4 Core Rubber Cable,Low Voltage 4 Core Rubber Cable |
||
Product Description
0.6/1KV Flame Retardant High Bearing Capacity Flat Shape Silicone Rubber Sheathed Flexible Power Cable Wire
This 600V low voltage ultra soft flame retardant movable silicone rubber sheathed copper conductor cable wire features excellent aging resistance, oil resistance, and long service life.
Flat silicone rubber cables are usually made by twisting multiple thin copper wires together to enhance the flexibility and bending performance of the cable, making it easier to be laid and used in confined spaces. For example, in some automated production lines, the conductors twisted from multiple thin copper wires can withstand frequent bending without breaking, ensuring the smooth operation of the circuit.
Product Features
- Conductor: Twisted fine copper wire for maximum flexibility and easy bending
- Sheath & Insulation: High-grade silicone rubber
- Voltage Rating: 0.6/1KV
- Shape Options: Round or flat (flat shape reduces installation space requirements)
- Core Configurations: Available in 1-8 cores and more
- Cross Section: Ranges from 0.75mm to 120mm
- Applications: Metallurgy, power generation, petrochemical, electronics, automotive manufacturing
- Key Benefits: Exceptional high-temperature resistance (-60°C to +200°C), maintains flexibility in extreme cold, superior aging and UV resistance
Conductor Types
Tinned Copper Conductor: Electroplated tin surface creates a protective barrier against oxidation and sulfidation, enhancing corrosion resistance.
Stranded Copper Conductor: Pure copper construction delivers excellent conductivity, low energy loss, and strong corrosion resistance at room temperature.
Application Scenarios
- Industrial Manufacturing: Plastic extruders, die-casting machines, furnaces, CNC machines, robots, textile machinery
- New Energy Systems: Photovoltaic installations and energy storage equipment
- Outdoor Infrastructure: Street lighting, traffic signals, power distribution in cold regions
- Rail Transportation: Subway and light rail vehicle wiring systems
Technical Specifications
| Product Name | Silicone rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YGC |
| Conductor Material | Copper |
| Insulation Material | Silicone rubber |
| Jacket | Silicone rubber |
| Color | Red/Black |
| Feature | Cold resistance, acid/alkali resistance, corrosion resistance, high temperature resistance |
Quality Assurance
- Comprehensive testing at every production stage
- Quality verification by professional engineers
- CCC certified and compliant with IEC standards
About CHONGQING KEFEI CABLE GROUP CO., LTD.
With 40 years of specialization in rubber cable R&D and production, CHONGQING KEFEI CABLE GROUP CO., LTD. is a leading manufacturer of various electrical cables including mining cables, rubber sheath cables, and specialized high voltage cables. Our products serve global markets in coal mining, power generation, and transportation sectors with exceptional quality and service.
Our Advantages
- Advanced cable manufacturing technology
- High-quality product design
- Comprehensive testing facilities
- Stringent quality control measures
- Mature production processes
Production Facilities
Certifications
Packaging & Delivery
We provide professional, environmentally friendly packaging to ensure product safety during transportation.
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer focused on delivering the highest quality products.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we offer complete customization services to meet specific customer requirements.
Q: How can we guarantee quality?
A: We implement pre-production sampling and final inspection before shipment to ensure consistent quality.
Q: How can I place an order?
A: Please provide detailed requirements via email, phone, or Skype for prompt quotation and order processing.
