H07RN-F Rubber Sheathed Flexible Cable 450/750V EPR Power Cable 1-300mm

Annealed Copper Conductor 1-300mm 1-3 Core H07RN-F EPR Insulation CPE Sheath Flexible Rubber Cable for Power Transmission

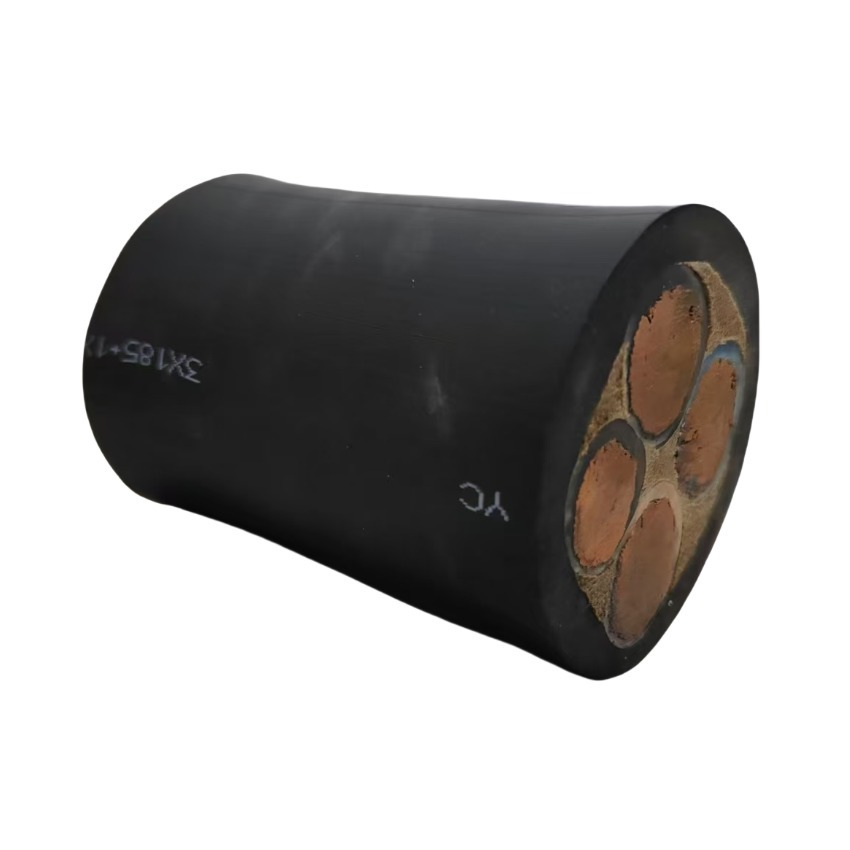

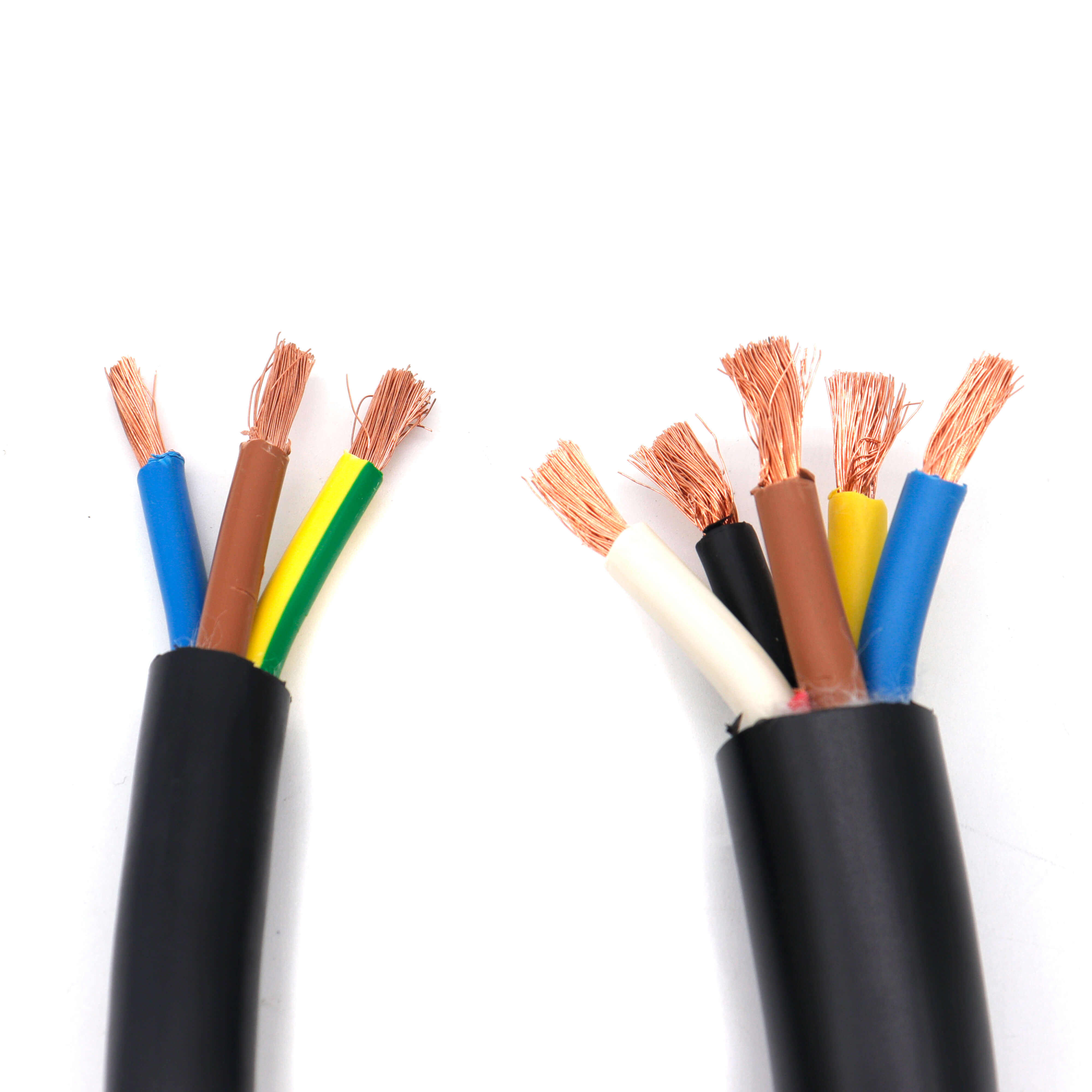

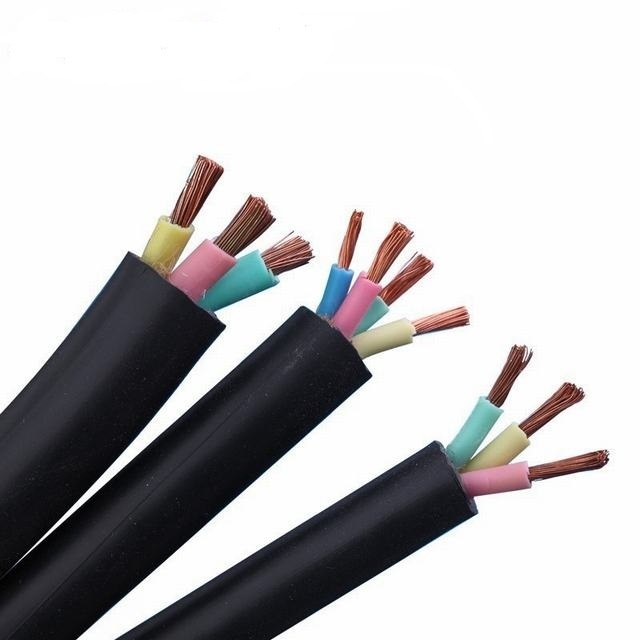

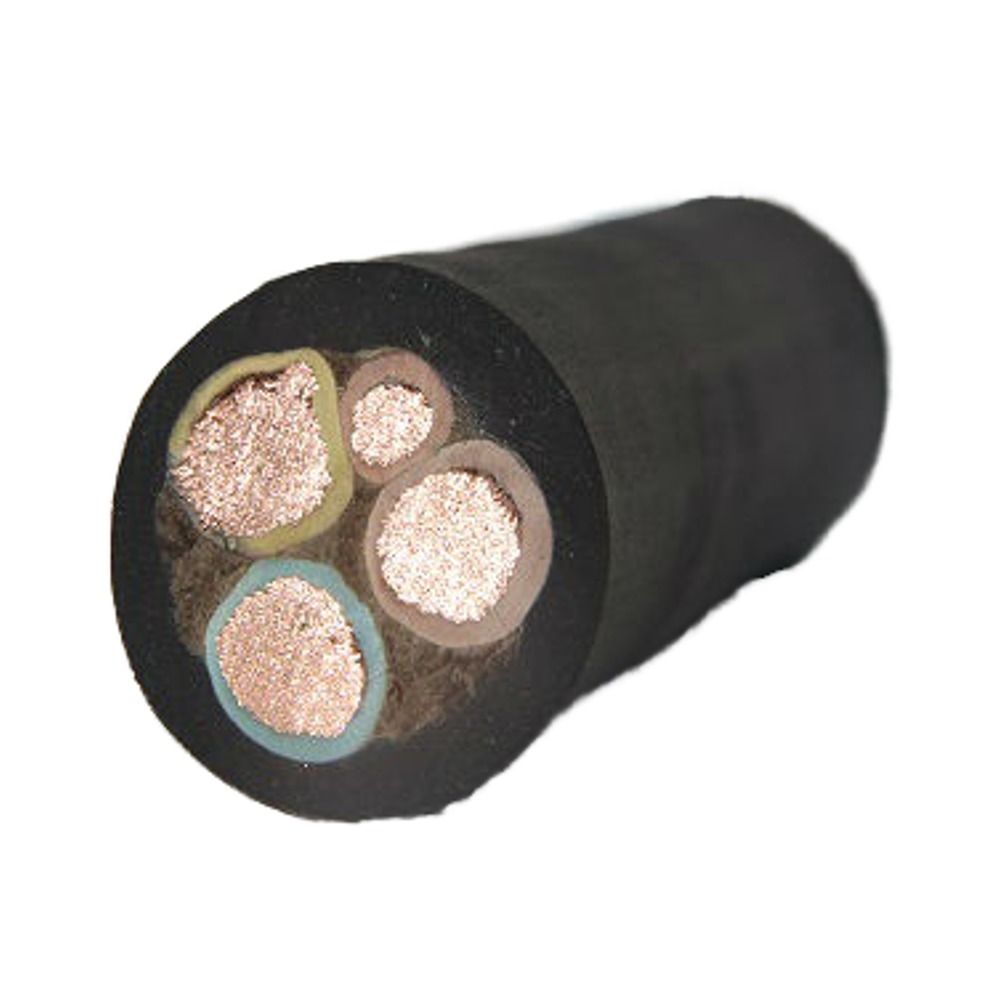

This rubber cable is a flexible movable cable with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Due to its softness and tensile resistance, it is widely used in various electrical equipment, and can be used in indoor and outdoor environments simultaneously.

It's suitable for hot environments such as generating electricity, metallurgy and chemical industry, to connect removable electrical equipment.

• Conductor: Stranded Copper Core
• Insulation: EPR (Ethylene Propylene Rubber)
• Sheath: Rubber
• Configuration: Single Core, 2 cores, 3 cores, 4 cores, 5 cores and more
• Voltage Rating: 450/750V
• Temperature Range: -30°C to +70°C (90℃ max)
• Special Features: Movable, Flexible, oil resistance, small bending radius

Flexible rubber cables possess core characteristics such as wear resistance, oil resistance, weather resistance, high temperature resistance, resistance to mechanical damage, and excellent flexibility. These properties enable them to adapt to complex and harsh working environments. Their application scenarios are mainly concentrated in situations involving frequent movement, mechanical friction, and oil erosion.

• Fixed: -30°C to +60°C
• Fixed protected installations: +85°C
• Flexed: -15°C to +60°C
• Insulation tested to +90°C

• Fixed: 4 x overall diameter
• Flexed: 6 x overall diameter

Chongqing Kefei Cable Group Co., Ltd. focuses on R & D and production of rubber cable for 40 years. It is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.

Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.

• Advanced Technology
• High Quality Design
• Perfect Testing Equipment
• Strict Quality Control
• Mature Process Flow
