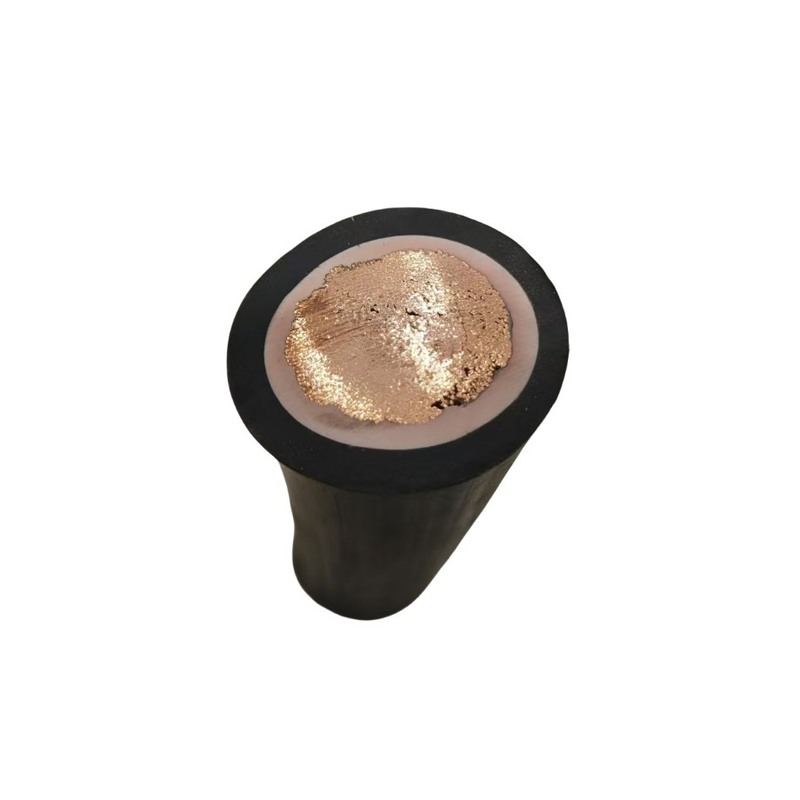

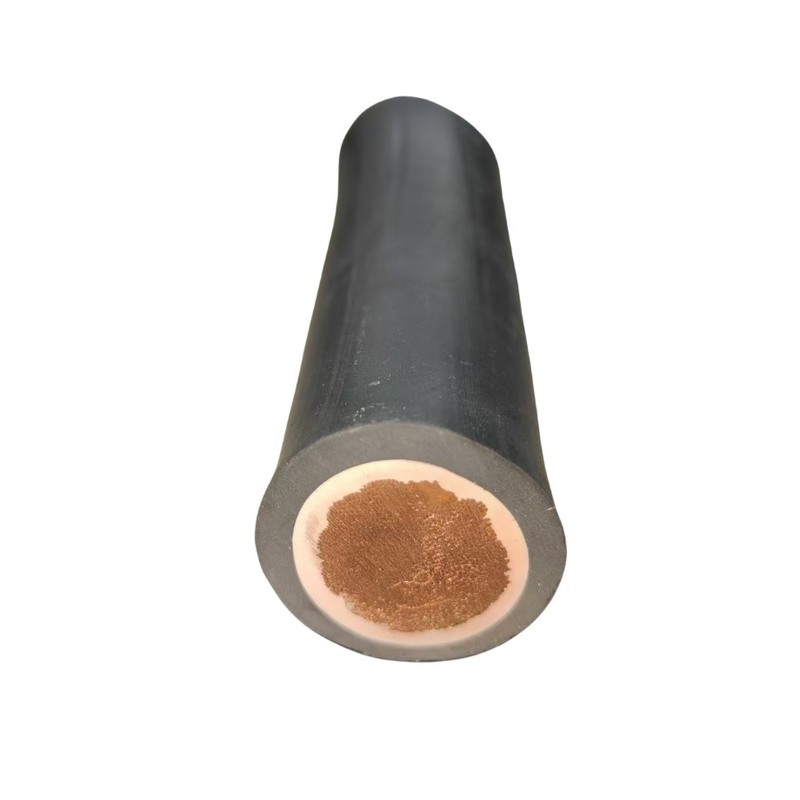

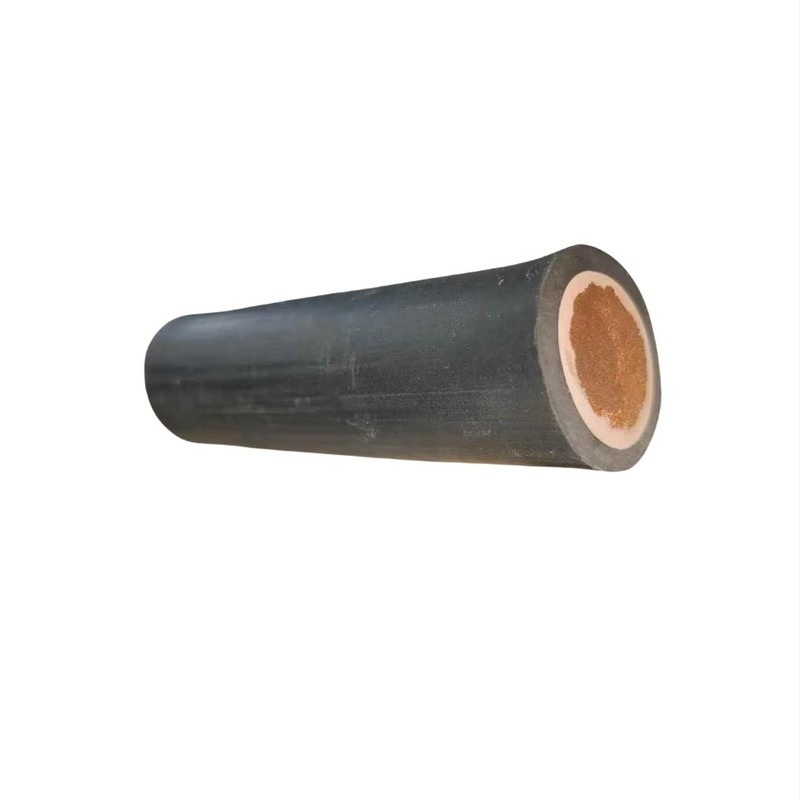

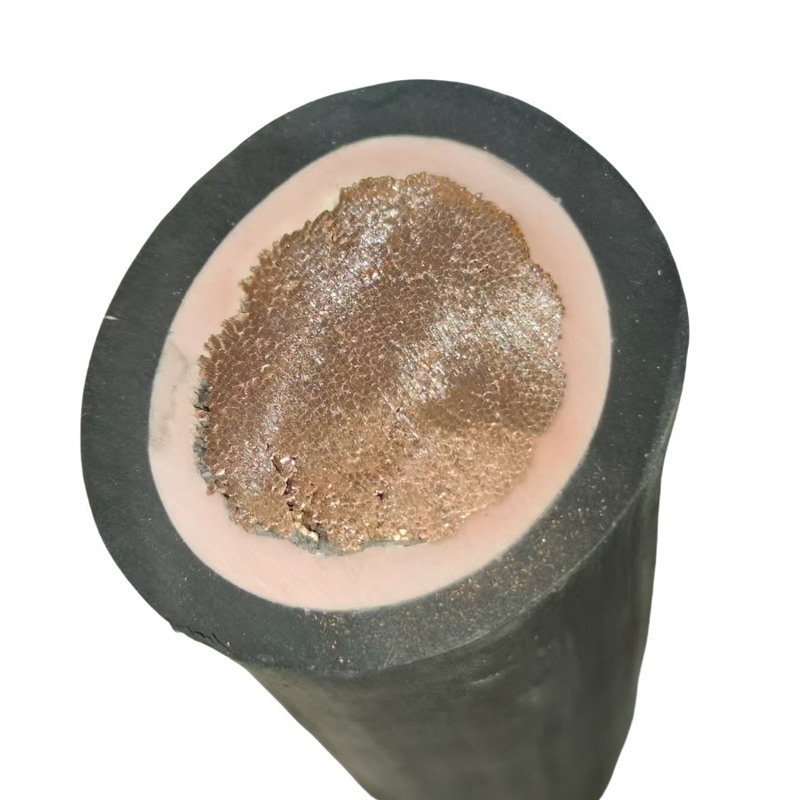

Single Core Flexible Power Wire H07RN-F Custom Size 2.5 Mm Rubber Cable

Place of Origin	Chongqing, China
Brand Name	Ke Fei Te
Certification	CCC,ISO9001
Model Number	YC
Minimum Order Quantity	500 meters
Price	$0.20-1.80/meters
Packaging Details	wooden drum,wooden pallet,woven bag
Delivery Time	4-12DAYS
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Insulation Material	EPR	Type	LOW VOLTAGE
Application	In An Environment Where Frequent Movement, Mechanical Friction, And Oil Corrosion Occur	Conductor Material	Annealed Copper Conductor
Jacket	Rubber	Size	Customized
Product Name	H07RN-F Rubber Cable	Shape	Round Wire
Feature	Inflaming Retarding, Oil Resistance And So On	Conductor	Pure Copper
Insulation	EPR Rubber	Sheath	Rubber Sheath
Rated Voltage	450/750V	Core	Single Core
Highlight	Flexible Power Wire H07RN-F , Custom Size 2.5 Mm Rubber Cable , Single Core Flexible Power Wire

Leave a Message

Product Description

450/750V H07RN-F Single Copper Conductor Custom Size Heavy Duty Rubber Sheath Power Cable

450/750V Single Copper Conductor H07RN-F EPR Insulation CPE Sheath Flexible Rubber Power Cable
Annealed Copper Conductor 1-300mm Single Core H07RN-F EPR Insulation CPE Sheath Flexible Rubber Cable for Power Transmission

This rubber cable is a flexible movable cable with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Due to its softness and tensile resistance, it is widely used in various electrical equipment, and can be used in indoor and outdoor environments simultaneously. It's suitable for hot environments such as generating electricity, metallurgy and chemical industry, to connect removable electrical equipment.

Product Description

Conductor: Stranded Copper Core
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: Rubber
Configuration: Single Core
Voltage Rating: 450/750V
Temperature Range: -30°C to +70°C (90℃ max)
Special Features: Movable, Flexible, oil resistance, small bending radius

Application

Flexible rubber cables possess core characteristics such as wear resistance, oil resistance, weather resistance, high temperature resistance, resistance to mechanical damage, and excellent flexibility. These properties enable them to adapt to complex and harsh working environments. Their application scenarios are mainly concentrated in situations involving frequent movement, mechanical friction, and oil erosion.

Characteristics

Temperature Rating

Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C
Insulation tested to +90°C

Minimum Bending Radius

Fixed: 4 x overall diameter
Flexed: 6 x overall diameter

Specification

Product Name	H07RN-F Rubber cable
Brand	Ke Fei Te
Model	YC
Conductor Material	Annealed copper conductor
Insulation Material	EPR
Jacket	General Rubber Sheath
Color	Black
Shape	Round wire
Feature	Inflaming retarding, soft and tensile resistance

Company Profile

Chongqing Kefei Cable Group Co., Ltd. focuses on R & D and production of rubber cable for 40 years. It is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.

Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.
