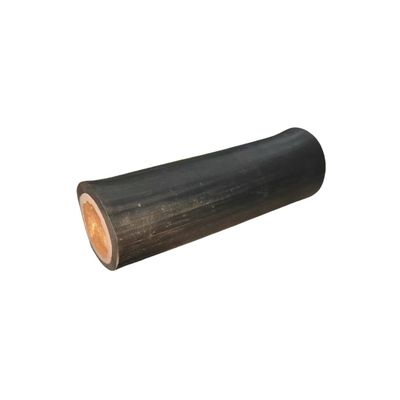

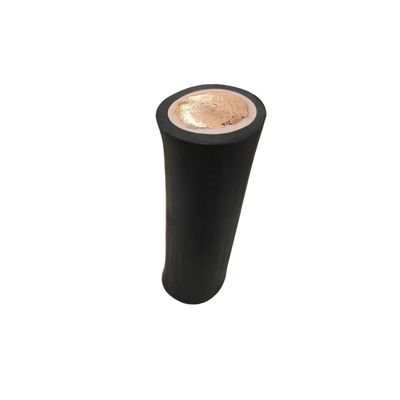

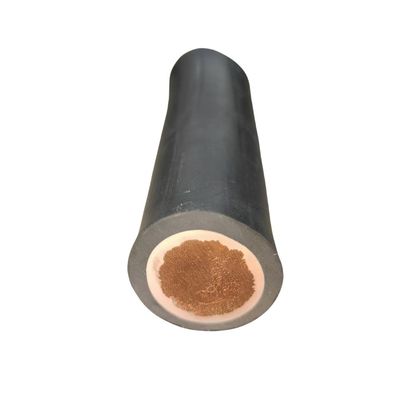

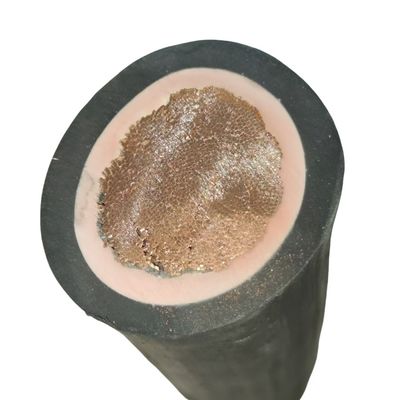

450/750V H07RN-F Single Core Rubber Flexible Cable With Annealed Copper Conductor
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Insulation Material | EPR | Type | LOW VOLTAGE Cable |
|---|---|---|---|
| Application | Power Supply For Mechanical Equipment, Metallurgy And Heavy Industry | Conductor Material | Annealed Copper Conductor |
| Jacket | Rubber | Size | 1mm,1.5mm,2.5mm,4mm,6mm,10mm,25mm,35mm,50mm ,70mm 95mm And So On |
| Product Name | H07RN-F Rubber Cable | Shape | Round Wire |
| Feature | Flexible,movable, Oil Resistance ,waterproof ,tensile Resistance And So On | Conductor | Stranded Copper Wire Conductor |
| Insulation | EPR Rubber | Sheath | Rubber Sheath |
| Rated Voltage | 450/750V | Core | Single Core |
| Highlight | Single Core Rubber Flexible Cable,Annealed Copper Conductor Rubber Cable,Single Core flexible power cord |
||
Product Description
450/750V H07RN-F Heavy Duty Rubber Flexible Cable EPR Insulation Single Core Power Supply Cable
450/750V Single Copper Conductor H07RN-F EPR Insulation CPE Sheath Flexible Rubber Power Cable. This rubber cable features a flexible movable design with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Its softness and tensile resistance make it ideal for various electrical equipment in both indoor and outdoor environments, particularly in hot environments such as power generation, metallurgy and chemical industries.
Product Specifications
- Conductor: Stranded Copper Core
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: Rubber
- Configuration: Single Core
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Movable, Flexible, oil resistance, small bending radius, tensile resistance
Applications
Flexible rubber cables are designed for wear resistance, oil resistance, weather resistance, high temperature tolerance, and mechanical damage protection. Their excellent flexibility makes them ideal for complex and harsh working environments, particularly in situations involving frequent movement, mechanical friction, and oil exposure.
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
Product Specifications
| Product Name | H07RN-F Rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YC |
| Conductor Material | Annealed copper conductor |
| Insulation Material | EPR |
| Jacket | General Rubber Sheath |
| Color | Black |
| Shape | Round wire |
| Feature | Flexible, oil resistance, Inflaming retarding, soft and tensile resistance |
