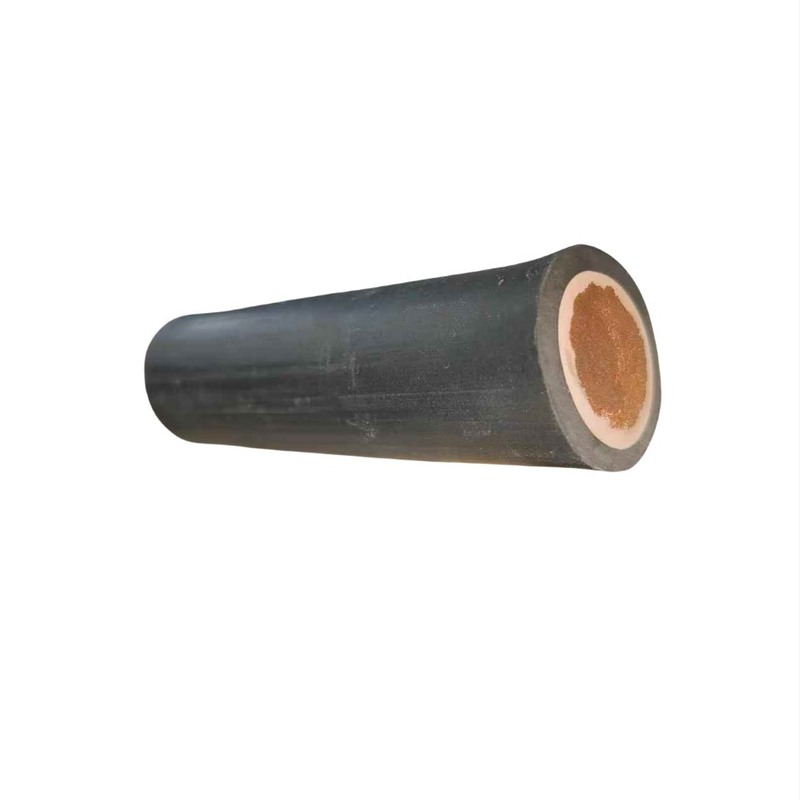

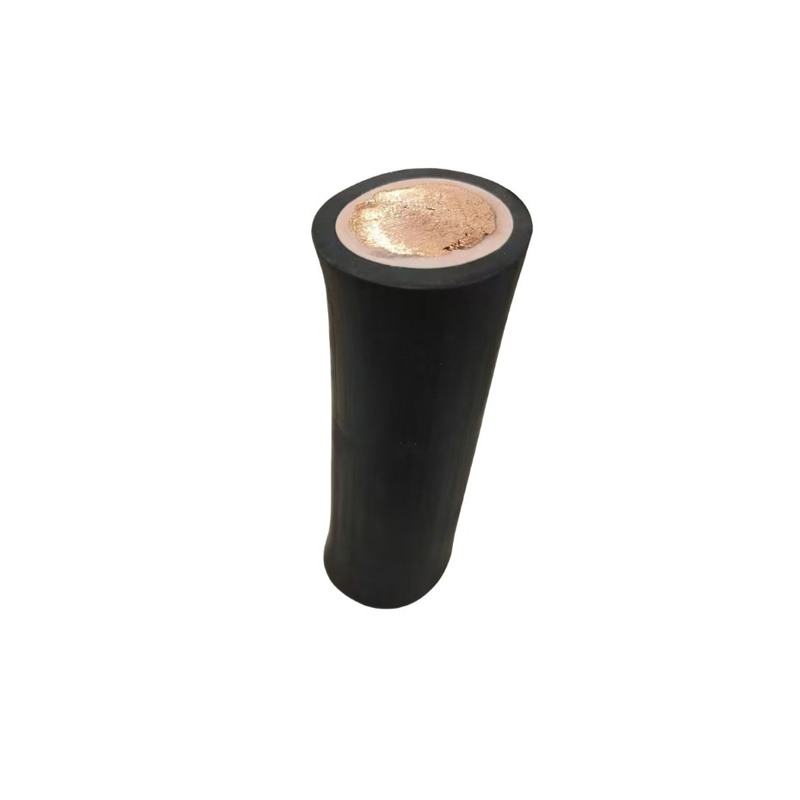

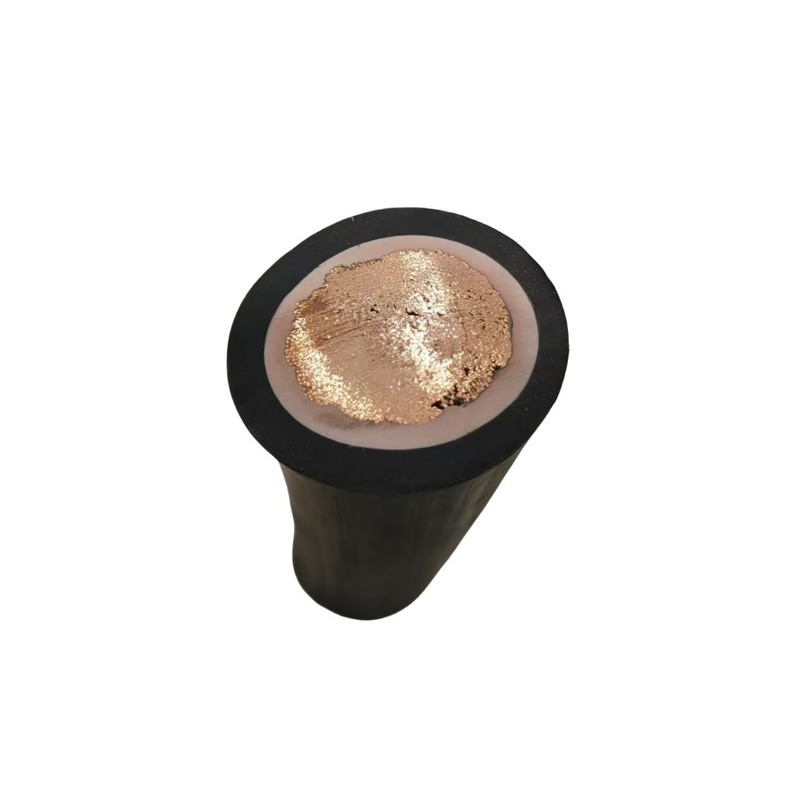

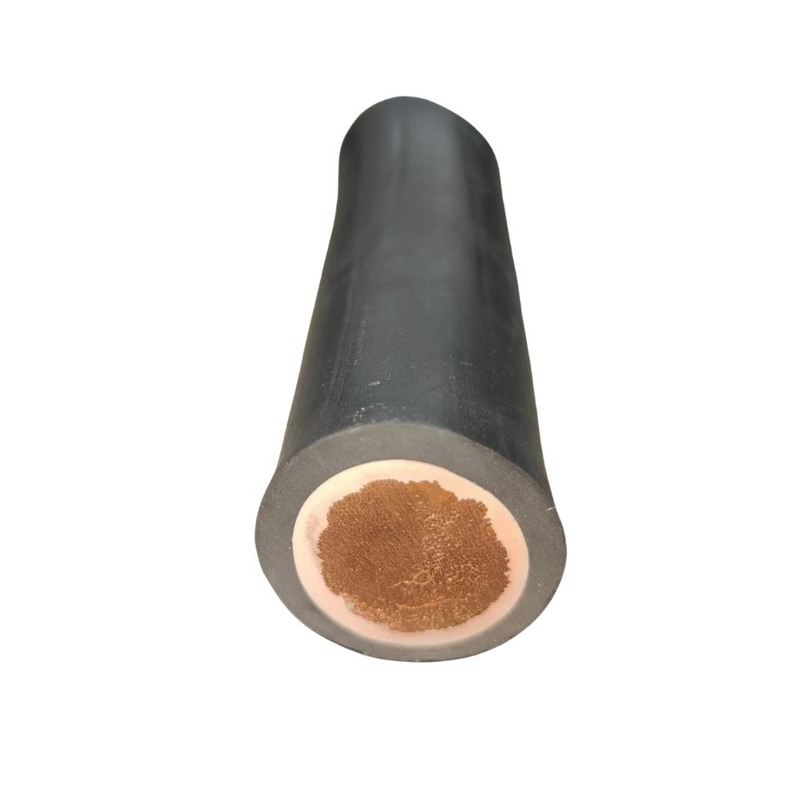

Low Voltage Rubber Flexible Cable Rubber Electrical Cable For Power Generation
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Insulation Material | EPR | Type | LOW VOLTAGE Cable |
|---|---|---|---|
| Application | Power Supply For Mechanical Equipment, Metallurgy And Heavy Industry | Conductor Material | Annealed Copper Conductor |
| Jacket | Rubber | Size | 1mm,1.5mm,2.5mm,4mm,6mm,10mm,25mm,35mm,50mm ,70mm 95mm And So On |
| Product Name | H07RN-F Rubber Cable | Shape | Round Wire |
| Feature | Flexible,movable, Oil Resistance ,waterproof ,tensile Resistance And So On | Conductor | Stranded Copper Wire Conductor |
| Insulation | EPR Rubber | Sheath | Rubber Sheath |
| Rated Voltage | 450/750V | Core | Single Core |
| Highlight | Low Voltage Rubber Flexible Cable,Low Voltage Rubber Electrical Cable,power generation Rubber Flexible Cable |
||
Product Description
450/750V H07RN-F Heavy Duty Rubber Flexible Cable EPR Insulation Single Core Power Supply Cable
450/750V Single Copper Conductor H07RN-F EPR Insulation CPE Sheath Flexible Rubber Power Cable. This rubber cable features a flexible movable design with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Its softness and tensile resistance make it ideal for various electrical equipment in both indoor and outdoor environments, particularly in hot environments such as power generation, metallurgy and chemical industries.
Product Specifications
- Conductor: Stranded Copper Core
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: Rubber
- Configuration: Single Core
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Movable, Flexible, oil resistance, small bending radius, tensile resistance
Applications
Flexible rubber sheath cables possess core characteristics such as wear resistance, oil resistance, weather resistance, high temperature resistance, resistance to mechanical damage, and excellent flexibility. They can adapt to complex and harsh working environments. Their application scenarios are mainly concentrated in fields that have high requirements for cable protection performance and mechanical strength.Their excellent flexibility makes them ideal for complex and harsh working environments, particularly in situations involving frequent movement, mechanical friction, and oil exposure.
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
Product Specifications
| Product Name | H07RN-F Rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YC |
| Conductor Material | Annealed copper conductor |
| Insulation Material | EPR |
| Jacket | General Rubber Sheath |
| Color | Black |
| Shape | Round wire |
| Feature | Flexible, oil resistance, Inflaming retarding, soft and tensile resistance |
Company Profile
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40 years. As a large enterprise in cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements.
Our products are globally distributed and widely used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
