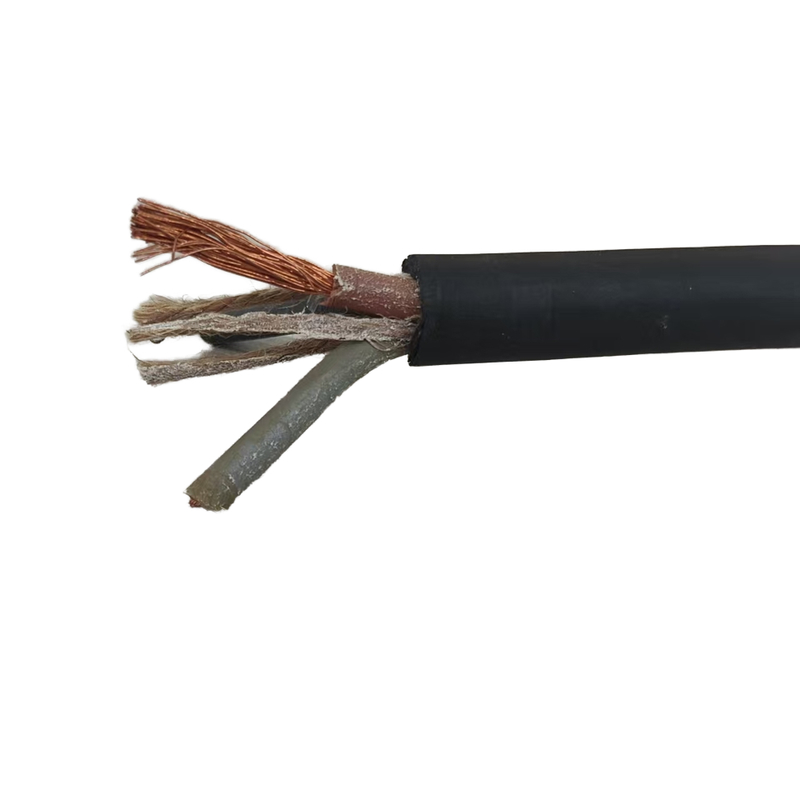

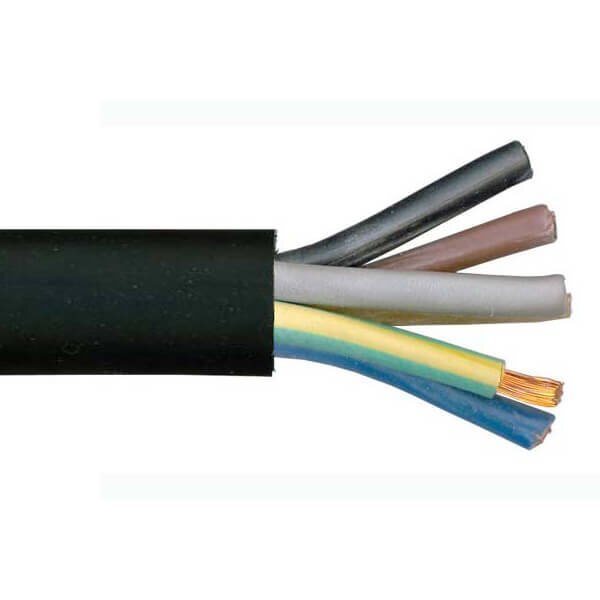

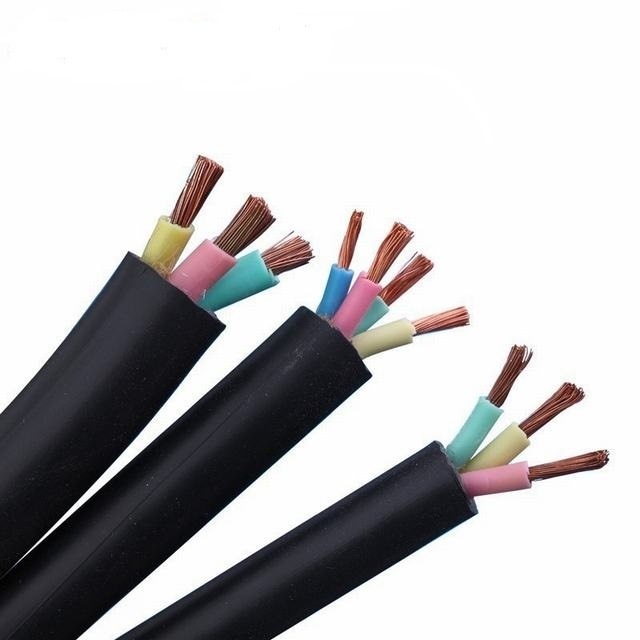

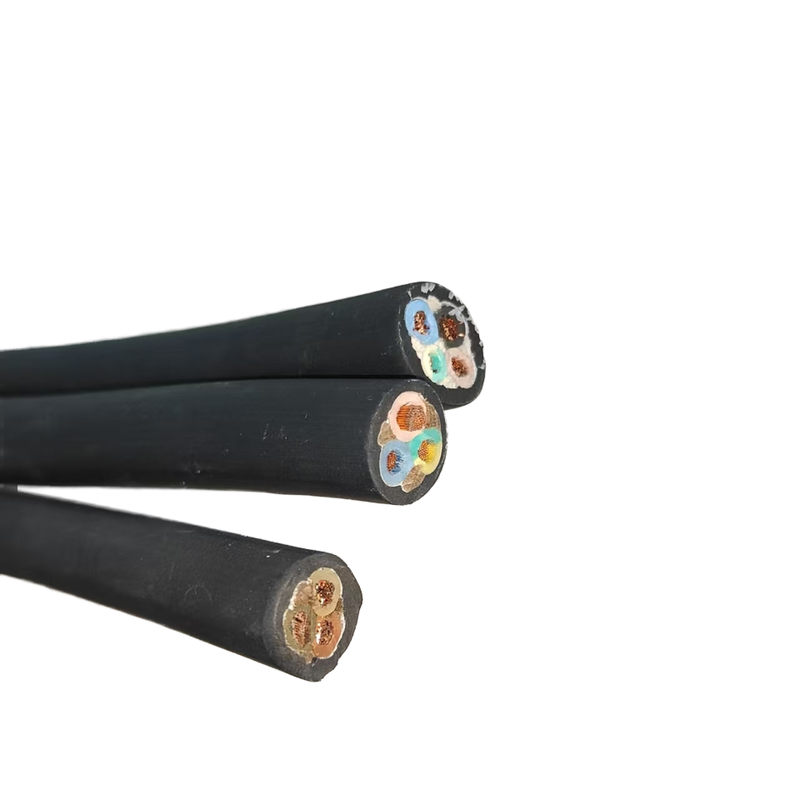

H07RN-F Rubber Flexible Copper Cable
High Flexible Wear Resistance Outdoor Use Rubber Flexible Power Cable with EPR Insulation and Stranded Copper Conductor. Customizable Size Rubber Sheath EPR Insulation Stranded Copper Conductor Flexible Power Cable for demanding electrical environments.
This multi-core power supply cable features a flexible movable design with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Its softness, wear resistance and tensile resistance make it ideal for various electrical equipment in both indoor and outdoor environments, particularly in hot environments such as power generation, metallurgy and chemical industries.
Product Specifications
- Conductor: Stranded Copper Core
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: CPE
- Configuration: Single Core, 2cores, 3cores, 4cores, 5cores
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Size: 1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm and more
- Filler: Rope
- Special Features: Movable, Flexible, oil resistance, small bending radius, tensile resistance
Applications
This Flexible rubber cable benefits from core advantages such as wear resistance, oil resistance, weather resistance, high temperature resistance, resistance to mechanical damage, and good flexibility. It can be adapted to various complex and harsh electrical environments.
- Power supply for heavy mechanical equipment
- Mining equipment
- Power supply for construction equipment
- Temporary power supply system
- Temporary outdoor work
- Emergency rescue power supply
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
Product Details
| Product Name |
H07RN-F Rubber cable |
| Brand |
Ke Fei Te |
| Model |
YC |
| Conductor Material |
Annealed copper conductor |
| Insulation Material |
EPR |
| Jacket |
General Rubber Sheath |
| Color |
Black |
| Shape |
Round wire |
| Feature |
Flexible, oil resistance, Inflaming retarding, soft and tensile resistance |
Company Profile
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40 years. As a large enterprise in cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements.
Our products are globally distributed and widely used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
