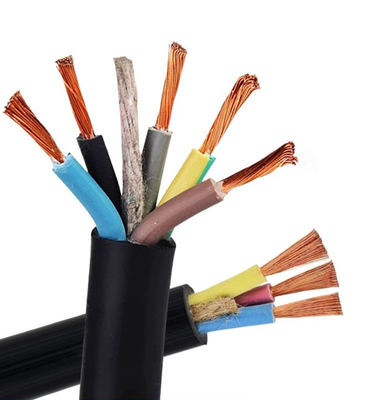

Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Insulation Material | EPR | Type | Flexible Cable |
|---|---|---|---|
| Application | A Variety Of Complex And Harsh Electrical Usage Environments | Conductor Material | Stranded Copper Conductor |
| Jacket | Rubber | Size | 1mm,1.5mm,2.5mm,4mm,6mm,10mm,25mm,35mm,50mm ,70mm 95mm ,120mm And So On |
| Product Name | H07RN-F Rubber Cable | Shape | Round Wire |
| Feature | Flexible,movable, Oil Resistance ,wear Resistance ,tensile Resistance And So On | Conductor | Stranded Copper Wire Conductor |
| Sheath | Rubber Sheath | Rated Voltage | 450/750V |
| Core | Single Core,2cores,3cores,3+1cores And So On | Filler | Tensile Resistance Rope |
| Highlight | Extra Soft Rubber Flexible Cable,1mm Rubber Flexible Cable,150mm rubber jacket cable |
||
Product Description
Wear Resistance Rubber Sheathed Flexible Cable with Stranded Copper Conductor for Complex and Harsh Electrical Usage Environments
Extra Soft Wear Resistance Outdoor Use Rubber Flexible Power Cable with EPR Insulation and Stranded Copper Conductor. Customizable Size Rubber Sheath EPR Insulation Stranded Copper Conductor Flexible Power Cable for demanding electrical environments. 450/750V H07RN-F Heavy Duty Rubber Flexible Cable with EPR Insulation and Stranded Copper Conductor.
This multi-core power supply cable features a flexible movable design with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Its softness, wear resistance and tensile resistance make it ideal for various electrical equipment in both indoor and outdoor environments, particularly in hot environments such as power generation, metallurgy and chemical industries.
![]()
Product Specifications
- Conductor: A copper conductor made by twisting multiple thin copper wires together
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: CPE
- Configuration: Single Core, 2cores, 3cores, 4cores, 5cores
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Size: 1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm ,150mm and more
- Filler: Tensile Resistance Rope
- Special Features: Movable, Flexible, oil resistance, wear resistance, small bending radius, tensile resistance,Resistant to mechanical damage
Applications
This Flexible rubber cable benefits from core advantages such as wear resistance, oil resistance, weather resistance, high temperature resistance, resistance to mechanical damage, and good flexibility. It can be adapted to various complex and harsh electrical environments.
- Power supply for heavy mechanical equipment
- Mining equipment
- Power supply for construction equipment
- Temporary power supply system
- Temporary outdoor work
- Emergency rescue power supply
![]()
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
Product Specifications
| Product Name | H07RN-F Rubber cable |
| Brand | Ke Fei Te |
| Model | YC |
| Conductor Material | Annealed copper conductor |
| Insulation Material | EPR |
| Jacket | General Rubber Sheath |
| Color | Black |
| Shape | Round wire |
| Feature | Flexible, oil resistance,wear resistance, Inflaming retarding, soft and tensile resistance |
