4mm 6mm 10mm H07RN-F Rubber Power Flexible Cable For Harsh Environments
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Insulation Material | EPR | Type | Flexible Cable |
|---|---|---|---|
| Application | A Variety Of Complex And Harsh Electrical Usage Environments | Conductor Material | Stranded Copper Conductor |
| Jacket | Rubber | Size | 1mm,1.5mm,2.5mm,4mm,6mm,10mm,25mm,35mm,50mm ,70mm 95mm ,120mm And So On |
| Product Name | H07RN-F Rubber Cable | Shape | Round Wire |
| Feature | Flexible,movable, Oil Resistance ,wear Resistance ,tensile Resistance And So On | Conductor | Stranded Copper Wire Conductor |
| Sheath | Rubber Sheath | Rated Voltage | 450/750V |
| Core | Single Core,2cores,3cores,3+1cores And So On | Filler | Tensile Resistance Rope |
| Highlight | 10mm Power Flexible Cable,6mm Power Flexible Cable,4mm Rubber Power Cable |
||
Product Description

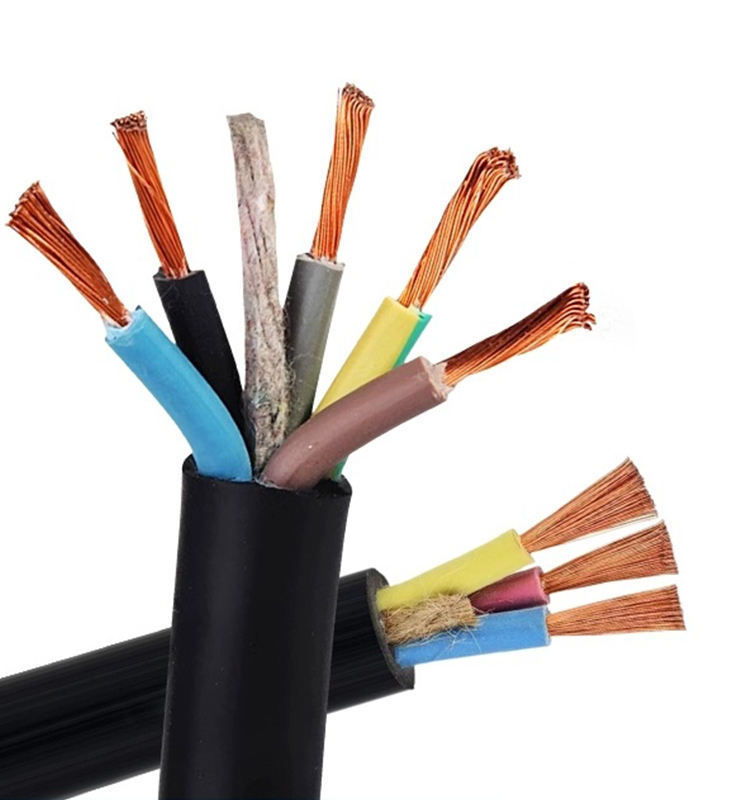

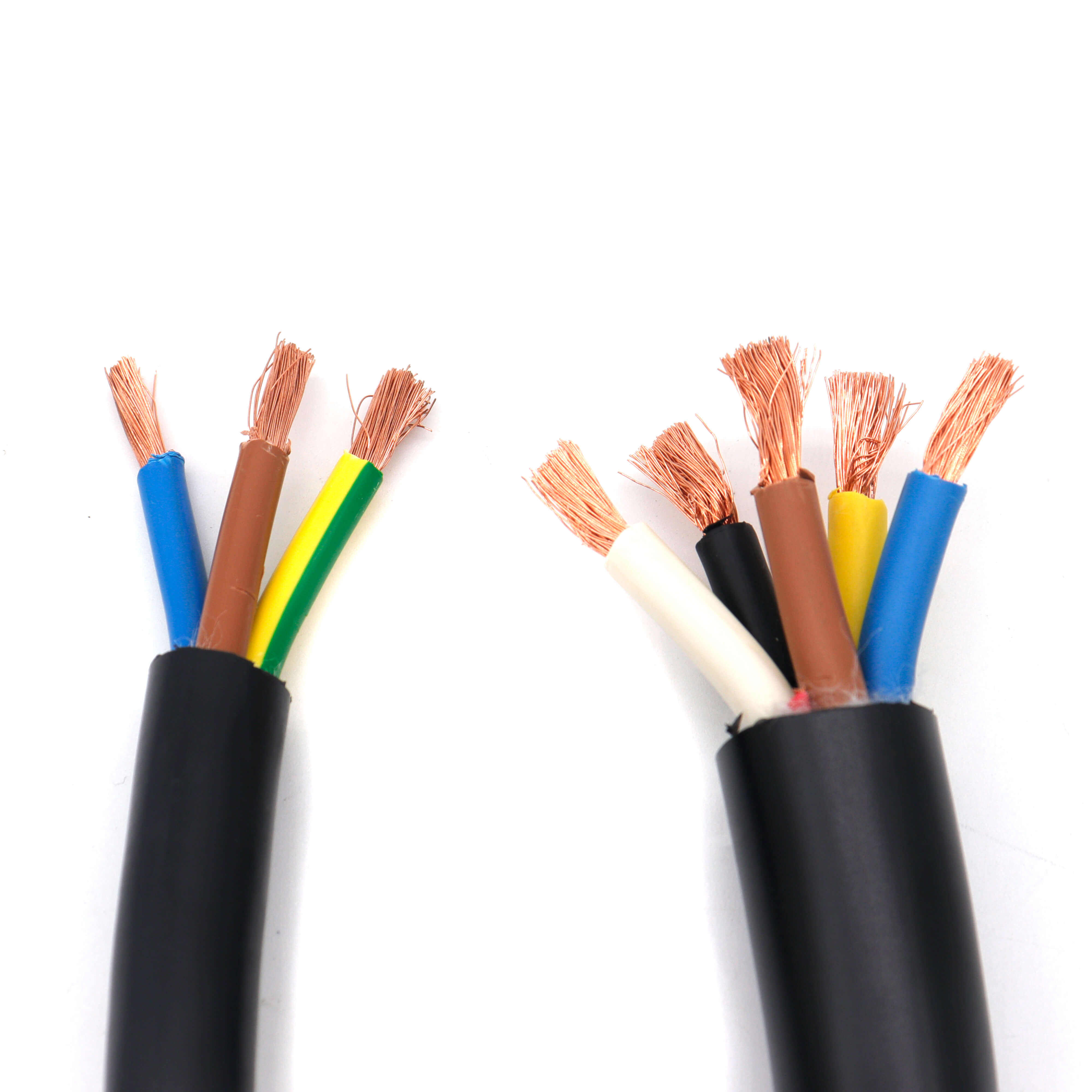

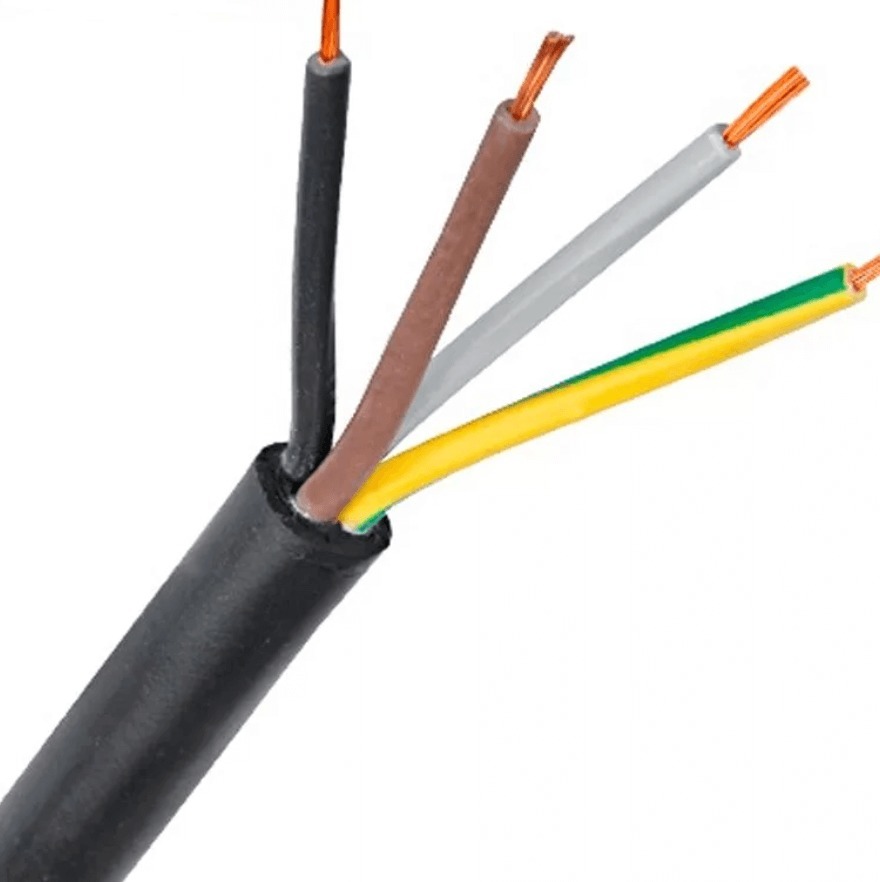

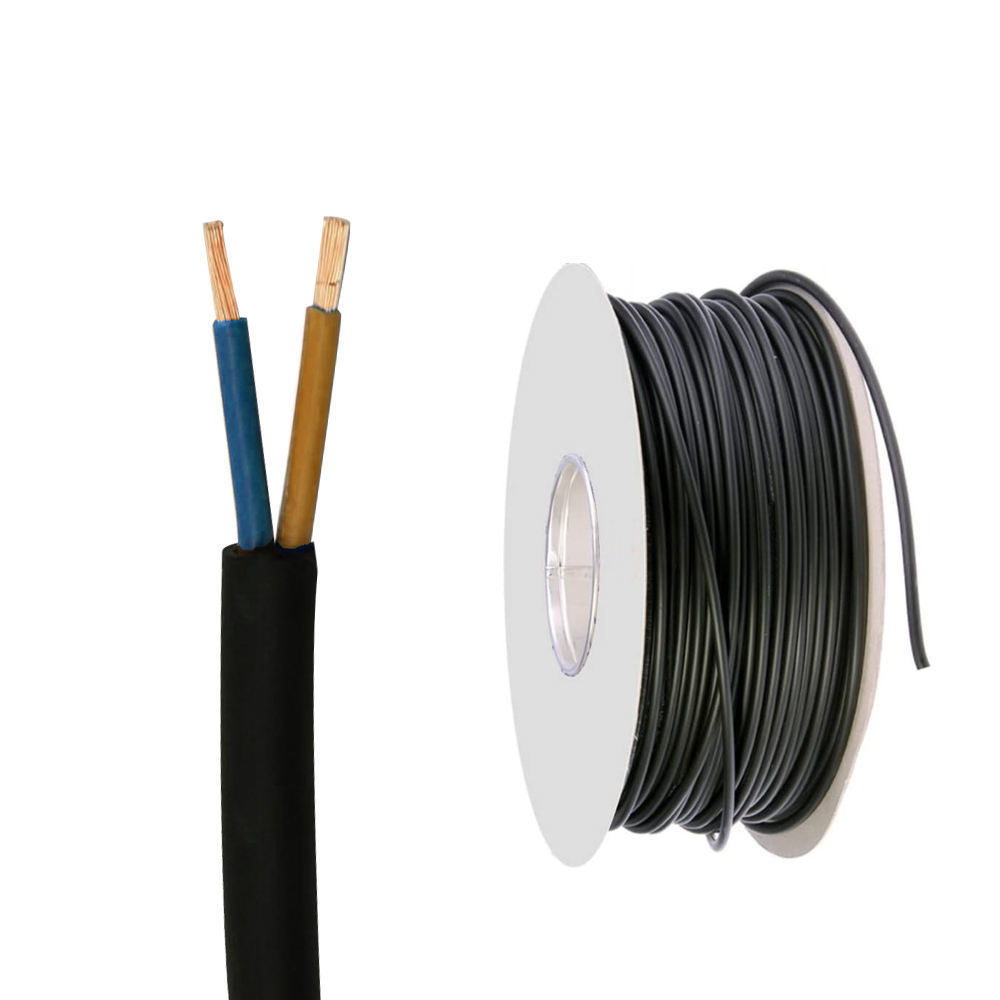

High-Performance Wear Resistance Resistant to mechanical damage Rubber Sheath EPR Insulation Flexible Power Cable
YC rubber cable is the full name of heavy-duty universal rubber-covered flexible cable. It is a type of cable commonly used for power transmission and electrical connections.This cable is high-performance wear-resistant rubber sheathed flexible cable features a stranded copper conductor designed for complex and harsh electrical environments. The extra soft, wear-resistant outdoor power cable features EPR insulation and is available in customizable sizes to meet demanding electrical requirements.
Key Features
- Conductor: Copper conductors are usually adopted, which have good electrical conductivity and strong oxidation resistance
- Insulation: Using high-quality rubber materials, it has excellent insulation performance, high-temperature resistance and moisture resistance characteristics.
- Sheath: Using rubber with excellent properties such as wear resistance, oil resistance and weather resistance can effectively protect the cables from mechanical damage, chemical erosion, etc.
- Available configurations: Single core to 5 cores
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Oil resistance, wear resistance, small bending radius, tensile resistance
Applications
- Power supply for heavy mechanical equipment
- Mining equipment operations
- Construction site power distribution
- Temporary power supply systems
- Outdoor work environments
- Emergency rescue power requirements
Technical Specifications
| Product Name | H07RN-F Rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YC |
| Conductor Material | Annealed copper conductor |
| Insulation Material | EPR |
| Jacket | General Rubber Sheath |
| Color | Black |
| Shape | Round wire |
| Feature | Flexible, oil resistance, wear resistance, flame retardant, soft and tensile resistance |
About Chongqing Kefei Cable Group
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40 years. As a large enterprise in cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables.
Our Advantages
- Advanced manufacturing technology
- High quality design standards
- Comprehensive testing equipment
- Strict quality control processes
- Mature production workflow
Production Facilities
Certifications
Packaging & Delivery
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Can you produce and manufacture products according to customer requirements?
Yes, we can customize the product according to your requirements.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
