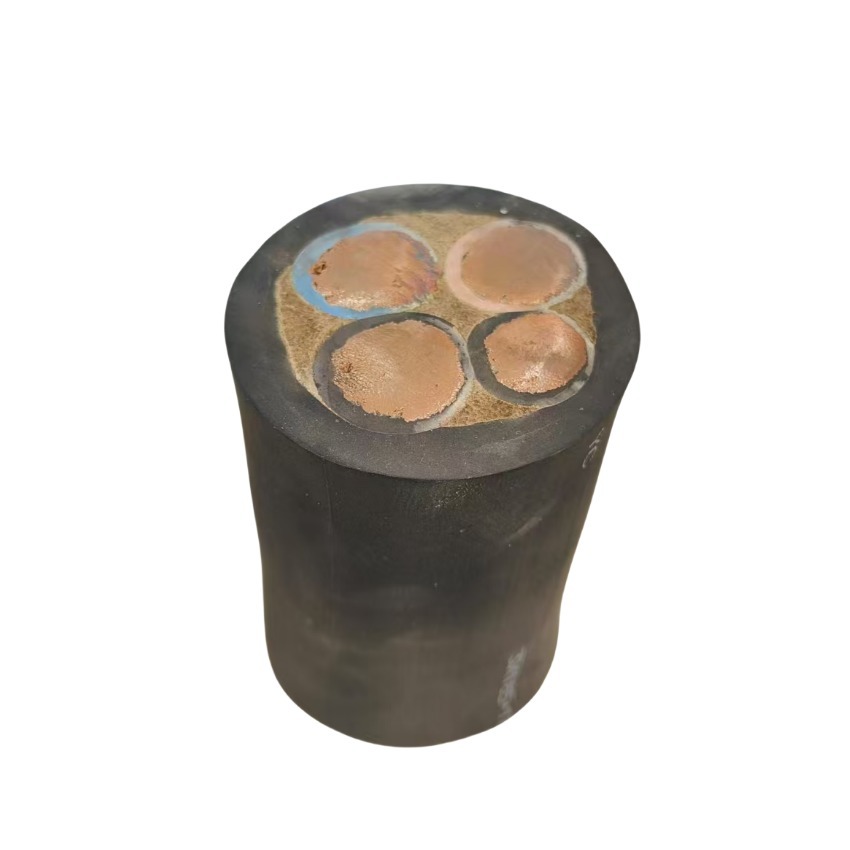

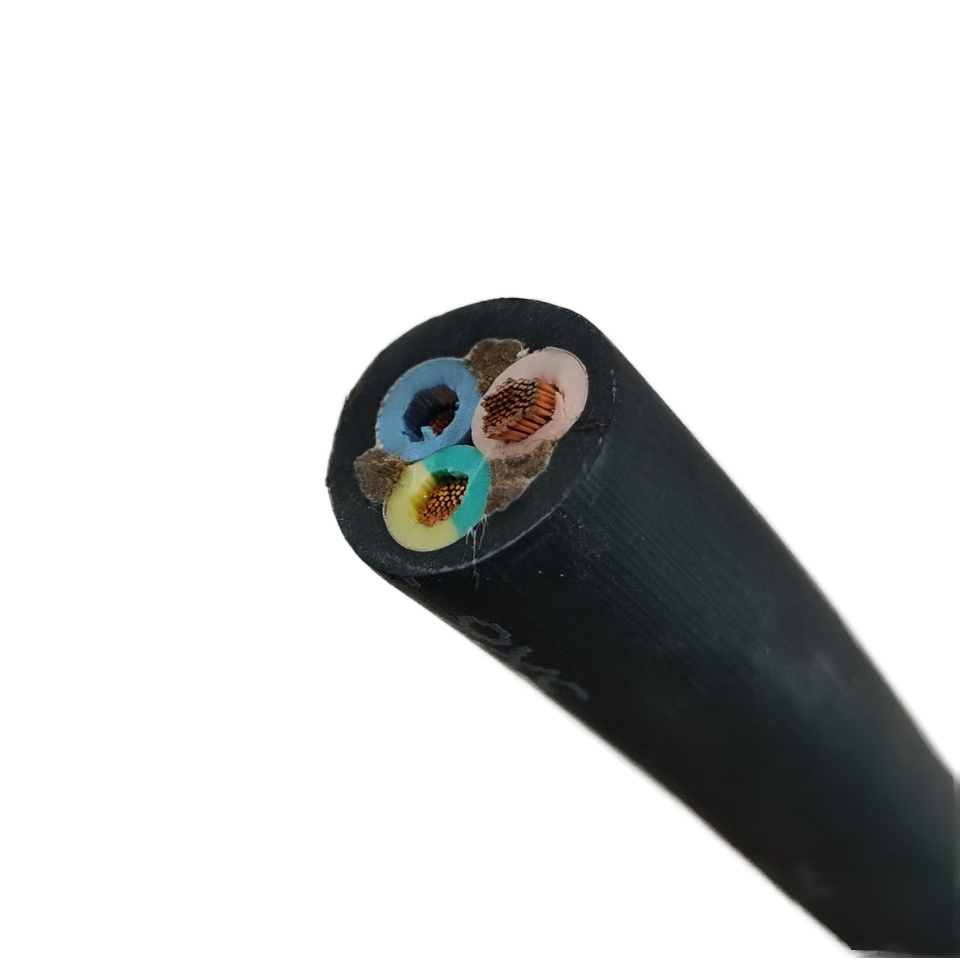

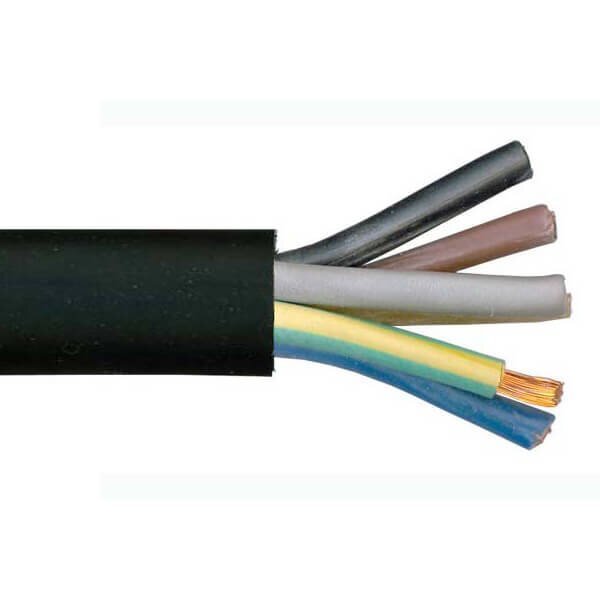

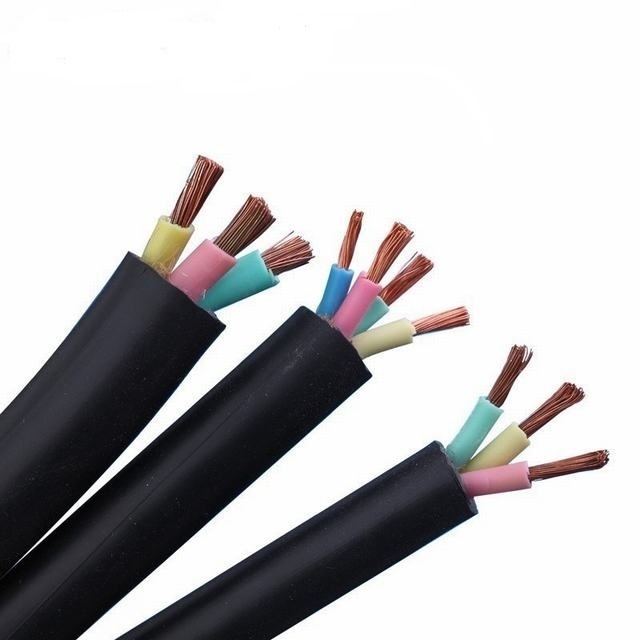

Custom Size Stranded Copper Core High Tensile Strength Rubber Sheathed Flexible Power Cable for Industry
Rubber-sheathed cable is a type of movable cable with rubber as the insulating and sheathed material. It features flexibility and durability, and is widely used in various electrical equipment.
This Cable can be classified into three types based on the mechanical forces they are subjected to: light, medium, and heavy. The long-term allowable operating temperature of cables is generally not more than 65℃. Rubber-covered cables can withstand mechanical pressure and deformation, have good tensile strength and impact resistance, and perform more persistently and stably in high-frequency bending and twisting, making them suitable for equipment that needs to be frequently moved or replaced.
Product Specifications
- Conductor: Stranded copper core - multi-strand structure enhances flexibility for bending, dragging and threading
- Insulation: EPR (Ethylene Propylene Rubber) - excellent insulation with oil and moisture resistance
- Sheath: Rubber with wear resistance, oil resistance and weather resistance properties
- Configuration: Single Core, 2 cores, 3 cores, 4 cores, 5 cores
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Available Sizes: 6mm, 10mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm and more
- Filler: Rope
- Special Features: Movable, flexible, oil resistant, wear resistant, small bending radius, tensile resistant
Applications
This flexible rubber cable offers superior wear resistance, oil resistance, weather resistance, high temperature resistance, and mechanical damage protection, making it ideal for various complex electrical environments:
- Industrial sector: Power supply for mobile devices including construction machinery (excavators, cranes, concrete pump trucks) and industrial automation equipment (machine tools, conveyor belts, robot drag chain systems)
- Agricultural sector: Power lines for agricultural machinery (harvesters, tractors) and agricultural electrification scenarios
- Construction sector: Temporary power distribution for construction site equipment, lighting, and vibration rods
- Special environments: Port/ship shore power connections, outdoor installations (street lamps, billboards), high-temperature areas (metallurgical furnaces, boiler rooms with silicone rubber sheath variants)
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
| Product Name |
H07RN-F Rubber cable |
| Brand |
Ke Fei Te |
| Model |
YC/H07RN-F |
| Conductor Material |
Annealed copper conductor (Multiple strands of fine copper wire twisted together) |
| Insulation Material |
EPR (Ethylene-Propylene Rubber) |
| Jacket |
General Rubber Sheath |
| Color |
Black |
| Shape |
Round wire |
| Feature |
Flexible, oil resistance, wear resistance, soft and tensile resistance |
Company Profile
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40 years. As a large enterprise in cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements.
Our products are globally distributed and widely used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
