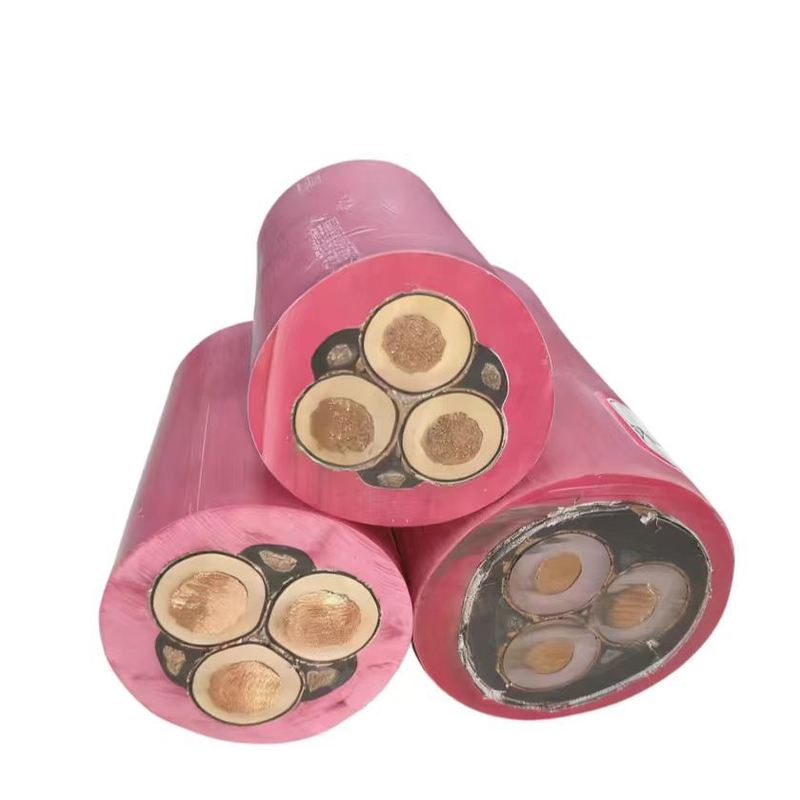

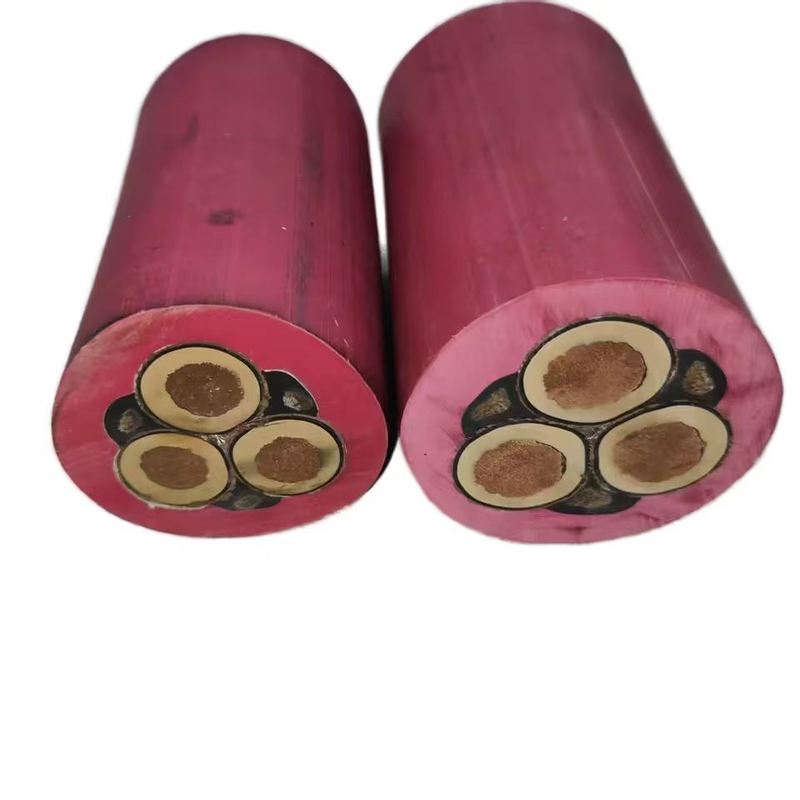

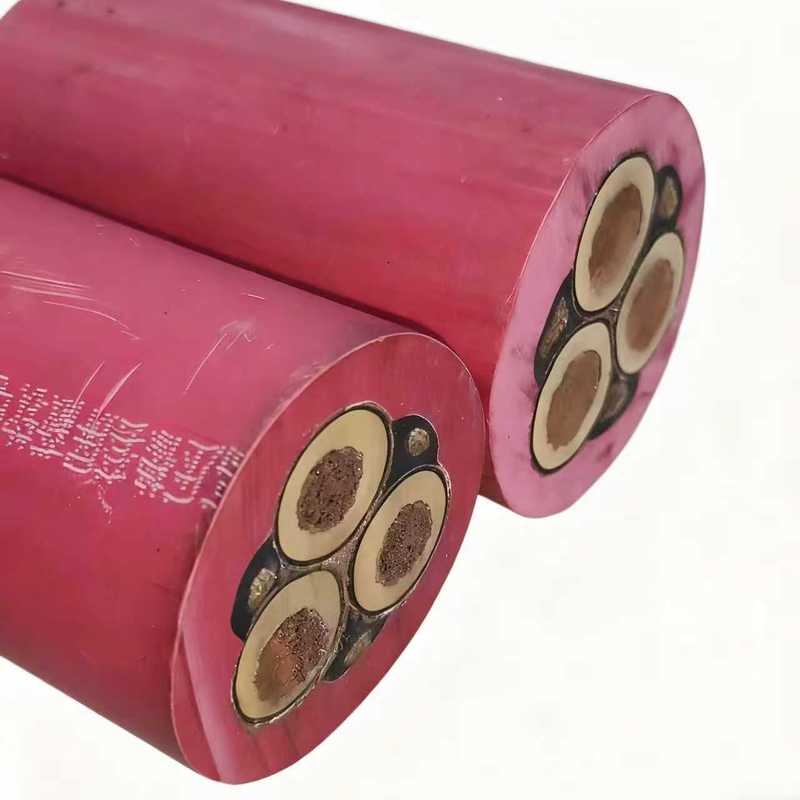

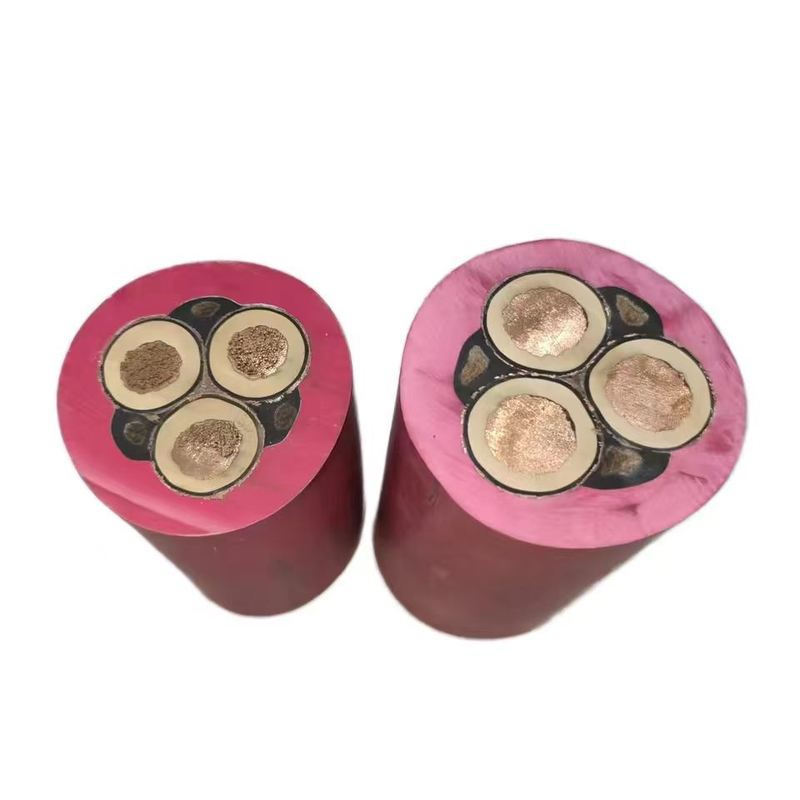

Oil Resistant High Voltage Power Cable Flexible Rubber Cable EPDM Insulation
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Voltage Flexible Rubber Shield Machine Cable | Warranty | 1 Year |
|---|---|---|---|
| Customized Support | OEM | Place Of Origin | China,Chongqing |
| Brand Name | KE FEI TE | Model Number | UGEFP |
| Cable Type | Flexible Rubber Shield Machine Cable | Feature | Explosion-proof,oil Resistant,wear Resistant, Waterproof, Flexible,Corrosion Resistant |
| Application | Power Transmission For Shield Machine Or Other Mining Equipment | Packing | Wooden Drum,wooden Pallet,plastic Pallet,woven Bag Or As Customer's Requiments |
| MOQ | 100 Meters | Voltage | 8.7/15KV,12/20KV |
| Conductor | Tinned Copper/Copper | Sheath | CPE(Chlorinated Polyethylene) |
| Insulation | EPDM | ||
| Highlight | High Voltage Power Cable Flexible,Oil Resistant High Voltage Power Cable,Flexible Rubber Cable EPDM Insulation |
||
Product Description
High Tensile Strength 8.7/15KV EPDM Insulation Tinned Copper Core Flexible Rubber Power Cable for Shield Tunneling Machine Power Transmission
8.7/15KV 12/20KV High Voltage EPDM Insulation Wear Resistant Rubber Flexible Tinned Copper Core Power Cables for Shield Tunneling Machines and Mining Equipment.
UGEFP cables are high voltage rubber sheathed flexible cables designed for shield machines in open-pit mines. Featuring wear resistance, oil resistance, cold resistance, high-temperature resistance, waterproof, and corrosion resistance, they are suitable for harsh construction environments. Suitable for heavy equipment in open-pit mines and underground tunneling operations rated at 8.7/15kV or below, such as shield tunneling machines. Also applicable for tunnel projects in subways, railways, highways, hydropower facilities and so on.
Key Features
- Rated power frequency voltage U0/U: 8.7/15KV,12/20KV
- Conductor: Stranded Tinned fine copper wire conductor with excellent electrical conductivity and flexibility
- Insulation: The power conductor insulation utilizes EPDM rubber, offering excellent electrical insulation properties, heat resistance, and aging resistance; the ground conductor core is made of semiconductive rubber to ensure grounding safety.
- Insulation Shield: Rubber-type semiconductive outer shielding effectively evens out the electric field and prevents partial discharge.
- Outer Sheath: CPE(Chlorinated polyethylene),features high abrasion resistance, oil resistance, cold resistance, high-temperature resistance, water resistance, and corrosion resistance
- Operating temperature range: -35°C to 65°C
- Maximum operating temperature of conductor: +75°C
- Minimum bending radius exceeds 6 times cable diameter
- Tinned copper conductor prevents oxidation and improves conductivity
- Features: Flexible, waterproof, tensile resistant, explosion-proof, oil-resistant, and corrosion-resistant, abrasion resistance
Technical Specifications
| No | Item | Data |
|---|---|---|
| 1 | Product Name | High Voltage Flexible Rubber Shield Machine Cable |
| 2 | Power Core Insulation | EPDM Rubber |
| 3 | Ground wire core Insulation | Semiconductive rubber |
| 4 | Sheath | CPE |
| 5 | Voltage | 8.7/15KV,12/20kv |
| 6 | Conductor Operation Temperature | -35℃~+65℃ |
| 7 | Insulation Shield | Rubber-type Semiconductive Outer Shielding |
| 8 | Conductor | Tinned Copper |
| 9 | Filler | Thermoplastic elastomer |
| 10 | Feature | Wear resistant, oil resistant, tensile resistant, waterproof, Corrosion resistant |
| 11 | Application | Power connections in distribution networks for systems such as shield machines and mining equipment |
| 12 | Product Model | UGEFP |
Application Scenarios
- Shield Machine Operations: Provides stable power supply to the cutterhead and propulsion system of shield machines, while also transmitting control signals.
- Mining Operations: Power supply for heavy equipment like excavators and loaders, plus underground power transmission in mines.
- Subway Construction: Power supply for tunnel boring machines, plus electricity for lighting, ventilation, and other equipment in subway stations and tunnels.
- Distribution Networks for Similar Equipment Systems: Power distribution and signal transmission for equipment like port machinery and cranes.
Product Advantage
- High Abrasion Resistance: The outer sheath withstands prolonged friction from minerals and other materials without damage.
- High Tensile Strength: Withstands significant tensile forces during repeated movement, ensuring the core wires remain intact.
- Torsion Resistance: Strong resistance to twisting prevents deformation and sheath cracking.
Company Profile
Chongqing Kefei Cable Group Co., Ltd
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cable for 40 years. As a large cable manufacturing enterprise, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements. Our products are globally distributed and widely used in coal mines, power stations, and transportation sectors, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
