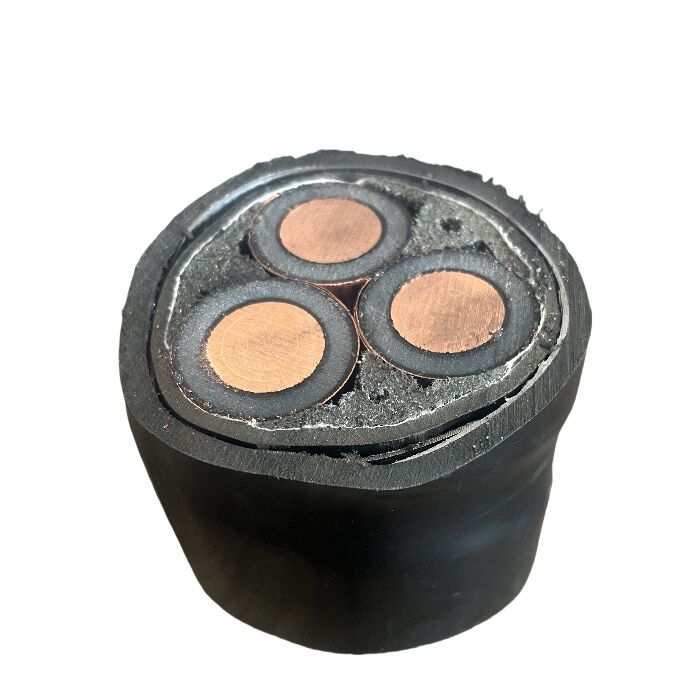

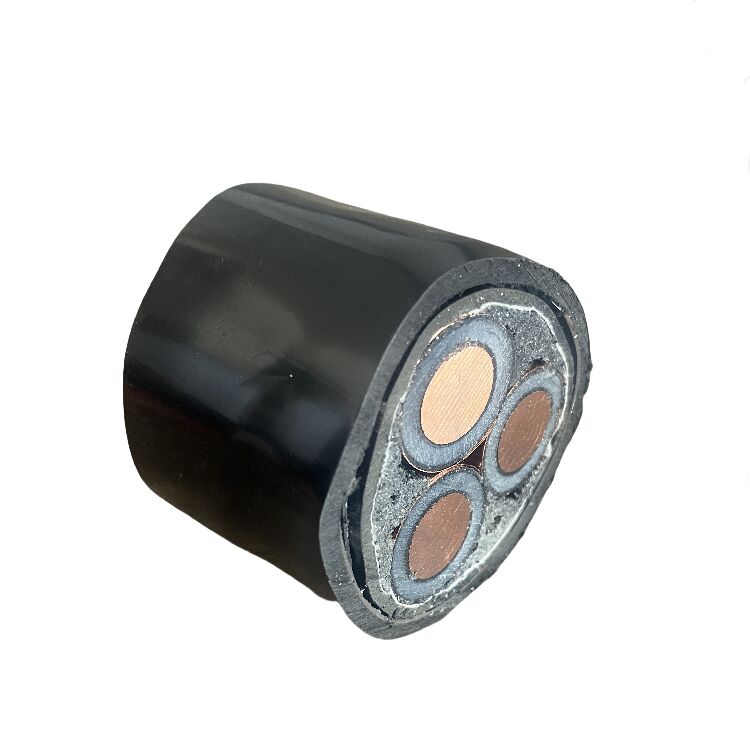

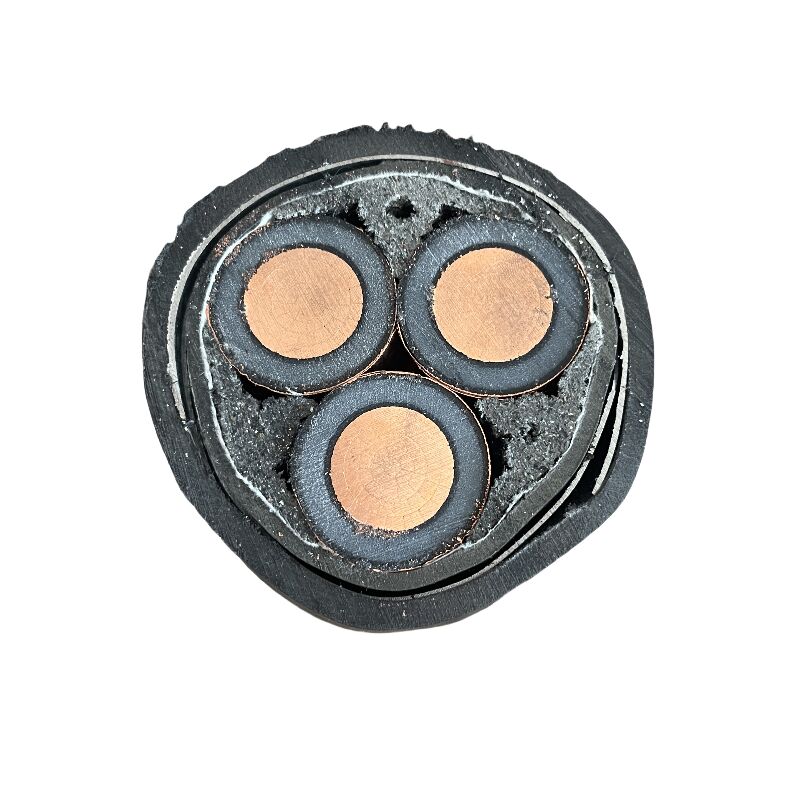

Name: Factory Yjv Cable 3 Core 4 Core 5 Core XLPE Insulated Copper PVC Jacket Waterproof Low Voltage 0.6/1kV
Brand: Chongqing Kefei Cable Group Co., Ltd.
SKU: YJV
Price: 4.80 USD
Availability: InStock

Home > Products > Low Voltage XLPE Cable >

Factory Yjv Cable 3 Core 4 Core 5 Core XLPE Insulated Copper PVC Jacket Waterproof Low Voltage 0.6/1kV

YJV XLPE insulated copper cable

low voltage waterproof PVC cable

3 core 5 core YJV cable

Place of Origin:

Chongqing, China

Brand Name:

Ke Fei Te

Certification:

ISO

Model Number:

YJV

Chat Now

Request A Quote

Product Details

Working Temperature:

70°C

Rated Voltage:

0.6 KV

Rated Current:

16A

Insulation Material:

Xlpe

Type:

LOW VOLTAGE

Application:

Power Distribution, Construction, Industrial, Underground

Conductor Material:

Copper

Jacket:

PVC

Size:

Customized, 2.5/4/6/10/16/25/35mm

Product Name:

Xlpe Insulated Low Voltage Power Cable

Shape:

Round Wire

Feature:

Explosion-proof, Flame Retardant, Good Heat Resistance

Conductor:

99.9% Pure Copper

Rated Voltage:

0.6/1 KV

Insulation:

XLPE Insulation

Sheath:

PVC Shealth

Core:

1/2/3/4/3+1/5/3+2/4+1

Highlight:

YJV XLPE insulated copper cable

low voltage waterproof PVC cable

3 core 5 core YJV cable

Payment & Shipping Terms

Minimum Order Quantity

500 meters

Price

$0.80-9/meters

Packaging Details

wooden drum,wooden pallet

Delivery Time

5-12days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Copper Core XLPE Insulated PVC Sheathed Low Voltage Power Cable for Industrial Construction

Chat Now

Low Voltage Power Cable 0.6kV PVC Sheath 2.5mm To 35mm Xlpe Cable

Chat Now

XLPE Insulated Low Voltage Electrical Cable 0.6kV Underground Low Voltage Wire

Chat Now

Pure Copper Low Voltage XLPE Cable 0.6kV 4cores Low Voltage Electrical Wire

Chat Now

+86 183 0235 8859

regina@cqkfxl.com

Chat Now

Product Description

0.6/1KV XLPE Insulated Durable Underground Low Voltage Solid Copper Power Cable Wire

XLPE Insulated Low Voltage 4 Core Power Cable 0.6kV 70°C PVC Sheath Underground Cable

0.6/1KV PVC Sheath Low Voltage Durable Low Smoke XLPE Insulated 3Cores 4Cores Solid Copper Power Cable

Product Quick Details

Conductor: Pure Solid Copper Conductor
Insulation: XLPE (Cross Linked Polyethylene)
Sheath: PVC (polyvinyl chloride)
Rated Voltage: 0.6/1kV
Cable Features: Durable, Low smoke, Explosion-proof, Long service life
Usage Scenario: Suitable for short-distance, low-power power transmission, mainly used for power supply of terminal electrical equipment

Product Overview

XLPE Insulation PVC Sheath Copper Conductor Power Cable designed for construction applications with excellent durability and performance characteristics.

Key Features

XLPE insulation with PVC sheath for superior protection
Solid bare copper conductor for excellent conductivity
Small bending radius and high durability
Suitable for both indoor and outdoor installations
Can be installed in cable ducts, trenches, or directly buried

Technical Specifications

Conductor: Pure Solid Copper Core
Insulation: XLPE
Sheath: PVC
Cores: Single core, 2/3/4/5/6 Cores
Voltage: 0.6/1KV
Temperature Rating: -30°C to +70°C (90℃ max)

Applications

These cables are ideal for direct burial or installation on trays/ducts, resistant to various construction environments including wear, acid/alkali, cold, sunlight, and aging. The solid copper core provides strong oxidation resistance, energy efficiency, voltage stability, and long service life.

Product Specifications

Product Name	Flexible XLPE Insulation Low Voltage Power Cable
Brand	Ke Fei Te
Model	YJV/YJV22
Conductor Material	Copper conductor
Insulation Material	XLPE
Jacket	PVC
Color	Black
Shape	Round
Feature	Wear-resistant, acid/alkali-resistant, cold sunscreen, anti-aging

About Chongqing Kefei Cable Group Co., Ltd.

Chongqing Kefei Cable Group Co., Ltd. has focused on R&D and production of rubber cable for 40 years, specializing in various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cable series.
