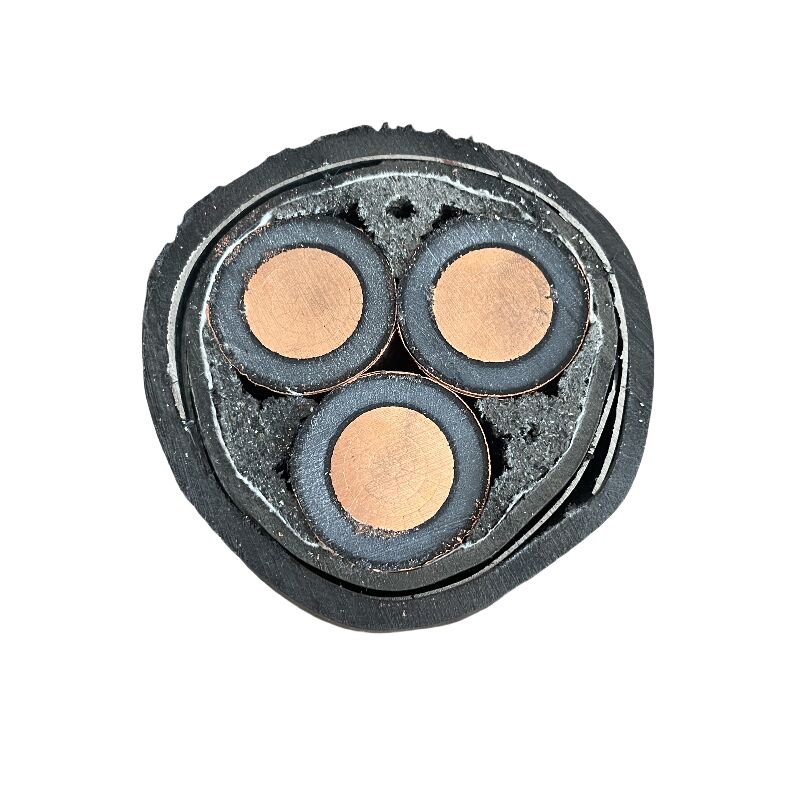

Name: Copper Conductor XLPE Insulated Medium Voltage Power Cable with PVC Jacket for Industrial and Construction Use
Brand: Chongqing Kefei Cable Group Co., Ltd.
SKU: YJV
Price: 4.80 USD
Availability: InStock

Home > Products > Medium Voltage Cable >

Copper Conductor XLPE Insulated Medium Voltage Power Cable with PVC Jacket for Industrial and Construction Use

Copper Conductor Medium Voltage Power Cable

XLPE Insulation MV Power Cable

PVC Jacket XLPE Insulated Power Cable

Place of Origin:

Chongqing, China

Brand Name:

Ke Fei Te

Certification:

ISO

Model Number:

YJV

Chat Now

Request A Quote

Product Details

Working Temperature:

70°C

Rated Voltage:

6 KV

Rated Current:

60A

Insulation Material:

Xlpe

Type:

Medium Voltage

Application:

Power Distribution, Construction, Industrial

Conductor Material:

Copper/Aluminum

Jacket:

PVC

Size:

Customized, 2.5/4/6/10/16/25/35/50/70/90/120mm

Product Name:

Xlpe Insulated Medium Voltage Power Cable

Shape:

Round Wire

Feature:

Explosion-proof, Flame Retardant, Good Heat Resistance,good Conductivity

Conductor:

Alulminum,Copper

Rated Voltage:

3.6/6kv

Insulation:

XLPE Insulation

Sheath:

PVC Shealth

Usage:

Power Transmission Lines,Industrial

Armour:

SWA STA AWA ATA

Highlight:

Copper Conductor Medium Voltage Power Cable

XLPE Insulation MV Power Cable

PVC Jacket XLPE Insulated Power Cable

Payment & Shipping Terms

Minimum Order Quantity

500 meters

Price

$0.80-9/meters

Packaging Details

wooden drum，wooden pallet

Delivery Time

6-12DAYS

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

YJV Cable 41+10.75sqmm 0.6/1kV XLPE Insulated PVC Sheathed Tinned Copper Stranded IEC 60502 for Industrial Wiring

Chat Now

Customized YJV Cable 3x70+1x35mm Copper Core XLPE Insulation for Industrial Machinery Construction Equipment

Chat Now

YJV 0.6/1kV 335+216 Copper Conductor Low Voltage Multi-Core Power Cable XLPE Insulated PVC Jacket Ke Fei Te Brand Underground

Chat Now

6KV Rated Voltage Copper Conductor Flame Retardant XLPE Insulated Medium Voltage Power Cable for Industrial Use

Chat Now

+86 183 0235 8859

regina@cqkfxl.com

Chat Now

Product Description

Medium Voltage XLPE Insulated Power Cable

YJV 2-5 Core 6mm Copper XLPE Insulated Medium Voltage Power Cable for Industrial & Construction Use with PVC Jacket and Custom Sizes

Product Overview

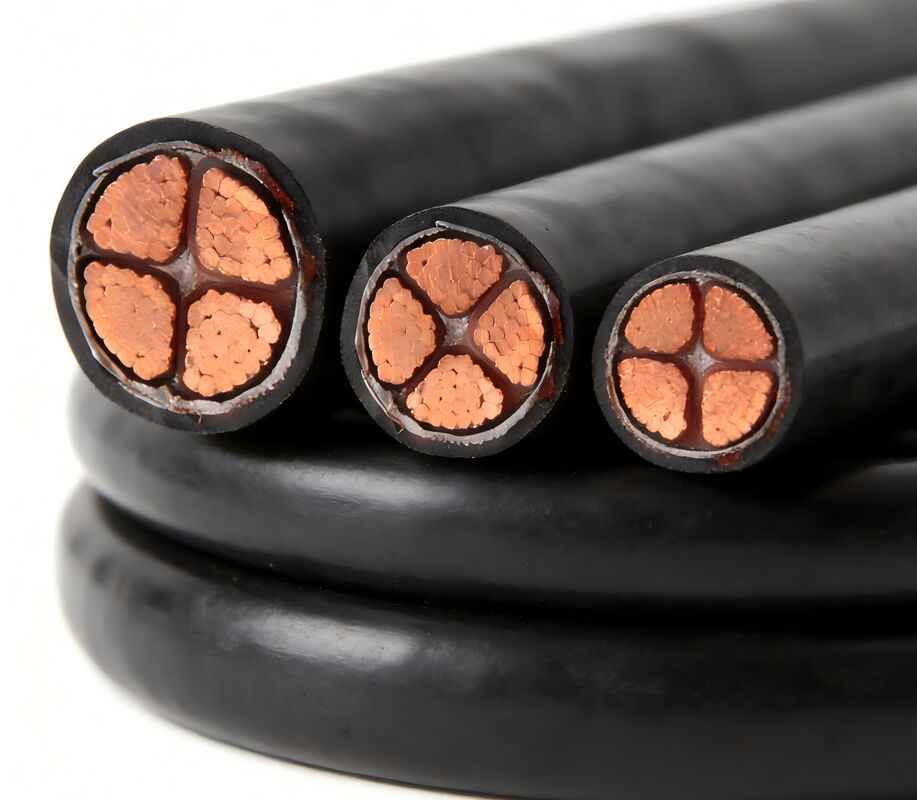

Medium Voltage Cable available in 3-core and 4-core configurations with sizes including 70mm, 100m, 150mm, and 185mm. Features copper or aluminum conductors with XLPE insulation and PVC sheath for reliable power transmission applications.

Product Advantages

Excellent conductivity: High-purity copper conductors with low resistance ensure efficient power transmission and minimal energy loss
Superior insulation performance: Cross-linked polyethylene insulation provides stable medium-voltage power transmission with reduced electrical accident risks
Enhanced heat resistance: Long-term operation at 90°C maintains stable performance in high-temperature environments
Excellent heat dissipation: Structural design facilitates heat dissipation during long-term full-load operation, preventing temperature-related damage

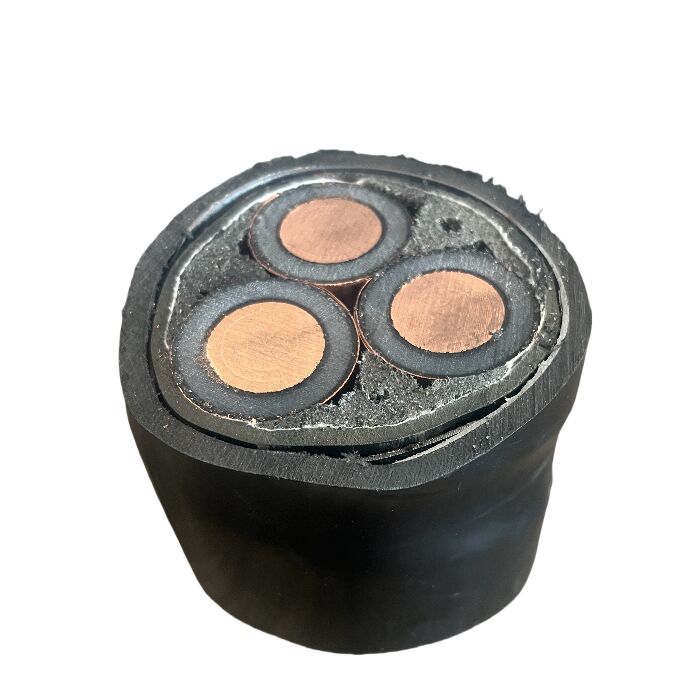

Cable Construction

Conductor: Oxygen-free pure copper/aluminum
Insulation: Extruded cross-linked polyethylene (XLPE) for 90°C operation
Metallic Screen: Complete copper tape coverage
Sheath: Standard black PVC or optional LSOH compound

Armored Cable Types

Steel Tape Armored (STA)

Thinner profile with smaller bending radius for easier installation in confined spaces at lower cost.

Steel Wire Armored (SWA)

Provides superior mechanical protection for direct burial and high-stress applications.

Specifications

Product Name	Medium Voltage XLPE Insulated Armored Power Cable
Brand	Ke Fei Te
Model	YJV
Conductor Material	Copper conductor
Insulation Material	XLPE
Jacket	PVC
Color	Black
Shape	Round
Feature	Flame retardant, Low Smoke, Durable, Excellent Conductivity

Chongqing Kefei Cable Group Co., Ltd.

With 40 years of expertise in cable R&D and production, we specialize in manufacturing various electrical cables including mining cables, rubber sheath cables, and specialized high voltage cables. Our flexible cable series benefits from over two decades of technical refinement and custom manufacturing capabilities.

Our Advantages

Advanced Technology
High Quality Design
Comprehensive Testing Equipment
Stringent Quality Control
Mature Manufacturing Processes

Production Equipment

Exhibition

Certifications

Packing & Delivery

Professional, environmentally friendly packaging ensures safe transportation of your order.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a direct manufacturer with complete control over production quality.

Can you produce according to customer requirements?

Yes, we specialize in custom cable solutions tailored to your specifications.

How do you guarantee quality?

Pre-production samples and final inspections ensure consistent quality standards.
