YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery

YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery

H07Rn-F rubber power cable

UV resistant agricultural machinery cable

3x2.5mm² copper conductor cable

Place of Origin:

Chongqing, China

Brand Name:

Ke Fei Te

Certification:

CCC,ISO9001

Model Number:

YC

Chat Now
Request A Quote
Product Details
Insulation Material:
EPR
Type:
LOW VOLTAGE
Application:
Lifts, Large Cranes
Conductor Material:
Annealed Copper Conductor
Jacket:
Rubber
Size:
Customized
Product Name:
H07RN-F Rubber Cable
Shape:
Round Wire
Feature:
Inflaming Retarding, Oil Resistance And So On
Conductor:
Pure Copper
Insulation:
EPR Rubber
Sheath:
Rubber Sheath
Rated Voltage:
450/750V
Core:
2 Cores,3 Cores,4 Cores,as You Request
Highlight:

H07Rn-F rubber power cable

,

UV resistant agricultural machinery cable

,

3x2.5mm² copper conductor cable

Payment & Shipping Terms
Minimum Order Quantity
500 meters
Price
$0.20-1.80/meters
Packaging Details
wooden drum,wooden pallet,woven bag
Delivery Time
4-12DAYS
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description
Copper Conductor H07RN-F EPR Insulation CPE Sheath Flexible Rubber Cable

Annealed Copper Conductor 1-300mm 1-5 Core H07RN-F EPR Insulation CPE Sheath Flexible Rubber Cable for Power Transmission

This rubber cable is a flexible movable cable with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Due to its softness and tensile resistance, it is widely used in various electrical equipment, and can be used in indoor and outdoor environments simultaneously.

It's suitable for hot environments such as generating electricity, metallurgy and chemical industry, to connect removable electrical equipment.

Product Description
  • Conductor: Stranded Copper Core
  • Insulation: EPR (Ethylene Propylene Rubber)
  • Sheath: Rubber
  • Configuration: Single Core, 2 cores, 3 cores, 4 cores, 5 cores and more
  • Voltage Rating: 450/750V
  • Temperature Range: -30°C to +70°C (90℃ max)
  • Special Features: Movable, Flexible, oil resistance, small bending radius

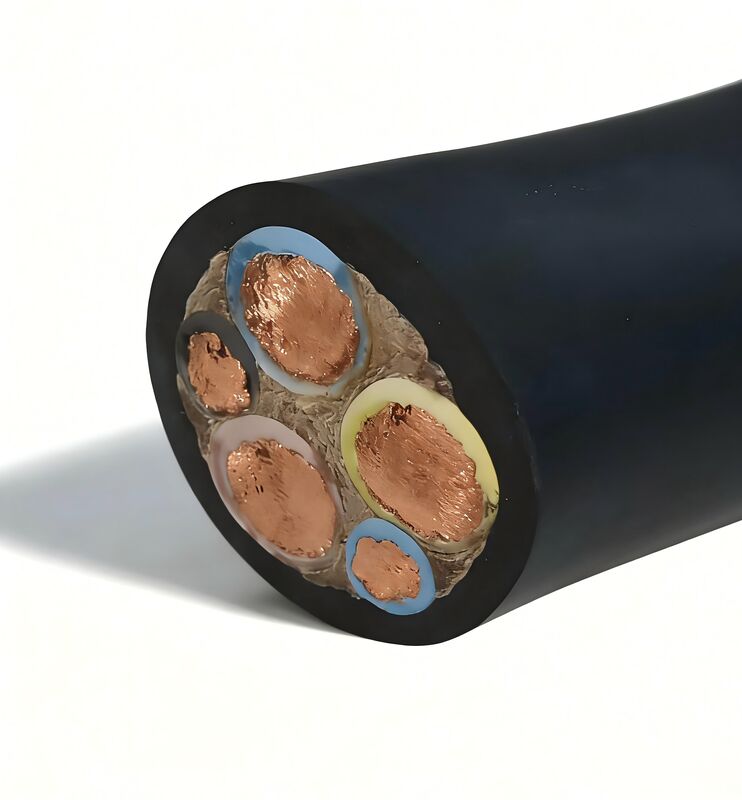

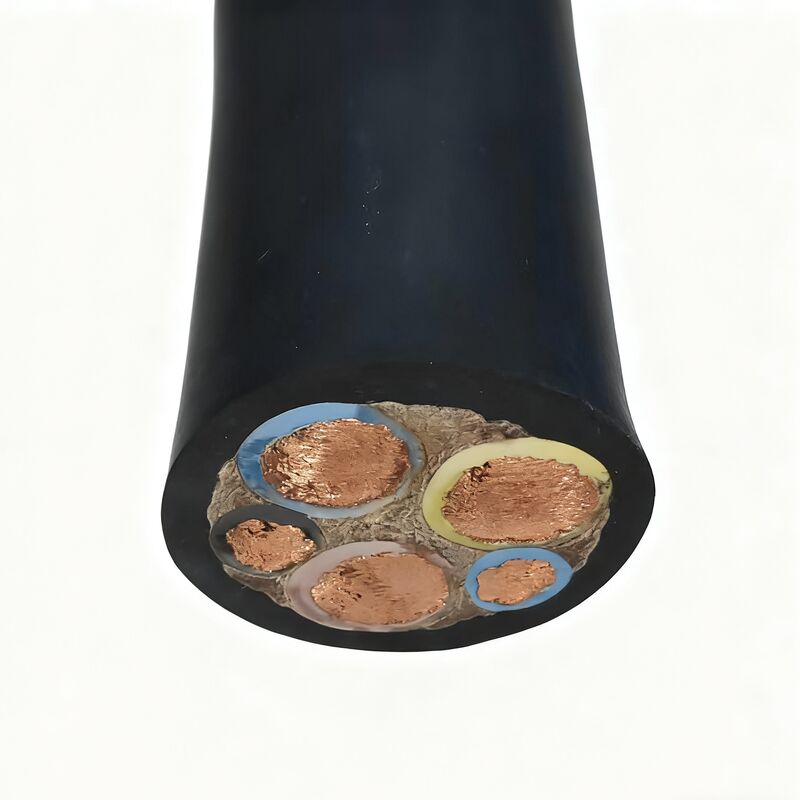

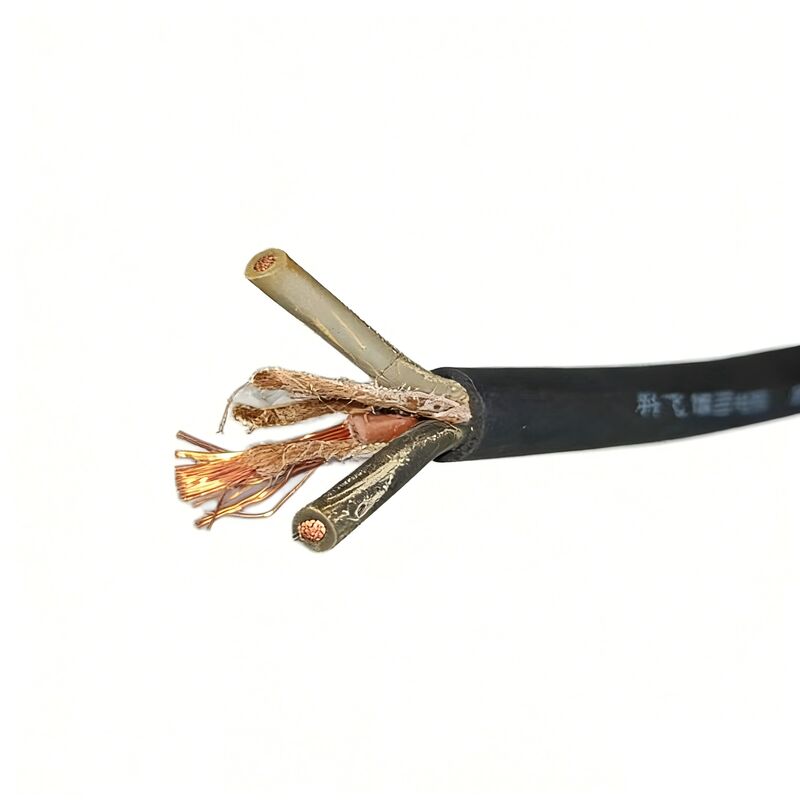

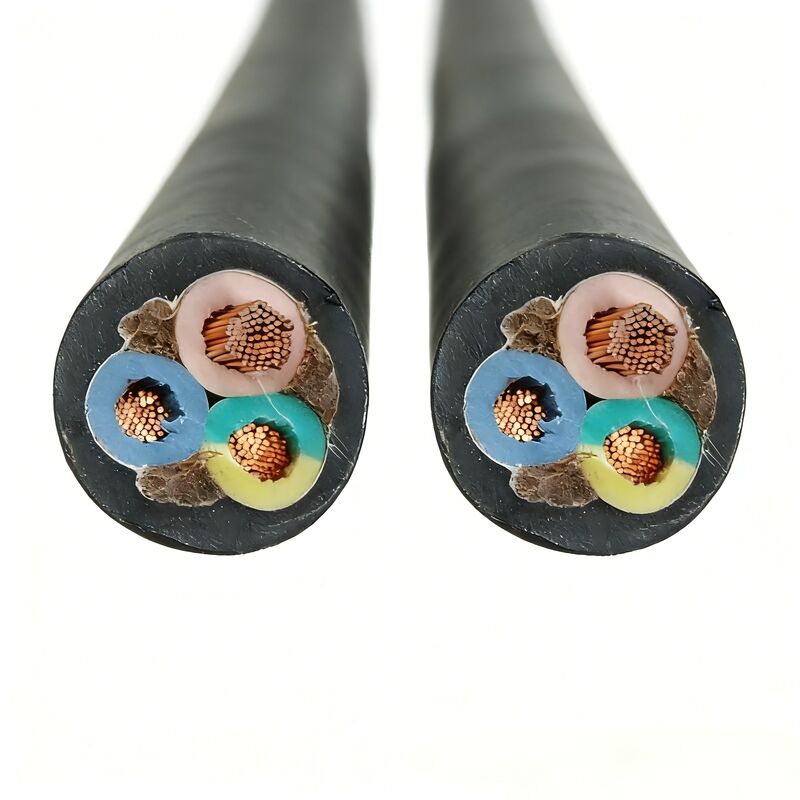

YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 0
Application

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

Characteristics
Temperature Rating
  • Fixed: -30°C to +60°C
  • Fixed protected installations: +85°C
  • Flexed: -15°C to +60°C
  • Insulation tested to +90°C
Minimum Bending Radius
  • Fixed: 4 x overall diameter
  • Flexed: 6 x overall diameter
Specification
Product Name H07RN-F Rubber cable
Brand Ke Fei Te
Model YC
Conductor Material Annealed copper conductor
Insulation Material EPR
Jacket General Rubber Sheath
Color Black
Shape Round wire
Feature Inflaming retarding, soft and tensile resistance
Company Profile
YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 1

Chongqing Kefei Cable Group Co., Ltd. focuses on R & D and production of rubber cable for 40 years. It is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.

Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.

Our Advantages
  • Advanced Technology
  • High Quality Design
  • Perfect Testing Equipment
  • Strict Quality Control
  • Mature Process Flow
Production Equipment
YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 2 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 3 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 4 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 5 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 6 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 7
Exhibition
YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 8 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 9 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 10
Certifications
YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 11 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 12 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 13 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 14 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 15 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 16
Packing & Delivery
YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 17 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 18 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 19 YC Cable H07Rn-F Power Cable 3x1.5mm² 3x2.5mm² 450/750V Copper Conductor UV Resistant for Agricultural Machinery 20
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
