Name: Oil Resistant H07RN-F Rubber Cable with EPR Insulation and Annealed Copper Conductor for Mobile Generators
Brand: Chongqing Kefei Cable Group Co., Ltd.
SKU: YC
Price: 0.20 USD
Availability: InStock

Home > Products > Rubber Flexible Cable >

Oil Resistant H07RN-F Rubber Cable with EPR Insulation and Annealed Copper Conductor for Mobile Generators

Place of Origin:

Chongqing, China

Brand Name:

Ke Fei Te

Certification:

CCC,ISO9001

Model Number:

Chat Now

Request A Quote

Product Details

Insulation Material:

EPR

Type:

LOW VOLTAGE

Application:

Lifts, Large Cranes

Conductor Material:

Annealed Copper Conductor

Jacket:

Rubber

Feature:

Inflaming Retarding, Oil Resistance And So On

Payment & Shipping Terms

Minimum Order Quantity

500 meters

Price

$0.20-1.80/meters

Packaging Details

wooden drum,wooden pallet,woven bag

Delivery Time

4-12DAYS

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Oil Resistant H07RN-F Rubber Cable with EPR Insulation and Annealed Copper Conductor for Mobile Generators

Chat Now

H07RN-F Rubber Cable High Tensile Strength Oil Resistance 450/750V Rated for Industrial Workshops

Chat Now

450/750V Rated Oil and Tensile Resistant Rubber Flexible Cable for Harsh Environments

Chat Now

H07RN-F Rubber Sheathed Cable with EPR Insulation for Oil and Water Resistant Electrical Connections

Chat Now

+86 183 0235 8859

regina@cqkfxl.com

Chat Now

Product Description

H07RN-F SOOW Multi-Core Rubber Cable Oil Resistant Super Flexible & Oil Resistant Portable Cord for Mobile Generators

Copper Conductor H07RN-F EPR Insulation CPE Sheath Flexible Rubber Cable

Annealed Copper Conductor 1-300mm 1-5 Core H07RN-F EPR Insulation CPE Sheath Flexible Rubber Cable for Power Transmission

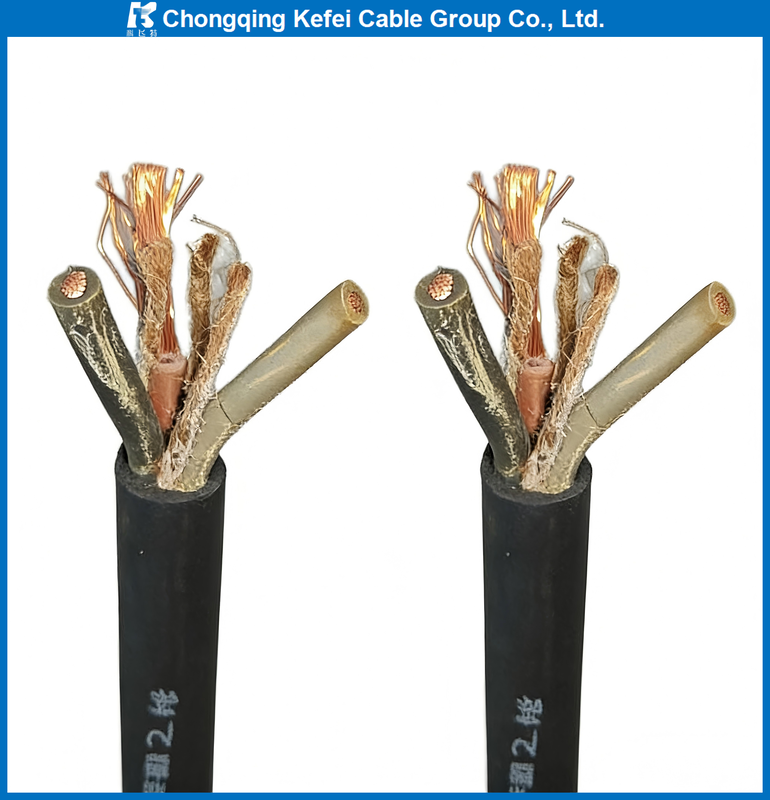

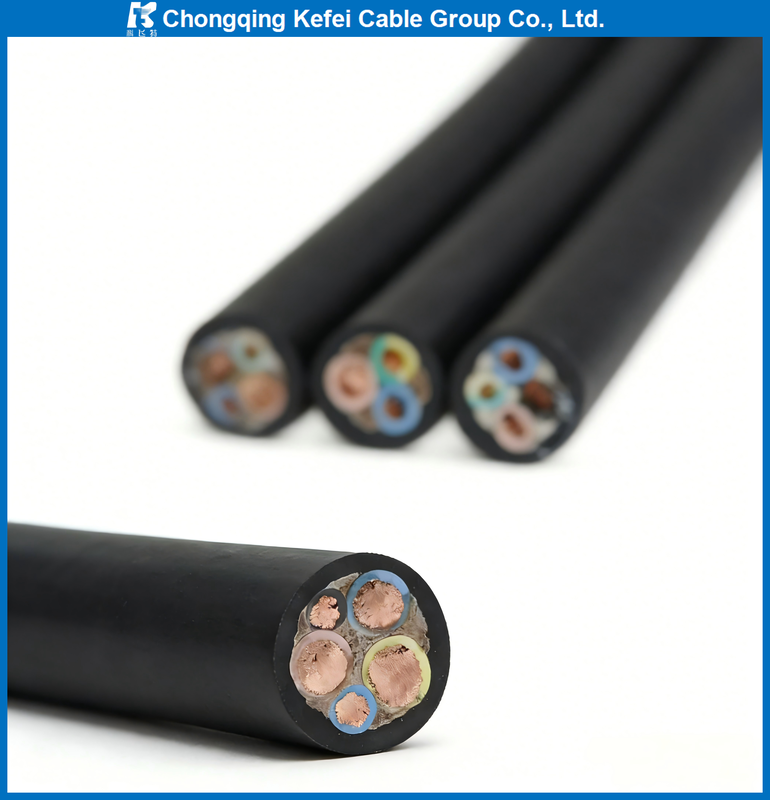

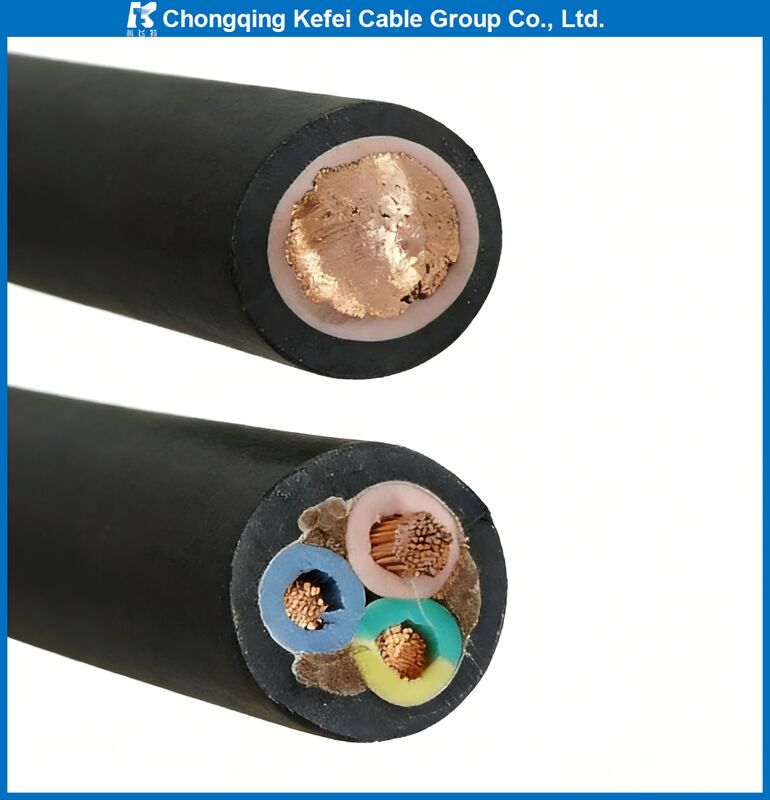

This rubber cable is a flexible movable cable with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Due to its softness and tensile resistance, it is widely used in various electrical equipment, and can be used in indoor and outdoor environments simultaneously.

It's suitable for hot environments such as generating electricity, metallurgy and chemical industry, to connect removable electrical equipment.

Product Specifications

Conductor: Stranded Copper Core
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: Rubber
Configuration: Single Core, 2 cores, 3 cores, 4 cores, 5 cores and more
Voltage Rating: 450/750V
Temperature Range: -30°C to +70°C (90℃ max)
Special Features: Movable, Flexible, oil resistance, small bending radius

Applications

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

Technical Characteristics

Temperature Rating

Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C
Insulation tested to +90°C

Minimum Bending Radius

Fixed: 4 x overall diameter
Flexed: 6 x overall diameter

Product Specifications

Product Name	H07RN-F Rubber cable
Conductor Material	Annealed copper conductor
Insulation Material	EPR
Jacket	General Rubber Sheath
Feature	Inflaming retarding, soft and tensile resistance

Company Profile

Chongqing Kefei Cable Group Co., Ltd. focuses on R & D and production of rubber cable for 40 years. It is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.

Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.

Our Advantages

Advanced Technology
High Quality Design
Perfect Testing Equipment
Strict Quality Control
Mature Process Flow

Production Equipment

Exhibition

Certifications

Packing & Delivery

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.

Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.

Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
