Name: Waterproof Submersible Cable Halogen-Free Options Available Flexible & Kink-Resistant for Agricultural Irrigation Systems
Brand: Chongqing Kefei Cable Group Co., Ltd.
SKU: JHS
Price: 0.20 USD
Availability: InStock

Home > Products > Submersible Pump Cable >

Waterproof Submersible Cable Halogen-Free Options Available Flexible & Kink-Resistant for Agricultural Irrigation Systems

Place of Origin:

Chongqing, China

Brand Name:

Ke Fei Te

Certification:

CCC/ISO 9001

Model Number:

JHS

Chat Now

Request A Quote

Product Details

Rated Voltage:

450/750V

Application:

Submersible Pump Cable

Jacket:

Rubber

Feature:

Waterproof,cold Resistance, Soft ,small Bending Radius,flexible ,movable

Conductor:

Stranded Pure Copper

Filler:

TPE(thermoplastic Elastomer)

Payment & Shipping Terms

Minimum Order Quantity

500 meters

Price

$0.20-1.80/meters

Packaging Details

Wooden drum, wooden pallet, plastic pallet, woven bag

Delivery Time

5-12days

Payment Terms

L/C,D/A,D/P,T/T,MoneyGram,Western Union

JHS Series Waterproof Submersible Pump Cable with EPR Insulation and 450/750V Rated Voltage for Multi-Core Flexibility

Chat Now

video

Waterproof Rubber Cable with EPR Insulation and Stranded Copper Conductor for 450/750V Submersible Pump Applications

Chat Now

video

Submersible Pump Cable OEM Supported High Flexibility 450/750V for Deep Well Pumps

Chat Now

video

Waterproof Submersible Cable Halogen-Free Options Available Flexible & Kink-Resistant for Agricultural Irrigation Systems

Chat Now

+86 183 0235 8859

regina@cqkfxl.com

Chat Now

Product Description

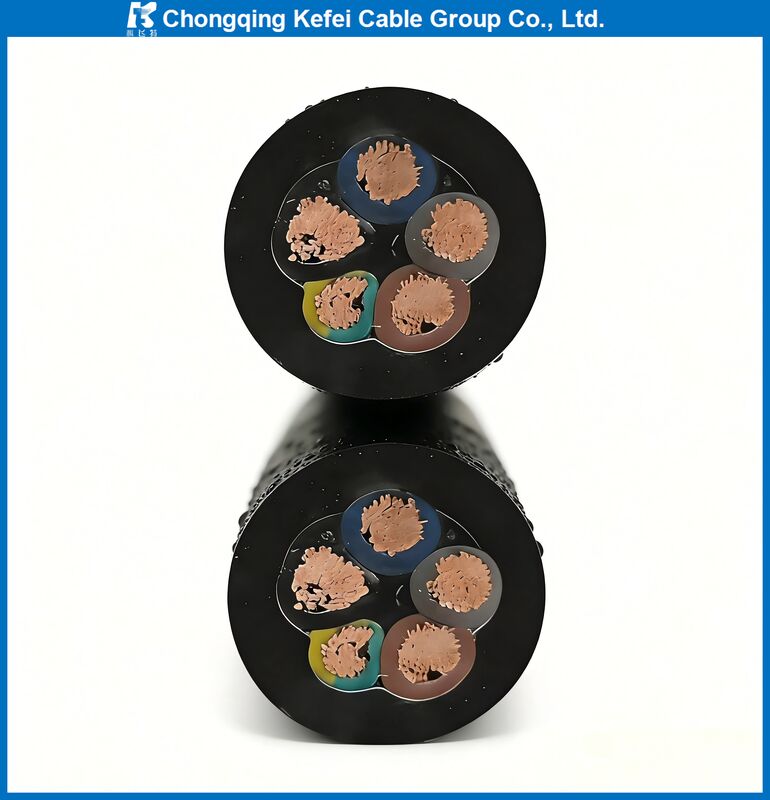

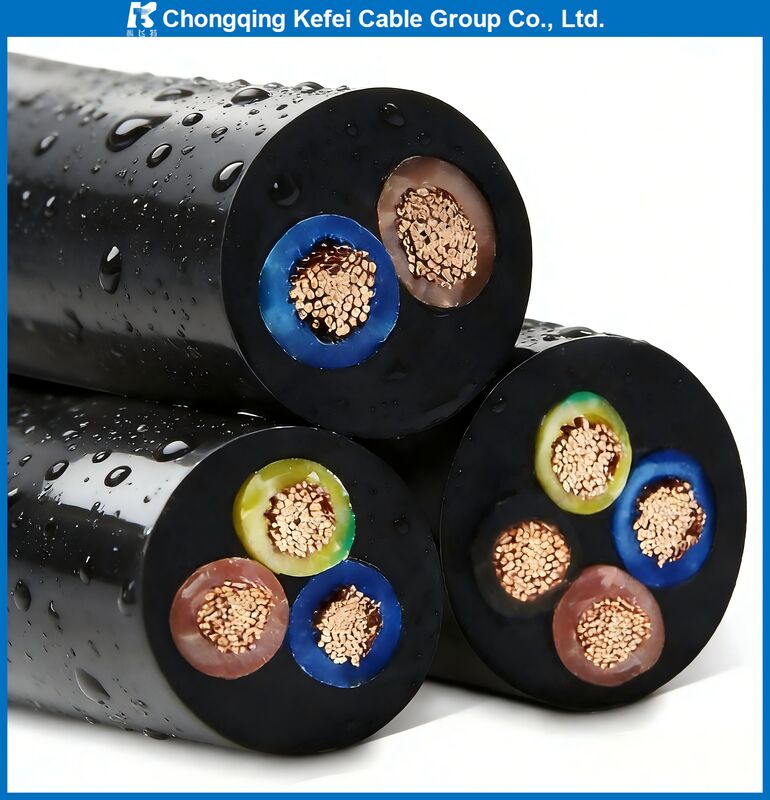

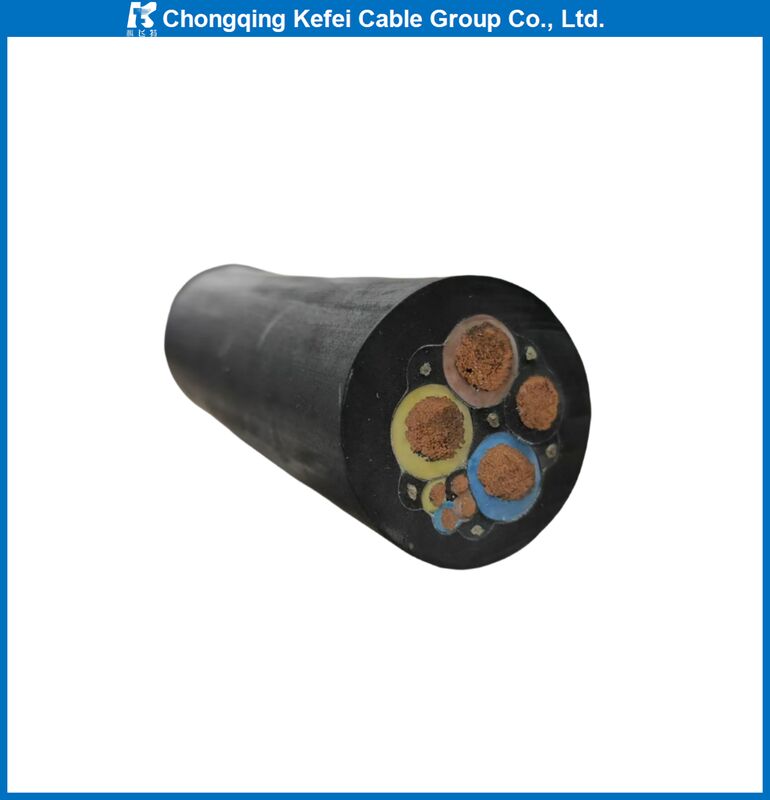

High Quality Industrial Construction JHS Submersible Pump Cable

450V Flexible Rubber Sheathed Copper Core Waterproof Submersible Pump Cable for Deep Wells. This 450/750V heavy-duty, high-performance cable features stranded copper conductor with EPR insulation, designed specifically for submersible water pump applications.

Available in 2, 3, 4, 5, 6 core configurations with cross sections ranging from 0.75mm² to 300mm². JHS submersible cable is a rubber-insulated and sheathed flexible cable specially engineered for power supply to submersible pumps in deep wells, rivers, and industrial water systems.

Product Overview

This waterproof rubber cable is manufactured using special rubber waterproof material and thermoplastic elastomer filling materials, featuring cold resistance, flexibility, and superior waterproof properties. Designed for connecting submersible motors with DC voltage 450/750V and below, with a long-term allowable operating temperature not exceeding 65°C.

Key Features

Conductor: Stranded multiple thin copper wires for maximum flexibility
Sheath: High-quality rubber material
Insulation: EPR (Ethylene Propylene Rubber)
Voltage Rating: 450/750V
Filler: TPE (thermoplastic elastomer)
Wrapping Tape: Non-woven fabrics
Shape: Round design for optimal performance
Core Options: Available in Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores
Cross Section Range: From 0.75mm to 300mm

Primary Applications

Water Conservancy: Submersible pumps for farmland irrigation, fish pond oxygenation, urban water supply systems, and sewage treatment
Construction: Power supply for submersible pumps in sinking well construction and underwater concrete vibrators
Municipal Engineering: Temporary power supply for sewer cleaning equipment and river dredging machinery
Underwater Operations: Underwater welding, cleaning, and other submerged applications
Landscape Lighting: Power transmission for water illumination lamps and water treatment equipment
Marine Applications: Bilge pumps on ships, deck equipment, and port shore washers

Technical Specifications

Product Name	Waterproof Rubber Cable
Conductor Material	Stranded Copper conductor
Insulation Material	EPR
Jacket	Rubber
Features	Flame retardant, waterproof, cold resistant, high temperature resistant, highly flexible

Quality Assurance

Every production process undergoes specialized quality testing
Professional engineers conduct final quality inspections
All products meet CCC/ISO9001 certifications and comply with IEC standards

About Chongqing Kefei Cable Group Co., Ltd.

With 40 years of experience in R&D and production of rubber cables, our company specializes in manufacturing various electrical cables including mining cables, rubber sheath cable series, shield machine special high voltage cables, and other specialized series. Our flexible cable series benefits from over 20 years of expertise and can be customized to meet specific customer requirements.

Our Advantages

Advanced production technology
High-quality design standards
Comprehensive testing equipment
Stringent quality control processes
Mature and optimized production workflows

Production Facilities

Waterproof Submersible Cable Halogen-Free Options Available Flexible & Kink-Resistant for Agricultural Irrigation Systems 4

Certifications

Waterproof Submersible Cable Halogen-Free Options Available Flexible & Kink-Resistant for Agricultural Irrigation Systems 5

Packaging & Shipping

We provide professional, environmentally friendly, and efficient packaging services to ensure the complete safety of your goods during transportation.

Waterproof Submersible Cable Halogen-Free Options Available Flexible & Kink-Resistant for Agricultural Irrigation Systems 6

Waterproof Submersible Cable Halogen-Free Options Available Flexible & Kink-Resistant for Agricultural Irrigation Systems 7

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a production manufacturer committed to delivering the highest quality products.

Can you produce and manufacture products according to customer requirements?

Yes, we offer customized solutions tailored to your specific requirements.

How can we guarantee quality?

We implement pre-production sampling and final inspection protocols before shipment.

How can I place an order?

Please provide detailed requirements for an immediate quote. For complex requests, we recommend direct contact via Skype, email, or phone.

Tags：

JHS Waterproof Cable, Submersible Pump Wire, Underwater Power Cable, EPR Insulated Rubber Cable, 300/500V 6KV, for Deep Well, Pond, Mine Drainage, Agriculture Irrigation
