6KV XLPE Insulation Medium Voltage Power Cable 60A Heat Resistance
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 6 KV |
|---|---|---|---|
| Rated Current | 60A | Insulation Material | Xlpe |
| Type | Medium Voltage | Application | Power Distribution, Construction, Industrial |
| Conductor Material | Copper | Jacket | PVC |
| Size | Customized, 2.5/4/6/10/16/25/35mm | Product Name | Xlpe Insulated Medium Voltage Power Cable |
| Shape | Round Wire | Feature | Explosion-proof, Flame Retardant, Good Heat Resistance |
| Conductor | Alulminum,Copper | Rated Voltage | 3.6/6kv |
| Insulation | XLPE Insulation | Sheath | PVC Shealth |
| Usage | Power Transmission Lines,Industrial | Armour | SWA STA AWA ATA |
| Highlight | XLPE Insulation Medium Voltage Power Cable,Medium Voltage Power Cable 60A,heat resistance mv power cable |
||
Product Description
Medium Voltage Flame Retardant XLPE Insulation Durable Underground STA Power Cable
XLPE Insulated Medium Voltage Steel Tape Armored Power Cable with 6KV 60A Copper Conductor for underground power transmission applications.
Product Advantages
- Excellent conductivity: High-purity copper conductors with low resistance ensure efficient power transmission and minimal energy loss.
- Superior insulation performance: Cross-linked polyethylene insulation provides stable medium-voltage power transmission with reduced electrical accident risks.
- Enhanced heat resistance: Long-term operation at 90°C maintains stable performance in high-temperature environments.
- Excellent heat dissipation performance: Structural design facilitates heat dissipation during long-term full-load operation, preventing temperature-related damage.

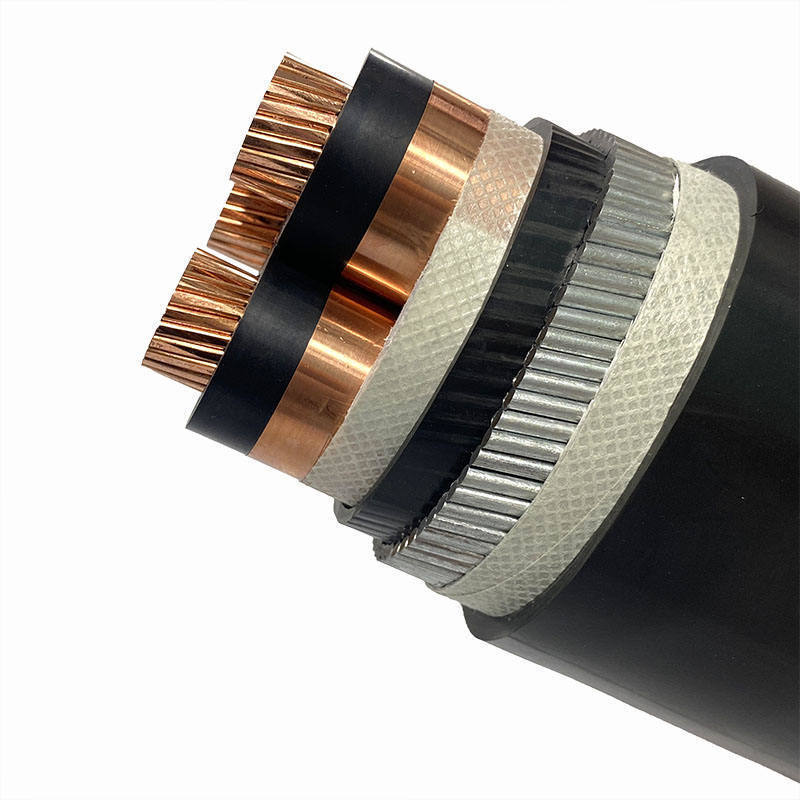

Cable Construction
- Conductor: Oxygen-free pure copper/aluminum
- Insulation: Extruded cross-linked polyethylene (XLPE) for 90°C operation
- Metallic Screen: Complete copper tape coverage
- Sheath: Standard black PVC or optional LSOH compound
Armored Cable Types
Steel Tape Armored (STA): Thinner profile with smaller bending radius for easier installation in confined spaces at lower cost.
Steel Wire Armored (SWA): Provides superior mechanical protection for direct burial and high-stress applications.
Specifications
| Product Name | Medium Voltage XLPE Insulated Armored Power Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YJV |
| Conductor Material | Copper conductor |
| Insulation Material | XLPE |
| Jacket | PVC |
| Color | Black |
| Shape | Round |
| Feature | Flame retardant, Low Smoke, Durable, Excellent Conductivity |
Chongqing Kefei Cable Group Co., Ltd.
With 40 years of expertise in cable R&D and production, we specialize in manufacturing various electrical cables including mining cables, rubber sheath cables, and specialized high voltage cables. Our flexible cable series benefits from over two decades of technical refinement and custom manufacturing capabilities.
Our Advantages
- Advanced Technology
- High Quality Design
- Comprehensive Testing Equipment
- Stringent Quality Control
- Mature Manufacturing Processes
Production Equipment
Exhibition
Certifications
Packing & Delivery
Professional, environmentally friendly packaging ensures safe transportation of your order.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a direct manufacturer with complete control over production quality.
Can you produce according to customer requirements?
Yes, we specialize in custom cable solutions tailored to your specifications.
How do you guarantee quality?
Pre-production samples and final inspections ensure consistent quality standards.
