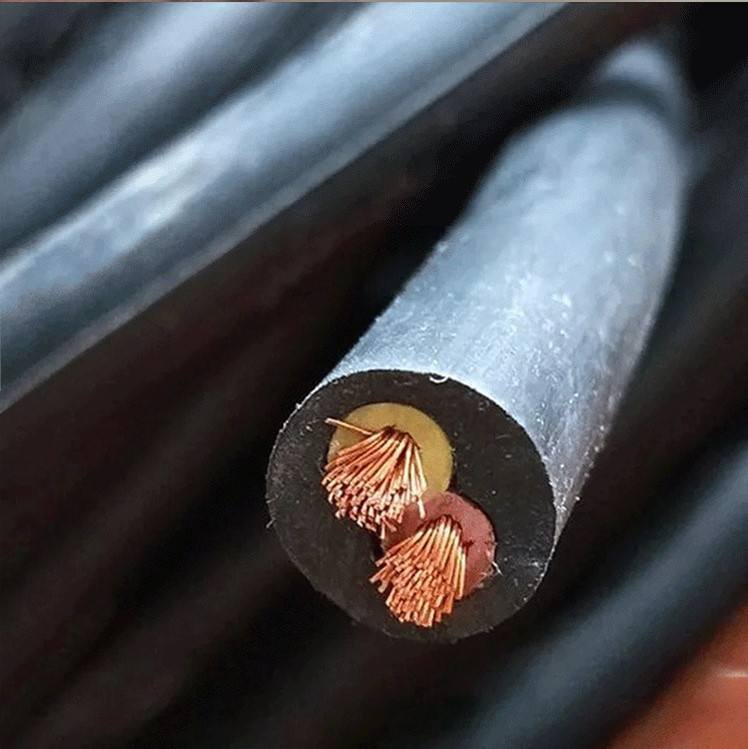

450/750V Flexible Rubber Submersible Pump Cable Waterproof With Stranded Copper Conductor

Place of Origin	Chongqing, China
Brand Name	Ke Fei Te
Model Number	JHS
Minimum Order Quantity	500 meters
Price	$0.20-1.80/meters

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Working Temperature	70°C	Rated Voltage	450 V
Rated Current	16A	Insulation Material	Rubber
Type	LOW VOLTAGE	Application	Submersible Pump Cable
Conductor Material	Annealed Copper Conductor	Jacket	Rubber
Size	Customized	Product Name	Waterproof Submersible Pump Cable
Shape	Round Wire	Feature	Waterproof,cold Resistance, Soft ,high Temperature Resistance
Conductor	Pure Copper	Insulation	Rubber Insulation
Voltage	450/750V	Sheath	Rubber Sheath
Filler	Rubber	Certificate	ISO9001/CCC
Core	3 4 5 Cores
Highlight	Submersible Pump Cable Waterproof , 750V Submersible Pump Cable , Copper Conductor rubber submersible cable

Leave a Message

Product Description

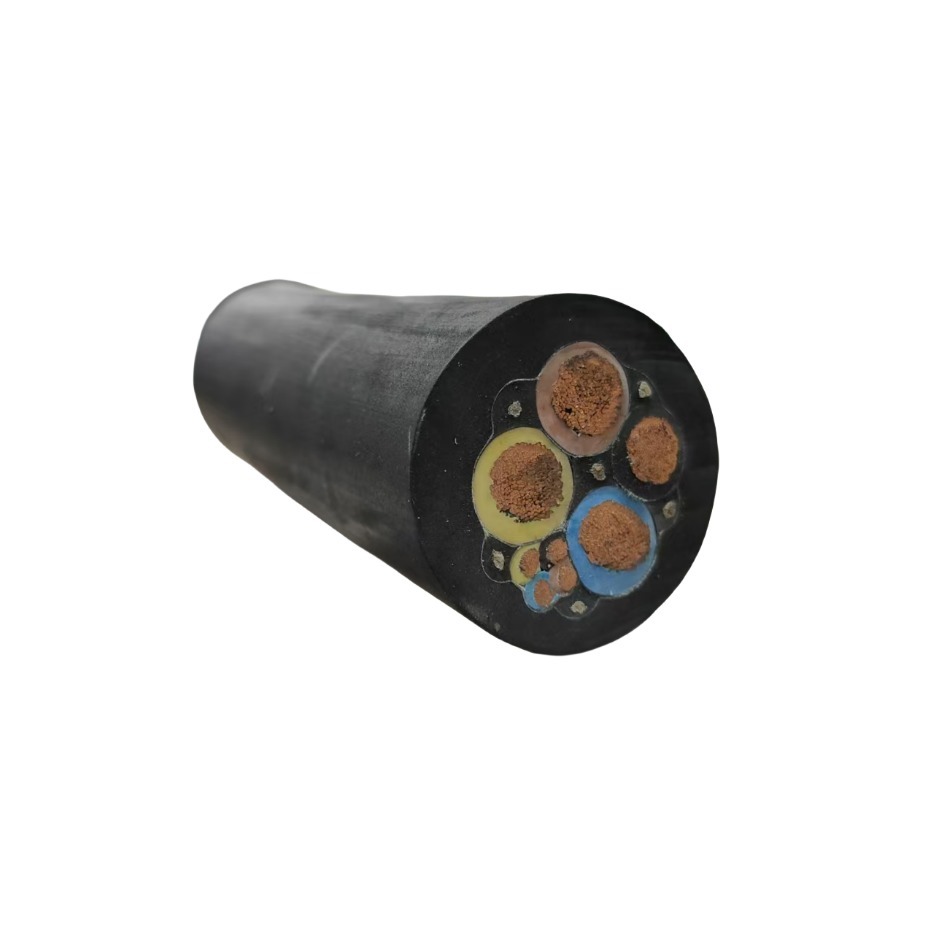

450/750V 3-Core H07RN-F Power Cable Copper Core Flexible Rubber Sheath for Submersible Pumps

Waterproof Rubber cable is Made of Special rubber waterproof material or silicone rubber, has many kinds of special feature,such as cold resistance,soft resistance, high temperature resistance and waterproof, Used to connect the DC voltage 450/750V and below the submersible motor, suitable for 6KV drainage submersible pump for power transmission, long-term allow able operating temperature is not more than 65℃

Product Quick Details

Conductor: Stranded multiple thin copper wires
Sheath & Insulation: Rubber
Voltage: 450/750V
Shape: Round
No. of Cores: Available in Single Core, 2 Cores, 3Cores, 4Cores, 5Cores, 6Cores, 8Cores and more
Cross Section: Ranging from 0.75mm to 120mm
Usage Scenario: The waterproof rubber cable has excellent waterproof and electrical insulation properties, and is widely used in fields such as water conservancy, coal mining, underwater operations, ships and ports.
Advantages of Cables: Highly efficient moisture isolation, suitable for damp/underwater environments, and the waterproof cable can reduces various risks at the source by blocking moisture.

Application of Submersible Water Pump Cable

This Submersible Water Pump cable is suitable for various types of the lead wire of submersible motor (lead from underwater to above-water). This product can be equipped with a waterproof joint (it can be supplied completely as request). The features of lead wire are convenient in use, good waterproof property. Even if it exists in external damage, it can also guarantee the motor is not suffered from damage caused by water.

Specification

Product Name	Waterproof Rubber cable
Brand	Ke Fei Te
Model	JHS
Conductor Material	Copper conductor
Insulation Material	Rubber
Jacket	Rubber
Color	Black
Shape	Round wire
Feature	Inflaming retarding, waterproof, cold resistance, high temperature resistance

Company Profile

Chongqing Kefei Cable Group Co., Ltd. focus on R & D and production of rubber cable for 40 years, it is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.

Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.

Our Advantages

1. Advanced Technology

2. High Quality Design

3. Perfect Testing Equipment

4. Strict Quality Control

5. Mature Process Flow

Production Equipment
