Water Resistance Submersible Pump Cable Rubber Sheathed High Durability
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Ke Fei Te |
| Certification | CCC/ISO 9001 |
| Model Number | JHS |
| Minimum Order Quantity | 500 meters |
| Price | $0.20-1.80/meters |
| Packaging Details | Wooden drum, wooden pallet, plastic pallet, woven bag |
| Delivery Time | 5-12days |
| Payment Terms | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 450 V |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Rubber |
| Type | LOW VOLTAGE | Application | Submersible Pump Cable |
| Conductor Material | Annealed Copper Conductor | Jacket | Rubber |
| Size | Customized | Product Name | Waterproof Submersible Pump Cable |
| Shape | Round Wire | Feature | Waterproof,cold Resistance, Soft ,high Temperature Resistance |
| Conductor | Pure Copper | Insulation | Rubber Insulation |
| Voltage | 450/750V | Sheath | Rubber Sheath |
| Filler | Rubber | Certificate | ISO9001/CCC |
| Core | 3 4 5 Cores | ||
| Highlight | Water Resistance Submersible Pump Cable,High Durability Submersible Pump Cable,High Durability rubber submersible cable |
||
Product Description

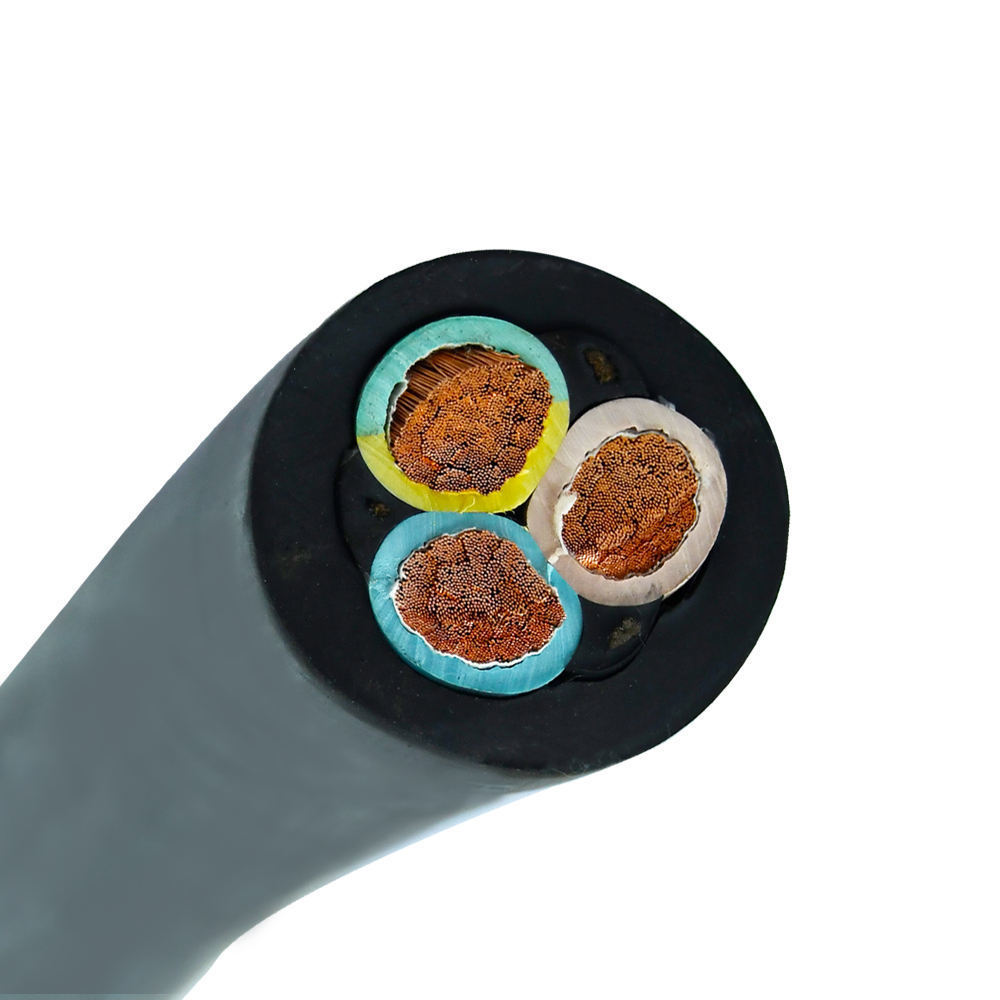

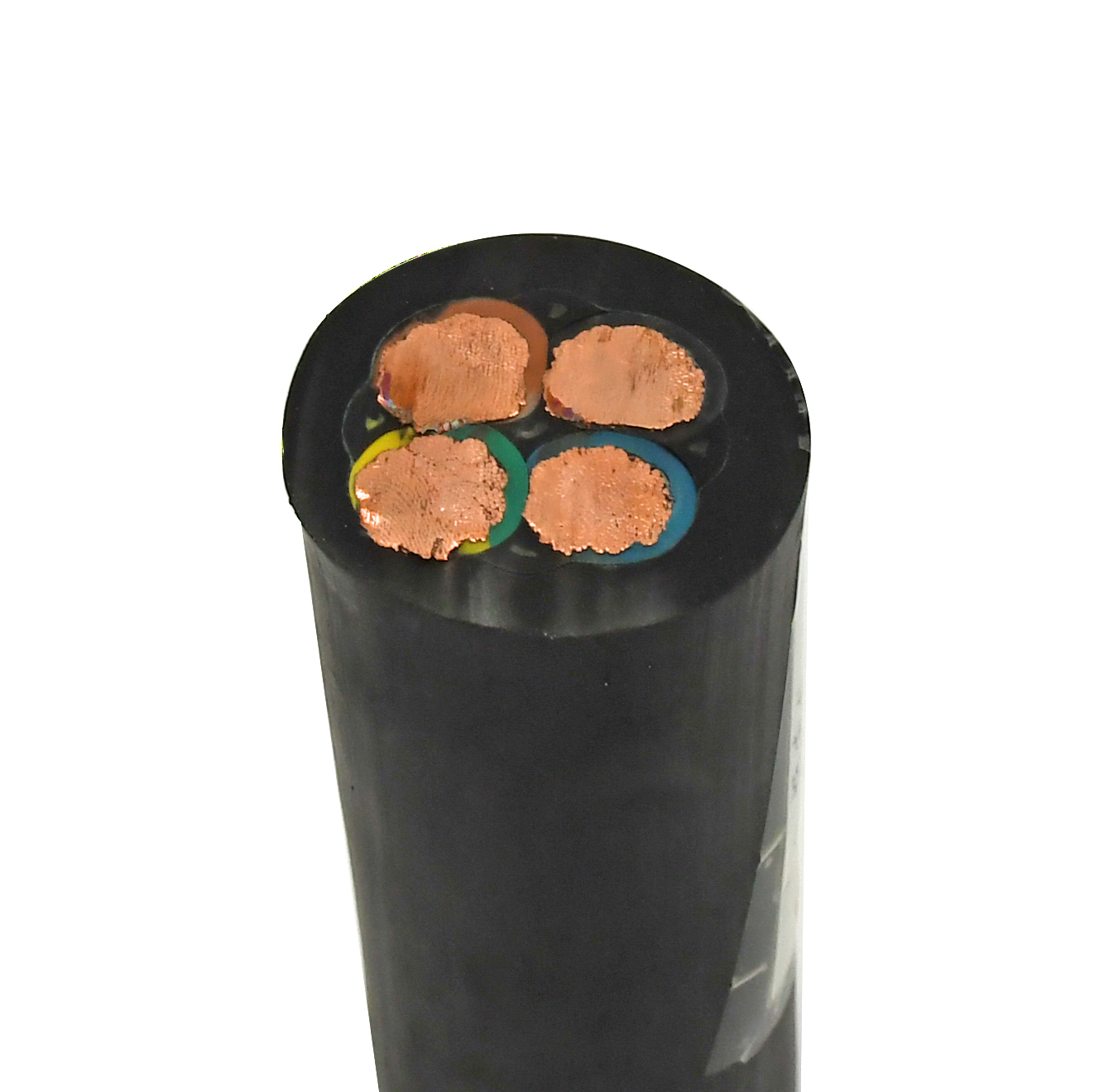

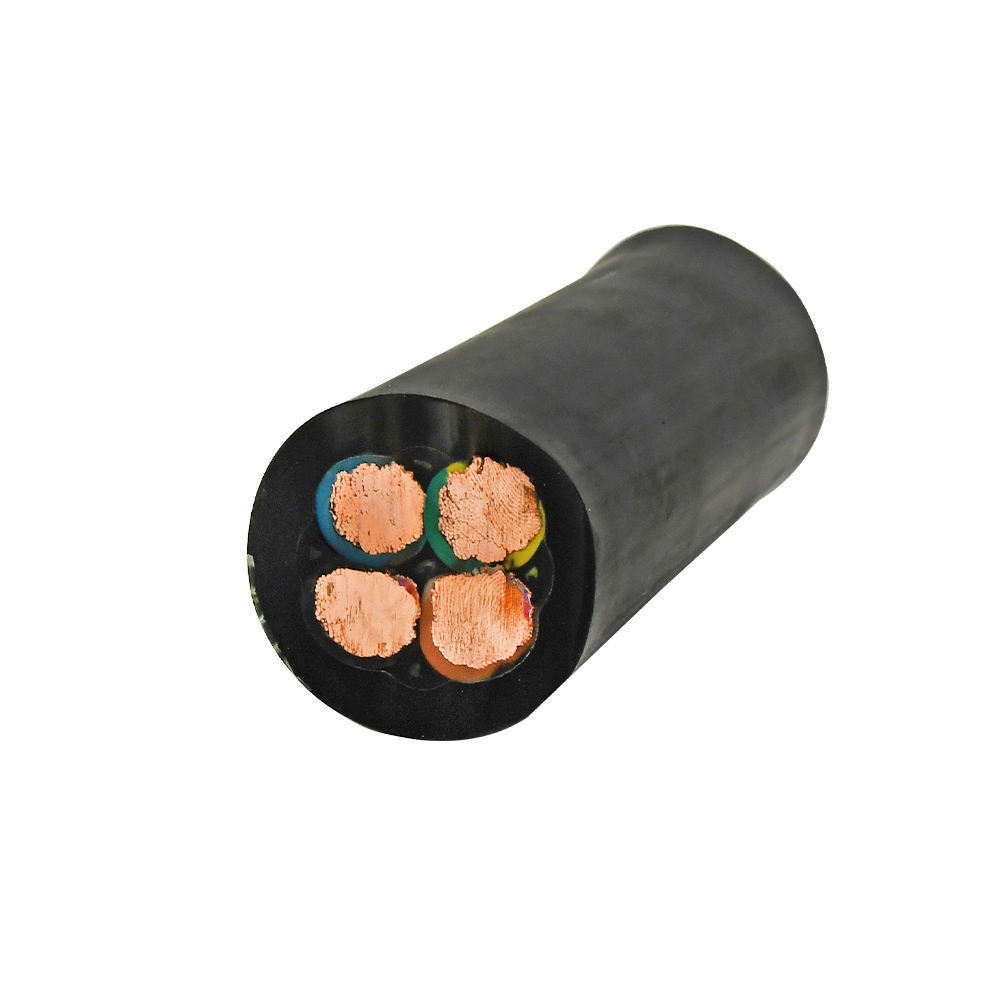

450/750V Flexible Waterproof Rubber Sheathed JHS Submersible Water Pump Cable 2 3 4 5 6 Core 0.75MM2 1.5MM2 2.5MM2 4MM2 Cable Wire
This Waterproof Rubber cable is made of special rubber waterproof material and thermoplastic elastomer filling materials, featuring cold resistance, soft resistance, and waterproof properties. Used to connect DC voltage 450/750V and below submersible motors, suitable for drainage submersible pump power transmission, with long-term allowable operating temperature not exceeding 65℃. Widely applied in water conservancy, shipping, mine exploitation and other fields.
Product Quick Details
- Conductor: Stranded multiple thin copper wires,for maximum flexibility and easy bending
- Sheath: Rubber
- Insulation: EPR (Ethylene Propylene Rubber)
- Voltage: 450/750V
- Filler: TPE (thermoplastic elastomer)
- Wrapping Tape:non-woven fabrics
- Shape: Round
- No. of Cores: Available in Single Core, 2 Cores, 3Cores, 4Cores, 5Cores, 6Cores, and more
- Cross Section: Ranging from 0.75mm to 300mm
- Usage Scenario: Excellent waterproof and electrical insulation properties, widely used in water conservancy, coal mining, underwater operations, ships and ports
- Advantages: The waterproof rubber cable, as a copper-core waterproof rubber type flexible cable specially designed for humid and water-submerged scenarios, has its advantages closely centered around three core aspects: "waterproof reliability, environmental adaptability, and usage flexibility", while also taking into account safety and durability.
Application of Submersible Water Pump Cable
This Waterproof Rubber Cable has excellent waterproof and electrical insulation properties. Its application scenarios mainly include:
- Water conservancy field: Used for power connection of submersible pumps for farmland irrigation, oxygenating pumps for fish ponds, deep well pumps in urban water supply systems, and drainage pumps in sewage treatment plants
- Construction: Power supply for submersible pumps in sinking well construction and cable connection for underwater concrete vibrators
- Municipal engineering: As temporary power supply lines for sewer cleaning equipment and river dredging machinery, it can operate reliably in environments contaminated by sewage and silt.
- Underwater operations: Including underwater welding, underwater cleaning, etc. The JHS cable can operate safely in water for a long time, providing stable power support for these underwater operation equipment.
- Landscape Lighting: In the power transmission of water treatment equipment such as water illumination lamps, JHS cables can ensure the stable and safe operation of the lighting system, providing a guarantee for the creation of the landscape.
- Vessels and Ports: Suitable for power connections of bilge pumps on ships, small equipment on decks, etc., as well as power supply for equipment such as shore washers in ports, it can prevent the influence of seawater and corrosive gases.
Specification
| Product Name | Waterproof Rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | JHS |
| Conductor Material | Stranded Copper conductor |
| Insulation Material | EPR |
| Jacket | Rubber |
| Color | Black |
| Shape | Round wire |
| Feature | Inflaming retarding, waterproof, cold resistance, high temperature resistance, high flexible |
Quality assurance
1. Every production process has a special person to test to ensure quality
2. Have professional engineers to check the quality
3. All products have passed CCC/ISO9001 certifications,compliant with IEC standards
