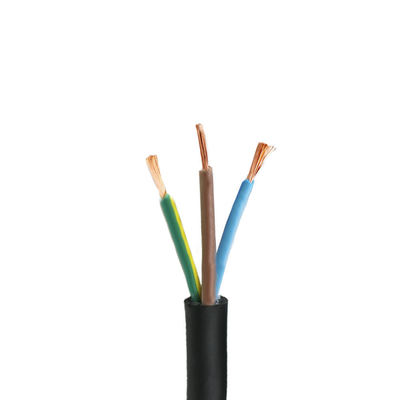

Ethylene Propylene Rubber Submersible Cable Customized High Temperature Resistant
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Ke Fei Te |
| Certification | CCC/ISO 9001 |
| Model Number | JHS |
| Minimum Order Quantity | 500 meters |
| Price | $0.20-1.80/meters |
| Packaging Details | Wooden drum, wooden pallet, plastic pallet, woven bag |
| Delivery Time | 5-12days |
| Payment Terms | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 450 V |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Rubber |
| Type | LOW VOLTAGE | Application | Submersible Pump Cable |
| Conductor Material | Annealed Copper Conductor | Jacket | Rubber |
| Size | Customized | Product Name | Waterproof Submersible Pump Cable |
| Shape | Round Wire | Feature | Waterproof,cold Resistance, Soft ,high Temperature Resistance |
| Conductor | Pure Copper | Insulation | Rubber Insulation |
| Voltage | 450/750V | Sheath | Rubber Sheath |
| Filler | Rubber | Certificate | ISO9001/CCC |
| Core | 3 4 5 Cores | ||
| Highlight | Rubber Submersible Cable Customized,Temperature Resistant Rubber Submersible Cable,Customized submersible power cable |
||
Product Description
High-Performance Waterproof Ethylene Propylene Rubber Submersible Pump Power Cable
450/750V Flexible Waterproof Rubber Sheathed JHS Submersible Water Pump Cable available in 2, 3, 4, 5, 6 Core configurations with cross sections ranging from 0.75MM² to 4MM².
Product Overview
This waterproof rubber cable is manufactured using special rubber waterproof material and thermoplastic elastomer filling materials, featuring cold resistance, flexibility, and superior waterproof properties. Designed for connecting submersible motors with DC voltage 450/750V and below, it's ideal for submersible pump power transmission with a long-term allowable operating temperature not exceeding 65°C.
Key Features
- Conductor: Stranded multiple thin copper wires for maximum flexibility
- Sheath: High-quality rubber material
- Insulation: EPR (Ethylene Propylene Rubber)
- Voltage Rating: 450/750V
- Filler: TPE (thermoplastic elastomer)
- Wrapping Tape: Non-woven fabrics
- Shape: Round design for optimal performance
- Core Options: Available in Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores
- Cross Section Range: From 0.75mm to 300mm
Primary Applications
- Water Conservancy: Submersible pumps for farmland irrigation, fish pond oxygenation, urban water supply systems, and sewage treatment
- Construction: Power supply for submersible pumps in sinking well construction and underwater concrete vibrators
- Municipal Engineering: Temporary power supply for sewer cleaning equipment and river dredging machinery
- Underwater Operations: Underwater welding, cleaning, and other submerged applications
- Landscape Lighting: Power transmission for water illumination lamps and water treatment equipment
- Marine Applications: Bilge pumps on ships, deck equipment, and port shore washers
Technical Specifications
| Product Name | Waterproof Rubber Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | JHS |
| Conductor Material | Stranded Copper conductor |
| Insulation Material | EPR |
| Jacket | Rubber |
| Color | Black |
| Shape | Round wire |
| Features | Flame retardant, waterproof, cold resistant, high temperature resistant, highly flexible |
Quality Assurance
- Every production process undergoes specialized quality testing
- Professional engineers conduct final quality inspections
- All products meet CCC/ISO9001 certifications and comply with IEC standards
About Chongqing Kefei Cable Group Co., Ltd.
With 40 years of experience in R&D and production of rubber cables, our company specializes in manufacturing various electrical cables including mining cables, rubber sheath cable series, shield machine special high voltage cables, and other specialized series. Our flexible cable series benefits from over 20 years of expertise and can be customized to meet specific customer requirements.
Our Advantages
- Advanced production technology
- High-quality design standards
- Comprehensive testing equipment
- Stringent quality control processes
- Mature and optimized production workflows
Production Facilities
Certifications
Packaging & Shipping
We provide professional, environmentally friendly, and efficient packaging services to ensure the complete safety of your goods during transportation.
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer committed to delivering the highest quality products.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we offer customized solutions tailored to your specific requirements.
Q: How can we guarantee quality?
A: We implement pre-production sampling and final inspection protocols before shipment.
Q: How can I place an order?
A: Please provide detailed requirements for an immediate quote. For complex requests, we recommend direct contact via Skype, email, or phone.
