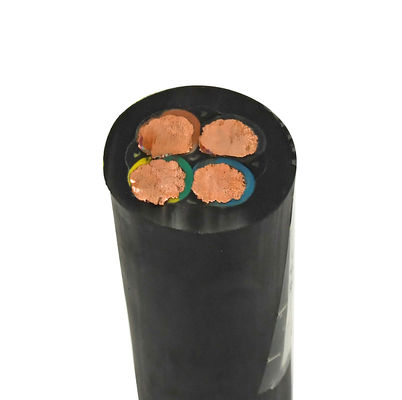

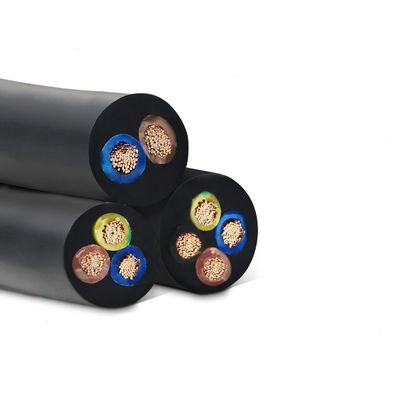

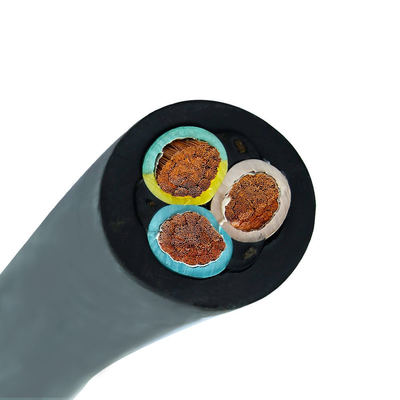

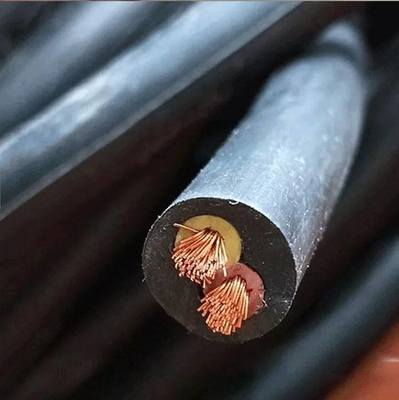

Waterproof Submersible Pump Cable 25 35 70 90mm2 4 Core 5 Core Rubber Sheath
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Ke Fei Te |
| Certification | ISO9001/CCC |
| Model Number | JHS |
| Minimum Order Quantity | 500 meters |
| Price | $0.20-1.80/meters |
| Packaging Details | Wooden Pallet,wooden drum,plastic pallet, wooven bag |
| Delivery Time | 4-12days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 450 V |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Rubber |
| Type | LOW VOLTAGE | Application | Submersible Pump Cable |
| Conductor Material | Annealed Copper Conductor | Jacket | Rubber |
| Size | Customized | Product Name | Waterproof Submersible Pump Cable |
| Shape | Round Wire | Feature | Waterproof,cold Resistance, Soft ,high Temperature Resistance |
| Conductor | Pure Copper | Insulation | Rubber Insulation |
| Voltage | 450/750V | Sheath | Rubber Sheath |
| Filler | Rubber | Certificate | ISO9001/CCC |
| Core | 3 4 5 Cores | ||
| Highlight | Rubber Sheath Submersible Pump Cable,Submersible Pump Cable 90mm2,5 Coe waterproof submersible cable |
||
Product Description
Waterproof Flexible Submersible Pump Power Cable 1-6 Cores 25 35 70 90mm² EPR/CPE Rubber Cable
450/750V 3-Core 4Core H07RN-F JHS Power Cable Copper Core Flexible Rubber Sheath EPR Insulation Electric Wire for Submersible Pumps.
Waterproof Rubber cable is made of special rubber waterproof material or silicone rubber, featuring cold resistance, soft resistance, high temperature resistance and waterproof properties. Used to connect DC voltage 450/750V and below the submersible motor, suitable for 6KV drainage submersible pump for power transmission, with long-term allowable operating temperature not exceeding 65℃.
Product Quick Details
- Conductor: Stranded multiple thin copper wires
- Sheath & Insulation: Rubber
- Voltage: 450/750V
- Shape: Round
- No. of Cores: Available in Single Core, 2 Cores, 3Cores, 4Cores, 5Cores, 6Cores, 8Cores and more
- Cross Section: Ranging from 0.75mm to 120mm
- Usage Scenario: Excellent waterproof and electrical insulation properties, widely used in water conservancy, coal mining, underwater operations, ships and ports
- Advantages: Highly efficient moisture isolation, suitable for damp/underwater environments, reduces risks by blocking moisture
Application of Submersible Water Pump Cable
This Submersible Water Pump cable is suitable for various types of the lead wire of submersible motor (lead from underwater to above-water). This product can be equipped with a waterproof joint (it can be supplied completely as request). The features of lead wire are convenient in use, good waterproof property. Even if it exists in external damage, it can also guarantee the motor is not suffered from damage caused by water.
Structure Chart
Specification
| Product Name | Waterproof Rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | JHS |
| Conductor Material | Copper conductor |
| Insulation Material | Rubber |
| Jacket | Rubber |
| Color | Black |
| Shape | Round wire |
| Feature | Inflaming retarding, waterproof, cold resistance, high temperature resistance |
Company Profile
Chongqing Kefei Cable Group Co., Ltd. focuses on R&D and production of rubber cable for 40 years, it is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.
Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.
Our Advantages
| 1. Advanced Technology | 2. High Quality Design | 3. Perfect Testing Equipment | 4. Strict Quality Control | 5. Mature Process Flow |
Production Equipment
Exhibition
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer, We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
