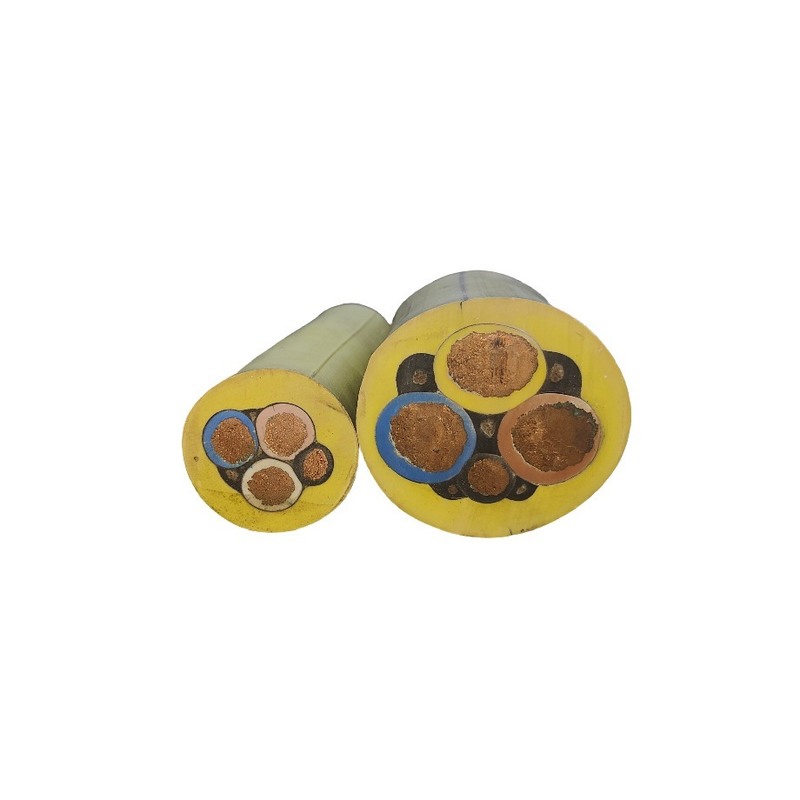

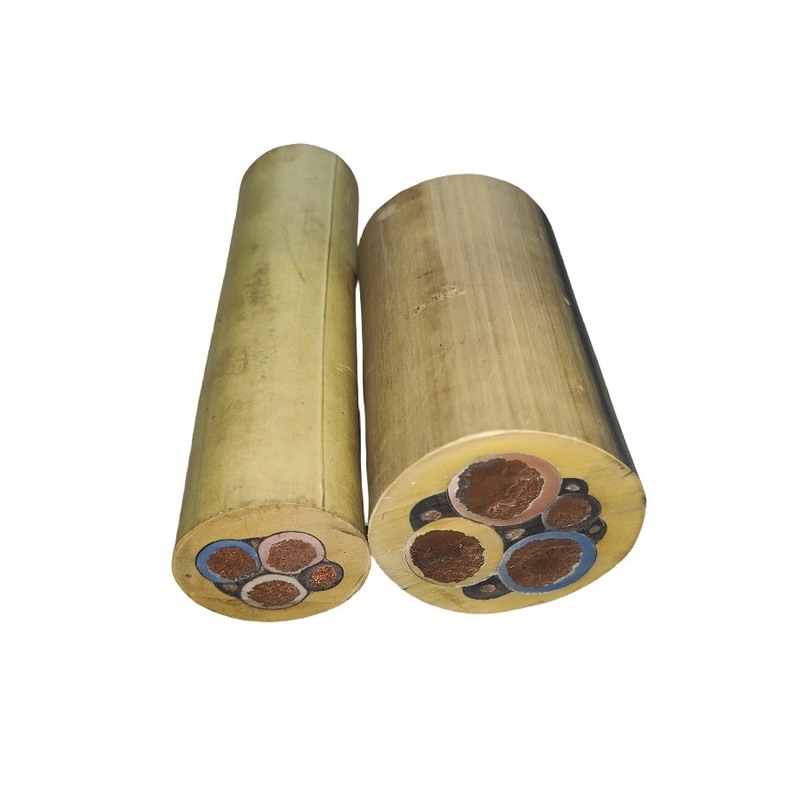

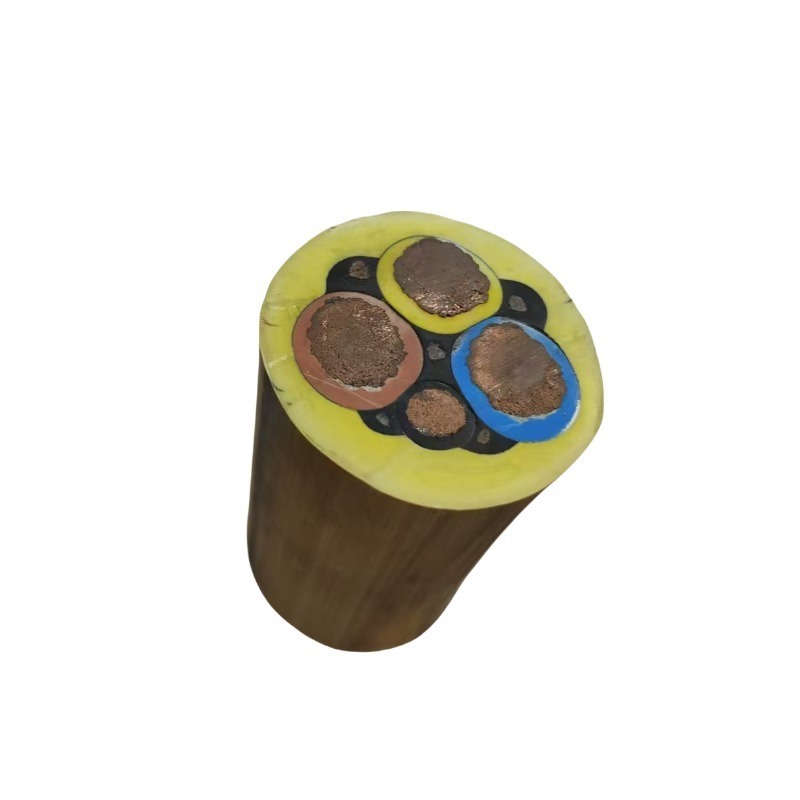

0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable

  • 0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable
  • 0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable
  • 0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable
Place of Origin Chongqing, China
Brand Name Ke Fei Te
Certification MA/ISO9001
Model Number MYP
Minimum Order Quantity 500 meters
Price $1.99-108.30/meters
Packaging Details wooden drum，wooden pallet，plastic pallet，woven bag
Delivery Time 5-15days
Payment Terms T/T,L/C,D/A,D/P,Western Union,MoneyGram

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Temperature 70°C Rated Voltage 0.66/1.14KV
Rated Current Depends On The Thickness Of The Conductor Insulation Material Rubber
Type LOW VOLTAGE Application Mining, Undergroud Coal Mine
Conductor Material Copper Jacket Rubber
Size Customized Product Name Rubber Mining Cable
Shape Round Wire Feature Flame Retardant, Fire-resistance,wear-resistant,explosion-proof
Conductor Tinned Copper Insulation Rubber Insulation
Sheath Rubber Sheath Rated Voltage 0.38/0.66kv
Core 3+1 Package Wooden Drum Package
Certificate ISO9001/CCC/CE
Highlight

1.14KV Underground Mining Cable

,

Rubber Sheath Copper Core Cable

,

4 Cores Underground Mining Cable
Leave a Message
Product Description
0.66/1.14KV EPR Insulation Rubber Sheath Copper Core Mine Power Cables Underground Movable Coal Mining Cable Wire
Product Description
0.66/1.14KV Rubber Sheath Stranded Copper Conductor Mine Power Cables for Underground Mining Machine Energy Electrical Explosion-proof Wire Cable.
MYP cable is a type of mobile shielded rubber flexible cable specifically designed for use in the harsh underground environment of coal mines. It features flexibility, water resistance, oil resistance, and explosion-proof properties, and is suitable for applications where frequent movement is required.
Product Quick Details
  • Conductor: Stranded Copper Core/Tinned Copper Core, features flexibility and bending resistance
  • Insulation: EPR (Ethylene Propylene Rubber) for durability
  • Sheath: High-quality Rubber for protection
  • Configuration: 3+1 Cores (3 power cores+1 earth cores)
  • Voltage Rating: 0.66/1.14KV
  • Temperature Range: -30°C to +70°C (90℃ max)
  • Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant
  • Excellent electrical performance and superior mechanical properties
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 0
Flexible Non-metallic shield Coal Mining Rubber Cable
The MYP model cable is used for the power connection of various underground mobile mining equipment. This cable is made of stranded fine copper wire, rubber sheath and rubber insulation, so it's flexible and soft cable. It is for rated voltage Uo/U 0.38/0.66 used in coal mining machines installation equipment to connect power supply. It can be shifted as you like.
  • Permissible operating temperature: -35°C to 65°C
  • The minimum bending radius is over 6 times of cable diameter
  • The yellow sheath cable should not be exposed in the sun for long
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 1
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 2
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 3
Specification
Product Name Rubber Mining Cable
Brand Ke Fei Te
Model MYP
Conductor Material Copper
Insulation Material Rubber
Jacket Rubber
Color Yellow/Black
Shape Round wire
Feature Flame retardant, fire-resistance, wear-resistant, explosion-proof, waterproof, oil resistance to acid and alkali resistant
Company Profile
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 4
Chongqing Kefei Cable Group Co., Ltd.
Chongqing Kefei Cable Group Co., Ltd., focus on R & D and production of rubber cable for 40 years, it is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.
Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.
Our Advantages
  • Advanced Technology
  • High Quality Design
  • Perfect Testing Equipment
  • Strict Quality Control
  • Mature Process Flow
Production Equipment
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 5
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 6
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 7
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 8
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 9
Exhibition
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 10
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 11
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 12
Certifications
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 13
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 14
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 15
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 16
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 17
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 18
Packing & Delivery
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 19
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 20
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 21
0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable 22
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer, We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
