0.66/1.14KV EPR Insulation Rubber Sheath Copper Core Flexible Waterproof Oil Resistance Coal Mining Power Cable
Heavy-Duty Copper/Tinned Copper Core Mining Power Cable for Coal Mining Equipment. 0.66/1.14KV Stranded Copper Conductor EPR Insulation Rubber Sheathed Waterproof Underground Coal Mining Power Cable.

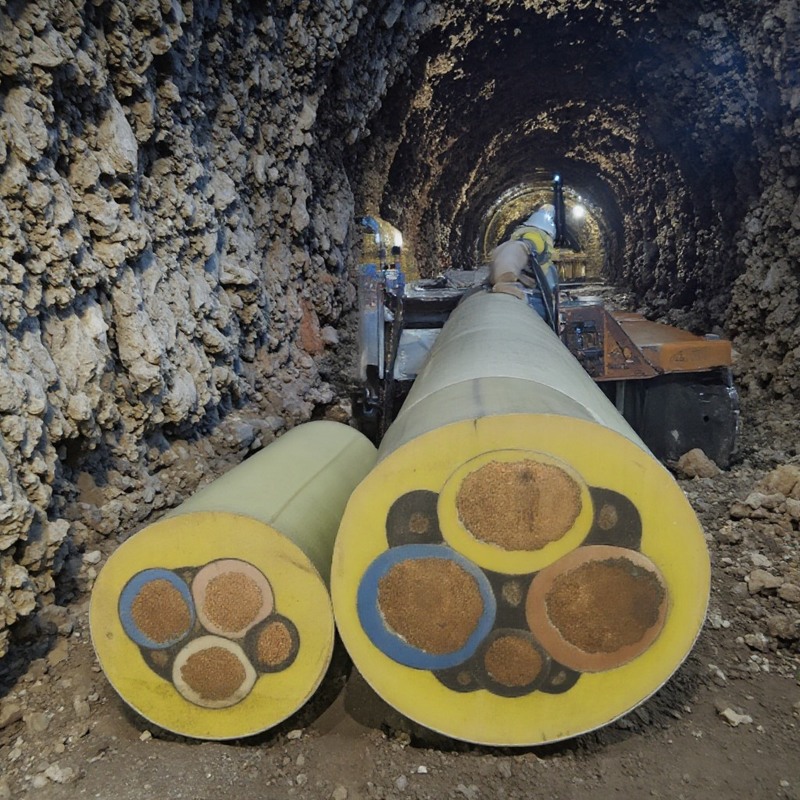

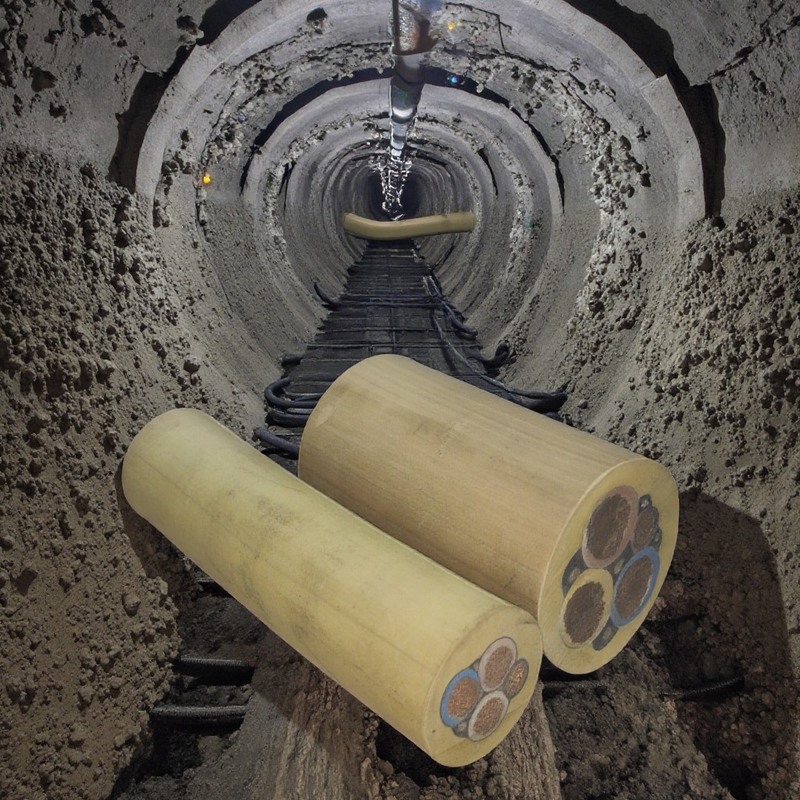

MYP cable is a mobile shielded rubber flexible cable specifically engineered for harsh underground coal mine environments. It features a stranded copper core conductor, EPR insulation, semiconductive tape insulation shielding layer, and durable rubber sheath. Designed for flexibility, water resistance, oil resistance, and explosion-proof applications where frequent movement is required.
Product Quick Details
- Conductor: Stranded Copper Core/Tinned Copper Core for flexibility and bending resistance
- Insulation: EPR (Ethylene Propylene Rubber) for maximum durability
- Sheath: High-quality Rubber for superior protection
- Configuration: 3+1 Cores (3 power cores + 1 earth core)
- Voltage Rating: 0.66/1.14KV
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant
- Excellent electrical performance and superior mechanical properties
Flexible Non-metallic Shield Coal Mining Rubber Cable
The MYP model cable is designed for power connections of underground mobile mining equipment. Constructed with stranded fine copper wire, rubber sheath, and rubber insulation for exceptional flexibility. Rated for voltage Uo/U 0.38/0.66KV, ideal for coal mining machine installations requiring frequent repositioning.
Operating Characteristics
- Rated power frequency voltage U0/U: 0.38/0.66KV, 0.66/1.14KV
- Permissible operating temperature: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Yellow sheath cable should not be exposed to prolonged sunlight
Quality Assurance
- Every production process has a special person to test to ensure quality
- Have professional engineers to check the quality
- All products have passed MA, ISO9001 certifications
Specification
| Product Name | Rubber Mining Cable |
|---|
| Brand | Ke Fei Te |
|---|
| Model | MYP |
|---|
| Conductor Material | Copper |
|---|
| Insulation Material | Rubber |
|---|
| Jacket | Rubber |
|---|
| Color | Yellow/Black |
|---|
| Shape | Round wire |
|---|
| Feature | Flame retardant, fire-resistance, wear-resistant, explosion-proof, waterproof, oil resistance to acid and alkali resistant |
|---|
Company Profile
Chongqing Kefei Cable Group Co., Ltd. has specialized in R&D and production of rubber cables for 40 years. As a large-scale cable manufacturer, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability for custom cable solutions.
Our products serve global markets in coal mining, power stations, transportation and other industries, recognized for exceptional quality and comprehensive after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
We provide professional, environmentally friendly packaging services to ensure the safety of your goods during transportation.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer committed to producing only the highest quality products.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we offer complete customization services to meet your specific requirements.
Q: How can we guarantee quality?
A: We implement strict quality control including pre-production samples and final inspection before shipment.
