UGEFP Flexible High Voltage Cable CPE Sheath For Shield Machine Power Transmission
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Voltage Flexible Rubber Shield Machine Cable | Customized Support | OEM |
|---|---|---|---|
| Place Of Origin | China,Chongqing | Brand Name | KE FEI TE |
| Model Number | UGEFP | Type | Flexible Rubber Shield Machine Cable |
| Feature | Explosion-proof,oil Resistant,wear Resistant, Waterproof, Flexible,Corrosion Resistant | Application | Electricity Transmission For Shield Machine |
| Packing | Wooden Drum,wooden Pallet,plastic Pallet,woven Bag Or As Customer's Requiments | MOQ | 100 Meters |
| Voltage | 8.7/15KV,12/20KV | Conductor | Tinned Copper/Copper |
| Sheath | CPE(Chlorinated Polyethylene) | Insulation | EPDM |
| Insulation Shield | Rubber-type Semiconductive Outer Shielding | Size | 3*25+3*16/3, 3*35+3*16/3, 3*50+3*16/3 |
| Highlight | Flexible High Voltage Cable CPE Sheath,UGEFP Flexible High Voltage Cable,CPE Sheath extra high voltage cables |
||
Product Description

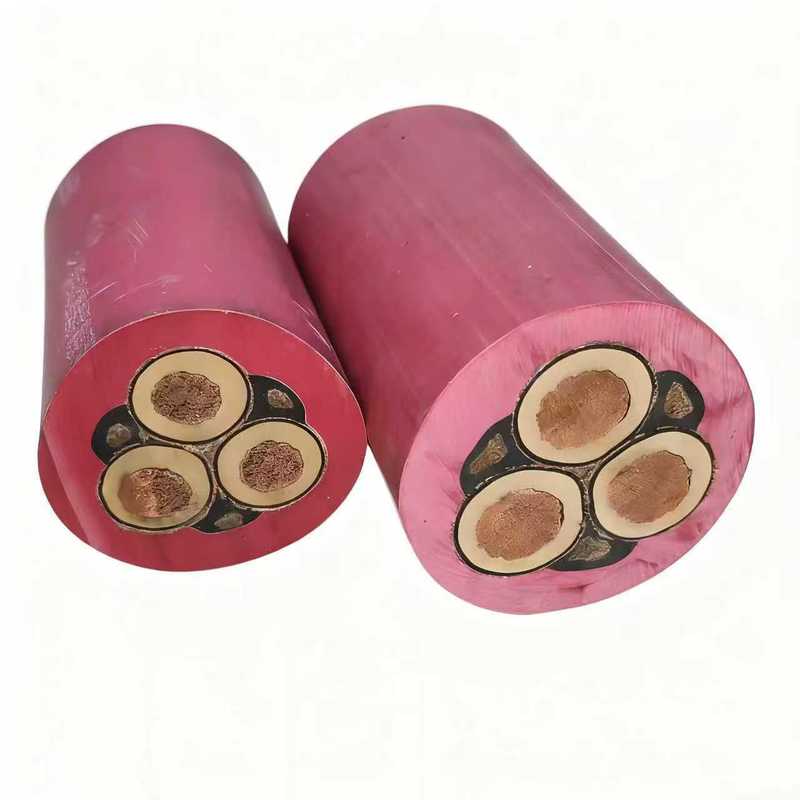

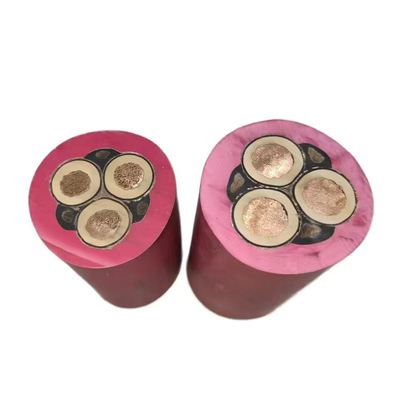

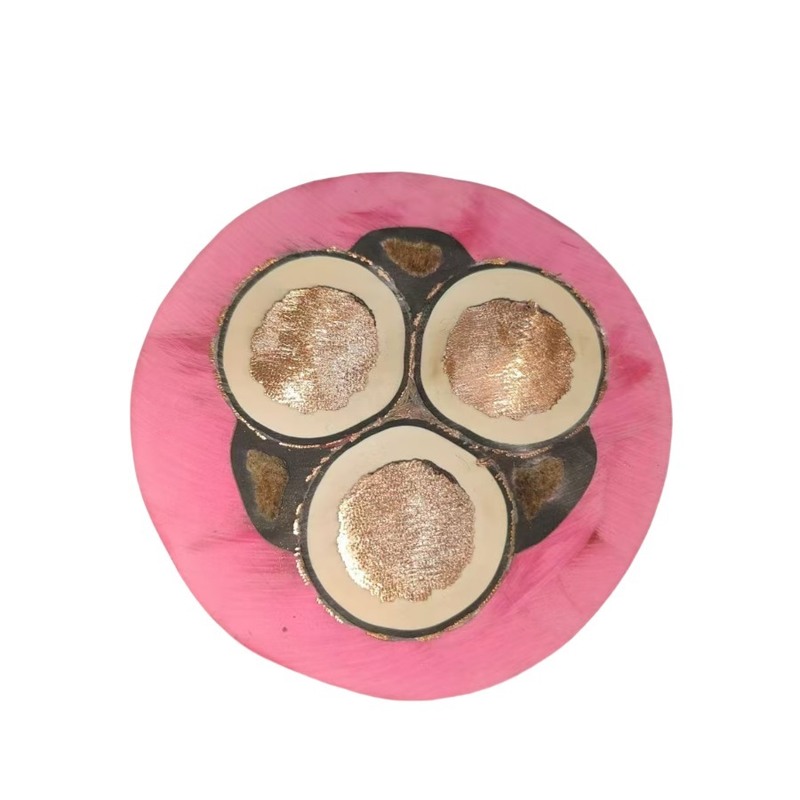

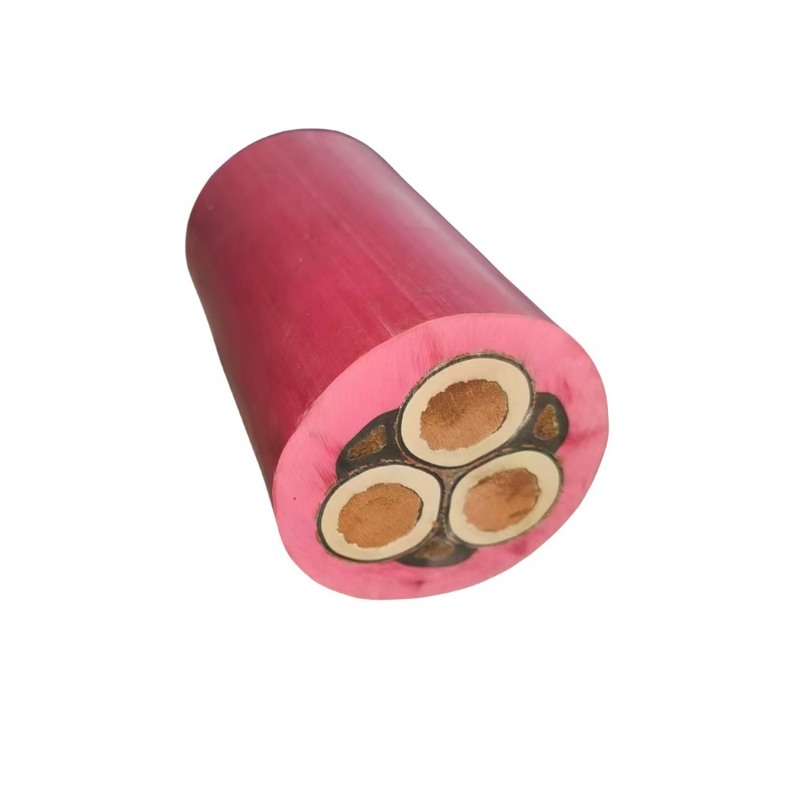

Mobile High Voltage Rubber-Insulated Flexible Cable for Shield Machines Power Transmission
Mobile 8.7/15KV Rubber-Insulated Flexible Electric Cable with Tinned Copper Conductor for Shield Machines Power Transmission. UGEFP cables are high voltage rubber sheathed flexible cables designed for shield machines in open-pit mines, featuring oil resistance, wear resistance, water resistance, and tensile strength for harsh construction environments.
Key Features
- Rated power frequency voltage U0/U: 8.7/15KV, 12/20KV
- Tinned soft copper conductor with excellent electrical conductivity and flexibility
- Power conductor insulation utilizes EPDM rubber for excellent electrical insulation, heat resistance, and aging resistance
- Ground conductor core made of semiconductive rubber for grounding safety
- Rubber-type semiconductive outer shielding for even electric field distribution
- Outer sheath of chlorinated polyethylene with high abrasion, oil, temperature, and corrosion resistance
- Operating temperature range: -35°C to 65°C
- Maximum conductor temperature: +75°C
- Minimum bending radius exceeds 6 times cable diameter
- Flexible, waterproof, tensile resistant, explosion-proof, wear-resistant, oil-resistant, and corrosion-resistant
Technical Specifications
| No | Item | Data |
|---|---|---|
| 1 | Product Name | 8.7/15kv 12/20KV High Voltage Flexible Rubber Shield Machine Cable |
| 2 | Power Core Insulation | EPDM Rubber |
| 3 | Ground wire core Insulation | Semiconductive rubber |
| 4 | Sheath | CPE |
| 5 | Voltage | 8.7/15KV,12/20kv |
| 6 | Conductor Operation Temperature | -35℃~+65℃ |
| 7 | Insulation Shield | Rubber-type Semiconductive Outer Shielding |
| 8 | Conductor | Tinned Copper |
| 9 | Filler | Thermoplastic elastomer |
| 10 | Feature | Wear resistant, oil resistant, tensile resistant, waterproof, Corrosion resistant |
| 11 | Application | Power connections in distribution networks for systems such as shield machines and mining equipment |
| 12 | Product Model | UGEFP |
Applications
- Shield Machine Operations: Provides stable power supply to cutterhead and propulsion systems while transmitting control signals
- Mining Operations: Power supply for heavy equipment and underground power transmission in mines
- Subway Construction: Power supply for tunnel boring machines and station equipment
- Distribution Networks: Power distribution for port machinery, cranes, and similar equipment systems
Product Advantages
- Abrasion Resistance & Tensile Strength: Outstanding abrasion resistance and high tensile strength for repeated movement
- Weather Resistance: Superior temperature tolerance from -35°C to +65°C for harsh environments
- Safety and Reliability: Complies with flame-retardant standards with shielding layer for stable power transmission
Company Profile
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cable for 40 years. As a large cable manufacturing enterprise, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
