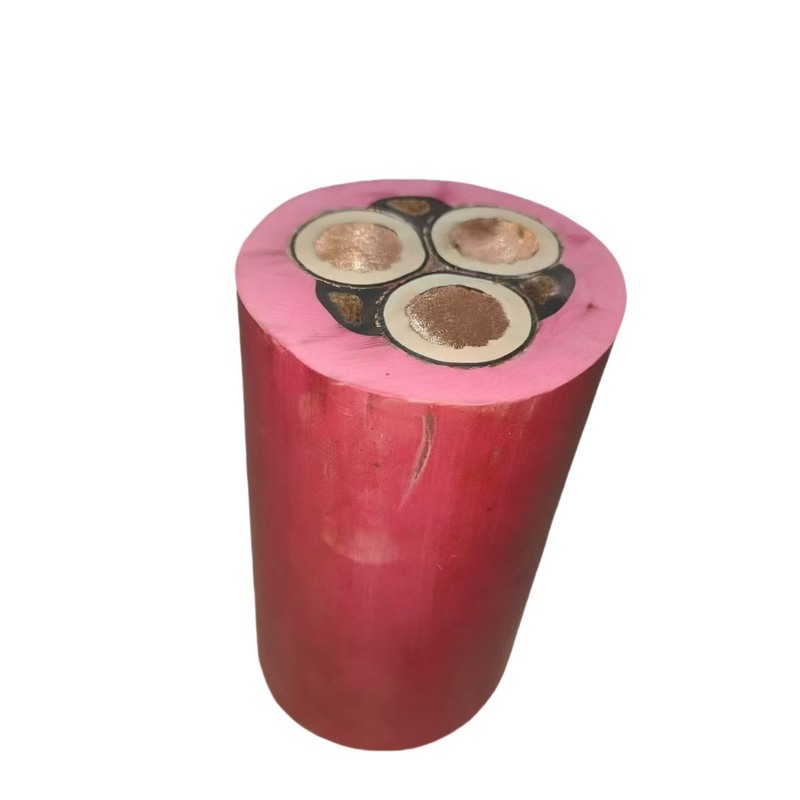

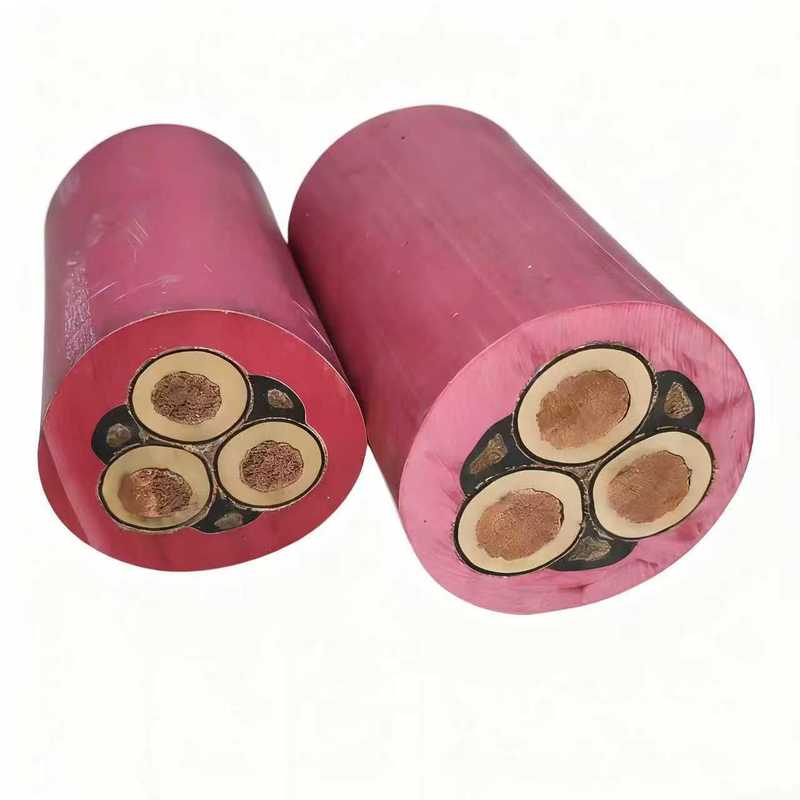

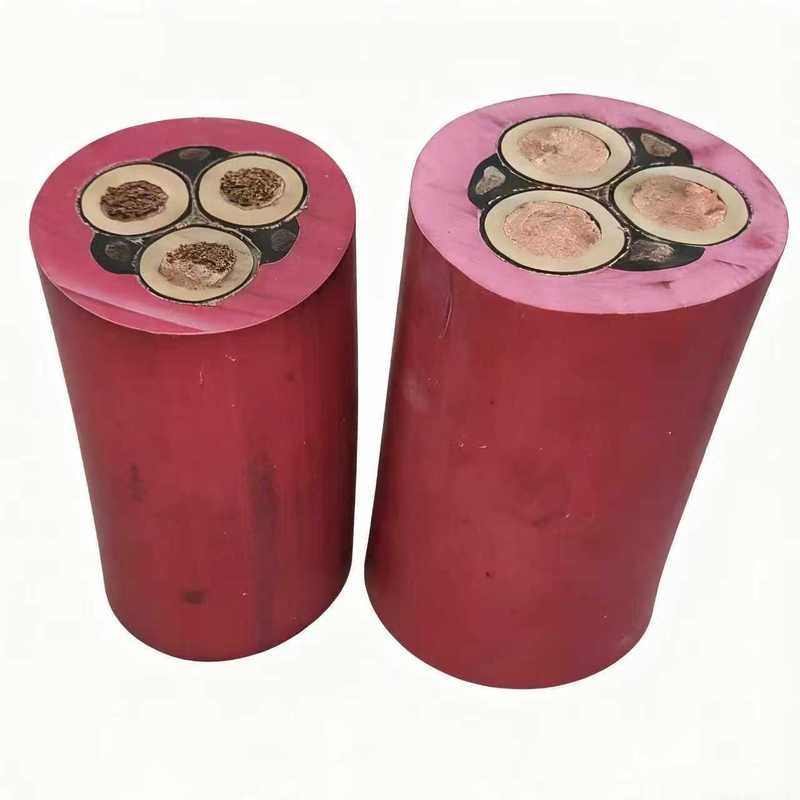

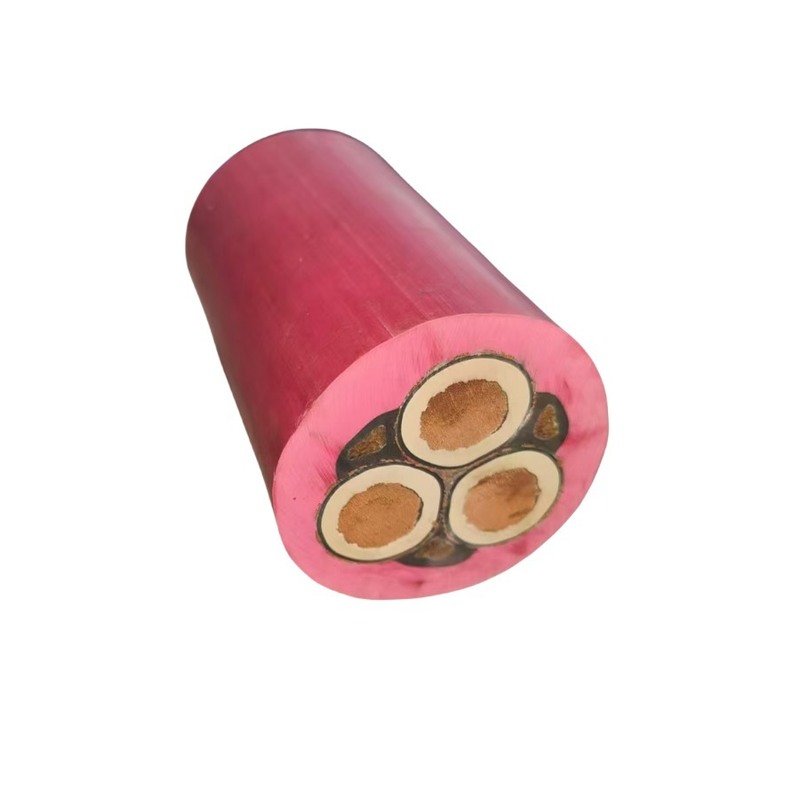

High Tensile Strength High Voltage Power Cable Rubber Insulated For Shield Machines
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 8.7/15KV High Voltage Flexible Rubber Shield Machine Cable | Customized Support | OEM |
|---|---|---|---|
| Place Of Origin | China,Chongqing | Brand Name | KE FEI TE |
| Model Number | UGEFP | Cable Type | High Voltage Flexible Rubber Shield Machine Cable |
| Feature | Explosion-proof,oil Resistant,wear Resistant, Waterproof, Flexible,Corrosion Resistant | Application | Electricity Transmission For Shield Tunneling Machine Or Other Mining Equipment |
| Packing | Wooden Drum,wooden Pallet,plastic Pallet,woven Bag Or As Customer's Requiments | MOQ | 50 Meters |
| Voltage | 8.7/15KV,12/20KV | Conductor | Tinned Copper/Copper |
| Sheath | CPE(Chlorinated Polyethylene) | Insulation | EPDM |
| IInsulation Shield | Rubber-type Semiconductive Outer Shielding | Ground Conductor Core Insulation | Semiconductive Rubber |
| Size | 3*35+1*16, 3*16+3*16/3, 3*25+3*16/3, 3*35+3*16/3 | ||
| Highlight | High Strength High Voltage Power Cable,High Voltage Power Cable Rubber Insulated,Shield Machines Power Cable |
||
Product Description
High Tensile Strength EPDM Insulated High Voltage Flexible Rubber Electric Cable With Tinned Copper Conductor for Shield Tunneling Machine in Open-pit
High Voltage Corrosion Resistant Tinned Copper Conductor Mobile Rubber Flexible Electric Cable for Shield Tunneling Machine and mining equipment in Open-pit.
UGEFP cable is a high voltage rubber-insulated flexible cable featuring multiple superior properties. Primarily composed of stranded tinned fine copper wire conductors, a chlorinated polyethylene sheath, and EPDM insulation, it exhibits characteristics such as abrasion resistance, oil resistance, tensile strength, and waterproofing. It is primarily used for power transmission in heavy equipment like shield machines.
Product Quick Details
- Rated power frequency voltage U0/U: 8.7/15KV,12/20KV
- Conductor: Stranded Tinned fine copper wire conductor with excellent electrical conductivity and flexibility
- Insulation: EPDM rubber for power conductor, semiconductive rubber for ground conductor core
- Insulation Shield: Rubber-type semiconductive outer shielding
- Outer Sheath:A mixture of chlorinated polyethylene or other equivalent materials, featuring high abrasion resistance, oil resistance, cold resistance, high-temperature resistance, water resistance, and corrosion resistance.
- Operating temperature range: -35°C to 65°C
- Maximum operating temperature of conductor: +75°C
- Minimum bending radius exceeds 6 times cable diameter
- Features: Flexible, waterproof, tensile resistant, explosion-proof, oil-resistant, corrosion-resistant, mobile
Technical Specifications
| No | Item | Data |
|---|---|---|
| 1 | Product Name | High Voltage Flexible Rubber Shield Tunneling Machine Cable in Open-pit |
| 2 | Power Core Insulation | EPDM Rubber |
| 3 | Ground wire core Insulation | Semiconductive rubber |
| 4 | Sheath | CPE(Chlorinated polyethylene) |
| 5 | Voltage | 8.7/15KV,12/20kv |
| 6 | Conductor Operation Temperature | -35℃~+65℃ |
| 7 | Insulation Shield | Rubber-type Semiconductive Outer Shielding |
| 8 | Conductor | Tinned Copper |
| 9 | Filler | Thermoplastic elastomer |
| 10 | Feature | Wear resistant, oil resistant, tensile resistant, waterproof, Corrosion resistant, Flexible, explosion-proof |
| 11 | Application | Power connections in distribution networks for systems such as shield machines and mining equipment |
| 12 | Product Model | UGEFP |
Application Scenarios
- Shield Machine Operations: Provides stable power supply to the cutterhead and propulsion system of shield machines
- Mining Operations: Power supply for heavy equipment like excavators and loaders
- Subway Construction: Power supply for tunnel boring machines and station equipment
- Distribution Networks: Power distribution for port machinery and cranes
Product Advantage
- High Abrasion Resistance: Withstands prolonged friction from minerals
- Torsion Resistance: Strong resistance to twisting prevents deformation
- Water resistance, corrosion resistance: Stable performance in harsh environments
- Good tensile strength: Withstands significant tensile forces during repeated movement, ensuring the core wire does not break
Company Profile
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cable for 40 years. We produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our products are globally distributed and widely used in coal mines, power stations, and transportation sectors.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
