450/750V Copper Core Rubber Submersible Cable EPDM Insulation High Tensile Strength
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Ke Fei Te |
| Certification | CCC/ISO 9001 |
| Model Number | JHS |
| Minimum Order Quantity | 500 meters |
| Price | $0.20-1.80/meters |
| Packaging Details | Wooden drum, wooden pallet, plastic pallet, woven bag |
| Delivery Time | 5-12days |
| Payment Terms | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Product Name | Waterproof Submersible Pump Cable Wire |
|---|---|---|---|
| Rated Voltage | 450/750V | Insulation Material | EPDM |
| Type | LOW VOLTAGE | Application | Submersible Pump, Underwater Landscape Lighting |
| Conductor Material | Annealed Copper Conductor | Jacket | Rubber |
| Size | 0.75mm²~300mm² | Shape | Round Wire |
| Feature | Waterproof,cold Resistance, Soft ,small Bending Radius,flexible ,movable, High Tensile Strength | Conductor | Stranded Pure Copper |
| Insulation | EPDM | Sheath | Rubber Sheath |
| Filler | TPE(thermoplastic Elastomer) | Certificate | ISO9001/CCC |
| Core | Single Core,2 3 4 5 6 Cores | ||
| Highlight | Copper Core Rubber Submersible Cable,Rubber Submersible Cable EPDM Insulation,High Strength submersible pump wire |
||
Product Description
Copper Core Rubber Sheath Waterproof Flexible Electric Cable Wire for Submersible Cable Pump
450/750V Copper Core Rubber Sheath Waterproof Flexible Electric Cable Wire for Submersible Cable Pump Electricity Transmission. Low Voltage Flexible Copper Core Waterproof Submersible Pump Rubber Cable.

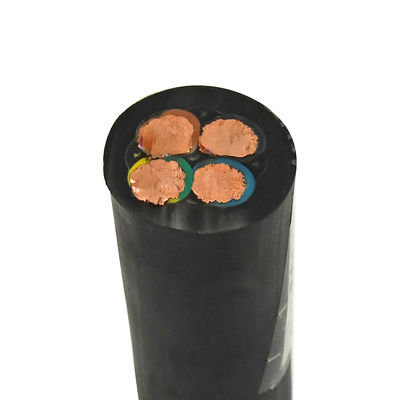

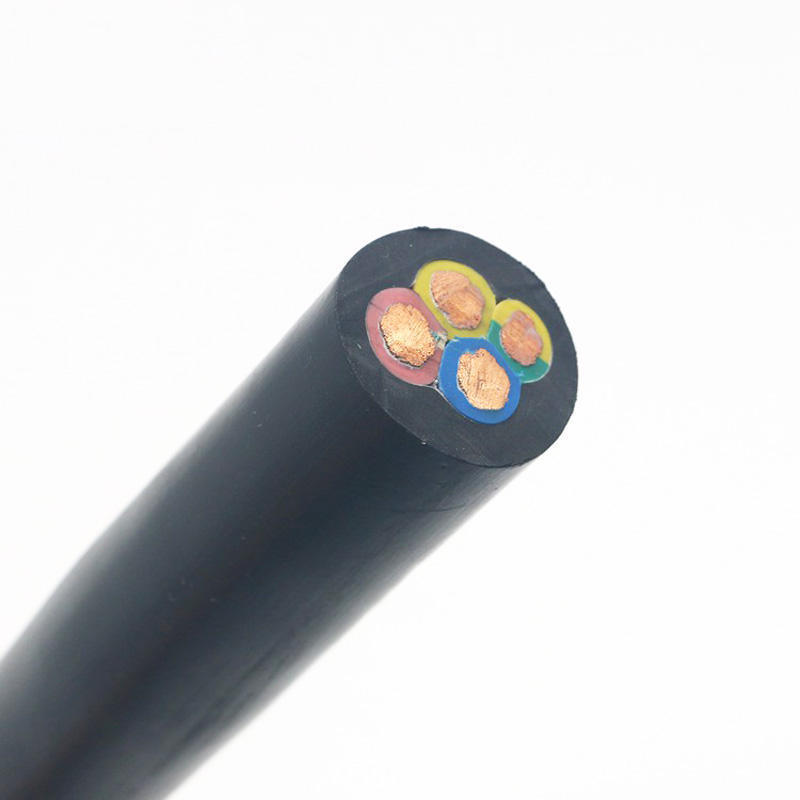

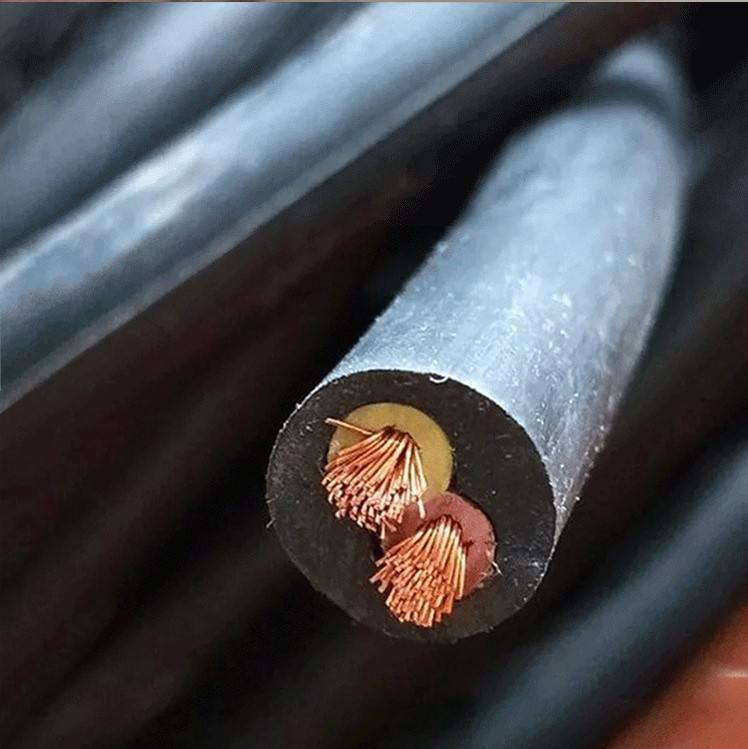

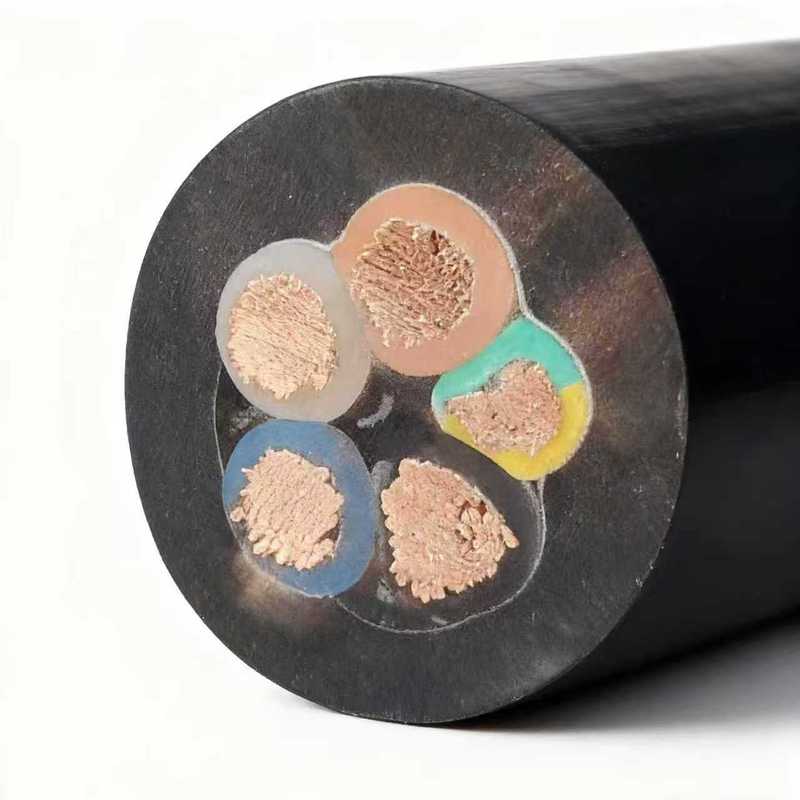

This cable consists of a copper core conductor, EPDM rubber insulation, and a rubber sheath, filled with thermoplastic elastomer to provide waterproofing. It is primarily used for power transmission in equipment such as submersible pumps, ensuring stable power supply to underwater devices.
Product Overview
This waterproof rubber cable is manufactured using special rubber waterproof material and thermoplastic elastomer filling materials, featuring cold resistance, flexibility, and superior waterproof properties. Designed for connecting submersible motors with DC voltage 450/750V and below, it's ideal for submersible pump power transmission with a long-term allowable operating temperature not exceeding 65°C.
Product Quick Details
- Conductor: Stranded multiple thin copper wires for maximum flexibility
- Sheath: Waterproof rubber
- Insulation: EPDM, effectively prevents moisture from contacting conductors, maintaining excellent insulation properties
- Voltage Rating: 450/750V
- Filler: TPE (thermoplastic elastomer)
- Wrapping Tape: Non-woven fabrics
- Shape: Round
- Core Options: Available in Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores
- Cross Section Range: From 0.75mm to 300mm
Primary Applications
- Submersible Motors: Primarily used to transmit electrical power to submersible motors operating at AC voltages of 500V or below, such as submersible pumps, ensuring stable power supply for underwater equipment.
- Underwater Landscape Lighting: Suitable for power connections to underwater landscape lights and similar equipment, enabling safe and stable electrical transmission in submerged environments.
- Other Underwater Operations: Power transmission for underwater operations in coal mines, electrical supply to submerged sections of vessels, and other submerged applications.
Technical Specifications
| Product Name | Flexible Waterproof Rubber Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | JHS |
| Conductor Material | Stranded Copper conductor |
| Insulation Material | EPDM |
| Jacket | Rubber |
| Color | Black |
| Shape | Round wire |
| Features | Waterproof, cold resistant, highly flexible, movable, high tensile strength |
Quality Assurance
- Every production process undergoes specialized quality testing
- Professional engineers conduct final quality inspections
- All products meet CCC/ISO9001 certifications and comply with IEC standards
About Chongqing Kefei Cable Group Co., Ltd.
With 40 years of experience in R&D and production of rubber cables, our company specializes in manufacturing various electrical cables including mining cables, rubber sheath cable series, shield machine special high voltage cables, and other specialized series. Our flexible cable series benefits from over 20 years of expertise and can be customized to meet specific customer requirements.
Our Advantages
- Advanced production technology
- High-quality design standards
- Comprehensive testing equipment
- Stringent quality control processes
- Mature and optimized production workflows
Production Facilities
Certifications
Packaging & Shipping
We provide professional, environmentally friendly, and efficient packaging services to ensure the complete safety of your goods during transportation.
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer committed to delivering the highest quality products.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we offer customized solutions tailored to your specific requirements.
Q: How can we guarantee quality?
A: We implement pre-production sampling and final inspection protocols before shipment.
Q: How can I place an order?
A: Please provide detailed requirements for an immediate quote. For complex requests, we recommend direct contact via Skype, email, or phone.
