450/750V Durable Flat Travelling Cable For Lift High Adaptability
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 450 V |
|---|---|---|---|
| Rated Current | 16A | Insulation Material | Rubber |
| Type | LOW VOLTAGE | Application | Lifts, Large Cranes |
| Conductor Material | Copper | Jacket | Rubber |
| Size | Customized, 2.5/4/6/10/16/25/35mm | Product Name | Flat Rubber Cable |
| Shape | Flat | Feature | Waterproof, Tensile Resistance , Soft,flexible |
| Conductor | Bare Copper | Insulation | Rubber Insulation |
| Sheath | Rubber Sheath | Usage | Industrial,elevator |
| Rated Voltage | 450/750V | Standard | IEC,CCC,ISO |
| Highlight | 750V Flat Travelling Cable,750V Travelling Cable For Lift,High Adaptability elevator flat cable |
||
Product Description

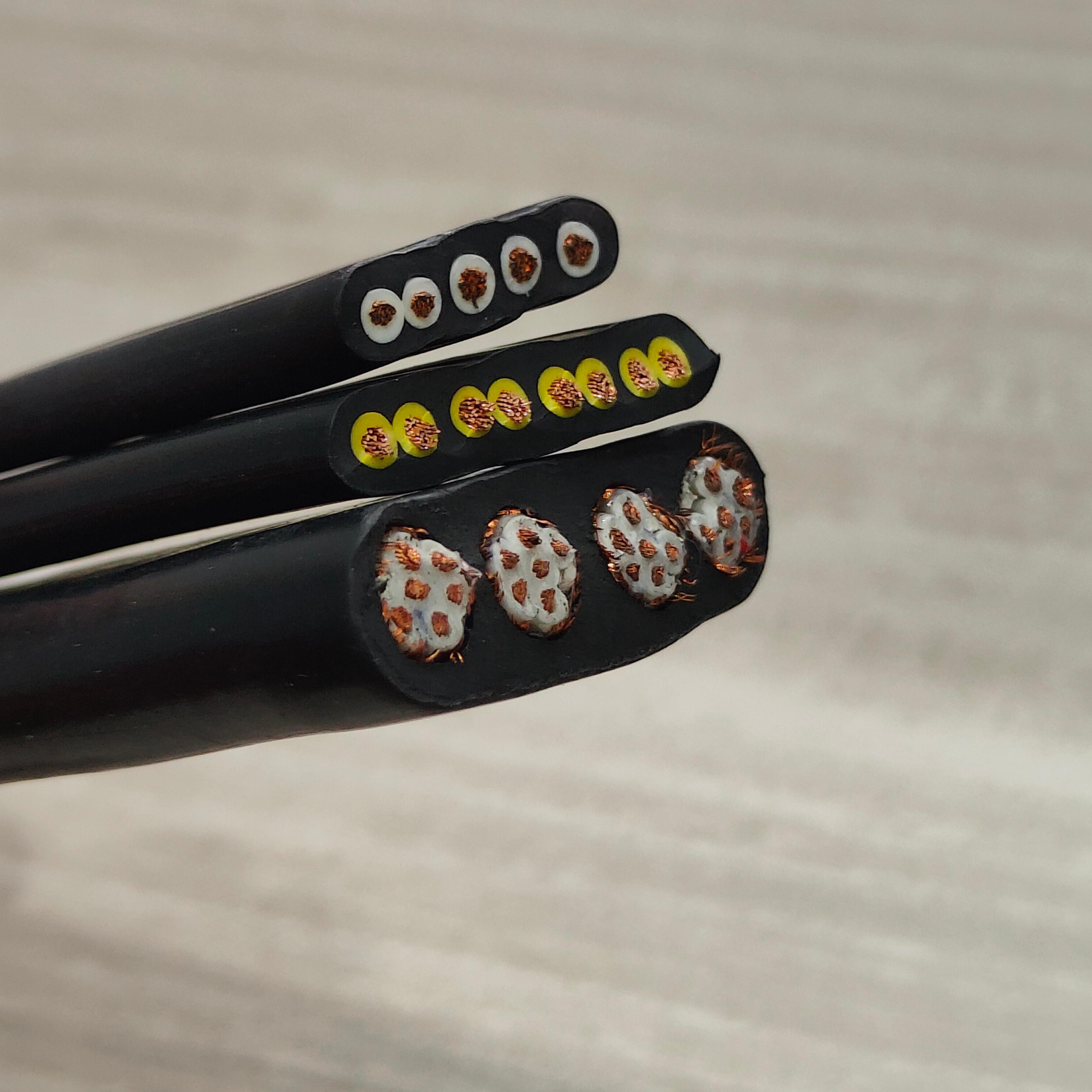

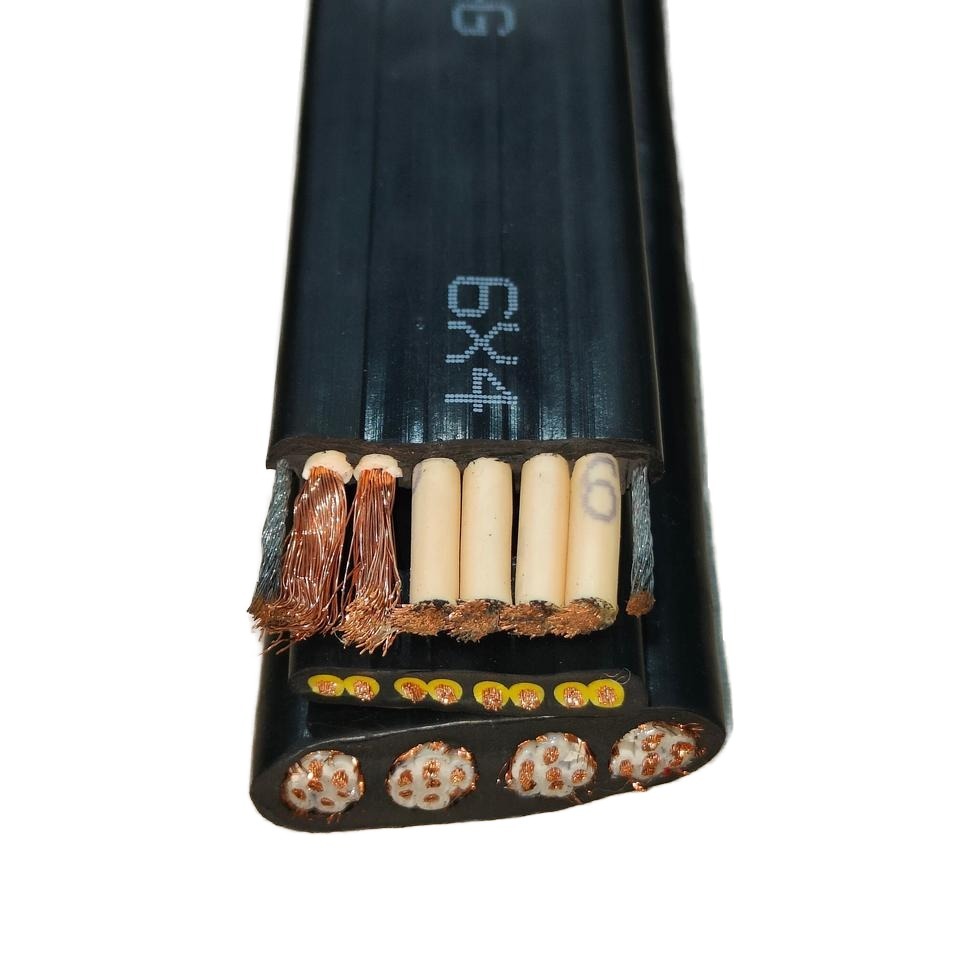

450/750V Tensile Resistance Flat Rubber Flexible Crane Conveyor Elevator Cable Movable Power Cable with Double Steel Wire
Product Description
- Conductor: Pure Stranded Copper Conductor
- Insulation: Rubber
- Sheath: Rubber
- Rated Voltage: 450/750V
- Cable Features: High Flexible, Tensile Resistance, High carrying capacity, High wear resistance and excellent weather resistance
- Usage Scenario: Widely applied in scenarios that require frequent movement, bending, and high adaptability to the environment, such as lifting machinery, industrial automated production lines, elevators and lifting equipment.
Cable Specifications
- Conductor: Class 5 flexible copper conductor
- Insulation: Rubber
- Sheath: Rubber
- Cores: 3, 4, 6, 12, 18, 20, 24 Cores or Others
- Voltage: 450/750V
- Temperature Rating: -20°C to +70°C
- Minimum Bending Radius: 8 x overall diameter
Applications
Flat rubber cables are widely used in electrical connection scenarios that require frequent movement, bending or are in harsh environments, thanks to their good flexibility, strong weather resistance and convenient installation (they can be laid along the ground or wall, saving space).

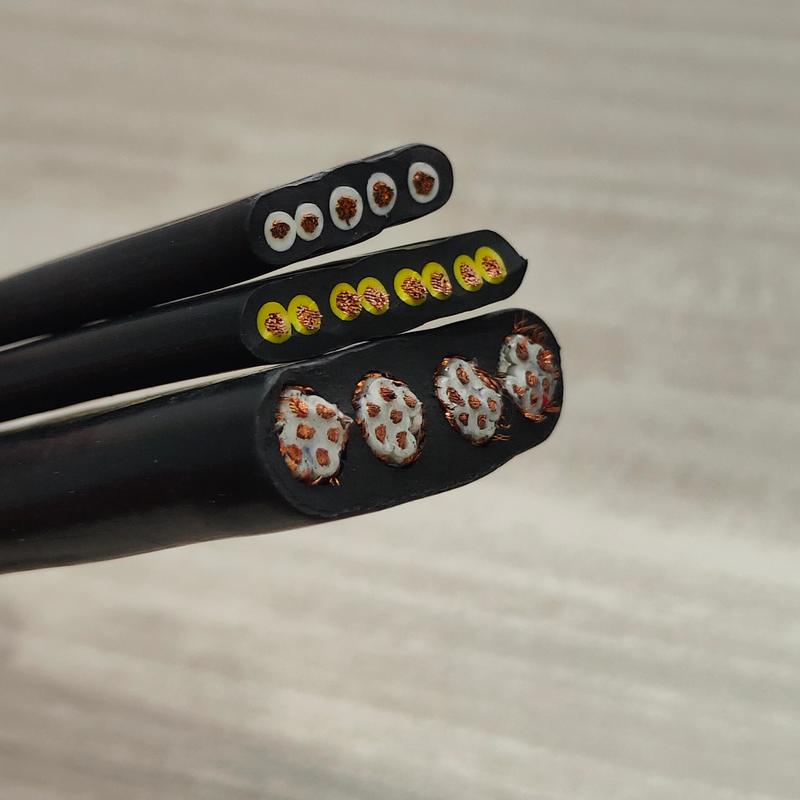

Flat Rubber Sheath Cable without Steel Wire
Flat-shaped cables are softer and more flexible than ordinary cables, making them easier to move and install.

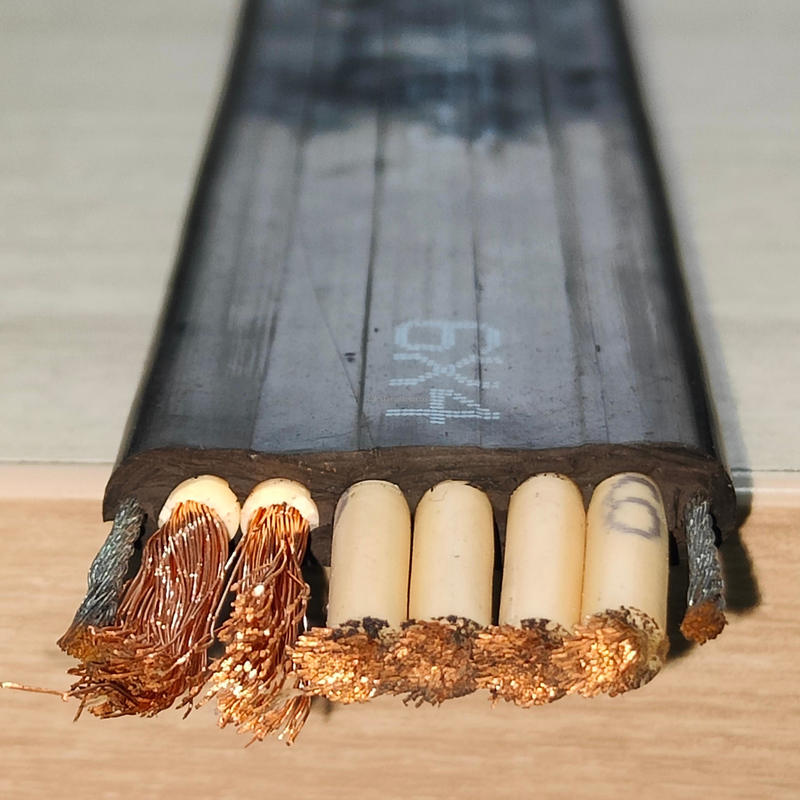

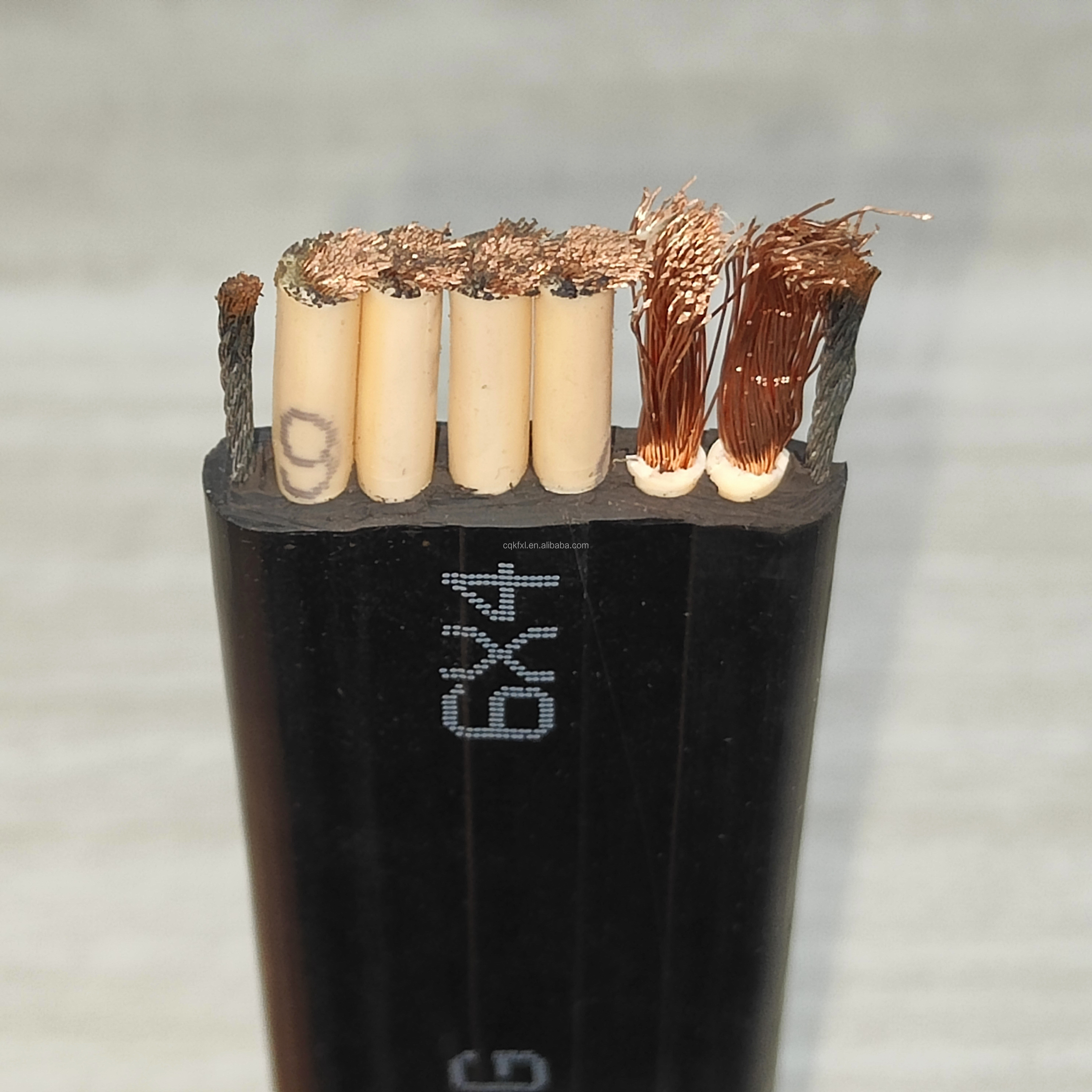

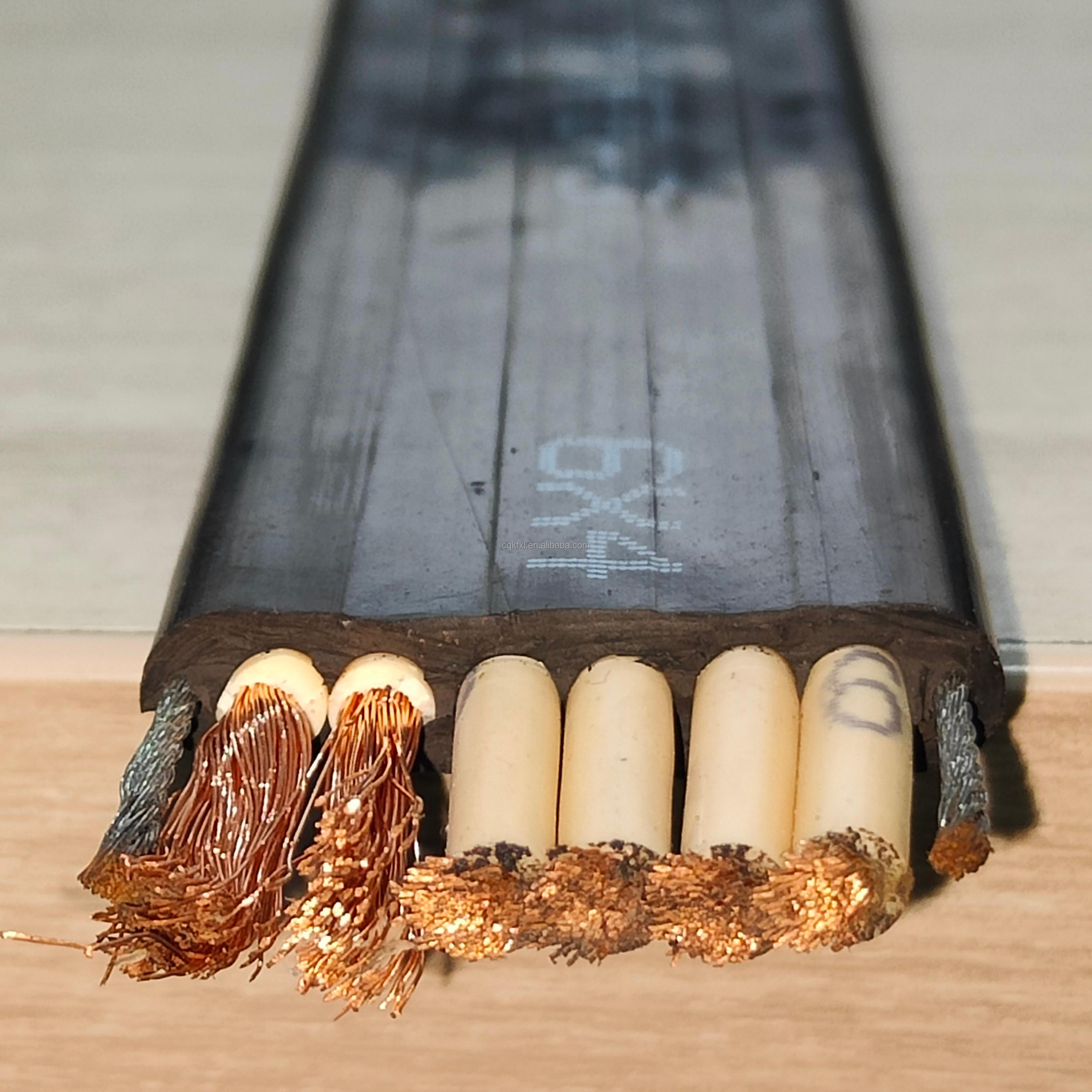

Flat Rubber Sheath Cable with Steel Wire
The flat cable with steel wire has a stronger load-bearing capacity, excellent tensile strength, outstanding compressive performance, and good wear resistance.
Product Specifications
| Product Name | Flat Rubber Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YFFB |
| Conductor Material | Copper |
| Insulation Material | Rubber |
| Jacket | Rubber |
| Color | Black/Red |
| Shape | Flat |
| Feature | Soft, waterproof, tensile resistance |
Company Profile
Chongqing Kefei Cable Group Co., Ltd. focuses on R&D and production of rubber cable for 40 years. It is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series.
Our products are sold worldwide, widely used in various fields such as coal mine, power station, and transportation, with excellent quality and excellent after-sales service favored by domestic and foreign customers.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
