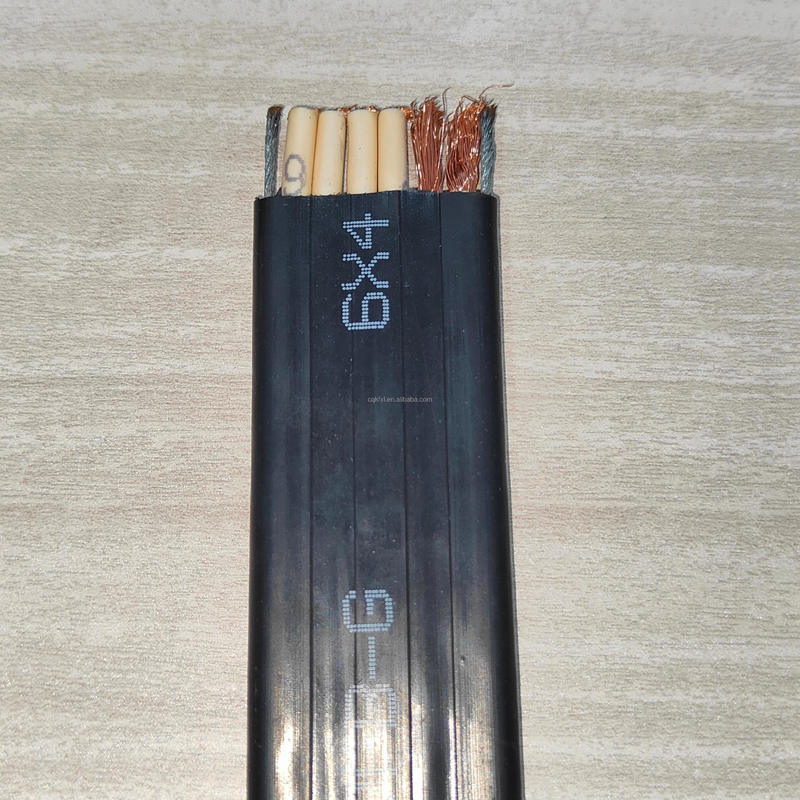

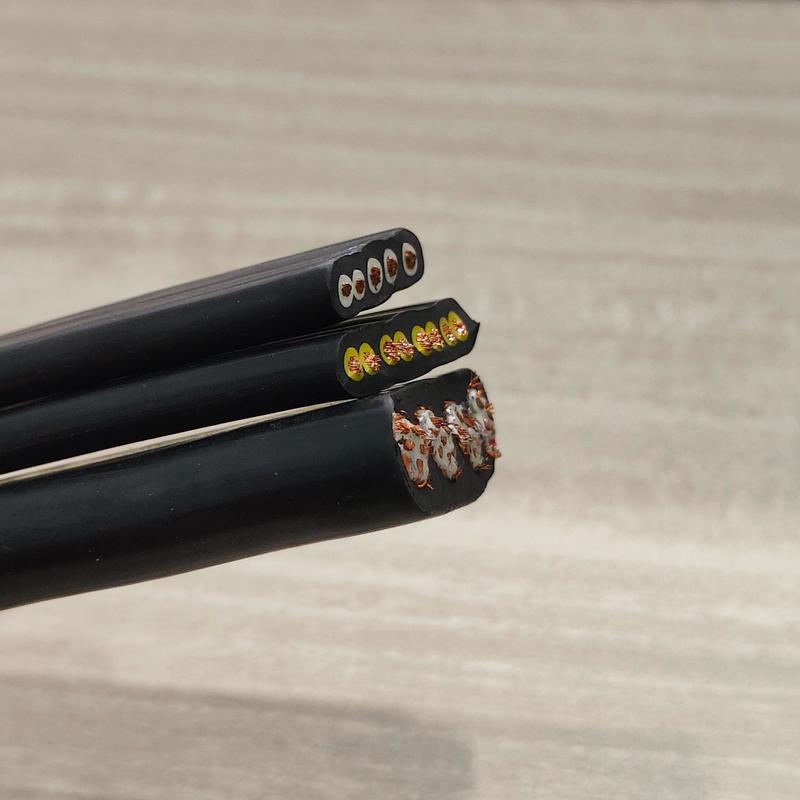

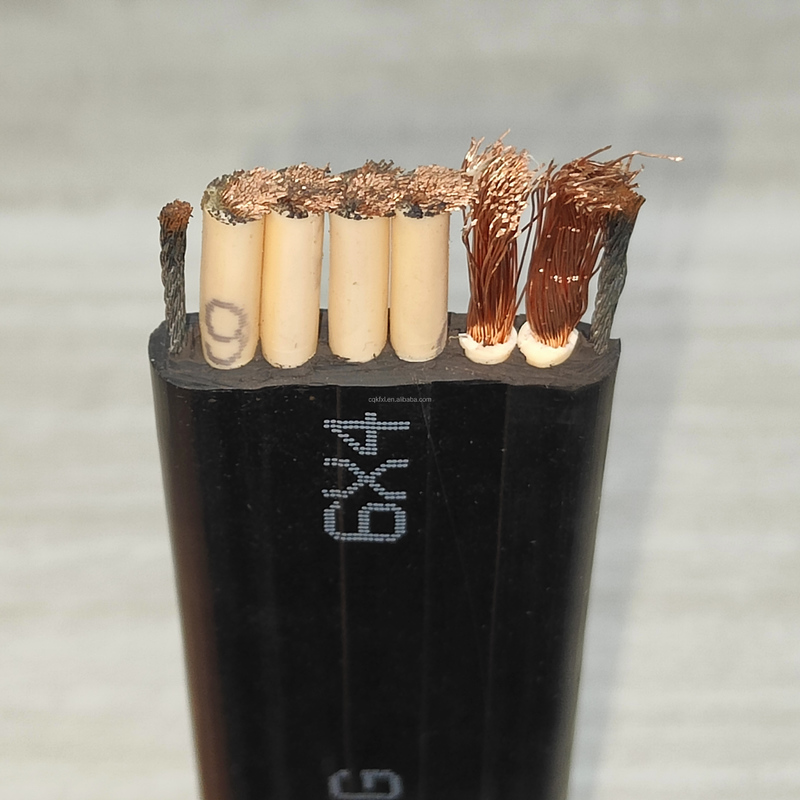

Multi Cores Movable Flat Rubber Cable For Lift Weather Resistance

Place of Origin	Chongqing, China
Brand Name	Ke Fei Te
Certification	ISO
Model Number	YFFB/YFFBG
Minimum Order Quantity	500 meters
Price	$0.86-8/meters
Packaging Details	wooden drum,wooden pallet
Delivery Time	6-12days
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Working Temperature	70°C	Rated Current	16A
Insulation Material	Rubber	Type	LOW VOLTAGE
Application	Lifts, Large Cranes	Conductor Material	Copper
Jacket	Rubber	Size	Customized, 2.5/4/6/10/16/25/35mm
Product Name	Flat Rubber Cable	Shape	Flat
Feature	Waterproof, Tensile Resistance , Soft,flexible	Conductor	Bare Copper
Insulation	Rubber Insulation	Sheath	Rubber Sheath
Usage	Industrial,elevator	Rated Voltage	450/750V
Standard	IEC,CCC,ISO
Highlight	Multi Cores Flat Rubber Cable , Multi Cores Flat Cable For Lift , weather resistance elevator power cable

Leave a Message

Product Description

450/750V Tensile Resistance Flat Rubber Flexible Crane Conveyor Elevator Cable Movable Power Cable with Double Steel Wire

Product Description

Conductor: Pure Stranded Copper Conductor
Insulation: Rubber
Sheath: Rubber
Rated Voltage: 450/750V
Cable Features: High Flexible, Tensile Resistance, High carrying capacity, High wear resistance and excellent weather resistance
Usage Scenario: Widely applied in scenarios that require frequent movement, bending, and high adaptability to the environment, such as lifting machinery, industrial automated production lines, elevators and lifting equipment.

Cable Specifications

Conductor: Class 5 flexible copper conductor
Insulation: Rubber
Sheath: Rubber
Cores: 3, 4, 6, 12, 18, 20, 24 Cores or Others
Voltage: 450/750V
Temperature Rating: -20°C to +70°C
Minimum Bending Radius: 8 x overall diameter

Applications

Flat rubber cables are widely used in electrical connection scenarios that require frequent movement, bending or are in harsh environments, thanks to their good flexibility, strong weather resistance and convenient installation (they can be laid along the ground or wall, saving space).And Flat-shaped cables are softer and more flexible than ordinary cables, making them easier to move and install.

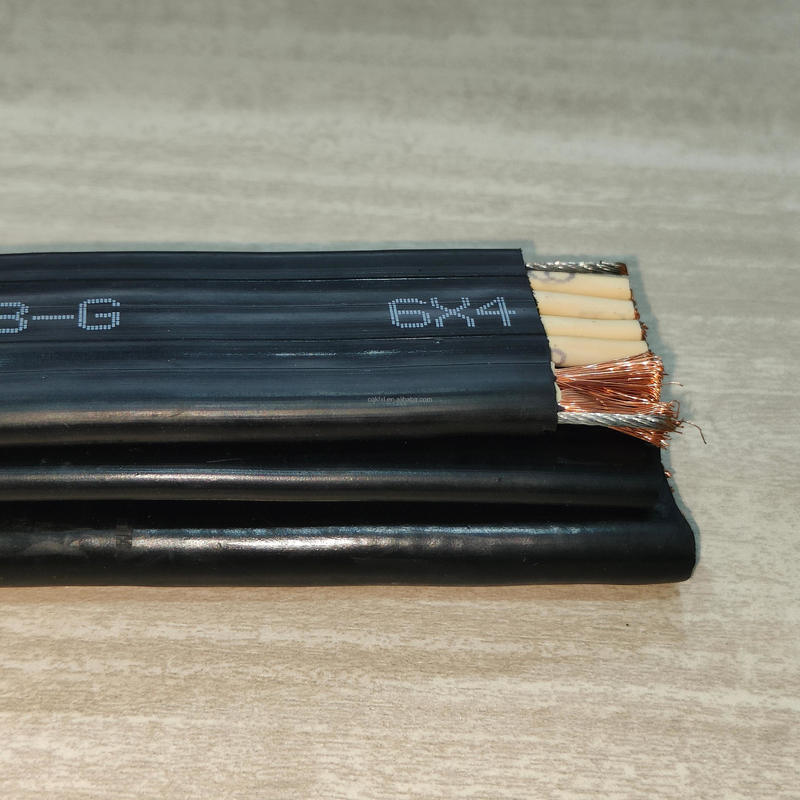

Flat Rubber Sheath Cable with Steel Wire

The flat cable with steel wire has a stronger load-bearing capacity, excellent tensile strength, outstanding compressive performance, and good wear resistance.

Product Specifications

Product Name	Flat Rubber Cable
Brand	Ke Fei Te
Model	YFFB/YFFBG
Conductor Material	Copper
Insulation Material	Rubber
Jacket	Rubber
Color	Black/Red
Shape	Flat
Feature	Soft, waterproof, tensile resistance,Flexible,small bending radius,wear resistance,be easy to install

Company Profile

Chongqing Kefei Cable Group Co., Ltd.

Chongqing Kefei Cable Group Co., Ltd. focuses on R&D and production of rubber cable for 40 years. It is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series.

Our products are sold worldwide, widely used in various fields such as coal mine, power station, and transportation, with excellent quality and excellent after-sales service favored by domestic and foreign customers.
