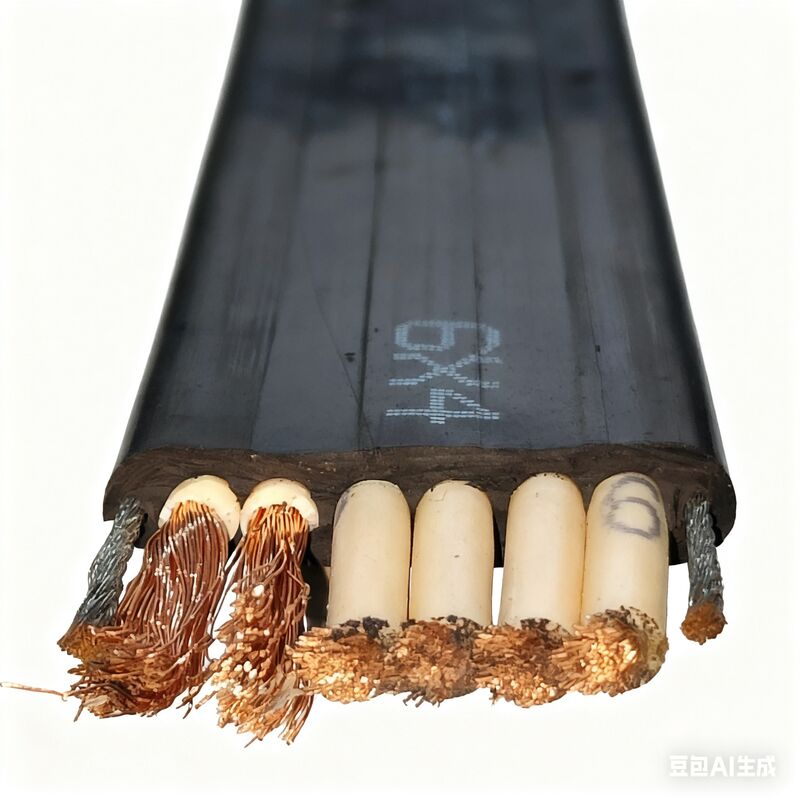

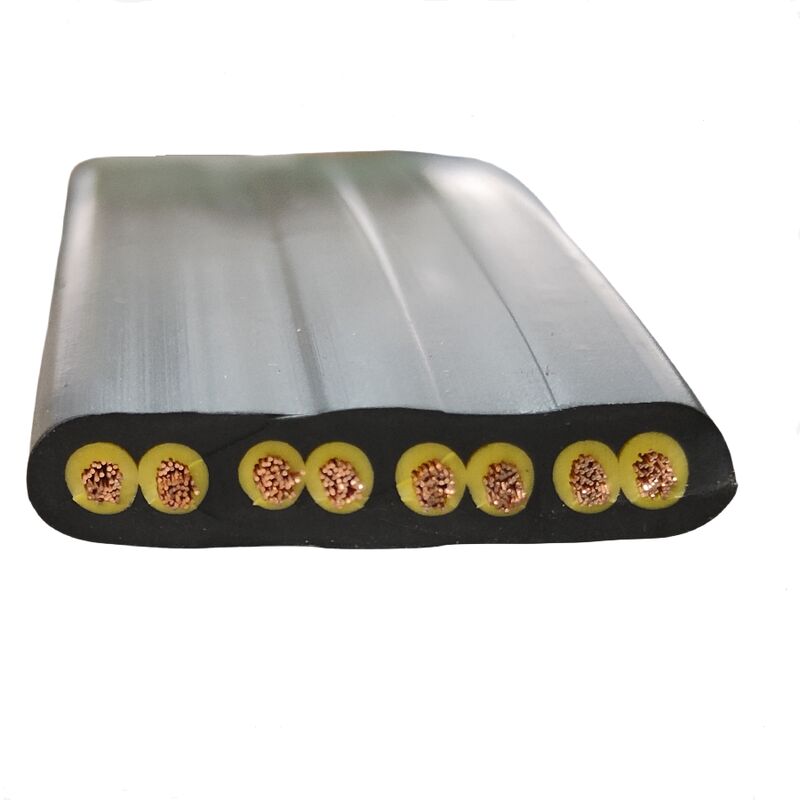

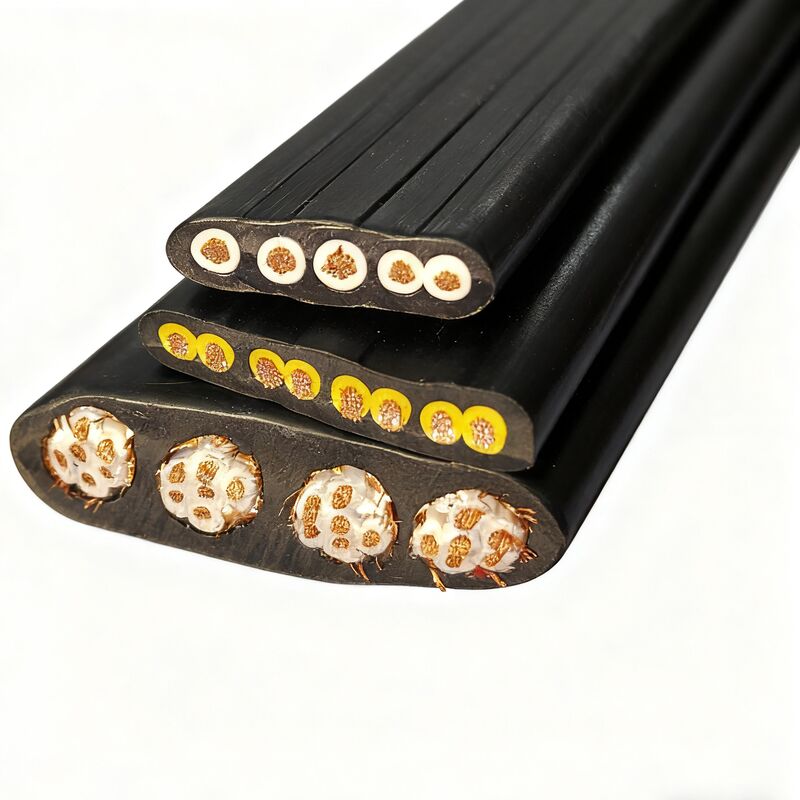

YFFB Copper Conductor Rubber Insulated Elevator Flat Belt Traction Traveling Cable
450/750V Four Cores PVC Sheath Flat Parallel Crane Cable H07VVH6-F for Industrial Applications.
450V Extra Soft Flat PVC Sheath Stranded Copper Conductor Crane Conveyor Flexible Power Cable.
450/750V Low Voltage Extra Soft Flat Shape PVC Cable Industrial Lifts and Cranes Cable with Double Steel Wire.
Product Quick Details
- Conductor: Multi-strand tightly twisted fine wire conductors for excellent flexibility and conductivity
- Insulation: Special PVC mixtures for effective conductor isolation and stable electrical performance
- Sheath: Special PVC mixture with excellent wear, oil, and weather resistance (standard black, customizable colors)
- Cores: Available in 3, 4, 6, 12, 18, 20, 24 cores or custom configurations
- Cross Section: 1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm and other sizes
- Voltage: 450/750V (Low Voltage) suitable for most industrial and civilian applications
- Temperature Rating: -20°C to +70°C
- Minimum Bending Radius: 8 x overall diameter
Product Features
- High flexibility and tensile resistance
- Excellent current carrying capacity
- Superior wear and weather resistance
- Ideal for applications requiring frequent movement and bending
- High environmental adaptability
The YFFBG cable is designed for demanding applications requiring frequent movement, bending, and high environmental adaptability.
Applications
Flat lift cables are widely used in electrical connections requiring frequent movement, bending, or operating in harsh environments. Common applications include:
- Metallurgy industry
- Power generation
- Petrochemical plants
- Shipping and port operations
- Other industrial applications
The flat cable with steel wire offers enhanced load-bearing capacity, superior tensile strength, excellent compressive performance, and outstanding wear resistance.
Product Specifications
| Product Name |
Flat Rubber Cable |
| Brand |
Ke Fei Te |
| Model |
YFFB/YFFBG |
| Conductor Material |
Copper |
| Insulation Material |
PVC |
| Jacket |
PVC |
| Color |
Black/Red/Grey or custom |
| Shape |
Flat |
| Feature |
Soft, waterproof, tensile resistant, flexible, small bending radius, wear resistant, easy to install |
Company Profile
Chongqing Kefei Cable Group Co., Ltd. has specialized in R&D and production of rubber cables for 40 years. As a large-scale cable manufacturer, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables.
Our products are globally distributed and widely used in coal mines, power stations, transportation, and other industries. We are recognized for our excellent quality and superior after-sales service.
Our Advantages
- Advanced technology
- High quality design
- Perfect testing equipment
- Strict quality control
- Mature process flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
We provide professional, environmentally friendly, and efficient packaging services to ensure the safety of your goods during transportation.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a production manufacturer committed to producing the highest quality cables.
How can I place an order?
Please provide detailed requirements for immediate quotation. For complex requests, contact us via Skype, email, or phone.
Can you produce products according to customer requirements?
Yes, we offer complete customization based on your specifications.
How do you guarantee quality?
We conduct pre-production sampling and final inspection before shipment to ensure quality standards.
