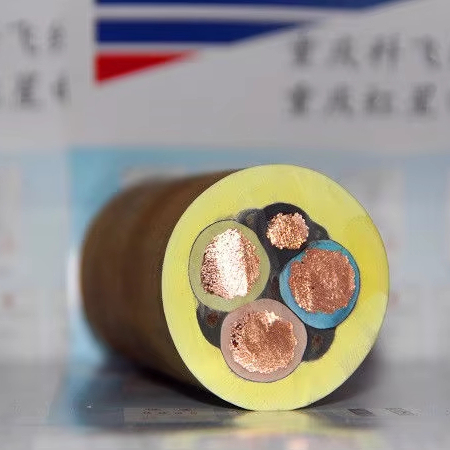

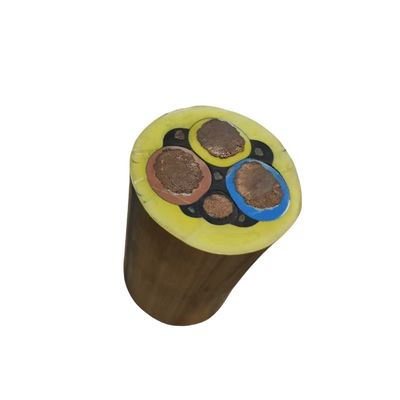

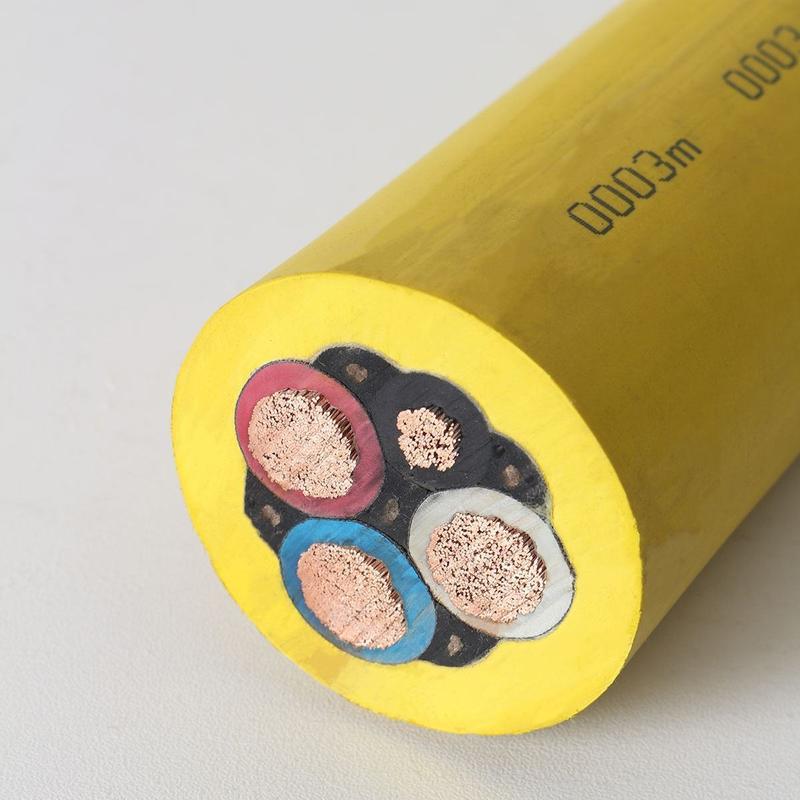

EPR Rubber Mining Power Cable 0.66/1.14KV 0.38/0.66KV 2.5MM-400MM Size
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Ke Fei Te |
| Certification | MA/ISO9001 |
| Model Number | MYP |
| Minimum Order Quantity | 100 meters |
| Price | $1.99-108.30/meters |
| Packaging Details | wooden drum,wooden pallet, plastic pallet,woven bag |
| Delivery Time | 7-15days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,MoneyGram |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 0.66/1.14KV,0.38/0.66kv |
|---|---|---|---|
| Rated Current | Depends On The Thickness Of The Conductor | Insulation Material | EPR |
| Type | LOW VOLTAGE | Application | Mining, Undergroud Coal Mine |
| Conductor Material | Copper | Jacket | Rubber |
| Size | 2.5MM-400MM | Product Name | Rubber Mining Cable |
| Shape | Round Wire | Feature | Flame Retardant, Fire-resistance,wear-resistant,explosion-proof |
| Conductor | Tinned Copper | Core | 3+1 |
| Package | Wooden Drum Package | Certificate | ISO9001/CCC |
| Highlight | EPR Rubber Mining Power Cable,400MM Flexible Rubber Cable,400MM Mining Power Cable |
||
Product Description
Copper Core Mine Power Cables for Underground CPE Sheathed Mining Explosion-proof Wire Cable
Product Description
0.38/0.66kv 0.66/1.14KV Flexible Stranded Copper Core EPR Rubber Mine Power Cables for Underground Mining Explosion-proof Wire Cable
The MYP model cable is used for the power connection of various underground mobile mining equipment. This cable features stranded fine copper wire, rubber sheath and rubber insulation, providing exceptional flexibility and softness. Designed for rated voltage Uo/U 0.38/0.66, it's ideal for coal mining machines installation equipment to connect power supply with easy repositioning capability.
Key Features
- Conductor: Stranded Copper Core/Tinned Copper Core for flexibility and bending resistance
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: Explosion-proof and waterproof rubber sheath
- Configuration: 3+1 Cores (3 power cores + 1 earth core)
- Voltage Rating: 0.66/1.14KV, 0.38/0.66KV
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant, wear-resistant, movable
- Excellent electrical performance and superior mechanical properties
- Permissible operating temperature: -35°C to 65°C
- Minimum bending radius over 6 times of cable diameter
- Yellow sheath cable should not be exposed to prolonged sunlight
- Strong anti-interference ability with effective electromagnetic interference suppression
- Excellent flame-retardant properties to prevent flame spread
- Withstands frequent dragging, stretching and bending by underground mobile equipment
- Resists mechanical impacts and environmental erosion

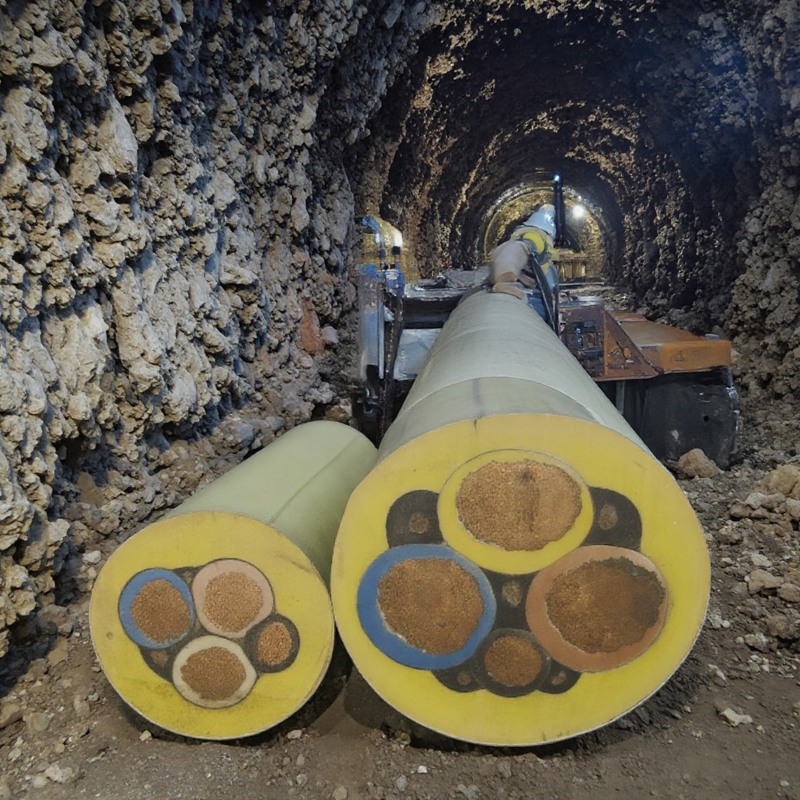

- Ideal for power connections of mobile coal mining equipment and tunneling machines
Specifications
| Product Name | Rubber Mining Cable |
| Brand | Ke Fei Te |
| Model | MYP |
| Conductor Material | Copper |
| Insulation Material | EPR |
| Jacket | Rubber |
| Color | Yellow/Black |
| Shape | Round wire |
| Feature | Flame retardant, fire-resistance, wear-resistant, explosion-proof, waterproof, oil resistance to acid and alkali resistant |
Company Profile
Chongqing Kefei Cable Group Co., Ltd.
Chongqing Kefei Cable Group Co., Ltd. has focused on R&D and production of rubber cable for 40 years, establishing itself as a large enterprise specializing in cable manufacturing. Our company is committed to producing various specifications of electrical cables, including mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. With over 20 years of expertise in flexible cable production, we offer customized solutions for all kinds of special cables.
Our products are sold worldwide, widely used in coal mines, power stations, transportation and other fields. We are recognized for excellent quality and outstanding after-sales service by domestic and international customers.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
To better ensure the safety of your goods, we provide professional, environmentally friendly, convenient and efficient packaging services.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
