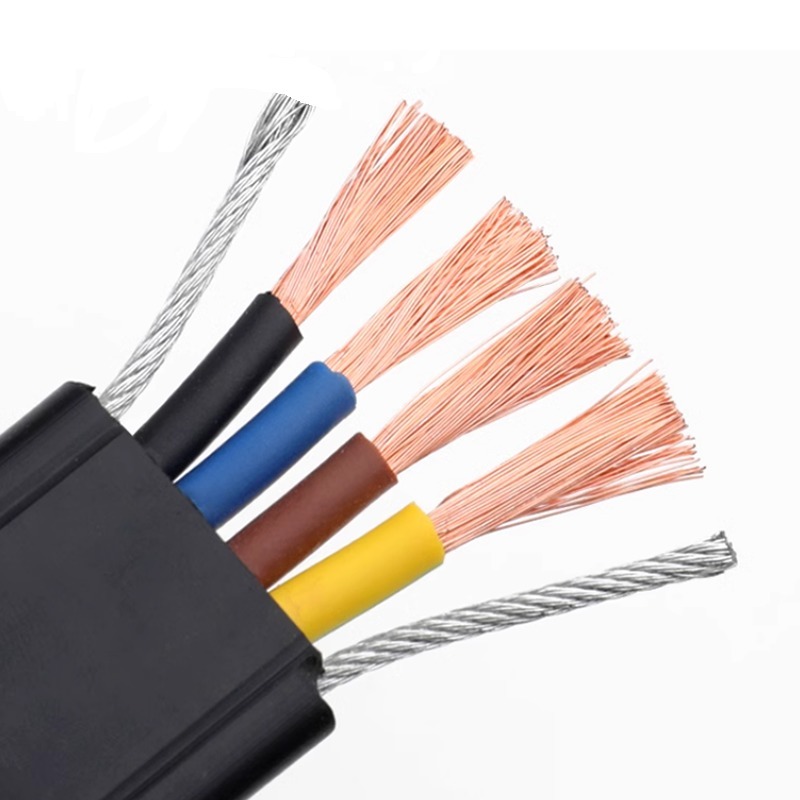

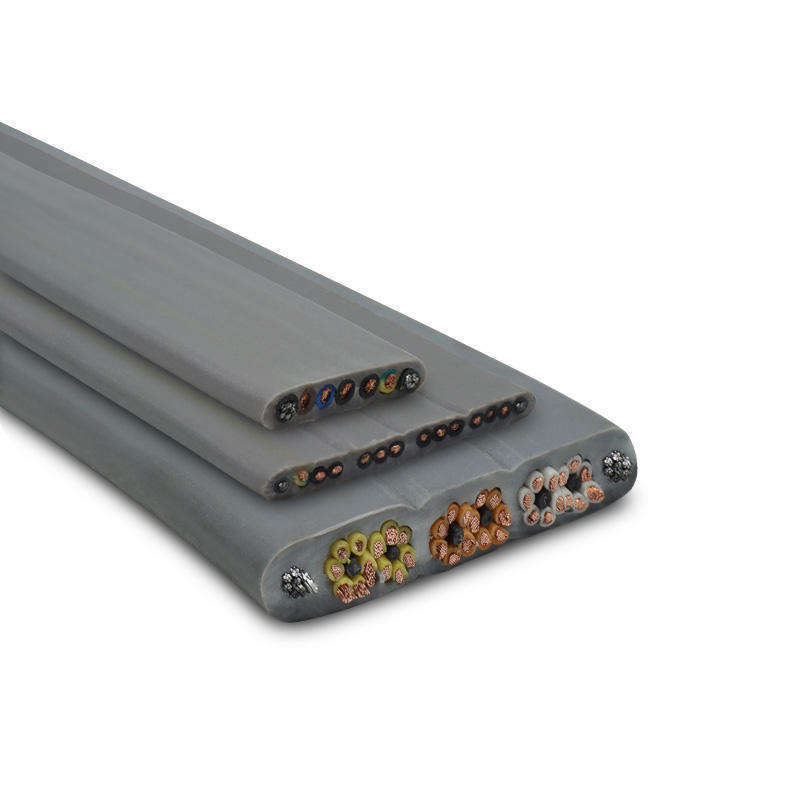

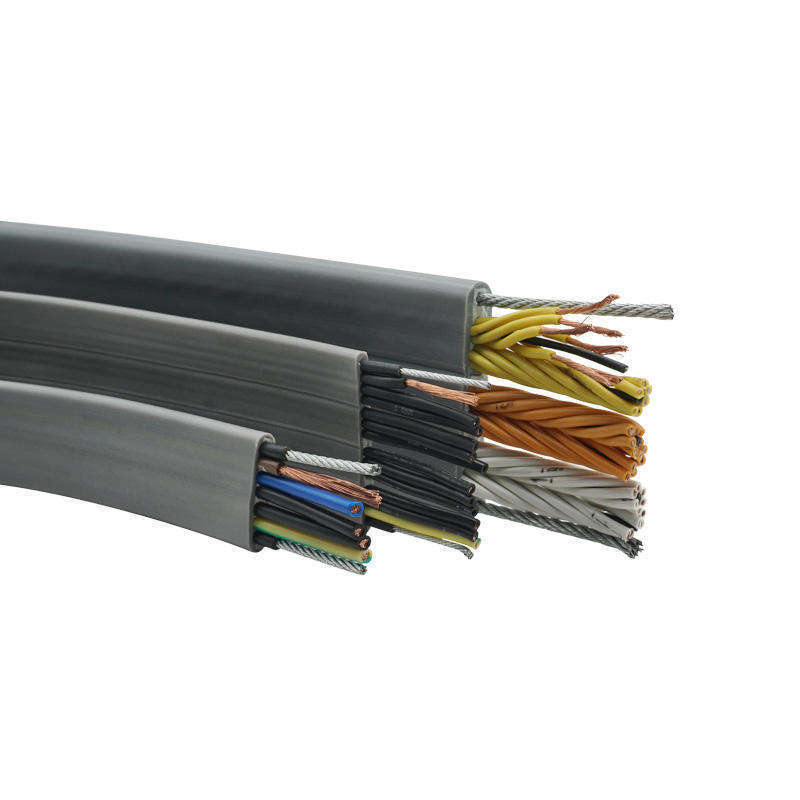

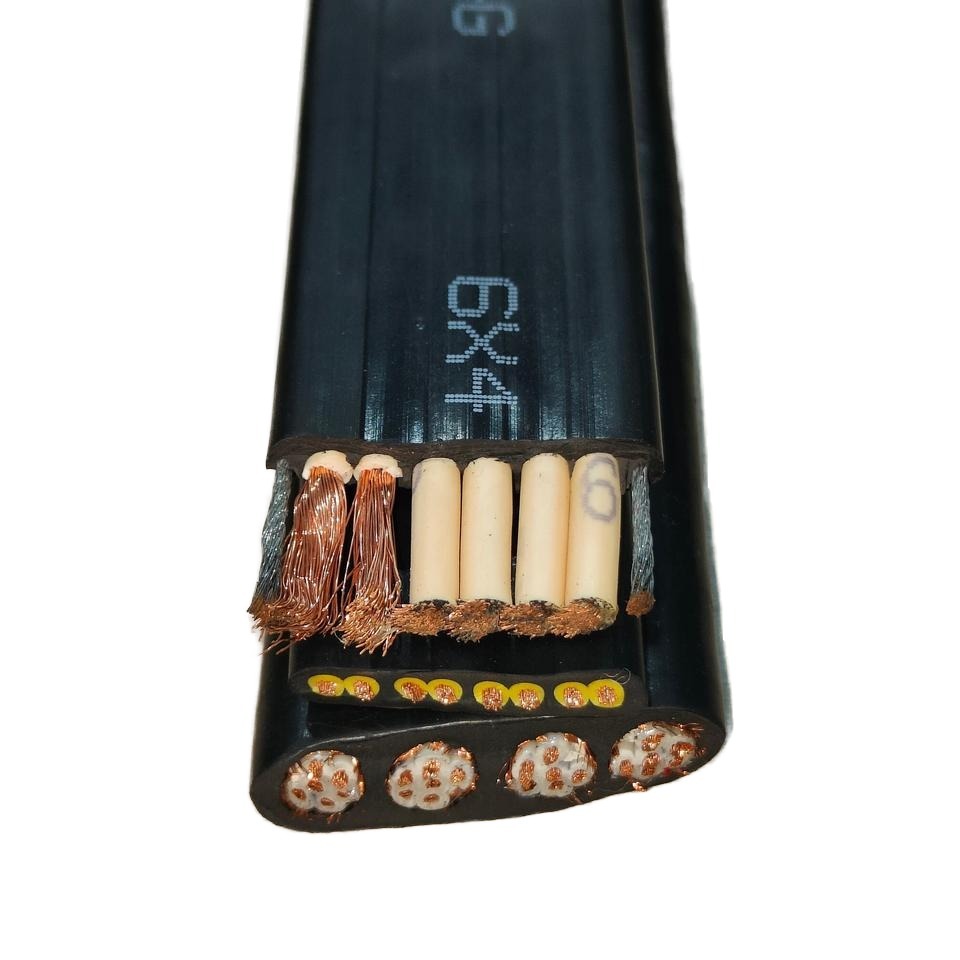

450V Oil Resistant Custom Size Flat Lift Cable Flexible Power Cable

Place of Origin	Chongqing, China
Brand Name	Ke Fei Te
Certification	ISO
Model Number	YFFB/YFFBG
Minimum Order Quantity	500 meters
Price	$0.86-8/meters
Packaging Details	wooden drum,wooden pallet
Delivery Time	6-12days
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Working Temperature	70°C	Rated Current	16A
Insulation Material	Rubber	Type	LOW VOLTAGE
Application	Lifts, Large Cranes	Conductor Material	Copper
Jacket	Rubber	Size	Customized, 2.5/4/6/10/16/25/35mm
Product Name	Flat Rubber Cable	Shape	Flat
Feature	Waterproof, Tensile Resistance , Soft,flexible	Conductor	Bare Copper
Insulation	Rubber Insulation	Sheath	Rubber Sheath
Usage	Industrial,elevator	Rated Voltage	450/750V
Standard	IEC,CCC,ISO
Highlight	Oil Resistant Flat Lift Cable , Custom Size Flat Lift Cable , Oil Resistant Flexible Power Cable

Leave a Message

Product Description

450V Resistant to Oil and Wear-resistant Custom Size Flexible PVC Sheath Flat Crane Power Cable

450/750V Multi Cores PVC Sheath Stranded Copper Conductor Flat Parallel Crane Cable H07VVH6-F for Industrial

450V Extra Soft Flat PVC Sheath Stranded Copper Conductor Crane Conveyor Flexible Power Cable. 450/750V Low Voltage Extra Soft Flat Shape PVC Cable Industrial Lifts and Cranes Cable with Double Steel Wire.

Product Quick Details

Conductor: Multi-strand tightly twisted fine wire conductors for excellent flexibility and conductivity
Insulation: Special PVC mixtures for effective conductor isolation and stable electrical performance
Sheath: Special PVC mixture with excellent wear, oil, and weather resistance (standard black, customizable colors)
Cores: Available in 3, 4, 6, 12, 18, 20, 24 cores or custom configurations
Cross Section: 1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm and other sizes
Voltage: 450/750V (Low Voltage) suitable for most industrial and civilian applications
Temperature Rating: -20°C to +70°C
Minimum Bending Radius: 8 x overall diameter

Product Features

High flexibility and tensile resistance
Excellent current carrying capacity
Superior wear and weather resistance
Ideal for applications requiring frequent movement and bending
High environmental adaptability
Oil-resistant, wear-resistant, cold-resistant, and UV-resistant properties

The YFFBG cable is designed for demanding applications requiring frequent movement, bending, and high environmental adaptability. It is often used in electrical connection scenarios that require frequent bending and movement.

Applications

Flat lift cables are widely used in electrical connections requiring frequent movement, bending, or operating in harsh environments. Common applications include:

Metallurgy industry
Power generation
Petrochemical plants
Shipping and port operations
Other industrial applications

The flat cable with steel wire offers enhanced load-bearing capacity, superior tensile strength, excellent compressive performance, and outstanding wear resistance.

Product Specifications

Product Name	Flat Parallel Cable
Brand	Ke Fei Te
Model	YFFB/YFFBG
Conductor Material	Copper
Insulation Material	PVC
Jacket	PVC
Color	Black/Red/Grey or custom
Shape	Flat
Feature	Soft, waterproof, tensile resistant, flexible, small bending radius, wear resistant, easy to install

Company Profile

Chongqing Kefei Cable Group Co., Ltd.

Our Company has specialized in R&D and production of rubber cables for 40 years. As a large-scale cable manufacturer, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables.

Our products are globally distributed and widely used in coal mines, power stations, transportation, and other industries. We are recognized for our excellent quality and superior after-sales service.
