0.66/1.14KV EPR Insulation Flexible Power Cable 90°C Working Temperature for Coal Mining
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 90°C | Rated Voltage | 0.6 KV |
|---|---|---|---|
| Rated Current | 30A | Insulation Material | Rubber |
| Type | LOW VOLTAGE | Application | Mining |
| Conductor Material | Copper | Jacket | Rubber |
| Size | Customized | Product Name | Flexible Coal Cutter Cable For Mining Equipment |
| Shape | Round Wire | Feature | Wear Resistance, Corrosion Resistance |
| Conductor | Tinned Copper | Insulation | EPR Rubber |
| Voltage | 0.66/1.14KV | Core | 3+3+1/3+4+1 Cores |
| Color | Yellow | Usage | Coal MIne,Undergroud |
| Cross Section | 1.5mm2/2.5mm2/4mm2/6mm2/10mm2/25mm2/35mm2 | ||
| Highlight | mining electrical cable,custom underground mining cable |
||
Product Description
0.66kV/1.14KV EPR Insulation Stranded Copper Flexible Durable Coal Mining Shearer Shielded Power Cable
0.66/1.14 kV Stranded Copper Conductor Fiber Optic Rubber Sheathed Cable for Mining Shearer Shielded Soft Power Cable Wire

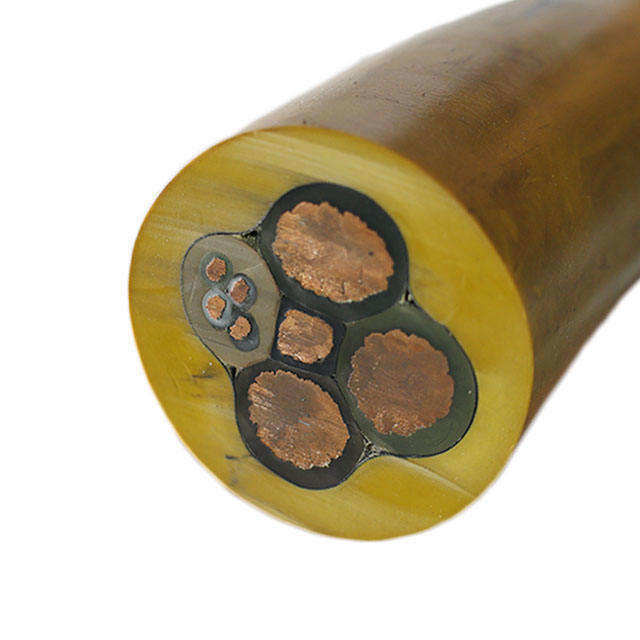

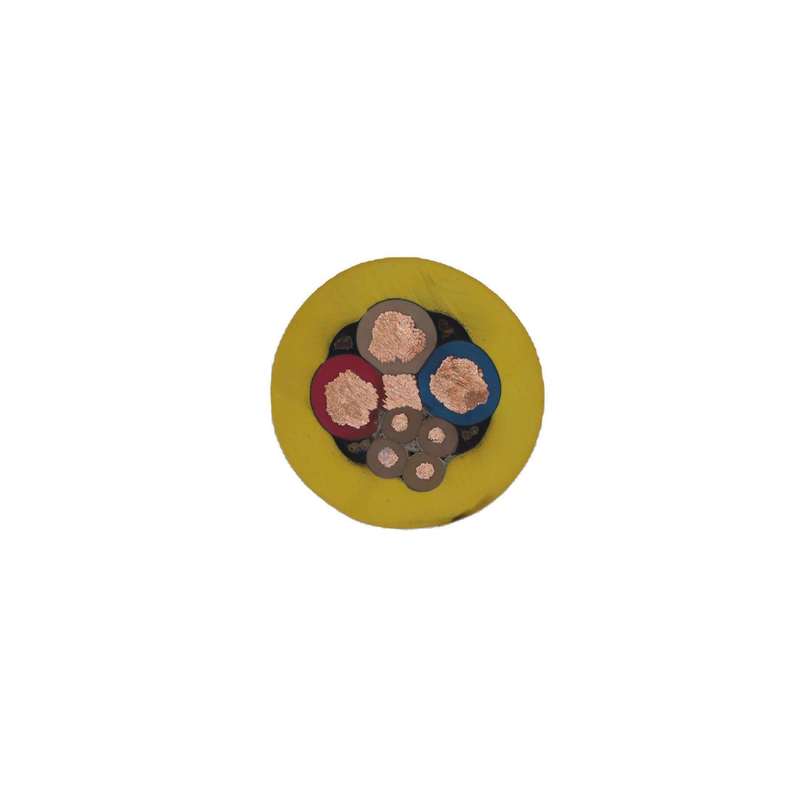

MCP mining rubber-sheathed cables are mainly used for power connection of mobile coal mining units and other equipment in underground coal mines. The cables are composed of twisted fine copper wires, EPR rubber insulation, metal shielding layer and rubber sheath. They have excellent flexibility and wear resistance, and can withstand frequent bending and twisting of the equipment.
Product Quick Details
- Conductor: Copper Core/Tinned Copper Core
- Insulation: EPR
- Sheath: Rubber
- Cores: 3+3+1, 3+4+1 Cores
- Voltage: 0.66/1.14KV
- Temperature Rating: conductor operation temperature -30°C to +70°C (90℃ max)
- Feature:Waterproof,Flexible,Explosion-proof,Oil-resistance,Corrosion-resistance
Product Features
- Special structure design for long service life, maximizing operational efficiency in underground coal mining
- Provides overall electrical control in suspension with longer length capability under mechanical stress
- Outer sheath is extensively resistant to oil and cooling liquid
- Excellent characteristics including oil resistance, wear resistance, bending resistance, flame retardant, tear resistance, corrosion resistance, flexibility and external force resistance
Quality Assurance
- Every production process has a special person to test to ensure quality
- Have professional engineers to check the quality
- All products have passed ISO9001, conform with IEC standards
Specifications
| Product Name | Flexible Mining Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | MCP |
| Conductor Material | Stranded Copper conductor |
| Insulation Material | EPR |
| Jacket | Rubber |
| Color | Yellow |
| Rated Voltage | 0.66/1.14KV; 0.38/0.66KV |
| Shape | Round |
| Feature | Inflaming retarding, tensile-resistance, flexible, soft, waterproof, explosion-proof |
