Waterproof Movable Mining Cable with Metal Shielding Layer for Coal Mining Equipment
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 90°C | Rated Voltage | 0.6 KV |
|---|---|---|---|
| Rated Current | 30A | Insulation Material | Rubber |
| Type | LOW VOLTAGE | Application | Mining |
| Conductor Material | Copper | Jacket | Rubber |
| Size | Customized | Product Name | Flexible Coal Cutter Cable For Mining Equipment |
| Shape | Round Wire | Feature | Wear Resistance, Corrosion Resistance |
| Conductor | Tinned Copper | Insulation | EPR Rubber |
| Voltage | 0.66/1.14KV | Core | 3+3+1/3+4+1 Cores |
| Color | Yellow | Usage | Coal MIne,Undergroud |
| Cross Section | 1.5mm2/2.5mm2/4mm2/6mm2/10mm2/25mm2/35mm2 | ||
| Highlight | mining electrical cable,custom underground mining cable |
||
Product Description

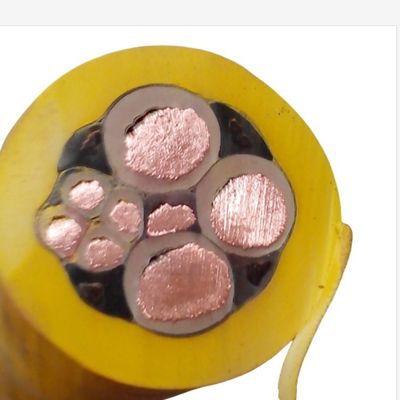

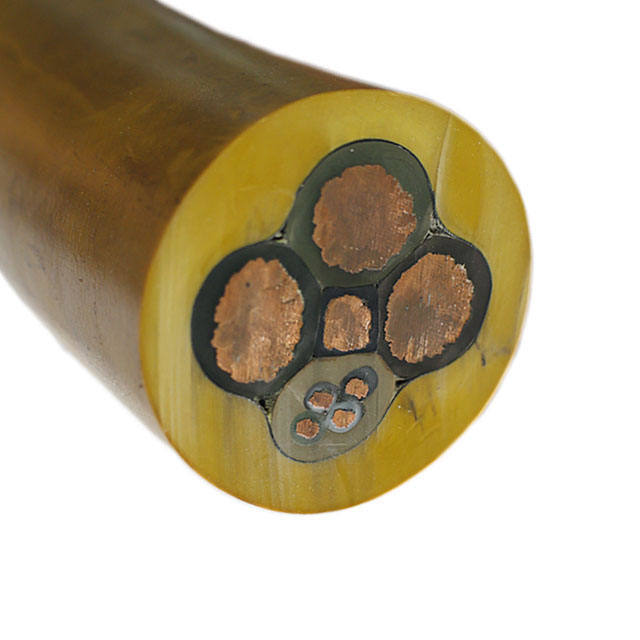

Waterproof Movable Coal Mining Cable With Metal Shielding Layer
0.66/1.14Kv Tinned Stranded Fine Copper Conductor Rubber Sheath and Insulation Power Cables designed specifically for mining applications. This MCP cable features excellent flexibility, wear resistance, and can withstand frequent bending and twisting in underground coal mining environments.
Key Features
- Conductor: Stranded Copper Core/Tinned Copper Core for flexibility and bending resistance
- Insulation: EPR (Ethylene Propylene Rubber) for durability
- Sheath: High-quality Rubber for protection
- Configuration: 3+3+1, 3+4+1 Cores available
- Voltage Rating: 0.66/1.14KV
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant
- Excellent electrical performance and superior mechanical properties

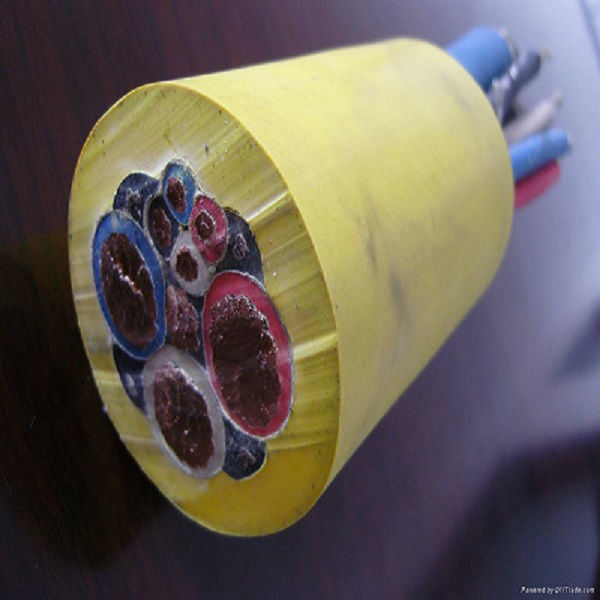

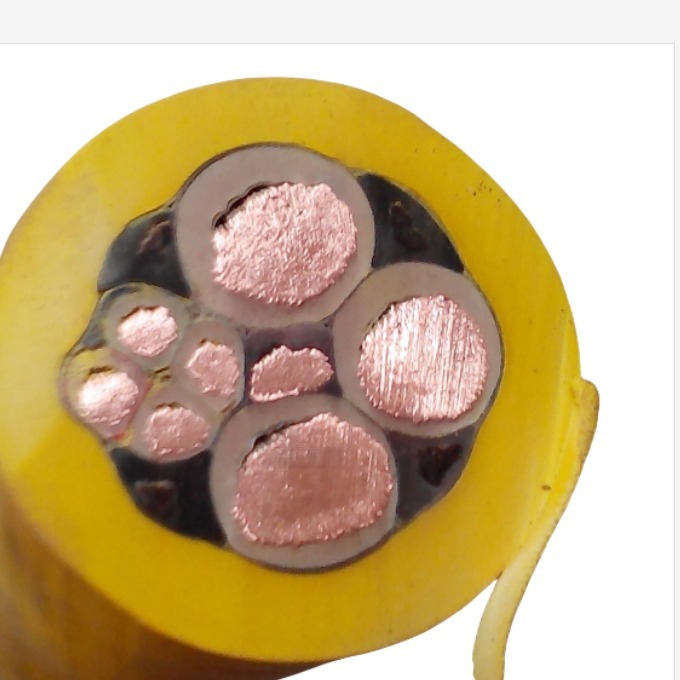

Cable Structure
- Conductor Layer: Multiple strands of soft copper wire for excellent flexibility
- Insulation Layer: Ethylene propylene rubber composite for high insulation resistance
- Shielding Layer: Metal braiding or copper strips for electromagnetic interference protection
- Filler Layer: High elastic rubber and aramid fibers for structural stability
- Sheath Layer: Chloroprene synthetic rubber for tear and wear resistance
Quality Assurance
- Strict quality control at every production stage
- Professional engineering oversight
- ISO9001 certified and IEC compliant
Technical Specifications
| Product Name | Flexible Mining Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | MCP |
| Conductor Material | Stranded Copper conductor |
| Insulation Material | EPR (Ethylene Propylene Rubber) |
| Jacket | Rubber |
| Color | Yellow |
| Rated Voltage | 0.66/1.14KV; 0.38/0.66KV |
| Shape | Round |
| Features | Flame retardant, tensile-resistant, flexible, soft, waterproof, explosion-proof |
About Chongqing Kefei Cable Group Co., Ltd.
With 40 years of expertise in rubber cable R&D and production, Chongqing Kefei Cable Group is a leading manufacturer specializing in mining cables, rubber sheath cables, and shield machine high voltage cables. Our flexible cable series benefits from over 20 years of technical refinement and can be customized to meet specific requirements.
Our Advantages
- Advanced manufacturing technology
- High quality design standards
- Comprehensive testing equipment
- Stringent quality control processes
- Mature production workflows
Production Equipment
Certifications

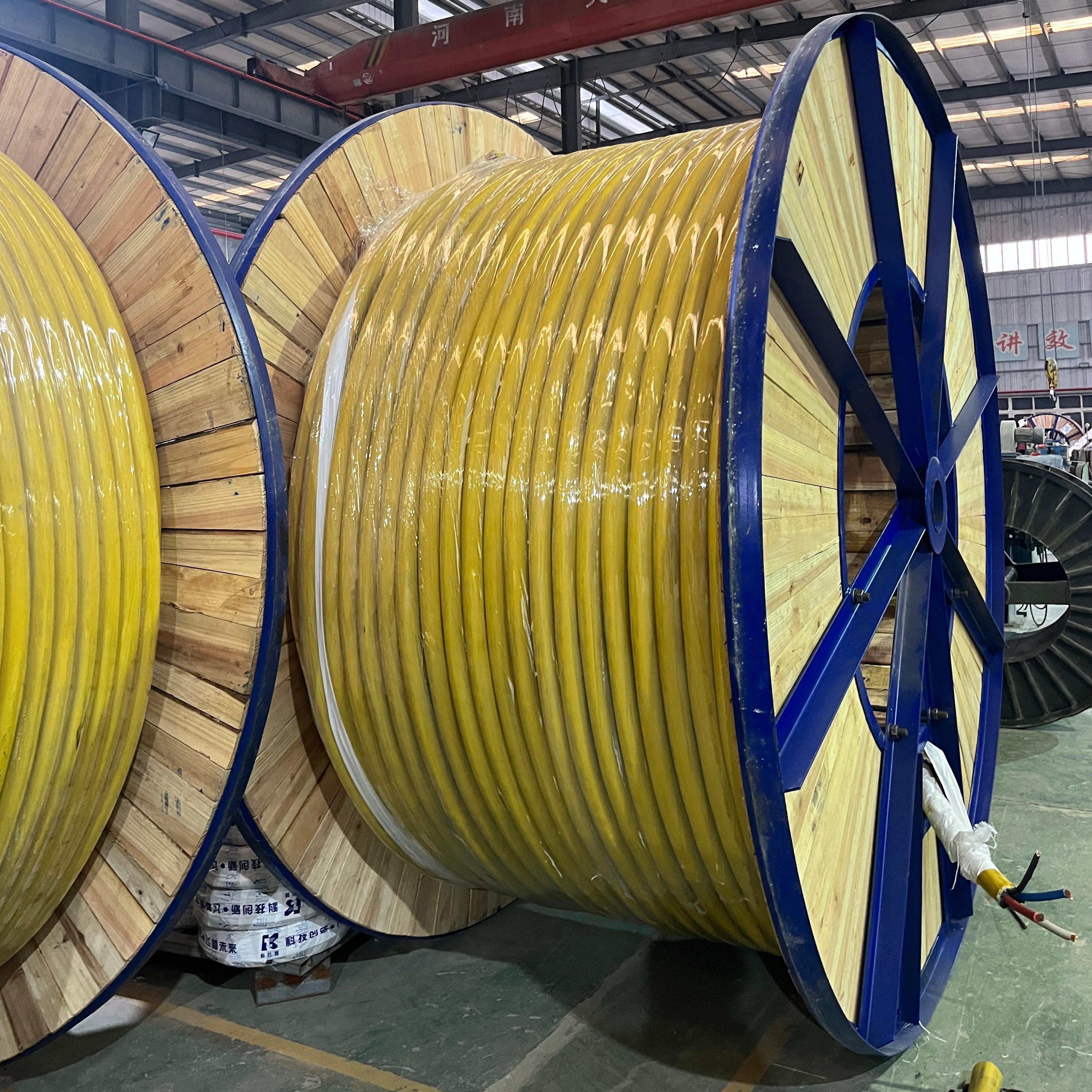

Packing & Delivery
We provide professional, environmentally friendly packaging to ensure the safe delivery of your products.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a production manufacturer focused on delivering the highest quality products.
We are a production manufacturer focused on delivering the highest quality products.
Can you produce according to customer requirements?
Yes, we offer customized solutions to meet your specific requirements.
Yes, we offer customized solutions to meet your specific requirements.
How do you guarantee quality?
We conduct pre-production sampling and final inspections before shipment.
We conduct pre-production sampling and final inspections before shipment.
How can I place an order?
Please provide detailed requirements for an immediate quote. For complex requests, contact us via Skype, email, or phone.
Please provide detailed requirements for an immediate quote. For complex requests, contact us via Skype, email, or phone.
