0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Ke Fei Te |
| Certification | MA/ISO9001 |
| Model Number | MYP |
| Minimum Order Quantity | 500 meters |
| Price | $1.99-108.30/meters |
| Packaging Details | wooden drum，wooden pallet，plastic pallet，woven bag |
| Delivery Time | 5-15days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,MoneyGram |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 0.66/1.14KV |
|---|---|---|---|
| Rated Current | Depends On The Thickness Of The Conductor | Insulation Material | Rubber |
| Type | LOW VOLTAGE | Application | Mining, Undergroud Coal Mine |
| Conductor Material | Copper | Jacket | Rubber |
| Size | Customized | Product Name | Rubber Mining Cable |
| Shape | Round Wire | Feature | Flame Retardant, Fire-resistance,wear-resistant,explosion-proof |
| Conductor | Tinned Copper | Insulation | Rubber Insulation |
| Sheath | Rubber Sheath | Rated Voltage | 0.38/0.66kv |
| Core | 3+1 | Package | Wooden Drum Package |
| Certificate | ISO9001/CCC/CE | ||
| Highlight | EPR Insulation Mining Electrical Cable,1.14KV Mining Electrical Cable,Explosion Proof mining power cable |
||
Product Description
0.66/1.14KV EPR Insulation Mining Power Cable for Underground Coal Mine Power Supply
0.66/1.14KV Stranded Copper Conductor EPR Insulation Rubber Sheathed Waterproof Underground Coal Mining Power Cable

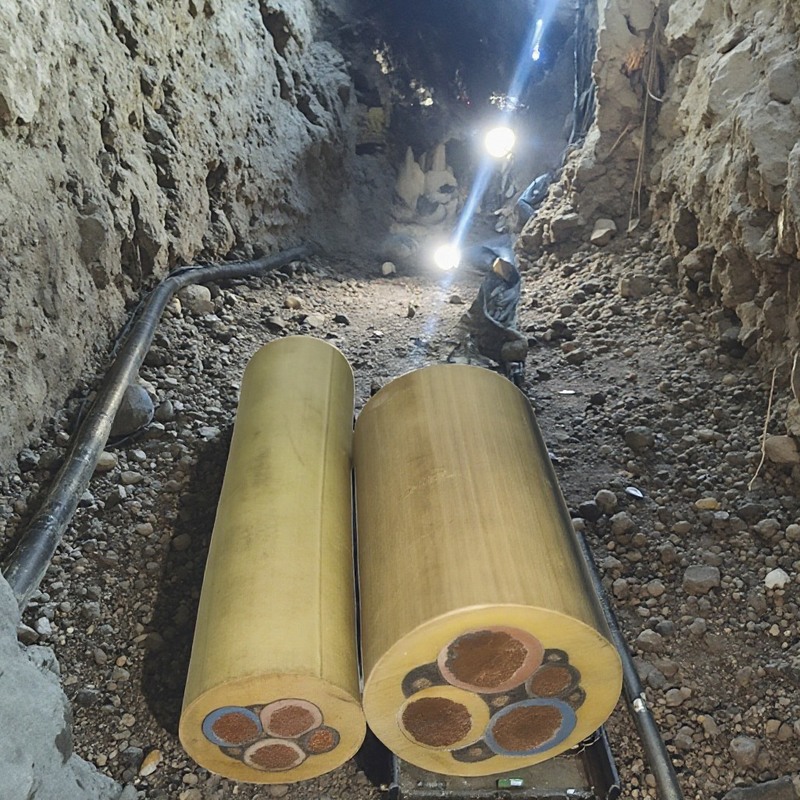

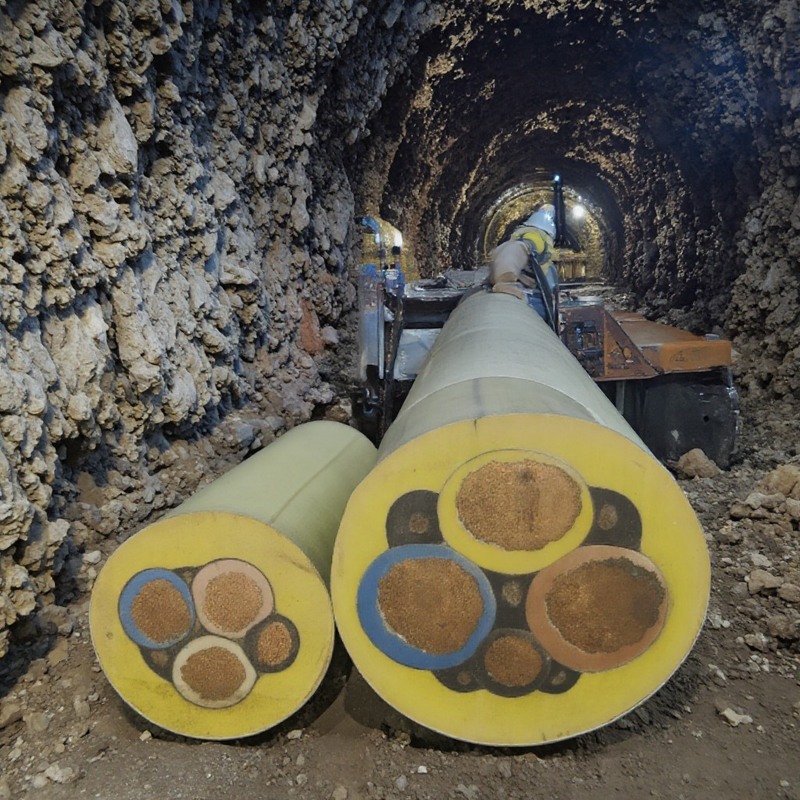

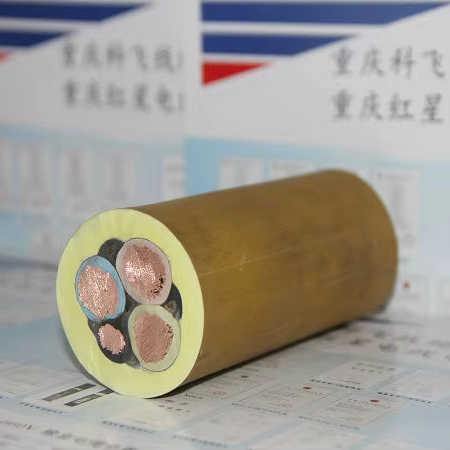

MYP cable is a type of mobile shielded rubber flexible cable specifically designed for use in the harsh underground environment of coal mines. It composed of a stranded copper core conductor, EPR insulation, a semiconductive tape insulation shielding layer and a rubber sheath. It features flexibility, water resistance, oil resistance, and explosion-proof properties, and is suitable for applications where frequent movement is required.
Product Quick Details
- Conductor: Stranded Copper Core/Tinned Copper Core, features flexibility and bending resistance
- Insulation: EPR (Ethylene Propylene Rubber) for durability
- Sheath: High-quality Rubber for protection
- Configuration: 3+1 Cores (3 power cores+1 earth cores)
- Voltage Rating: 0.66/1.14KV
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant
- Excellent electrical performance and superior mechanical properties
Flexible Non-metallic shield Coal Mining Rubber Cable
The MYP model cable is used for the power connection of various underground mobile mining equipment. This cable is made of stranded fine copper wire, rubber sheath and rubber insulation, so it's flexible and soft cable. It is for rated voltage Uo/U 0.38/0.66 used in coal mining machines installation equipment to connect power supply. It can be shifted as you like.
Operating Characteristics
- The rated power frequency voltage U0/U: 0.38/0.66KV, 0.66/1.14KV
- Permissible operating temperature: -35°C to 65°C
- The minimum bending radius is over 6 times of cable diameter
- The yellow sheath cable should not be exposed in the sun for long
Specification
| Product Name | Rubber Mining Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | MYP |
| Conductor Material | Copper |
| Insulation Material | Rubber |
| Jacket | Rubber |
| Color | Yellow/Black |
| Shape | Round wire |
| Feature | Flame retardant, fire-resistance, wear-resistant, explosion-proof, waterproof, oil resistance to acid and alkali resistant |
Company Profile
Chongqing Kefei Cable Group Co., Ltd.
Chongqing Kefei Cable Group Co., Ltd., focus on R & D and production of rubber cable for 40 years, it is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.
Chongqing Kefei Cable Group Co., Ltd., focus on R & D and production of rubber cable for 40 years, it is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.
Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer, We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
