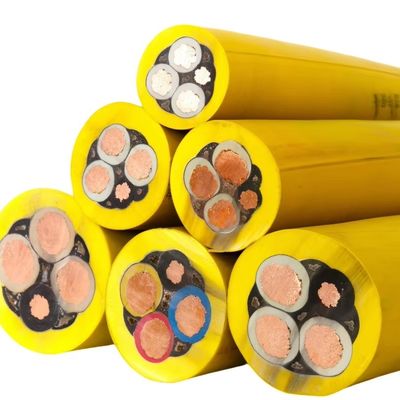

Heavy Duty Rubber Sheath Yellow Mining Cable For Underground Coal Mine Applications
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Ke Fei Te |
| Certification | MA/ISO9001 |
| Model Number | MYP |
| Minimum Order Quantity | 500 meters |
| Price | $1.99-108.30/meters |
| Packaging Details | wooden drum，wooden pallet，plastic pallet，woven bag |
| Delivery Time | 5-15days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,MoneyGram |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Voltage | 0.66/1.14KV,0.38/0.66KV |
|---|---|---|---|
| Rated Current | Depends On The Thickness Of The Conductor | Insulation Material | EPR Rubber |
| Type | LOW VOLTAGE | Application | Mining, Undergroud Coal Mine,underground |
| Conductor Material | Copper/Tinned Copper | Jacket | Rubber |
| Size | 2.5MM,6MM,10MM,25MM,35MM,50MM,95MM,120MM And So On | Product Name | Rubber Mining Cable |
| Shape | Round Wire | Feature | Flexible,small Bending Radius,flame Retardant, Fire-resistance,wear-resistant,explosion-proof |
| Conductor | Tinned Copper | Insulation | Rubber Insulation |
| Sheath | Rubber Sheath | Rated Voltage | 0.38/0.66kv,0.66/1.14kv |
| Core | 3+1 | Package | Wooden Drum Package,woven Bag,wooden Palllet |
| Certificate | ISO9001/CCC | ||
| Highlight | Heavy Duty Mining Cable,yellow Mining Cable,Heavy Duty mining wire |
||
Product Description
Heavy-Duty Copper/Tinned Copper Core Mining Power Cable for Coal Mining Equipment
0.66/1.14KV Stranded Copper Conductor EPR Insulation Rubber Sheathed Waterproof Underground Coal Mining Power Cable

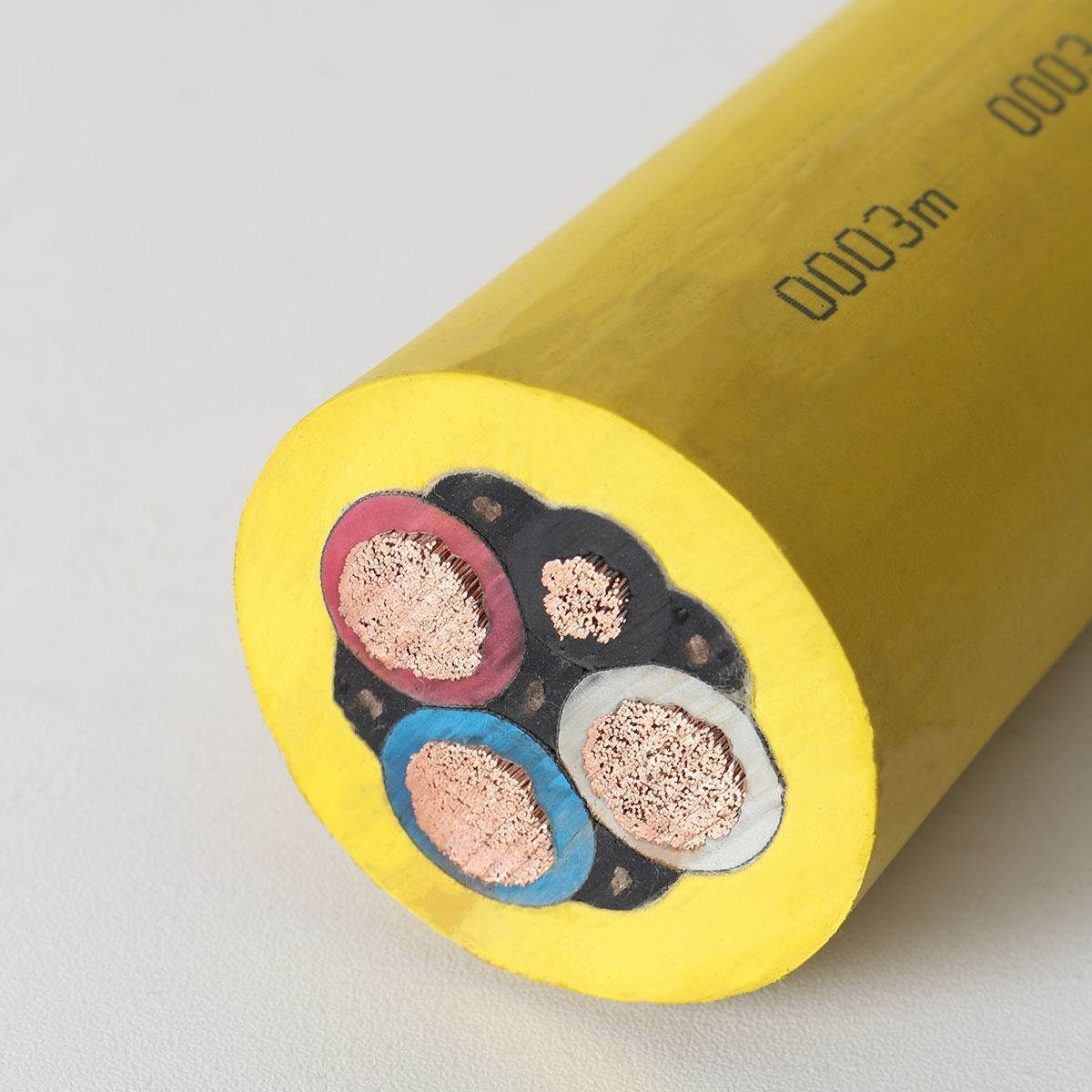

MYP cable is a mobile shielded rubber flexible cable specifically engineered for harsh underground coal mine environments. It features a stranded copper core conductor, EPR insulation, semiconductive tape insulation shielding layer, and durable rubber sheath. Designed for flexibility, water resistance, oil resistance, and explosion-proof applications where frequent movement is required.
Product Quick Details
- Conductor: Stranded Copper Core/Tinned Copper Core for flexibility and bending resistance
- Insulation: EPR (Ethylene Propylene Rubber) for maximum durability
- Sheath: High-quality Rubber for superior protection
- Configuration: 3+1 Cores (3 power cores + 1 earth core)
- Voltage Rating: 0.66/1.14KV
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant
- Excellent electrical performance and superior mechanical properties
Flexible Non-metallic Shield Coal Mining Rubber Cable
The MYP model cable is designed for power connections of underground mobile mining equipment. Constructed with stranded fine copper wire, rubber sheath, and rubber insulation for exceptional flexibility. Rated for voltage Uo/U 0.38/0.66KV, ideal for coal mining machine installations requiring frequent repositioning.
Operating Characteristics
- Rated power frequency voltage U0/U: 0.38/0.66KV, 0.66/1.14KV
- Permissible operating temperature: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Yellow sheath cable should not be exposed to prolonged sunlight
Specification
| Product Name | Rubber Mining Cable |
|---|---|
| Brand | Ke Fei Te |
| Model | MYP |
| Conductor Material | Copper |
| Insulation Material | Rubber |
| Jacket | Rubber |
| Color | Yellow/Black |
| Shape | Round wire |
| Feature | Flame retardant, fire-resistance, wear-resistant, explosion-proof, waterproof, oil resistance to acid and alkali resistant |
