ISO9001 Certified Anti Corrosion Flexible Rubber Cable For Underground Coal Mine

Heavy-Duty Copper/Tinned Copper Core Mining Power Cable for Coal Mining Equipment. 0.66/1.14KV Stranded Copper Conductor EPR Insulation Rubber Sheathed Waterproof Underground Coal Mining Power Cable.

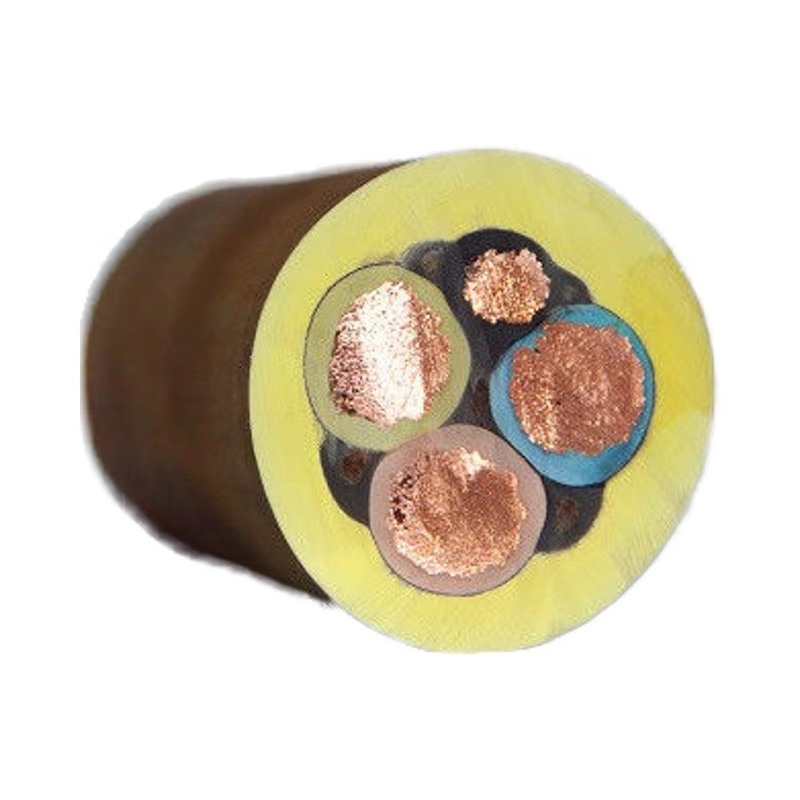

MYP cable is a mobile shielded rubber flexible cable specifically engineered for harsh underground coal mine environments. It features a stranded copper core conductor, EPR insulation, semiconductive tape insulation shielding layer, and durable rubber sheath. Designed for flexibility, water resistance, oil resistance, and explosion-proof applications where frequent movement is required.

• Conductor: Stranded Copper Core/Tinned Copper Core for flexibility and bending resistance
• Insulation: EPR (Ethylene Propylene Rubber) for maximum durability
• Sheath: High-quality Rubber for superior protection
• Configuration: 3+1 Cores (3 power cores + 1 earth core)
• Voltage Rating: 0.66/1.14KV
• Temperature Range: -30°C to +70°C (90℃ max)
• Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant
• Excellent electrical performance and superior mechanical properties

Flexible Non-metallic Shield Coal Mining Rubber Cable

The MYP model cable is designed for power connections of underground mobile mining equipment. Constructed with stranded fine copper wire, rubber sheath, and rubber insulation for exceptional flexibility. Rated for voltage Uo/U 0.38/0.66KV, ideal for coal mining machine installations requiring frequent repositioning.

• Rated power frequency voltage U0/U: 0.38/0.66KV, 0.66/1.14KV
• Permissible operating temperature: -35°C to 65°C
• Minimum bending radius exceeds 6 times cable diameter
• Yellow sheath cable should not be exposed to prolonged sunlight

• Every production process has a special person to test to ensure quality
• Have professional engineers to check the quality
• All products have passed MA, ISO9001 certifications

Chongqing Kefei Cable Group Co., Ltd. has specialized in R&D and production of rubber cables for 40 years. As a large-scale cable manufacturer, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability for custom cable solutions.

Our products serve global markets in coal mining, power stations, transportation and other industries, recognized for exceptional quality and comprehensive after-sales service.

• Advanced Technology
• High Quality Design
• Perfect Testing Equipment
• Strict Quality Control
• Mature Process Flow

We provide professional, environmentally friendly packaging services to ensure the safety of your goods during transportation.
