0.38KV/0.66KV Mining Electrical Cable Semiconductive Nylon Tape Shield Flexible
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Ke Fei Te |
| Certification | MA/ISO9001 |
| Model Number | MYP |
| Minimum Order Quantity | 100 meters |
| Price | $1.99-108.30/meters |
| Packaging Details | wooden drum，wooden pallet，plastic pallet，woven bag |
| Delivery Time | 5-15days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,MoneyGram |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 70°C | Rated Current | Depends On The Thickness Of The Conductor |
|---|---|---|---|
| Insulation Material | EPR Rubber | Type | LOW VOLTAGE |
| Application | Mining, Undergroud Coal Mine,underground | Conductor Material | Stranded Copper Wire /Tinned Copper Wire |
| Jacket | Rubber | Size | 2.5mm-300mm |
| Product Name | Rubber Mining Cable | Shape | Round Wire |
| Feature | Flame Retardant, Flexible,fire-resistance,wear-resistant,explosion-proof,waterproof,flexible | Conductor | Tinned Copper/Stranded Copper Conductor |
| Insulation | EPR Rubber | Sheath | Rubber |
| Rated Voltage | 0.38/0.66kv, 0.66/1.14kv，1.9/3.3KV | Core | 3 Power Cores+ 1 Earth Core |
| Package | Wooden Drum Package,plastic Pallet,woven Bag，wooden Pallet Or As Customers' Requirements | Certificate | ISO9001/MA |
| Highlight | 0.66KV Mining Electrical Cable,0.38KV Mining Electrical Cable,0.66KV Flexible Electrical Cable |
||
Product Description
0.38/0.66KV 0.66/1.14KV Durable and Flexible Heavy Duty Low Voltage Rubber Sheathed Copper Coal Mining Power Supply Cable Wire
0.66/1.14KV Pure Copper Core Rubber Sheath 3+1 Cores Mining Cable for Coal Mining Equipment in Harsh Environments

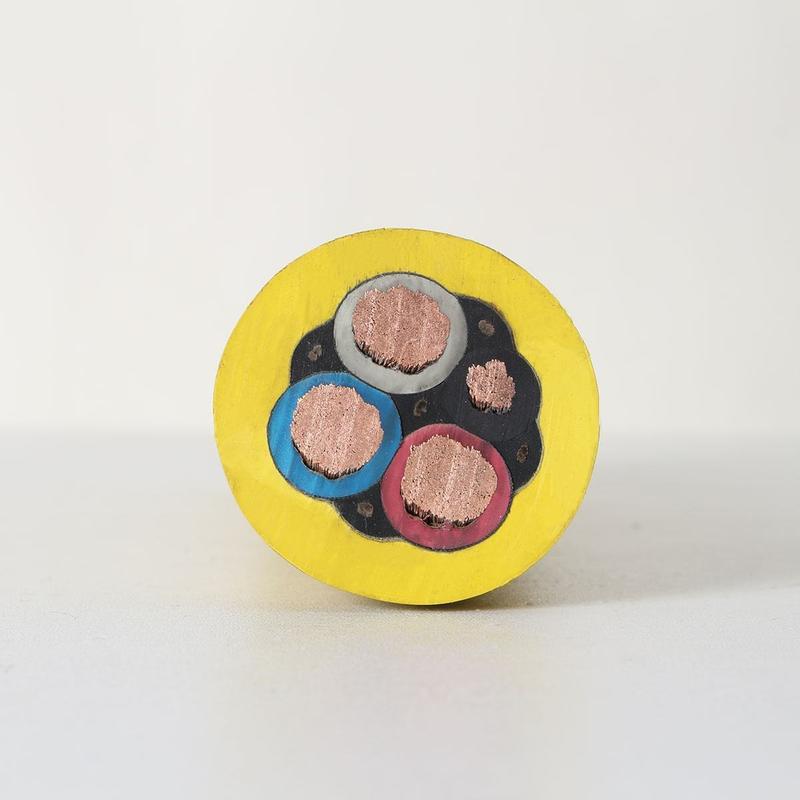

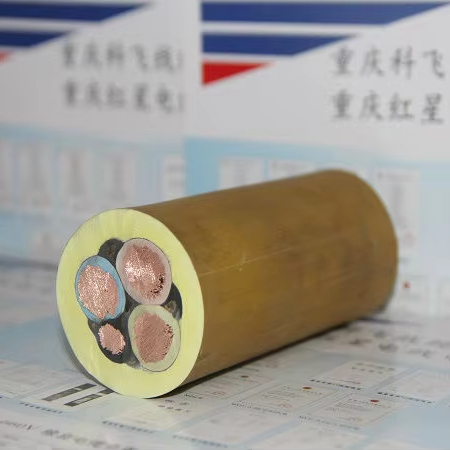

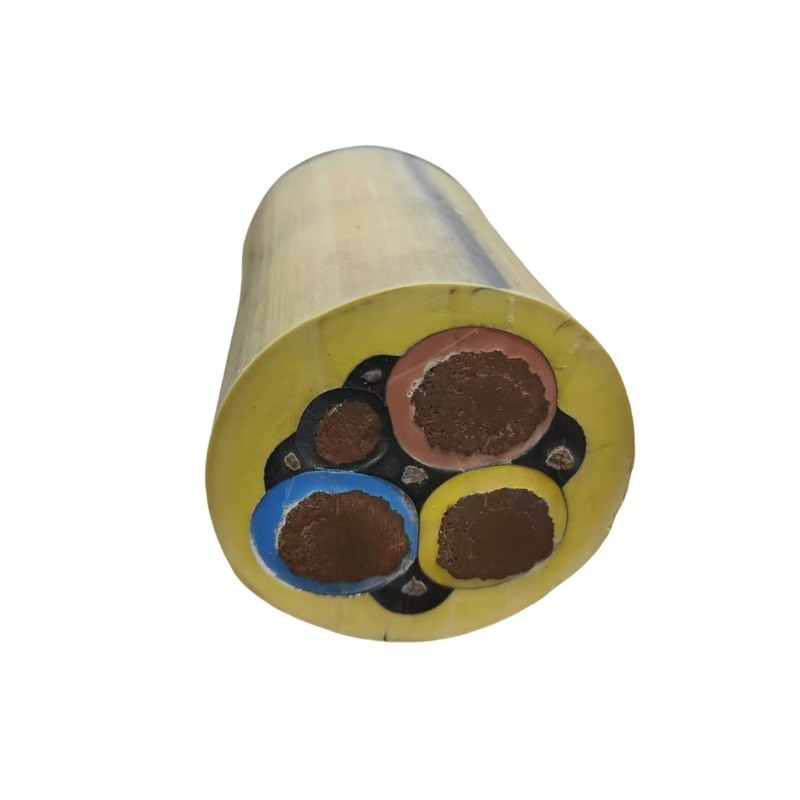

The MYP model cable is designed for power connections of underground mobile mining equipment. Constructed with stranded fine copper wire, rubber sheath, and rubber insulation for exceptional flexibility. Rated for voltage Uo/U 0.38/0.66KV, ideal for coal mining machine installations requiring frequent repositioning.
Product Quick Details
- Conductor: Stranded Copper Core/Tinned Copper Core for flexibility and bending resistance
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: Explosion-proof and waterproof rubber sheath
- Configuration: 3+1 Cores (3 power cores + 1 earth core)
- Voltage Rating: 0.66/1.14KV, 0.38/0.66KV
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant, wear-resistance, movable
- Having Excellent electrical performance and superior mechanical properties
- Rated power frequency voltage U0/U: 0.38/0.66KV, 0.66/1.14KV
- Permissible operating temperature: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Yellow sheath cable should not be exposed to prolonged sunlight
Performance Features
- Strong anti-interference ability: The shielding layer can effectively suppress electromagnetic interference
- Good safety performance: Using high-quality insulating materials and sheath materials, it has excellent flame-retardant properties, which can effectively prevent the spread of flames and the shielding layer can also play a certain role in grounding protection
- Outstanding mechanical performance: It can withstand the frequent dragging, stretching and bending of underground mobile equipment, and can effectively resist mechanical impact and environmental erosion

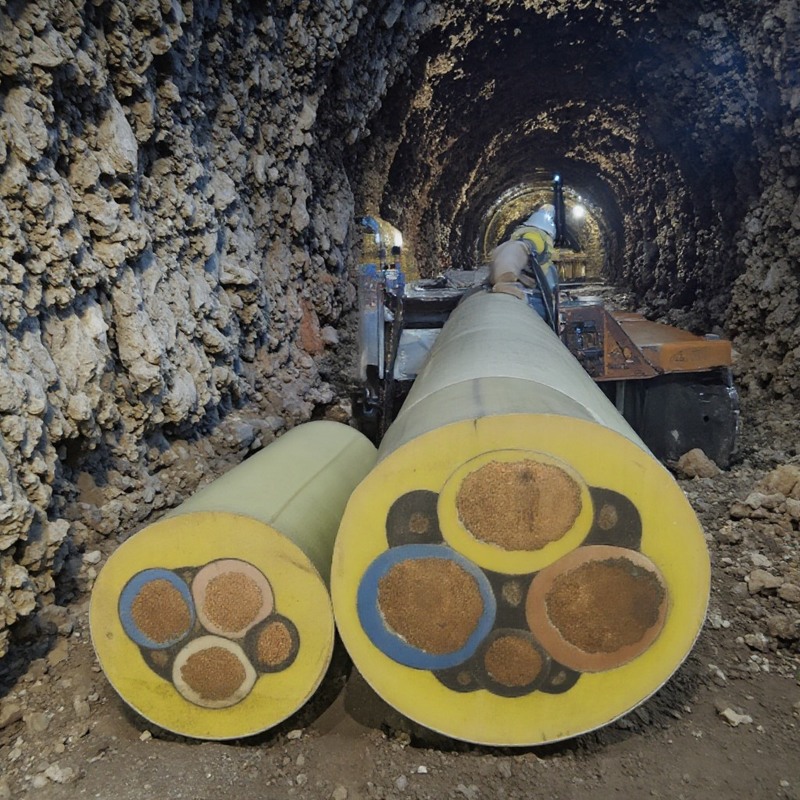

- Widely applicable: Suitable for power connections of mobile coal mining equipment, tunneling machines and other mobile equipment in coal mines, as well as in other mining scenarios such as metal and non-metal mines, and in similar harsh environments in fields such as petrochemicals and tunnel engineering
Quality Assurance
- Every production process has a special person to test to ensure quality
- Have professional engineers to check the quality
- All products have passed CCC, ISO9001, MA Certifications
Specification
| Rated Voltage | 0.38/0.66KV, 0.66/1.14kv |
|---|---|
| Product Name | Rubber Mining Power Cable |
| Brand | Ke Fei Te |
| Model | MYP |
| Conductor Material | Copper/Tinned Copper |
| Insulation Material | EPR |
| Jacket | Rubber |
| Color | Yellow/Black |
| Shape | Round wire |
| Feature | Flame retardant, fire-resistance, wear-resistant, explosion-proof, waterproof, oil resistance to acid and alkali resistant |
Company Profile
Chongqing Kefei Cable Group Co., Ltd. has specialized in R&D and production of rubber cables for 40 years. As a large-scale cable manufacturer, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability for custom cable solutions.
Our products serve global markets in coal mining, power stations, transportation and other industries, recognized for exceptional quality and comprehensive after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
We provide professional, environmentally friendly packaging services to ensure the safety of your goods during transportation.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer committed to producing only the highest quality products.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we offer complete customization services to meet your specific requirements.
Q: How can we guarantee quality?
A: We implement strict quality control including pre-production samples and final inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
