Name: Tensile Resistant Rubber Insulation Underground Mining Cable Electricity Transmission
Brand: Chongqing Kefei Cable Group Co., Ltd.
SKU: MYPTJ
Price: 25.87 USD
Availability: InStock

Home > Products > Mining Cable >

Tensile Resistant Rubber Insulation Underground Mining Cable Electricity Transmission

Rubber Insulation Underground Mining Cable

Tensile Resistant Underground Mining Cable

Electricity transmission mining power cable

Place of Origin:

CHONGQING

Brand Name:

KE FEI TE

Certification:

MA,ISO9001

Model Number:

MYPTJ

Chat Now

Request A Quote

Product Details

Product Name:

Flexible Mining Rubber Electrical Cable

Warranty:

1 Year

Customized Support:

OEM

Place Of Origin:

China,Chongqing

Brand Name:

KE FEI TE

Model Number:

MYPTJ

Type:

Coal Mining Rubber Cable

Feature:

Explosion-proof,oil Resistance,wear Resistance,waterproof,Flexible

Power Source:

Electrical Cable

Application:

Electricity Transmission For Mining

Packing:

Wooden Drum,wooden Pallet,plastic Pallet

MOQ:

100 Meters

Voltage:

6/10KV

Conductor:

Tinned Copper,Copper

Sheath:

Rubber

Insulation:

EPR

Highlight:

Rubber Insulation Underground Mining Cable

Tensile Resistant Underground Mining Cable

Electricity transmission mining power cable

Payment & Shipping Terms

Minimum Order Quantity

100 meters

Price

$20.87-32.35/meters

Packaging Details

wooden drum，wooden pallet,plastic pallet,woven bag

Delivery Time

4-12DAYS

Payment Terms

L/C,D/P,D/A,T/T,Western Union,MoneyGram

0.6kV Flexible Mining Power Cable Wear Resistance For Underground Coal Mining

Chat Now

video

Customized Size 3+1 Cores Rubber Sheath Mining Cable For Underground Power Supply

Chat Now

video

0.66KV/1.14KV 4 Cores Rubber Sheath Copper Core Cable Underground Mining Cable

Chat Now

video

0.66/1.14KV EPR Insulation Mining Power Cable Rubber Sheathed Water Resistance

Chat Now

+86 183 0235 8859

regina@cqkfxl.com

Chat Now

Product Description

Waterproof Oil and Wear Resistant Rubber Sheath Underground Coal Mining Power Supply Cable

High Voltage 6/10KV Copper/Tinned Copper Core Metal Sheath Cable

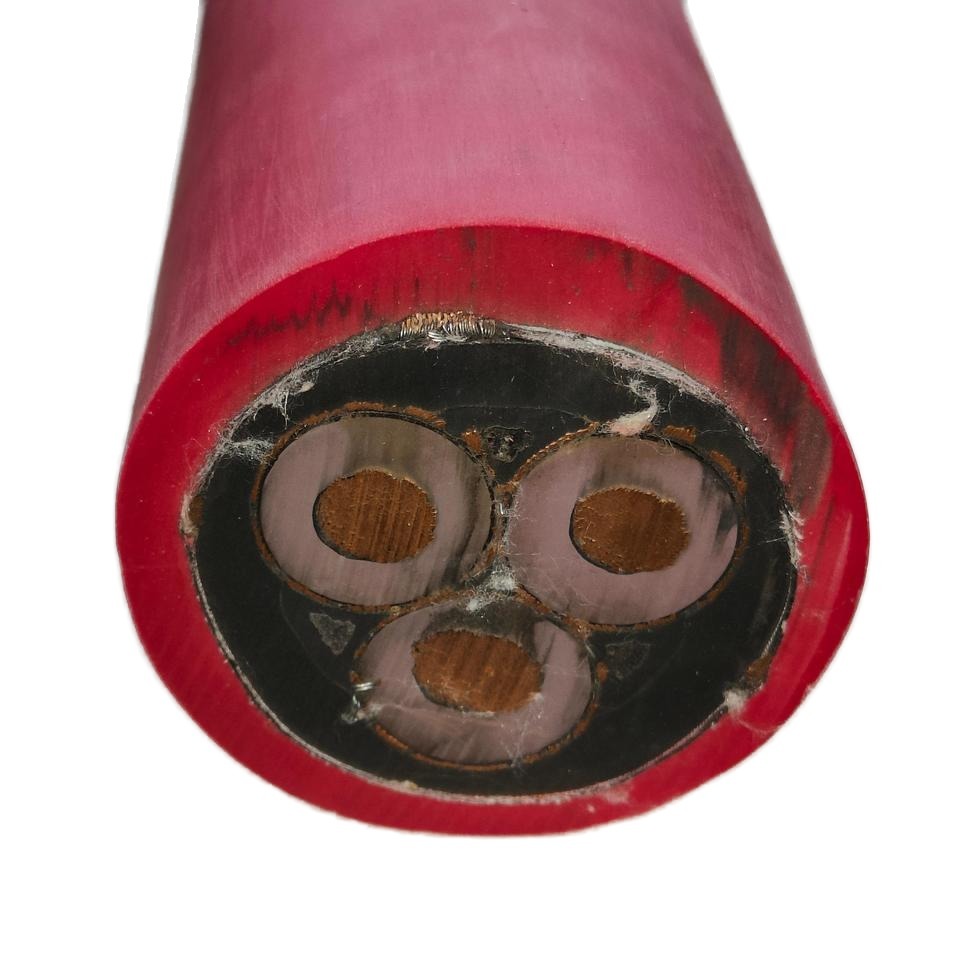

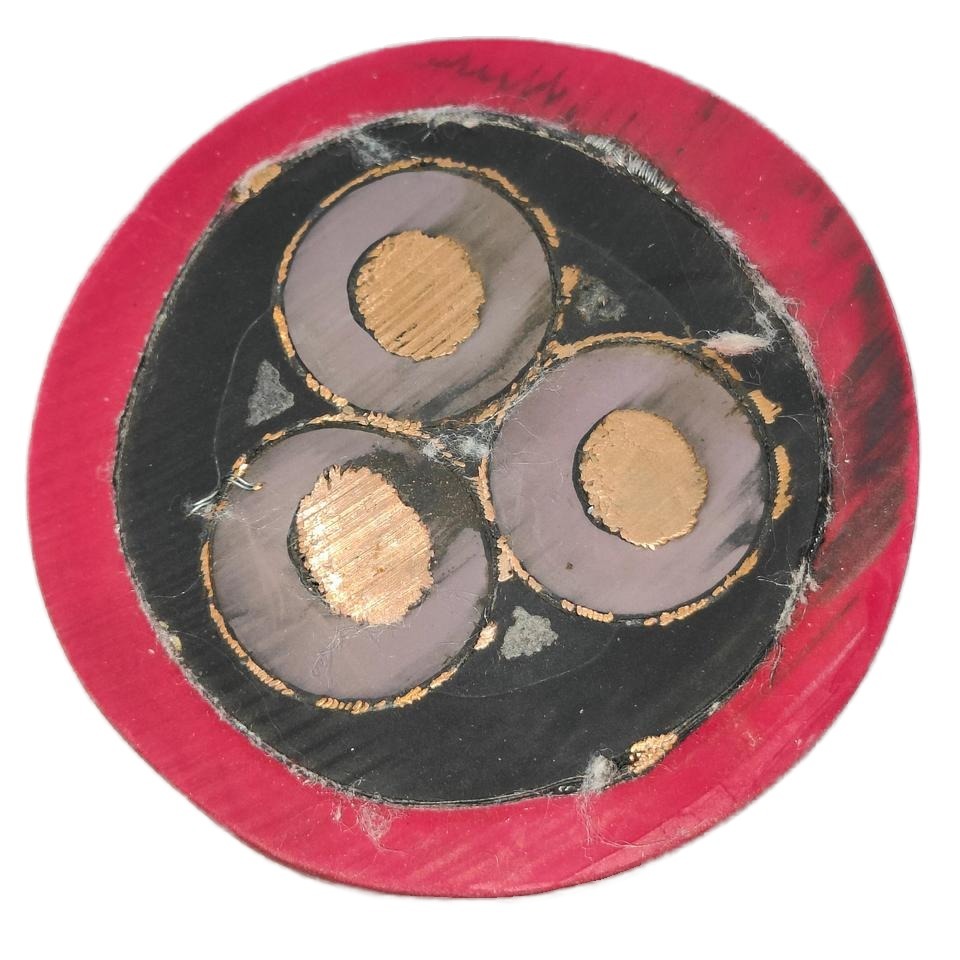

MYPTJ cable is composed of twisted tinned copper cores, rubber insulation, rubber sheathing, and metal shielding. This mobile metal shielded monitoring type rubber-coated flexible cable is designed for underground coal mines, primarily used for power transmission in mobile equipment underground.

Product Features

Rated power frequency voltage U0/U: 6/10Kv
Tinned soft copper conductor with excellent flexibility
High-performance rubber insulation
Flame retardant, wear-resistant, and oil-resistant rubber sheath
Operating temperature range: -35°C to 65°C
Minimum bending radius exceeds 6 times cable diameter
Maximum conductor temperature: 65°C
Tinned copper conductor prevents oxidation and improves conductivity
Features: High flexibility, waterproof, tensile resistant, explosion-proof, wear-resistant, oil-resistant, and corrosion-resistant
Metal shielding layer protects against electromagnetic interference and provides grounding protection

Technical Specifications

No	Item	Data
1	Insulation	EPR/EPDM
2	Sheath	Rubber
3	Voltage	6/10Kv
4	Conductor Operation Temperature	65℃
5	Shield	Metal shield
6	Conductor	Copper, Tinned Copper
7	Filler	Rubber
8	Feature	Cold Resistance, oil resistance, tensile resistance, waterproof, wear resistance

Applications

This cable is primarily used for power transmission between mobile substations or mobile transformers in underground coal mines and equipment at the working face. It connects mobile transformers, roadheaders, shearer loaders and other large equipment. Suitable for underground coal mines with flammable and explosive environments such as gas and coal dust.

Company Profile

Chongqing Kefei Cable Group Co., Ltd. specializes in R&D and production of rubber cable for 40 years. As a large cable manufacturing enterprise, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements. Our products are globally distributed and widely used in coal mines, power stations, and transportation sectors, recognized for excellent quality and after-sales service.

Our Advantages

Advanced Technology
High Quality Design
Perfect Testing Equipment
Strict Quality Control
Mature Process Flow

Production Equipment

Exhibition

Certification

Packing & Delivery

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.

Q: Can you produce and manufacture products according to customer requirements?

A: Yes, we can customize the product according to your requirements.

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q: How can i place an order?

A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
