Power Transmission Mining Cable With Anti Electromagnetic Interference Metal Shield
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Flexible Mining Rubber Electrical Cable | Warranty | 1 Year |
|---|---|---|---|
| Customized Support | OEM | Place Of Origin | China,Chongqing |
| Brand Name | KE FEI TE | Model Number | MYPTJ |
| Type | Coal Mining Rubber Cable | Feature | Explosion-proof,oil Resistance,wear Resistance,waterproof,Flexible, Anti-electromagnetic Interference |
| Power Source | Electrical Cable | Application | Electricity Transmission For Coal Mining |
| Packing | Wooden Drum,wooden Pallet,plastic Pallet,woven Bag | MOQ | 100 Meters |
| Voltage | 6/10KV,8.7/10KV | Conductor | Stranded Tinned Copper |
| Sheath | Rubber | Insulation | EPR |
| Highlight | Power Transmission Mining Cable,Power Transmission Mining wire,Anti Interference mining electrical cable |
||
Product Description
Anti-electromagnetic Interference Mental Shield Waterproof Rubber Sheath Tinned Copper Conductor Coal Mining Power Cable Underground Electric Wire
6/10KV 8.7/10KV UGEFP MYPTJ Coal Mine Strong Electric Cables

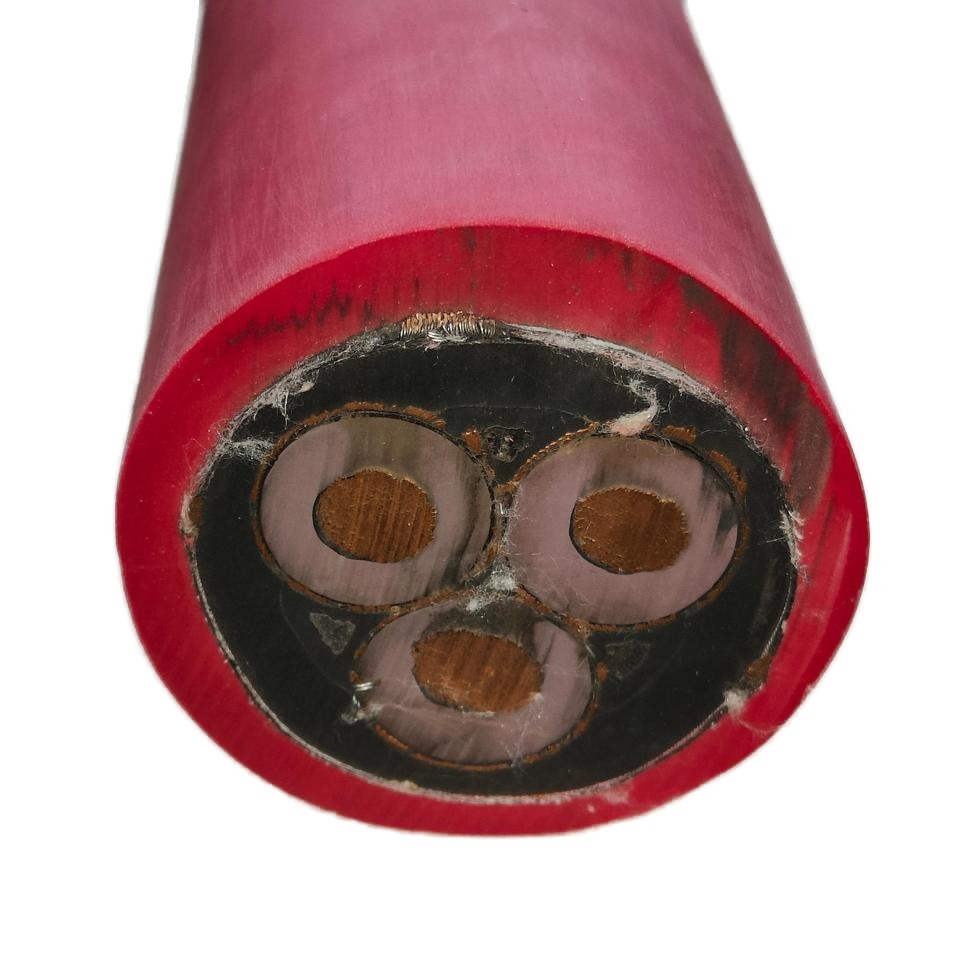

MYPTJ cable is composed of twisted tinned copper cores, rubber insulation, rubber sheathing, and metal shielding. This mobile metal shielded monitoring type rubber-coated flexible cable is designed for underground coal mines, primarily used for power transmission in mobile equipment underground.
Product Quick Details
- Rated power frequency voltage U0/U: 6/10KV, 8.7/10KV
- Tinned soft copper conductor with excellent flexibility
- High-performance rubber insulation
- Flame retardant, wear-resistant, and oil-resistant rubber sheath
- Operating temperature range: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Tinned copper conductor prevents oxidation and improves conductivity
- Flexible, waterproof, tensile resistant, explosion-proof, wear-resistant, oil-resistant,Anti-electromagnetic Interferenc and corrosion-resistant
- Metal shielding layer protects against electromagnetic interference and provides grounding protection
Technical Specifications
| No | Item | Data |
|---|---|---|
| 1 | Insulation | EPR/EPDM |
| 2 | Sheath | Rubber |
| 3 | Voltage | 6/10KV,8.7/10KV |
| 4 | Conductor Operation Temperature | -35℃~+65℃ |
| 5 | Shield | Metal shield |
| 6 | Conductor | Copper, Tinned Copper |
| 7 | Filler | Rubber |
| 8 | Feature | Cold Resistance, oil resistance, tensile resistance, waterproof, wear resistance |
Product Features
The cable employs tinned copper conductors. Tin exhibits greater chemical stability, and the tin coating acts as a protective layer, isolating the copper from contact with air, moisture, and corrosive media. This effectively prevents oxidation and corrosion of the copper, maintaining low resistance at conductor connection points. It ensures stable current transmission and avoids increased energy consumption or equipment failures caused by excessive contact resistance.
Applications
This cable is primarily used for power transmission between mobile substations or mobile transformers in underground coal mines and equipment at the working face. It connects mobile transformers, roadheaders, shearer loaders and other large equipment in underground coal mines with flammable and explosive environments such as gas and coal dust.
About Chongqing Kefei Cable Group Co.,ltd
Chongqing Kefei Cable Group Co., Ltd. specializes in R&D and production of rubber cable for 40 years. As a large enterprise specializing in cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables.
Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements. Our products are globally distributed and widely used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
