6/10KV High Voltage Flexible Cable Mining Wire Metal Shield Oil Resistance
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Flexible Mining Rubber Electrical Cable | Warranty | 1 Year |
|---|---|---|---|
| Customized Support | OEM | Place Of Origin | China,Chongqing |
| Brand Name | KE FEI TE | Model Number | MYPTJ |
| Type | Coal Mining Rubber Cable | Feature | Explosion-proof,oil Resistance,wear Resistance,waterproof,Flexible |
| Power Source | Electrical Cable | Application | Electricity Transmission For Mining |
| Packing | Wooden Drum,wooden Pallet,plastic Pallet | MOQ | 100 Meters |
| Voltage | 6/10KV | Conductor | Tinned Copper,Copper |
| Sheath | Rubber | Insulation | EPR |
| Highlight | Mining Wire Metal shield,10KV High Voltage Flexible Cable,oil resistance High Voltage Flexible Cable |
||
Product Description
High Voltage Metal-Shied Anti-electromagnetic Interference Wear Resistance Rubber Sheathed Tinned Copper Flexible Underground Coal Mines Cable Wire
High Voltage 6/10KV Copper/Tinned Copper Core Metal Sheath Cable.

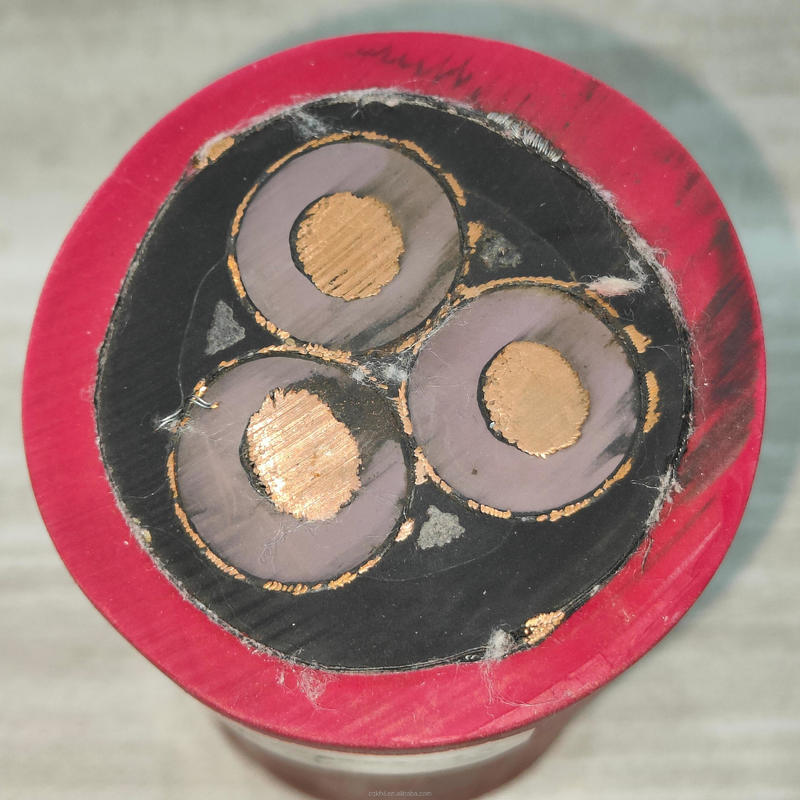

MYPTJ cable is composed of twisted tinned copper cores, rubber insulation, rubber sheathing, and metal shielding. This mobile metal shielded monitoring type rubber-coated flexible cable is designed for underground coal mines, primarily used for power transmission in mobile equipment underground. Capable of long-term stable operation in the humid, dusty, and corrosive gas environments of coal mine shafts, with a typical operating temperature range of -30°C to 65°C.
- Rated power frequency voltage U0/U: 6/10Kv,8.7/10KV
- Tinned soft copper conductor with excellent flexibility and stable electrical performance
- High-performance rubber insulation
- Corrosion Resistance, wear-resistant, oil-resistant and waterproof rubber sheath
- Rubber Filler
- Operating temperature range: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Maximum conductor temperature: 65°C
- Tinned copper conductor prevents oxidation and improves conductivity
- Features: Flexible, waterproof, tensile resistant, explosion-proof, wear-resistant, oil-resistant, and corrosion-resistant
- Metal shielding layer protects against electromagnetic interference and provides grounding protection
Technical Specifications
| No | Item | Data |
|---|---|---|
| 1 | Insulation | EPR/EPDM |
| 2 | Sheath | Rubber |
| 3 | Voltage | 6/10Kv,8.7/10KV |
| 4 | Conductor Operation Temperature | 65℃ |
| 5 | Shield | Metal shield |
| 6 | Conductor | Copper, Tinned Copper |
| 7 | Filler | Rubber |
| 8 | Feature | oil resistance, tensile resistance, waterproof, wear resistance,Flexible,waterproof |
Applications

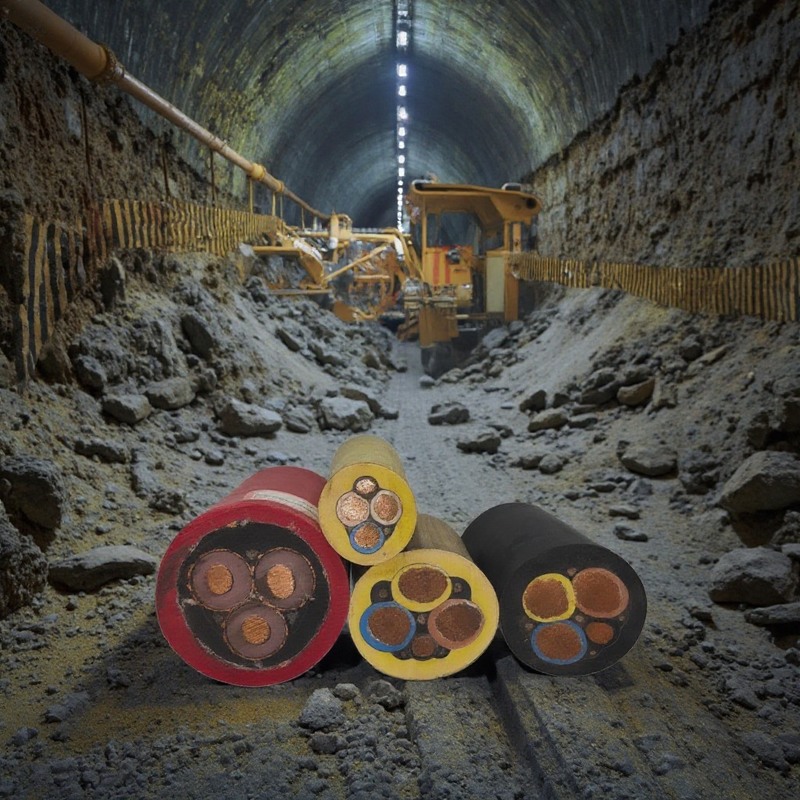

This cable is primarily used for power transmission between mobile substations or mobile transformers and working face equipment in coal mines, such as connecting mobile transformers, roadheaders, coal cutters, and other large machinery. Suitable for use in coal mine environments with flammable and explosive hazards like methane gas and coal dust, it is one of the critical cable types ensuring safe production in coal mines.
Product Features
This cable utilizes tinned copper conductors. The tin coating acts as a protective layer, isolating the copper from contact with air, moisture, and corrosive media. This effectively prevents oxidation and corrosion of the copper, maintaining low resistance at conductor connection points. It ensures stable current transmission, avoids increased energy consumption or equipment failures caused by excessive contact resistance, and delivers more stable electrical performance.
Company Profile
Chongqing Kefei Cable Group Co., Ltd. specializes in R&D and production of rubber cable for 40 years. As a large cable manufacturing enterprise, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements. Our products are globally distributed and widely used in coal mines, power stations, and transportation sectors, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
